Linar Measurement Systems

LS 486 ML 620 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 486 ML 770 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 486 ML 820 ID.-NR. 329990-24 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 820 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS: 3500 DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 920 ID.-NR. 310757-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 920 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 186 ML 440 ID.-NR. 336960-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 340 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 1140 ID.-NR. 329992-81 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1140 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 1240 ID.-NR. 329992-71 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1240 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:45 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS.45MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 1340 ID.-NR. 329992-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1340 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:45 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS. 45MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 403 ML 70 ID.-NR. 334755-81 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 70, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 35, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 486C ML 770 ID.-NR. 285835-62 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 770 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486C ML 1140 ID.-NR. 310873-31 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1140 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 501 ML 720 ID.-NR. 206681-NB HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 720, ACCURACY GRADE 10,0, FASTENING TYPE W MOUNTING BRACKET, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 720, ELECTRICAL CONNECTION 38S09 CONNECTOR MALE 9-PIN (METAL HOUSING) WITH ARMOR, CABLE LENGTH 4,5 M

LS 503 ML 170 ID.-NR. 216760-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 170, ACCURACY GRADE 10,0, FASTENING TYPE W MOUNTING BRACKET, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 85, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/ METAL ARMOR, CABLE LENGTH 3,00 M

LS 503 ML 520 ID.-NR. 216760-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520, ACCURACY GRADE 10,0, FASTENING TYPE W MOUNTING BRACKET, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 260, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 503D ML 520 ID.-NR. 217392-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520, ACURACY GRACE 10,0, FASTENING TYPE W MOUNTING BRACKET, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 260, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 510 ML 270 ID.-NR. 206682-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 270, ACCURACY GRADE 10,0, FASTENING TYPE W MOUNTING BRACKET, OUTPUT SIGNAL TTLX1 SQUARE-WAVE SIGNALS TTL LEVELS, REFERENCE MARK POSITION 135, ELECTRICAL CONNECTION 01 FREE CABLE END, CABLE LENGTH 3,00 M

LS 603 ML 220 ID.-NR. 336972-6K HEIDENHAIN INKREMENTALES GEKAPSELTES LÄNGENMESSGERÄT MIT GROSSPROFILIGEM MASSSTABGEHÄUSE MESSLÄNGE: 220 MM GENAUIGKEITSKLASSE: ± 10,0 µM; BEFESTIGUNGSART: MONTAGEWINKEL AUSGANGSSIGNAL: SINUSFÖRMIGE STROMSIGNALE (11 µASS) REFERENZMARKENLAGE: IN DER MITTE DER MESSLÄNGE; ELEKTRISCHER ANSCHLUSS: SEPARATES ADAPTERKABEL

LS 620 ML 270 HEIDENHAIN INCRMENTAL SEALED LINEAR ENCODER

LS 623 ML 1740 ID.-NR. 316560-41 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1740, ACCURACY GRADE 10,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL SQUARE-WAVE SIGNAL TTL LEVEL, FEFERENCE MARKS EVERY 50MM MOVABLE WITH SELECTOR MAGNET STARTING AT MIDPOINT OF MEASURING LENGTH, ELECTIRCAL CONNECTION 02S12 CONNECTOR MALE 12-PIN, CABLE LENGTH 3,00 M

LS 629 ML 270 ID.-NR. 643307-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDEWAY FOR BENDING MACHINES MEASURING LENGTH: 270 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCKS, RIGHT END BLOCK FLEXIBLE OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS REFERENCE MARK POSITION:ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 629 ML 620 ID.-NR. 344690-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDEWAY FOR BENDING MACHINES MEASURING LENGTH: 620 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCKS, RIGHT END BLOCK FLEXIBLE OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS REFERENCE MARK POSITION:ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 701 ML 320 ID.-NR. 203263-N0 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 320, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 320, ELECTRICAL CONNECTION 37S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 701 ML 420 ID.-NR. 203263-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 420, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDL CURRENT SIGNALS, REFERENCE MARK POSITION 210, ELECTRICAL CONNECTION 37S09 CONNECTOR MALE 9-PIN (METAL HOUSING), CABLE LENGTH 3,00 M

LS 486C ML 570 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 703 ML 170 ID.-NR. 216750-01 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 170, ACCURACY GRADE 5,0, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 85, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 703 ML 370 ID.-NR. 336976-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH: 370 MM, ACCURACY GRADE: +/- 0,003 MM, FASTENING TYPE R RIGHT END BLOCK FLEXIBEL, OUTPUT SIGNALS: SINUSOIDAL (11 UASS), REFERENCE MARKS: ONE REFERENCE MARK AT MID- POINT OF MEASURING LENGTH MOVEABLE BY 50 MM STEPS, ELECTRICAL CONNECTION: VIA ADAPTER CABLE

LS 703 ML 420 ID.-NR. 216750-F8 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 420, ACCURACY GRADE 3,0, FASTENING TYPE F RIGID END BLOCKS, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 210, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 703 ML 520 ID.-NR. 216750-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520, ACCURACY GRADE 5,0, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 260, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 703 ML 720 ID.-NR. 216750-BF HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 720, ACCURACY GRADE 5,0, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS (11µAPP), REFERENCE MARK POSITION 360, ELECTRICAL CONNECTION 34S09 FLANGE SOCKET MALE 9-PIN ON CONNECTION FIXTURE, CABLE LENGTH 0,30 M

LS 703 ML 1240 ID.-NR. 336976-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1240, ACCURACY GRADE 5,0, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 620, ELECTRICAL CONNECTION 55S08 SEPARATES ADAPTER CABLE

LS 486C ML 270 ID.-NR. 329991-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 704C ML 920 ID.-NR. 237134-84 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 920, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNAL, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 55S08 EPARATE ADAPTER CABLE

LS 706 ML 1440 ID.-NR. 336965-30 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MESSLÄNGE 1440, GENAUIGKEITSKLASSE 5,0, AUSGANGSSIGNAL 11µASS SINUSFÖRMIGE STROMSIGNALE, REFERENZMARKENLAGE 720, ELEKTRISCHER ANSCHLUSS 52S12 SEPARATES ADAPTERKABEL

LS 706 ML 620 ID.-NR. 336965-50 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 620, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 310, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 706 ML 2640 ID.-NR. 336965-38 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 2640, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL, REFERENCE MARK POSITION 1320, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 186C ML 2440 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 706C ML 620 ID.-NR. 277505-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 620, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 706C ML 920 ID.-NR. 277505-25 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 920, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 52S12 SEPARATES ADAPTER CABEL

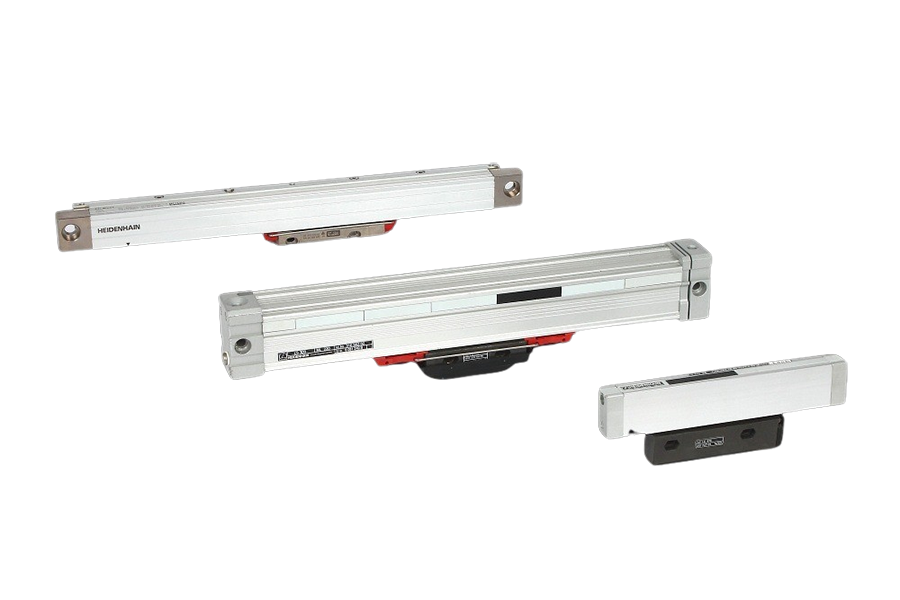

LB 326 ML 1800 ID.-NR. 222364-05 HEIDENHAIN SCALE TAPE FOR LB 326 LENGTH 1800 MM

LS 786C ML 570 ID.-NR. 295708-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 570, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 1VPP SINUSOIDAL VOLTAGE SIGNALS, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 603 ML 220 ID.-NR. 336972-35 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 220 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: MOUNTING BRACKET OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: CONNECTOR MALE 9-PIN WITH ARMOR, CABLE LENGTH 3,00 M

LS 803 ML 170 ID.-NR. 204418-2W HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 100 MM,  ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN (BLANK) WITH ARMOR, CABLE LENGTH: 3.00 M

LS 403 ML 770 ID.-NR. 226520-C4 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 770, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11 µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 85, ELECTRICAL CONNECTION 34S09 FLANGE SOCKET MALE 9-PIN, ON CONNECTION FIXTURE, CABLE LENGTH 0,30 M

LS 803 ML 370 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 603C ML 320 ID.-NR. 336973-72 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 320 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: MOUNTING BRACKET OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 186C ML 740 ID.-NR. 295714-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 801 ML 720 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 803 ML 720 ID.-NR. 204418-8H HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 650 MM,  ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN (BLANK) WITH ARMOR, CABLE LENGTH: 3.00 M

LS 803 ML 770 ID.-NR. 204418-AW HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 770 MM ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:385 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN (BLANK) WITH ARMOR, CABLE LENGTH: 3.00 M

LS 803 ML 820 ID.-NR. 204418-96 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 820 MM ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 750 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE 9-PIN (BLANK), CABLE LENGTH: 3.00 M
