LS 403 ML 420 ID.-NR. 334755-50 HEIDENHAIN SEALED LINEAR ENCODER OUTPUT SIGNALS: SINUSOIDAL POWER SIGNALS (11 µASS) ELECTRICAL CONNECTION: CABLE 0,30 M WITH FLANGE SOCKET ON CONNECTION FIXTURE ACCURACY: +/- 0,005 MM MEASURING LENGTH: 420 MM

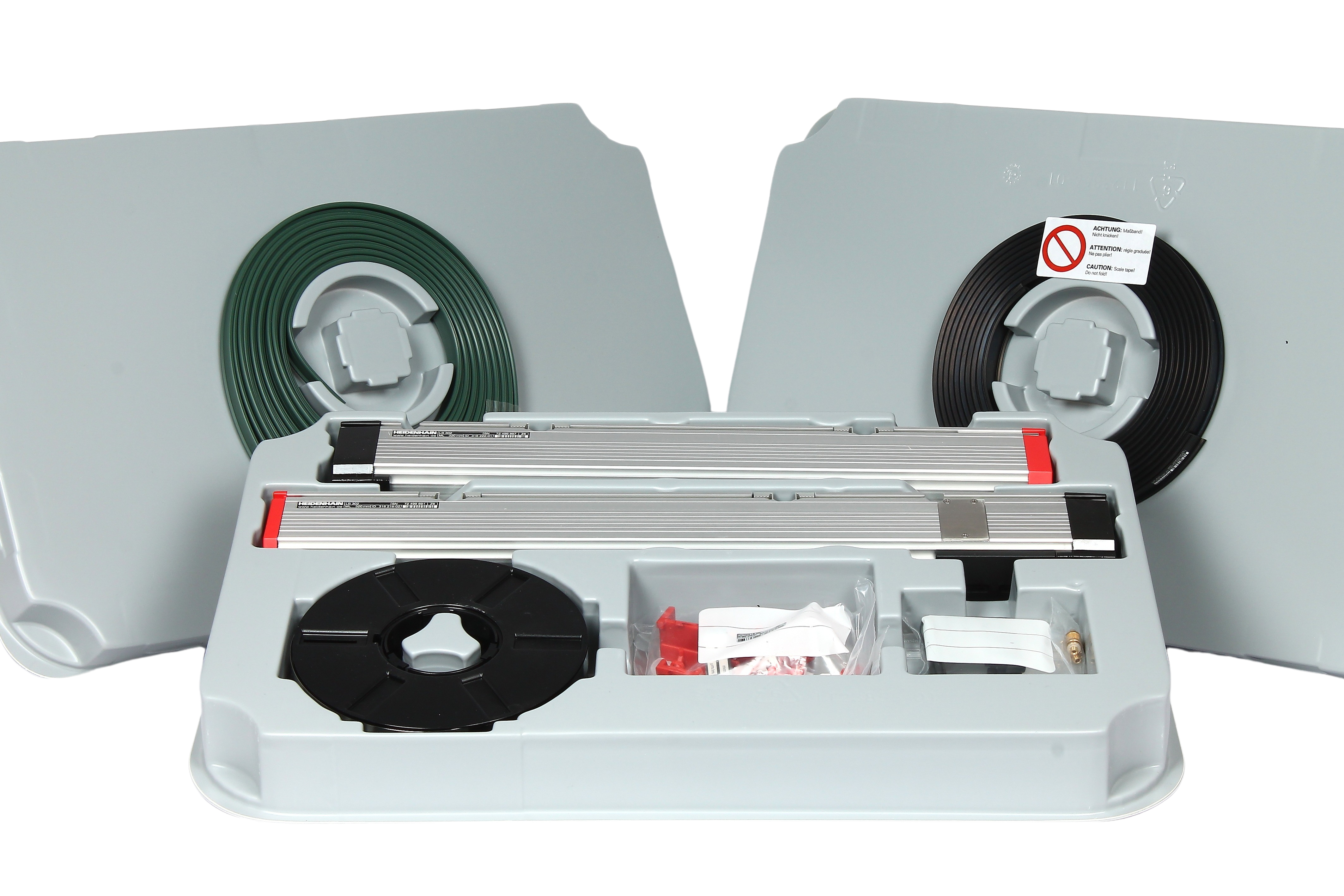

LB 302 ML 3440 ID.-NR. 315421-02 HEIDENHAIN PARTS KIT LB 302 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF: 1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING, LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS, MEASURING LENGTH: 3440 MM, ACCURACY GRADE: ± 5.0 µM, REFERENCE MARK: SELECTABLE BY MAGNET, REFERENCE MARK POSITION: EVERY 50 MM, STARTING AT 20 MM FROM BEGINNING OF THE MEASURING LENGTH

LB 302 ML 6440 ID.-NR. 315421-17 HEIDENHAIN PARTS KIT LB 302 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF: 1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING, LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS MEASURING LENGTH: 6440 MM, ACCURACY GRADE: ± 5.0 µM, REFERENCE MARK: SELECTABLE BY MAGNET, REFERENCE MARK POSITION: EVERY 50 MM, STARTING AT 20 MM FROM BEGINNING OF THE MEASURING LENGTH

LS 486 ML 720 ID.-NR. 310757-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 720 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487 ML 720 ID.-NR. 572250-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 720 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 803 ML 520 ID.-NR. 204418-EC HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LC 483 ML 1020 ID.-NR. 557649-43 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1020 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 3240 ID.-NR. 689698-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 3240 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 1020 ID.-NR. 689680-43 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 1020 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE: DUAL, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 420 ID.-NR. 572251-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM TOTAL LENGTH: ML+105 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH FURTHER REFERENCE MARKS:35 MM DISTANCE FROM END OF MEASURING LENGTH ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187 ML 1640 ID.-NR. 526971-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LC 485 ML 1240 ID.-NR. 689680-21 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1240 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR  END BLOCK: 12A OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 388C ML 170 ID.-NR. 516270-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM ACCURACY GRADE: ± 10.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 3040 ID.-NR. 689697-48 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 3040 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 803 ML 420 ID.-NR. 204418-2P HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM, ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 350 MM, ELECTRICAL CONNECTION: CONNECTOR M23, METAL HOUSING, ARMORED, MALE, 9-PIN, CABLE LENGTH: 3.00 M

LC 485 ML 1240 ID.-NR. 689681-86 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1240 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 14A OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 406 ML 270 ID.-NR. 329982-0N HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 187 ML 1740 ID.-NR. 526971-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1740 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE,14-PIN

LS 187C ML 1540 ID.-NR. 527392-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1540 MM ACCURACY GRADE: ± 3.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD POWER SUPPLY: 5V+-5% ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

 LC 185 ML 1640 ID-NR. 689697-16 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1640 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 720 ID.-NR. 760938-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE,14-PIN

LS 406C ML 620 ID.-NR. 329983-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 620 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 920 ID.-NR. 310750-24 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 920 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 303 ML 320 ID.-NR. 228975-08 HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020MM, ACCURACY GRADE +/- 0,010MM, REFERENZMARK AT Z= 35MM, Z1= 250MM, CABLE LENGTH 3,00M, WITH CONNECTOR WITH ARMOR, MEASURING LENGTH 320MM

LS 388C ML 820 ID.-NR. 516270-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 820 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LS 388C ML 370 ID.-NR. 516270-07 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 370 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 320 ID.-NR. 572251-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 320 MM; TOTAL LENGTH: ML+105 MM; ACCURACY GRADE: ± 5.0 µM; FASTENING TYPE: END BLOCK + MOUNTING SPAR; OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP); REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS:35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE,  14-PIN

LS 487 ML 1020 ID.-NR. 572251-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 1020 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 486 ML 220 ID.-NR. 329992-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 220 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 485 ML 120 ID.-NR. 689683-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 120 MM ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 20.000 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 388 C ML 320 ID.-NR. 516270-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 320 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, FURTHER REFERENCE MARKS:NONE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 388 C ML 1020 ID.-NR. 516270-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 1020 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, FURTHER REFERENCE MARKS:NONE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 493F ML 570 ID.-NR. 557644-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 570 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, DATA INTERFACE: FANUC02 SERIAL INTERFACE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 183 ML 340 ID.-NR. 557680-03  HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 340 MM, ACCURACY GRADE: 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 803 ML 620 CODE-NR. 009R07F HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 620 MM

LS 803 ML 320 ID.-NR. 204418-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 320 MM, ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION: 160 MM, REFERENCE MARK POSITION 2: 0 MM, ELECTRICAL CONNECTION: CONNECTOR M23, METAL HOUSING, MALE, 9-PIN, CABLE LENGTH: 3.00 M

LS 406 ML 120 ID.-NR. 329982-58 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 120 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS: 35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487C ML 70 ID.-NR. 572249-01 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 70 MM ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 20.000 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) POWER SUPPLY: 5 V (+-5 %) ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 2040 ID.-NR. 689681-27 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 2040 MM ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 20.000 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 14A OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS POWER SUPPLY: 3.6 V ... 14 V ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2040 ID.-NR. 526974-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 2040 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, POWER SUPPLY: 5V+-5%, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 370 ID.-NR. 572250-07 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 370 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH FURTHER REFERENCE MARKS:35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH POWER SUPPLY: 5 V (+-5 %) ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 840 ID.-NR. 689701-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 840 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 1840 ID.-NR. 689701-67 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1840 MM ACCURACY GRADE: 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 403 ML 270 ID.-NR. 334755-HG HEIIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH: 270 MM, POWER SUPPLY: +5 V, OUTPUT SIGNALS: SINUSOIDAL POWER SIGNALS (11 µASS), SIGNAL PERIOD: 0,020 MM, REFERENCE MARK: Z=35MM, Z1=200MM, ELECTRICAL CONNECTION: CABLE 4 M WITH CONNECTOR WITHOUT ARMOR, ACCURACY: +/- 0,003 MM

LC 485 ML 1440 ID.-NR. 689684-35 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1440 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 420 ID.-NR. 760932-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM TOTAL LENGTH: ML+138 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A OUTPUT SIGNAL: NO SPECIFIED VALUE OUTPUT CODE: DUAL DATA INTERFACE: FANUC05 SERIAL INTERFACE ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 1040 ID.-NR. 760907-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1040 MM ACCURACY GRADE: 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED DATA INTERFACE: FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 1240 ID.-NR. 572249-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1240 MM TOTAL LENGTH: ML+105 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD POWER SUPPLY: 5 V (+-5 %) ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 720 ID.-NR. 760932-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14 PIN

LC 495F ML 1240 ID.-NR. 760930-21 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 1240 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN
