Linar Measurement Systems

LS 187 ML 1140 ID.-NR. 527389-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1140 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 703 ML 920 ID.-NR. 336976-8H HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 920

LS 106C ML 340 ID.-NR. 336961-39 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 340 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LF 185 ML 640 ID.-NR. 682442-32 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 640 MM, ACCURACY GRADE ±2.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

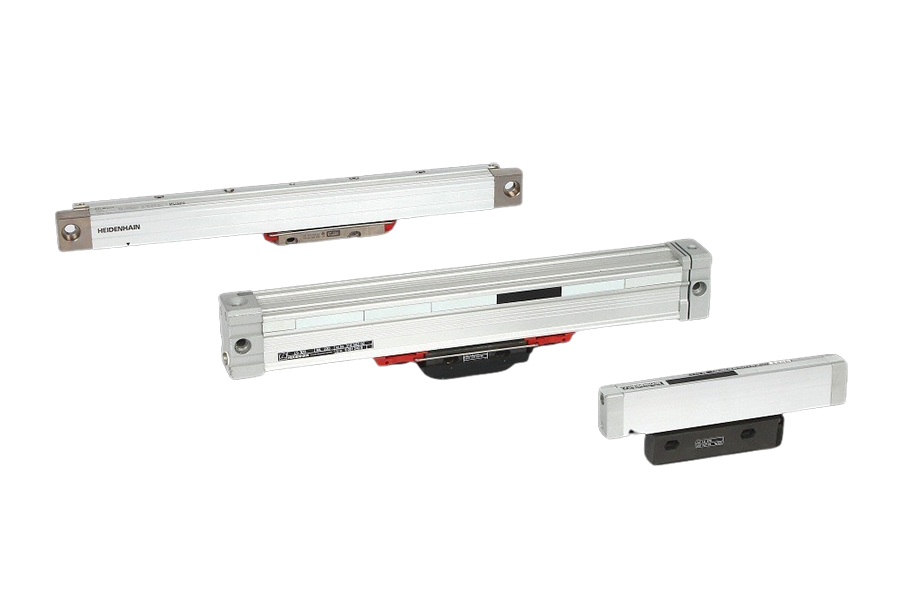

LS 303 ML 170 ID.-NR. 295790-64 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 170 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH 3.00 M

LS 501 ML 720 ID.-NR. 206681-19 HEIDENHAIN MESSLAENGE 720MM, GENAUIGKEITSKLASSE +/-0,010MM, LAGE DER REFERENZMARKE Z= 360MM

LS 406 ML 920 ID.-NR. 329982-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 920 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS FURTHER REFERENCE MARKS: 35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 192F ML 740 ID.-NR. 387089-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH SERIAL INTERFACE, MEASURING LENGTH 740 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE FANUC01 SERIAL INTERFACE

LS 383C ML 120 ID.-NR. 1326653-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 120 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCKS FOR M4 MOUNTING SCREWS, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION D-SUB CONNECTOR, METALIZED PLASTIC HOUSING, 2-ROW, WITH LOCKING SCREWS, FEMALE, 15-PIN, CABLE LENGTH 3.00 M

LS 903 ML 520 ID.-NR. 209081-0S HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520

LS 703 ML 320 ID.-NR. 216750-3C HEIDENHAIN INCREMENTALES SEALED LINEAR ENCODER MEASURING LENGTH 320;

LS 303 ML 370 ID.-NR. 295790-93 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 370 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION 3.00 M

LS 406 ML 370 ID.-NR. 310110-53 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 370 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 35 MM, REFERENCE MARK POSITION 300 MM, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LB 382C ML 2440 ID.-NR. 315418-25 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR MEASURING LENGTHS UP TO 3040MM MEASURING LENGTH 2440 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MIRRORED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 2000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 486 ML 770 ID.-NR. 329992-23 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 770 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 403C ML 420 ID.-NR. 334756-41 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 420 MM, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS), REFERENCE MARKS DISTANCE CODED, ACCURACY +/- 0,005 MM, ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITH ARMOR

LS 703 ML 320 ID.-NR. 336976-3C HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 320 MM, OUTPUT SIGNALS SINUSOIDAL (11 UASS), ACCURACY GRADE +/- 0,005 MM, REFERENCE MARKS Z=265MM, ELECTRICAL CONNECTION CABLE 3M WITH CONNECTOR

LS 703 ML 320 ID.-NR. 336976-48 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 320 MM, OUTPUT SIGNALS SINUSOIDAL (11 UASS), REFERENCE MARKS Z=15MM, ACCURACY GRADE +/- 0,005 MM, ELECTRICAL CONNECTION VIA ADAPTER CABLE

LS 476C ML 170 ID.-NR. 329987-03 HEIDENHAIN SEALED LINEAR ENCODER WITH OPTIMIZED THERMAL BEHAVIOR WITHOUT MOUNTING SPAR MEASURING LENGTH 170 MM, OUTPUT SIGNALS SQUAREWAVE TTL, ACCURACY GRADE 0,005 MM, REFERENCE MARK DISTANCE CODED, ELECTRICALCONNECTION WITH SEPARATE CABLE ASSEMBLY

LS 404 ML 620 ID.-NR. 228249-12 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 620MM, ACCURACY GRADE +/-0,005MM REFERENCE MARK AT Z= 35MM, Z1= 550MM CABLE LENGTH 3,00M, WITH CONNECTOR WITHOUT ARMOR

LS 487C ML 520 ID.-NR. 572249-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 520 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 177 ML 240 ID.-NR. 605357-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 240 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 1140 ID.-NR. 689684-31 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1140 MM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 2040 ID.-NR. 689697-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 2040 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN,

LC 185 ML 1040 ID.-NR. 689701-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1040 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 1440 ID.-NR. 689701-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1440 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 720 ID.-NR. 760939-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 720 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, OUTPUT CODE BINARY, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LF 103 ML 840 ID.-NR. 311007-38 HEIDENHAIN SEALED LINEAR ENCODER WITH OPTIMIZED THERMAL BEHAVIOR MEASURING LENGTH 840 MM, ACCURACY GRADE +/- 0,002 MM, OUTPUT SIGNALS SINUSSOIDIAL (11UAPP), REFERENCE MARK Z = 420 MM FURTHER REFERENCE MARKS: EVERY 50 MM, SELECTABLE BY MAGNETS, ELECTR. CONNECT. WITHOUT CABLE

LS 476 ML 270 ID.-NR. 329986-2H HEIDENHAIN SEALED LINEAR ENCODER WITH OPTIMIZED THERMAL BEHAVIOR WITHOUT MOUNTING SPAR, SIGNAL PERIOD 0,002 MM, MEASURING LENGTH 270 MM, OUTPUT SIGNALS SQUAREWAVE TTL, REFERENCE MARK AT Z = 35MM, Z1 = 200MM, ELECTRICALCONNECTION WITH SEPARATE CABLE ASSEMBLY

LS 486 ML 520 ID.-NR. 310757-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 520 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 485 ML 320 ID.-NR. 689681-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 320 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE BINARY, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 320 ID.-NR. 760942-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM,TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 320 ID.-NR. 689683-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 320 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 903 ML 1140 ID.-NR. 209081-5T HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1140 MM, ACCURACY GRADE 5.0 µM, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 95 MM, ELECTRICAL CONNECTION CONNECTOR M23, METAL HOUSING, MALE, 9-PIN

LS 303C ML 420 ID.-NR. 249909-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 420 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH 3.00 M

LC 185 ML 2640 ID.-NR. 689697-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 2640 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 303 ML 170 ID.-NR. 295790-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION R35 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR

LS 406 ML 120 ID.-NR. 329982-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 406C ML 670 ID.-NR. 329983-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 670 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 486 ML 570 ID.-NR. 329992-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 570 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LF 183C ML 740 ID.-NR. 348226-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY LINEAR ENCODER, MEASURING LENGTH 740 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 328C ML 120 ID.-NR. 559682-31 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 120 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS, REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 328C ML 520 ID.-NR. 559682-39 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 520 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS, REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LS 1679-270 ID.-NR. 589220-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES MEASURING LENGTH 270 MM, ACCURACY GRADE ± 10.0 µM,  FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM (DISTANCE IN MM FROM THE BEGINNING OF THE MEASURING LENGTH, SELECTABLE), CONNECTING DIRECTION CABLE OUTLET RIGHT, CABLE LENGTH 0.50 M, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 12-PIN

LS 1679 ML 220 ID.-NR. 589220-3C HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES MEASURING LENGTH 220 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE, CONNECTING DIRECTION CABLE OUTLET LEFT, CABLE LENGTH .50 M, ELECTRICAL CONNECTION FREE CABLE END

LF 485C ML 600 ID.-NR. 635329-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH 600 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 2440 ID.-NR. 689697-46 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 2440 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 1440 ID.-NR. 760914-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1440 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED,  ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 420 ID.-NR. 760937-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 420 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 3.0 µM, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 1020 ID.-NR. 760939-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 1020 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN
