LS 623 ML 170 ID.-NR. 228861-01 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH INTEGRAL DIGITIZING ELECTRONICS (TTL) MEASURING LENGTH 170, ACCURACY GRADE 10,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL TTLX1 SQUARE-WAVE SIGNALS, TTL LEVELS WITH 1-FOLD INTERPOLATION, REFERENCE MARK POSITION 85, ELECTRICAL CONNECTION 02S12 CONNECTOR, MALE 12-PIN, CABLE LENGTH 3,00 M

LS 704 ML 520 ID.-NR. 336978-4P HEIDENHAIN INCRMENTAL SEALED LINEAR ENCODER MEASURING LENGTH: 520 MM, ACCURACY GRADE: +/- 0,003 MM, FASTENING TYPE: B END BLOCK, OUTPUT SIGNALS:: SINUSOIDAL ELECTRIC SIGNALS (11 UASS), REFERENCE MARK: EVERY 50 MM STARTING FROM MIDPOINT OF MEASURING LENGTH, AVAILABLE WITH ADD. SELECTOR MAGNETS, ELECTRICAL CONNECTION: VIA ADAPTER CABLE

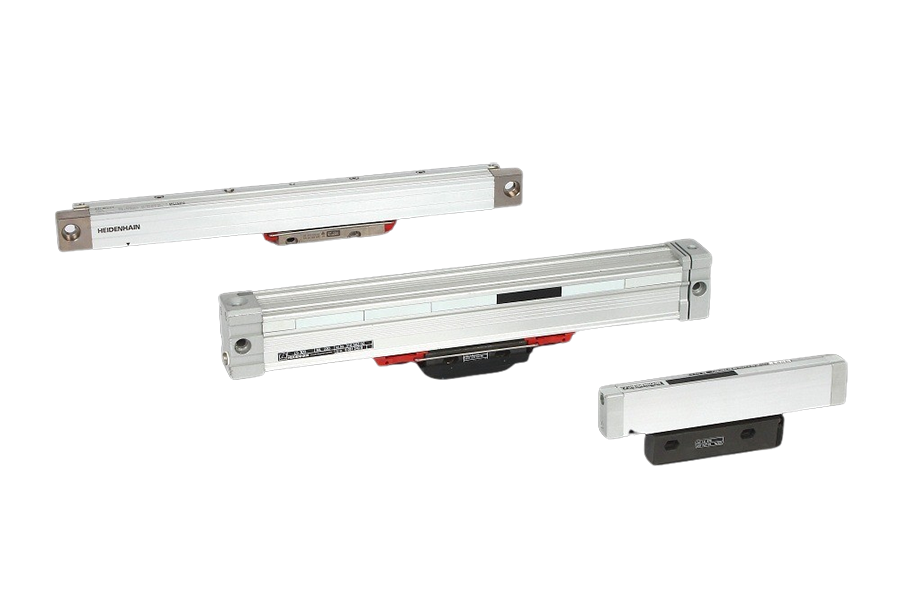

LF 183 ML 740 ID.-NR. 315105-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 740 MM, ACCURACY GRADE: ± 2.0 µM, FASTENING TYPE: SCREW-ON STRIP, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK 370, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LF 183C ML 940 ID.-NR. 315106-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 940 MM, ACCURACY GRADE: ± 2.0 µM, FASTENING TYPE: SCREW-ON STRIP, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 106 ML 440 ID.-NR. 275066-40 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 440 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 706 ML 1020 ID.-NR. 336965-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1020, ACCURACY GRADE 5,5, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 510, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 500 ML 220 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 406C ML 270 ID.-NR. 266045-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM ACCURACY GRADE: ± 3.0 µM; FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS; ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 104 ML 1140 ID.-NR 263993-01 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER PROTOTYPE

LS 703 ML 1640 ID.-NR. 336976-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1640, ACCURACY GRADE 5,0, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 820, ELECTRICAL CONNECTION 55S08 SEPARATE ADAPTER CABLE

LS 706 ML 370 ID.-NR. 336965-45 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 370, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 185, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 706 ML 470 ID.-NR. 295703-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 470, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 235, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 303 ML 220 ID.-NR. 334751-65 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN WITH ARMOR CABLE LENGTH: 3.00 M

LS 107 ML 1440 ID.-NR. 218496-55 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1440, ACCURACY GRADE 3,0, FASTENING TYPE G SCREW-ON STRIP, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 720, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/ METAL ARMOR, CABLE LENGTH 3,00 M

LS 803D ML 320 ID.-NR. 209089-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 320 MM ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 250 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE 9-PIN (BLANK), CABLE LENGTH: 3.00 M

LS 406 ML 1240 ID.-NR. 329984-55 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1240 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: 45 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 107 ML 1240 ID.-NR. 218496-84 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1240, ACCURACY GRADE 5,0, FASTENING TYPE G SCREW-ON STRIP,  OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 620, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN, W/ METAL ARMOR, CABLE LENGTH 3,00 M

LS 503 ML 1240 ID.-NR. 216760-31 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1240, ACCURACY GRADE 10,0, FASTENING TYPE W MOUNTING BRACKET, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNLAS, REFERENCE MARK POSITION 620, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 303C ML 120 ID.-NR. 364019-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 120 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 176 ML 240 ID.-NR. 336959-7S HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 240 MM ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 106 ML 740 ID.-NR 336958-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 191F ML 940 ID.-NR. 341241-08 HEIDENHAIN ABSOLUT SEALED LINEAR ENCODER MEASURING LENGTH 940, ACCURACY GRADE 5,0, FASTENING TYPE I SCREW-ON STRIP, DATA INTERFACE FANUC01, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LC 191F ML 740 ID.-NR. 332359-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER MEASURING LENGTH 740, ACCURACY GRADE 5,0, FASTENING TYPE I SCREW-ON STRIP, DATE INTERFACE FANUC01, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 486C ML 220 ID.-NR. 329991-42 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

ULS 300/20 ML 220 ID.-NR. 234570-97 HEIDENHAIN ENCAPSULATED LINEAR ENCODER GRATING PITCH 0,020 MM ACCURACY GRADE +/-0,003 MM REFERENCE MARK AT Z = 110 MM MEASURING LENGHT 220 MM

LS 706 ML 320 ID.-NR. 277504-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 320, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 160, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 623 ML 920 ID.-NR. 228861-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH INTEGRAL DIGITIZING ELECTRONICS MEASURING LENGTH 920, ACCURACY GRADE 10,0, FASTENING TYPE B END STÜCK, OUTPUT SIGNAL TTLX1 SQUARE-WAVE SIGNALS TTL LEVELS WITH 1-FOLD INTERPOLATION, REFERENCE MARK POSITION 460, ELECTRICAL CONNECTION 01 FREE CABLE END, CABLE LENGTH 3,00 M

LS 300 ML 1000 ID.-NR. 207707-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1000, REFERENCE MARK POSITION 490

LS 629 ML 420 ID.-NR. 344690-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDEWAY FOR BENDING MACHINES MEASURING LENGTH: 420 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCKS, RIGHT END BLOCK FLEXIBLE OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS REFERENCE MARK POSITION:ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 629 ML 270 ID.-NR. 344690-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDEWAY FOR BENDING MACHINES MEASURING LENGTH: 270 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCKS, RIGHT END BLOCK FLEXIBLE OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS REFERENCE MARK POSITION:ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 770 ID.-NR. 310757-23 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 770 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 603 ML 620 ID.-NR. 316558-2L HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 620 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: MOUNTING BRACKET OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: 310 ML/2, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 510 ML 270 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 500R ML 520 HEIDENHAIN INCREMENTAL SEALES LINEAR ENCODER

LS 403C ML 520 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 501D ML 370 ID.-NR. 204313-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 370, ACCURACY GRADE 10,0, FASTENING TYPE W MOUNTING BRACKET, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 185, ELECTRICAL CONNECTION 37S09 CONNECTOR MALE 9-PIN (METAL HOUSING), CABLE LENGTH 3,00 M

LS 774C ML 820 ID.-NR. 263430-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 820, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL TTLX5 SQUARE-WAVE SIGNALS, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELEKTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LS 706 ML 720 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 107 ML 1140 ID.-NR. 264069-3M HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1140, ACCURACY GRADE 5,0, FASTENING TYPE G SCREW-ON STRIP, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 570, ELECTRICAL CONNECTION 55S08 SEPARATE ADAPTER CABLE

LB 382 ML 3040 ID.-NR. 315416-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR MEASURING LENGTHS UP TO 3040MM (COMPLETE UNIT, ONE-PIECE) MEASURING LENGTH: 3040 MM ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 40.000 µM FASTENING TYPE: STANDARD OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 120 ID.-NR. 329990-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 120 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 476 ML 220 ID.-NR. 329986-04 HEIDENHAIN SEALED LINEAR ENCODER WITH OPTIMIZED THERMAL BEHAVIOR WITHOUT MOUNTING SPAR MEASURING LENGTH: 220 MM, ACCURACY GRADE: 0,005 MM, OUTPUT SIGNALS: SQUAREWAVE TTL, REFERENCE MARK: AT Z = 35MM, Z1 = 150MM, ELECTRICALCONNECTION: WITH SEPARATE CABLE ASSEMBLY

LS 406 ML 920 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LIDA 325 ML 1400 ID.-NR. 214090-01 HEIDENHAIN SCALE TAPE FOR LIDA 325 MEASURING LENGTH 1400

LC 481 ML 270 ID.-NR. 372849-50 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 270 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 481 ML 720 ID.-NR. 372849-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 720 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LF 481 ML 650 ID.-NR. 355529-80 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 650 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION: 25 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS: 25 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 620 ID.-NR. 329985-87 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LF 481 ML 600 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LF 481 ML 450 ID.-NR. 355533-66 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 450 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION: 25 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS: 25 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE
