Linar Measurement Systems

LB 382C ML 2240 ID.-NR. 315418-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR MEASURING LENGTHS UP TO 3040MM (COMPLETE UNIT, ONE-PIECE), MEASURING LENGTH 2240 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE STANDARD, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 2000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 486C ML 1440 ID.-NR. 329993-34 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1440 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 182 ML 540 ID.-NR. 387092-27 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 540 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 487C ML 320 ID.-NR. 560524-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 320 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 670 ID.-NR. 572248-27 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 670 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 1679 ML 720 ID.-NR. 589221-49 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 720 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM (DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE), CONNECTING DIRECTION CABLE OUTLET LEFT, CABLE LENGTH 1.00 M, ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN

LS 477 ML 120 ID.-NR. 605374-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 10-FOLD INTERPOLATION, REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 2040 ID.-NR. 689696-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2040 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LB 383C ML 2240 ID.-NR. 1313984-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR MEASURING LENGTHS UP TO 3040MM (COMPLETE UNIT, ONE-PIECE), MEASURING LENGTH 2240 MM, ACCURACY GRADE ± 5.0 µM, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 2000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 383C ML 220 ID.-NR. 1326653-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCKS FOR M4 MOUNTING SCREWS, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, CABLE LENGTH 6.00 M, ELECTRICAL CONNECTION D-SUB CONNECTOR, METALIZED PLASTIC HOUSING, 2-ROW, WITH LOCKING SCREWS, FEMALE, 15-PIN

LS 403C ML 570 ID.-NR. 233191-14 HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020MM, ACCURACY GRADE +/-0,005MM, WITH DISTANCE-CODED REFERENCE-MARKS, CABLE LENGTH 3,00M, WITH CONNECTOR, WITHOUT ARMOR, MEASURING LENGTH 570MM

LS 603 ML 1740 ID.-NR. 237640-54 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1740 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 870 ML/2, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR

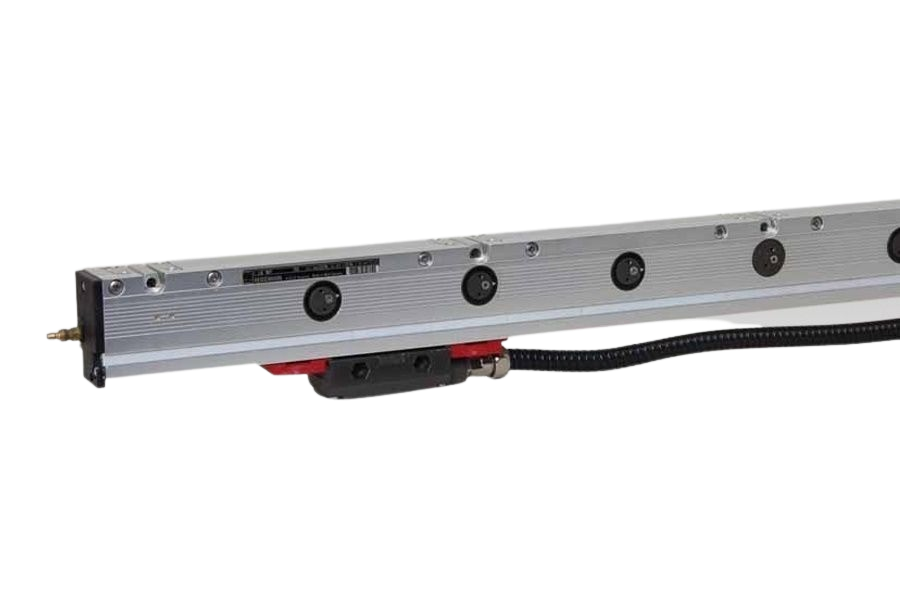

LS 107C ML 2240 ID.-NR. 244860-08 HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020MM, ACCURACY GRADE +/-0,005MM, WITH DISTANCE-CODED REFERENCE MARKS, CABLE LENGTH 3,00M, WITH CONNECTOR, WITH ARMOR, MEASURING LENGTH 2240MM

LS 403C ML 520 ID.-NR. 334756-92 HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH 520 MM, ACCURACY +/- 0,005 MM, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS), REFERENCE MARKS DISTANCE CODED, ELECTRICAL CONNECTION CABLE 6 M WITH CONNECTOR WITHOUT ARMOR

LS 706C ML 2440 ID.-NR. 295706-37 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 623 ML 220 ID.-NR. 316560-4G HEIDENHAIN SEALED LINEAR ENCODER, OUTPUT SIGNALS SQUARE-WAVE SIGNAL,TTL LEVEL, SIGNAL PERIOD 0,020MM, REFERENCE MARKS EVERY 50MM, MOVABLE WITH SELECTOR MAGNET STARTING AT MIDPOINT OF MEASURING LENGTH, ACCURACY GRADE +/- 0,010MM, ELECTRICAL CONNECTION VIA ADAPTER CABLE, MEASURING LENGTH 220MM

LS 703 ML 420 ID.-NR. 316562-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 220

LS 303C ML 770 ID.-NR. 334752-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 770 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH 3.00

LS 303C ML 420 ID.-NR. 334752-75 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 420 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN, CABLE LENGTH 6.00

LS 303C ML 520 ID.-NR. 295791-97 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH520 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN

LS 706 ML 1740 ID.-NR. 336965-33 HEIDENHAIN SEALED LINEAR ENCODER HIGH VIBRATION RATING, OUTPUT SIGNALS SINUSOIDAL (11 UASS ), REFERENCE MARKS Z=870MM FURTHER REFERENCE MARKS AVAILABLE EVERY 50MM, SELECTABLE VIA MAGNET, ELECTRICAL CONNECTION VIA ADAPTER CABLE, ACCURACY +/- 0,005 MM, MEASURING LENGTH 1740 MM

LS 406 ML 120 ID.-NR. 310110-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 35 MM, REFERENCE MARK POSITION 50 MM, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 486 ML 120 ID.-NR. 329990-43 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 487 ML 1020 ID.-NR. 572251-45 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1020 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 486 ML 120 ID.-NR. 329992-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 623 ML 520 ID.-NR. 336974-4R HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH 520MM, ACCURACY GRADE +/- 0,010MM, OUTPUT SIGNALS SQUARE-WAVE SIGNAL,TTL LEVEL, REFERENCE MARKS EVERY 50MM, MOVABLE WITH SELECTOR MAGNET STARTING AT MIDPOINT OF MEASURING LENGTH, ELECTRICAL CONNECTION VIA ADAPTER CABLE

LF 185 ML 840 ID.-NR. 682442-43 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING  LENGTH 840 MM, ACCURACY GRADE ±2.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 703 ML 720 ID.-NR. 216750-WZ HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LC 495F ML 620 ID.-NR. 760933-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 620 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, OUTPUT SIGNAL NO SPECIFIED VALUE, OUTPUT CODE BINARY, DATA INTERFACE FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAi, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 673C ML 570 ID.-NR. 1366572-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 570 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 1-FOLD INTERPOLATION, NON-CLOCKED, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, CABLE LENGTH 3.00 M, ELECTRICAL CONNECTION D-SUB CONNECTOR, METALIZED PLASTIC HOUSING, 2-ROW, WITH LOCKING SCREWS, MALE, 9-PIN

LS 487 ML 770 ID.-NR. 572251-55 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 770 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS NONE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 328C ML 470 ID.-NR. 559682-38 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 470 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 303 ML 120 ID.-NR. 228975-1P HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH 120MM, ACCURACY GRADE +/- 0,010MM, REFERENZMARK AT Z= 60MM, CABLE LENGTH 3,00M, WITH CONNECTOR WITH ARMOR

LC 483 ML 170 ID.-NR. 557648-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 493F ML 320 ID.-NR. 557655-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 320 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 1679 ML 220 ID.-NR. 589220-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 220 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM (DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE), CONNECTING DIRECTION CABLE OUTLET LEFT, CABLE LENGTH 6.00 M, ELECTRICAL CONNECTION D-SUB CONNECTOR, 2-ROW, WITH LOCKING SCREWS, MALE, 9-PIN

LS 1679 ML 220 ID.-NR. 589220-61 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 220 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM (DISTANCE IN MM FROM THE BEGINNING OF THE MEASURING LENGTH, SELECTABLE), CONNECTING DIRECTION CABLE OUTLET RIGHT, CABLE LENGTH 6.00 M, ELECTRICAL CONNECTION D-SUB CONNECTOR, 2-ROW, WITH LOCKING SCREWS, MALE, 9-PIN

LS 477C ML 170 ID.-NR. 605359-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 10-FOLD INTERPOLATION, REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LB 383C ML 2640 ID.-NR. 1313984-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR MEASURING LENGTHS UP TO 3040MM (COMPLETE UNIT, ONE-PIECE), MEASURING LENGTH 2640 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE STANDARD, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 2000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 495S ML 420 ID.-NR. 760939-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 420 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 107 ML 440 ID.-NR. 243889-22 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 440 MM ACCURACY GRADE +/-0,002MM REFERENCE MARK AT Z= 220MM CABLE LENGTH 3,00M, WITH CONNECTOR WITH ARMOR

LC 495F ML 320 ID.-NR. 760933-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM TOTAL LENGTH ML+105 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR END BLOCK 14A OUTPUT SIGNAL NO SPECIFIED VALUE DATA INTERFACE FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 170 ID.-NR. 689679-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 170 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 220 ID.-NR. 689679-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 220 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 403C ML 470 ID.-NR. 334756-31 HEIDENHAIN SEALED LINEAR ENCODER, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS), REFERENCE MARKS DISTANCE CODED, ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITH ARMOR, ACCURACY +/- 0,005 MM, MEASURING LENGTH 470 MM

LS 486 ML 320 ID.-NR. 329990-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 495S ML 670 ID.-NR. 760936-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 670 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 3040 ID.-NR. 760916-48 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 3040 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 623 ML 220 ID.-NR. 228861-80 HEIDENHAIN SEALED LINEAR ENCODER WITH INTEGRAL DIGITIZING ELECTRONICS (TTL), GRATING PITCH 0,020MM, ACCURACY GRADE +/-0,010MM, REFERENCE MARK AT Z= 200MM, CABLE LENGTH 3,00M, WITHOUT CONNECTOR, MEASURING LENGTH 220MM

LC 495S ML 1840 ID.-NR. 760939-28 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1840 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN
