Linar Measurement Systems

LS 486 ML 120 ID.-NR. 310757-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 495S ML 120 ID.-NR. 760942-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

ULS 300/20 ML 370 ID.-NR. 234570-61 HEIDENHAIN ENCAPSULATED LINEAR ENCODER GRATING PITCH 0,020 MM REFERENCE MARK AT Z = 270 MM, Z1 = 50 MM MEASURING LENGHT 370 MM

LS 477 ML 320 ID.-NR. 605373-25 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 486 ML 70 ID.-NR. 329992-0C HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 70 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 491F ML 320 ID.-NR. 372854-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH SERIAL INTERFACE MEASURING LENGTH 320 MM ACCURACY GRADE 5.0 µM MEASURING STEP 50 NM FASTENING TYPE MOUNTING SPAR ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 303C ML 1340 ID.-NR. 334754-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 1340 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH 3,00 M

LC 481 ML 520 ID.-NR. 337461-18 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH 520 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 481 ML 170 ID.-NR. 353703-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER, MEASURING LENGTH 170 MM

LF 481C ML 350 ID.-NR. 355534-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 350 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 688C ML 2240 ID.-NR. 605799-31 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2240 MM, ACCURACY GRADE ± 10.0 µM, GRATING PERIOD 20.000 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

ULS 300 ML 370 ID.-NR. 234570-0D HEIDENHAIN INCREMENTAL FULLY SEALED LINEAR ENCODER, MEASURING LENGTH 170 MM

LC 481 ML 320 ID.-NR. 353703-48 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 320 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP)

LC 183 ML 440 ID.-NR. 557660-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 440 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 476C ML 720 ID.-NR. 310756-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 720 MM

LC 481 ML 120 ID.-NR. 390773-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH 120 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE DUAL ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 501 ML 520 CODE-NR. 008R05F HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520 MM

LS 701 ML 520 CODE-NR. 008R05F HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520 MM

LS 803 ML 520 CODE-NR. 008R05F HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520 MM

LS 303 ML 320 ID.-NR. 334751-07 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN CABLE LENGTH 3.00 M

LS 106 ML 740 ID.-NR. 265756-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 740 MM

LS 107 ML 1140 ID.-NR. 218496-77 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1140MM

LS 803 ML 320 ID.-NR. 204418-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM

LS 803 ML 420 ID.-NR. 204418-A6 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION 420 MM

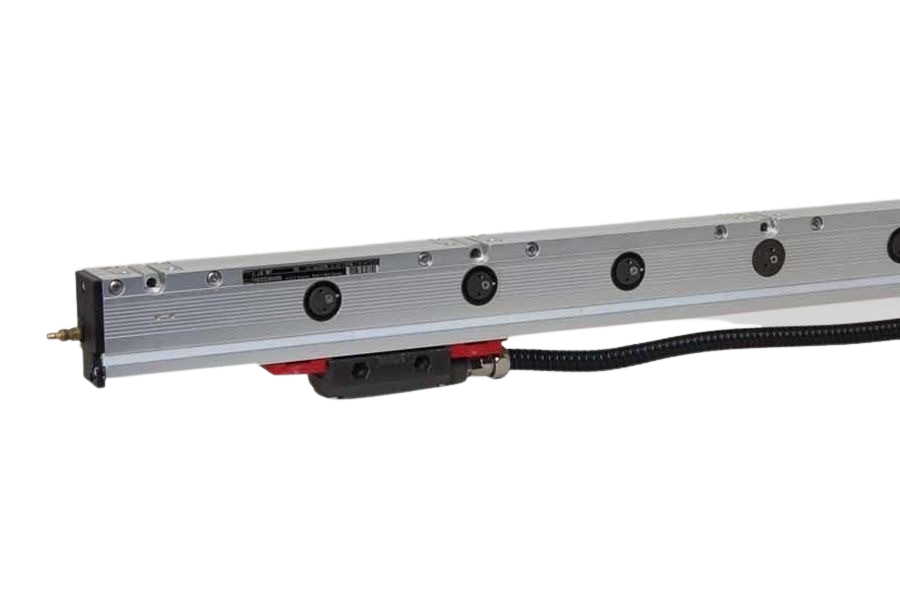

LS 107 ML 440 ID.-NR. 243889-0T HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 440 MM, ACCURACY GRADE +/-0,005MM, REFERENCE MARK AT Z= 220MM, CABLE LENGTH 3,00M, WITH CONNECTOR WITHOUT ARMOR

LS 403 ML 120 ID.-NR. 334755-66 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 120 MM, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS), SIGNAL PERIOD 0,020 MM, REFERENCE MARK Z = 60 MM,, ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITHOUT ARMOR, ACCURACY +/- 0,005 MM

LS 501 ML 520 CODE-NR. 008T05F HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520 MM

LS 487 ML 770 ID.-NR. 572250-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 770 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 1679 ML 320 ID.-NR. 589220-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 320 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM (DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE), CONNECTING DIRECTION CABLE OUTLET LEFT, CABLE LENGTH 8.00 M, ELECTRICAL CONNECTION D-SUB CONNECTOR, 2-ROW, WITH LOCKING SCREWS, MALE, 9-PIN

LC 185 ML 1840 ID.-NR. 689696-42 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 840 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 195S ML 1840 ID.-NR. 760910-62 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1840 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 320 ID.-NR. 760938-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 320 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495C ML 470 ID.-NR. 760942-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH  470 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 220 ID.-NR. 760943-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 220 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 803 ML 820 CODE-NR. 012R07F HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 820 MM

LS 403 ML 370 ID.-NR. 226520-F1 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASUREMENT LENGTH 370 MM

LS 383C ML 920 ID.-NR. 1326651-61 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 920 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCKS FOR M4 MOUNTING SCREWS, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, CABLE LENGTH 3.00 M, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 12-PIN

LS 403 ML 720 ID.-NR. 226520-1F HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 720MM REFERENCE MARK AT Z= 35MM CABLE LENGTH 0,30M WITH FLANGE SOCKET ON MOUNTING BLOCK WITHOUT ARMOR

LS 487 ML 1540 ID.-NR. 572251-23 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1540 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 45 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 45 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LF 103 ML 190 ID.-NR. 345747-15 HEIDENHAIN INCREMENTAL LINEAR ENCODER WITH PLANAR PHASE GRATING ON STEEL, OUTPUT SIGNALS SINUSOIDAL (11 UAPP), REFERENCE MARKS Z=120MM, ELECTR. CONNECTION WITHOUT CABLE, ACCURACY GRADE +/- 0,003 MM, MEASURING LENGTH 190 MM

LC 495S ML 2040 ID.-NR. 760943-28 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 2040 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 1840 ID.-NR. 760943-27 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1840 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 1340 ID.-NR. 760943-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1340 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 520 ID.-NR. 760943-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 520 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 370 ID.-NR. 760943-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 370 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 270 ID.-NR. 760943-05 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 270 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 120 ID.-NR. 760943-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 220 ID.-NR. 760939-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 370 ID.-NR. 560527-07 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 370 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 220 ID.-NR. 760938-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN
