Linar Measurement Systems

LF 481C ML 250 ID.-NR. 355530-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 250 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD, ELECTRICAL CONNECTION 66S12 SEPARATE ADAPTERCABLE

LC 491F ML 270 ID.-NR. 337451-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH SERIAL INTERFACE MEASURING LENGTH: 270 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, DATA INTERFACE: FANUC01 SERIAL INTERFACE, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

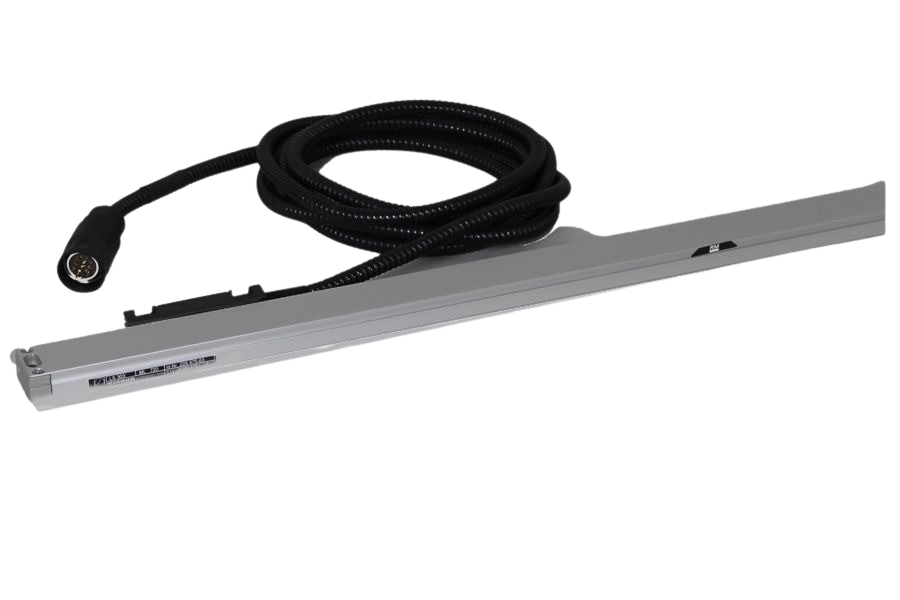

LS 303 ML 270 ID.-NR. 334751-2D HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:R35 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS: 35MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS,  ELECTRICAL CONNECTION: FREE CABLE END CABLE LENGTH: 4.00 M

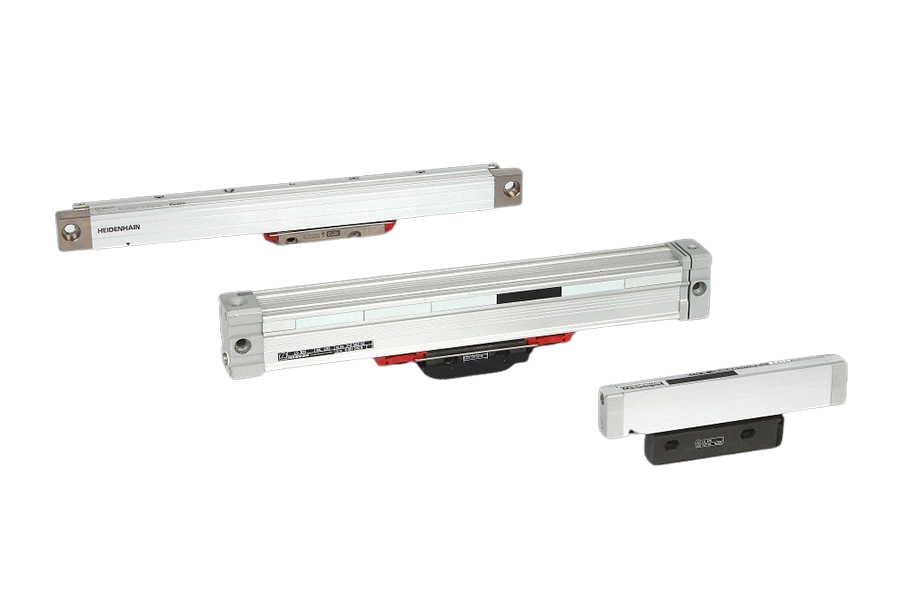

ULS 300C/0020 ML 470 ID.-NR. 236490-66 HEIDENHAIN INCREMENTAL UNIVERSAL-MEASURINGSYSTEM WITH DISTANCE CODED REFERENCE MARKS GRATING PERIOD 0,020 MM ACCURACY GRADE +/-0,003 MM MEASURING LENGTH 470 MM

LS 703C ML 770 ID.-NR. 336977-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 770, ACCURACY GRADE 5,0, FASTENING TYPE RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 55S08 SEPARATE ADAPTER CABLE

LS 703 ML 220 ID.-NR. 336976-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH: 220 MM, ACCURACY GRADE: +/- 0,005 MM, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNALS: SINUSOIDAL (11 UASS), REFERENCE MARKS: ONE REFERENCE MARK AT MID- POINT OF MEASURING LENGTH MOVEABLE BY 50 MM STEPS, ELECTRICAL CONNECTION: VIA ADAPTER CABLE

LS 774 ML 320 ID.-NR. 263427-37 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 320, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL TTLX5 SQUARE-WAVE SIGNALS, REFERENCE MARK POSITION 0 NONE, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE,

LS 703 ML 320 ID.-NR. 216750-32 HEIDENHAIN INCREMENTALES SEALED LINEAR ENCODER MEASURING LENGTH 320, ACCURACY GRADE 3,0, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFEERENCE MARK POSITION 160, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LC 191 ML 440 HEIDENHAIN ABSOLUT SEALED LINEAR ENCODER

LF 401 ML 150 ID.-NR. 295789-82 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 150, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 95, FURTHER REFERENCE MARKS 50, ELECTRICAL CONNECTION 41S08 SEPARATE ADAPTER CABLE

LB 326 ML 1000 ID.-NR. 232729-01  HEIDENHAIN SCALE HOUSING FOR LB 326 HOUSING SECTION 1000 MM

LS 106 ML 1340 ID.-NR. 336958-24 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1340 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 106C ML 1040 ID.-NR. 336961-21 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1040 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 803D ML 370 ID.-NR. 209089-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 370 MM ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 300 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN (BLANK) WITH ARMOR, CABLE LENGTH: 3.00 M

LS 486 ML 1020 ID.-NR. 310113-79 HEIDENHAIN INKREMENTALES GEKAPSELTES LÄNGENMESSGERÄT MIT KLEINPROFILIGEM MASSSTABGEHÄUSE MESSLÄNGE: 1020 MM GENAUIGKEITSKLASSE: ± 3,0 µM, BEFESTIGUNGSART: MONTAGESCHIENE AUSGANGSSIGNAL: SINUSFÖRMIGE SPANNUNGSSIGNALE (1 VSS) REFERENZMARKENLAGE: 510 ML/2, ELEKTRISCHER ANSCHLUSS: SEPARATES ADAPTERKABEL

LS 486C ML 920 ID.-NR. 329993-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 920 MM ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 20.000 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 520 HEIDENHAIN INCREMENTAL SEALES LINEAR ENCODER

LS 406C ML 120 ID.-NR. 329983-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 120 MM ACCURACY GRADE: ± 5.0 µM; FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD; ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 470 ID.-NR. 329985-63 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 470 MM ACCURACY GRADE: ± 5.0 µM; FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD; ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 491F ML 470 ID.-NR. 337451-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH SERIAL INTERFACE MEASURING LENGTH: 470 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR DATA INTERFACE: FANUC01 SERIAL INTERFACE, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 491F ML 320 ID.-NR. 337451-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH SERIAL INTERFACE MEASURING LENGTH: 320 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, DATA INTERFACE: FANUC01 SERIAL INTERFACE, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 481 ML 170 ID.-NR. 337461-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 170 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 403C ML 270 ID.-NR. 334756-93 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 270, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µASS SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 486C ML 720 ID.-NR. 329993-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 803 ML 270 ID.-NR. 204418-2X HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 200 MM,  ELECTRICAL CONNECTION: CONNECTOR, MALE 9-PIN (BLANK), CABLE LENGTH: 3.00 M

LS 800 ML 720 ID.-NR. 201001-HR HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 720, ACCURACY GRADE 10,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 15....34µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 60, FURTHER REFERENCE MARK 600, ELECTRICAL CONNECTION 01 FREE CABLE END, CABLE LENGTH 0,30 M

LS 303C NL 220 ID.-NR. 364019-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 303C ML 320 ID.-NR. 364019-06 HEIDENHAIN INKREMENTALES GEKAPSELTES LÄNGENMESSGERÄT MIT KLEINPROFILIGEM MASSSTABGEHÄUSE MESSLÄNGE: 320 MM GENAUIGKEITSKLASSE: ± 10,0 µM TEILUNGSPERIODE: 20,000 µM, BEFESTIGUNGSART: ENDSTÜCKE + MONTAGESCHIENE AUSGANGSSIGNAL: SINUSFÖRMIGE STROMSIGNALE (11 µASS) REFERENZMARKENLAGE: C001 ABSTANDSCODIERTE REFERENZMARKEN MIT GRUNDABSTAND 1000 X TEILUNGSPERIODE, ELEKTRISCHER ANSCHLUSS: SEPARATES ADAPTERKABEL

LS 403 ML 120 ID.-NR. 226520-84 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 120, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 35, FURTHER REFERENCE MARK POSITION 50, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/ METAL ARMOR, CABLE LENGTH 3,00 M

LS 403C ML 120 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 406 ML 220 ID.-NR. 329984-91 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 706 ML 220 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 106C ML 840 ID.-NR. 336961-44 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 840 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 106C ML 920 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 106C ML 740 ID.-NR. 336961-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 186C ML 920 HEIDENHAIN INCREMENTAL SEALES LINEAR ENCODER

LS 406C ML 1020 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 406 ML 170 ID.-NR. 329984-52 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP),  REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS: 35 MM SISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS,  ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 320 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 406C ML 370 ID:-NR. 329985-71 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 370 MM ACCURACY GRADE: ± 5.0 µM; FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD; ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 420 ID.-NR. 266045-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 570 ID.-NR. 310750-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 570 MM ACCURACY GRADE: ± 5.0 µM; FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS; ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 181 ML 540 HEIDENHAIN ABSOLUT SEALED LINEAR ENCODER

LC 181 ML 440 ID.-NR. 341240-26 HEIDENHAIN ABSOLUTE LINEAR ENCODER MEASURING LENGTH: 440 MM, ACCURACY GRADE: +/-0,003 MM, FASTENING TYPE. I SCREW-ON STRIP, OUTPUT SIGNAL 1VPP SINUSOIDAL VLTAGE SIGNALS, DATA INTERFACE: ENDAT01 SYNCHRONOUS N-SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION 52S12 SEPARATE CABLE

LS 388 C ML 720 ID.-NR. 516270-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM TOTAL LENGTH: ML+105 MM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 703 ML 2040 ID.-NR. 216750-CM HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 2040, ACCURACY GRADE 5,0, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 1020, ELECTRICAL CONNECTION 34S09 FLANGE SOCKET MALE 9-PIN ON CONNECTION FIXTURE

LS 106C ML 240 ID.-NR. 295712-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 240 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 403 ML 470 ID.-NR. 334755-24 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENTH 470, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 35, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 403 ML-0180 ID.-NR. 226520-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 180, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 35, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 903 ML 770 ID.-NR. 209081-EK HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 770 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: END BLOCK, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:35 MM REFERENCE MARK POSITION 2:, ELECTRICAL CONNECTION: FREE CABLE END, CABLE LENGTH: 3.00 M
