Linar Measurement Systems

LS 603 ML 1020 ID.-NR. 237640-47 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1020 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 510 ML/2, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR

LC 483 ML 670 ID.-NR. 557649-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 670 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

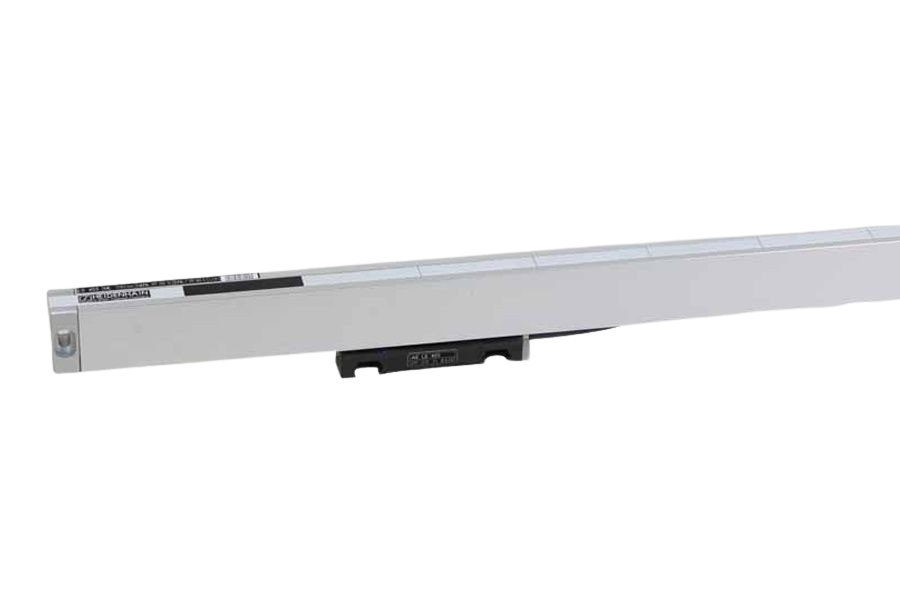

LS 403 ML 420 ID.-NR. 226520-CX HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 420 MM, ACCURACY GRADE +/-0,005MM, REFERENCE MARK AT Z= 35MM, Z1= 350 MM, CABLE LENGTH 6,00M, WITH CONNECTOR WITHOUT ARMOR

LC 181 ML 1440 ID.-NR. 341240-36 HEIDENHAIN ABSOLUT SEALED LINEAR ENCODER MEASURING LENGTH 1440, ACCURACY GRADE +/- 0,003 MM

LS 187C ML 1540 ID.-NR. 526974-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1540 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 303C ML 70 ID.-NR. 364019-01 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 70 MM ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 303C ML 570 ID.-NR. 364019-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 570 MM ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 101 ML 640 ID.-NR. 247217-62 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 640 MM

LB 301 ML 440 ID.-NR. 284669-01 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 440 MM

LC 481 ML 70 ID.-NR. 327300-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 70 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE DUAL, DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 406C ML 920 ID.-NR. 329983-24 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 920 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 403 ML 670 ID.-NR. 334755-62 HEIDENHAIN SEALED LINEAR ENCODER, OUTPUT SIGNALS: SINUSOIDAL POWER SIGNALS (11 µASS), REFERENCE MARK: Z = 35 MM, Z1 = 600 MM, ELECTRICAL CONNECTION: CABLE 3 M WITH CONNECTOR WITHOUT ARMOR, ACCURACY: +/- 0,005 MM, MEASURING LENGTH: 670 MM

LS 487C ML 120 ID.-NR. 572248-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 120 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 904 ML 420 ID.-NR. 218921-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH: 420 MM, ACCURACY GRADE 5,0, FASTENING TYPE: END BLOCK, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 350 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE 9-PIN (BLANK), CABLE LENGTH: 3.00 M

LS 477C ML 120 ID.-NR. 605371-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 120 MM, ACCURACY GRADE: +-5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 370 ID.-NR. 560526-07 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 370 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 3.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, FURTHER REFERENCE MARKS:NONE ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 191F ML 1140 ID.-NR. 341241-10 HEIDENHAIN SEALED ABSOLUTE LINEAR ENCODER, MEASURING LENGTH: 1140MM, ELECTRICAL CONNECTION: VIA ADAPTER CABLE, ACCURAY: +/-0,005MM

LB 302C ML 3440 ID.-NR. 315422-02 HEIDENHAIN PARTS KIT LB 302C FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF: 1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS, MEASURING LENGTH: 3440 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: STANDARD, REFERENCE MARK: DISTANCE-CODED, REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 2000 X GRATING PERIOD

LS 487 ML 420 ID.-NR. 572250-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 420 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 1020 ID.-NR. 689680-18 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 1020 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL, ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

ULS 300 ML 170 ID.-NR. 234570-65 HEIDENHAIN ENCAPSULATED LINEAR ENCODER WITH ANGULAR FLANGE SOCKET, GRATING PITCH 0,020 MM, ACCURACY GRADE +/-0,002 MM, REFERENCE MARK AT Z = 10 MM, MEASURING LENGHT 170 MM

LS 487C ML 1340 ID.-NR. 572249-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 1340 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 603 ML 620 ID.-NR. 237640-42 HEIDENHAIN NCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 620 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: MOUNTING BRACKET, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: 310 ML/2, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN WITH ARMOR

LS 403 ML 670 ID.-NR. 226520-6Z HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH670

LS 486 ML 270 ID.-NR. 329990-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 270 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS:35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487 ML 470 ID.-NR. 572250-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 470 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS:35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 406C ML 570 ID.-NR. 329985-61 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 570 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487 ML 220 ID.-NR. 560527-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 903 ML 620 ID.-NR. 209081-0V HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 620 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE END BLOCK, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 35 MM, REFERENCE MARK POSITION 2 550 MM, ELECTRICAL CONNECTION CONNECTOR M23, METAL HOUSING, ARMORED, MALE, 9-PIN, CABLE LENGTH 3.00 M

LS 603 ML 1540 ID.-NR. 316558-52 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1540 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 770 ML/2, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR

LS 403 ML 220 ID.-NR. 226520-2K HEIDENHAIN SEALED LINEAR ENCODER, ACCURACY GRADE +/-0,003MM

LC 485 ML 720 ID.-NR. 689683-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 720 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 903 ML 420 ID.-NR. 209081-83 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH: 420

LC 481 ML 570 ID.-NR. 372849-05 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 570 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 403 ML 320 ID.-NR. 334755-38 HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH 320 MM, ACCURACY +/- 0,005 MM, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS), REFERENCE MARK Z = 35 MM, Z1 = 250 MM, ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITH ARMOR

LS 406C ML 570 ID.-NR. 266045-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 570 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 406C ML 720 ID.-NR. 266045-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 720 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE, END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 406C ML 520 ID.-NR. 266045-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 520 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 493F ML 720 ID.-NR. 557644-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 720 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, DATA INTERFACE: FANUC02 SERIAL INTERFACE, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 470 ID.-NR. 560528-0V HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 470 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION: 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS:35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 183 ML 840 ID.-NR. 557660-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 840 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 703 ML 170 ID.-NR. 216750-29 HEIDENHAIN  INCREMENTAL SEALED LINEAR ENCODER

LS 403 ML 520 ID.-NR. 334755-42 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 520 MM,  ACCURACY +/- 0,005 MM, REFERENCE MARK Z = 35 MM, Z1 = 450 MM, ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITH ARMOR

LS 403 ML 920 ID.-NR. 334755-0A HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH 920 MM, ACCURACY +/- 0,005 MM, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS) SIGNAL PERIOD 0,020 MM, REFERENCE MARK Z=35MM, Z1=850MM, ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITH ARMOR

LC 182 ML 140 ID.-NR. 368563-47 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 140 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LF 485C ML 900 ID.-NR. 635329-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 900 MM, ACCURACY GRADE ± 5.0 µM, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD, FURTHER REFERENCE MARKS NONE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 183 ML 1540 ID.-NR. 557679-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1540 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 182 ML 440 ID.-NR. 368563-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT, MEASURING LENGTH 440 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 481 ML 370 ID.-NR. 372849-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT, MEASURING LENGTH 370 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 493F ML 920 ID.-NR. 557645-17 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 920 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN
