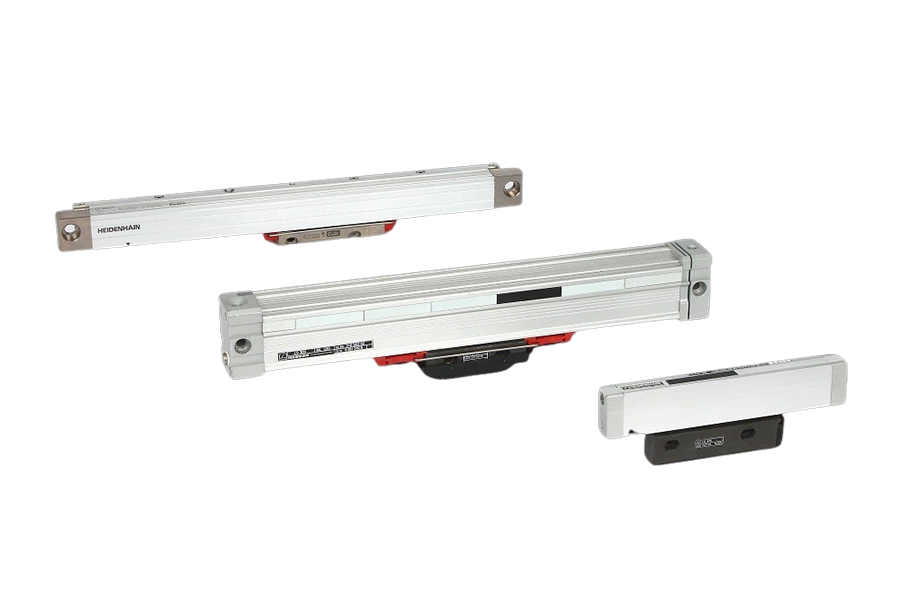

LB 301 ML 1040 ID.-NR. 284669-04 HEIDENHAIN INCREMENTAL ENCLOSED LENGTH MEASURING SYSTEM MEASURED LENGTH 1040, ACCURACY CLASS +/- 0.005 MM, GRADUATION PERIOD 0.100, OUTPUT SIGNAL 11µASS SINUSAL CURRENT SIGNALS, WITHOUT CABLE

LS 503 ML 1120 ID NO. 216760-28 HEIDENHAIN INCREMENTAL ENCLOSED LENGTH MEASURING SYSTEM MEASURING LENGTH 1020, ACCURACY CLASS +/- 0.010 MM, REFERENCE MARK POSITION Z = 510 MM, METAL TUBE WITH PLUG 22856105, CABLE LENGTH 1020 MM

LS 503 ML 1840 ID.-NR. 216760-44 HEIDENHAIN INCREMENTAL ENCLOSED LENGTH MEASURING SYSTEM MEASURING LENGTH 1840 MM

LS 503 ML 920 ID-NR: 216760-91 HEIDENHAIN INCREMENTAL ENCLOSED LENGTH MEASURING SYSTEM MEASURING LENGTH 920

LS 503 ML 1840 ID.-NR. 216760-0K HEIDENHAIN INCREMENTAL ENCLOSED LENGTH MEASURING SYSTEM MEASURING LENGTH 1840 MM

LS 403C ML 620 ID.-NR. 233191-49 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 620

LS 403 ML 770 ID.-NR. 334755-C4 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH: 770 MM POWER SUPPLY: +5 V OUTPUT SIGNALS: SINUSOIDAL POWER SIGNALS (11 µASS) ELECTRICAL CONNECTION: CABLE 0,30 M WITH FLANGE SOCKET ON CONNECTION FIXTURE

LS 803 ML 170 ID.-NR. 204418-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM ACCURACY GRADE: 10.0 µM FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) ELECTRICAL CONNECTION: CONNECTOR M23, METAL HOUSING, MALE, 9-PIN CABLE LENGTH: 3.00 M

LC 195F ML 740 ID.-NR. 760907-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM ACCURACY GRADE: 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED DATA INTERFACE: FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 770 ID.-NR. 689680-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 770 MM FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 403C ML 320 ID.-NR. 310724-43 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 320 MM

LS 186 ML 1740 ID.-NR. 336960-53 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1740 MM ACCURACY GRADE: ± 3.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487 ML 1140 ID.-NR. 572251-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1140 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 186 ML 2240 ID.-NR. 336960-31 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2240 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 403 ML 370 ID.-NR. 226520-7B HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 370

LB 382C ML 1840 ID.-NR. 315418-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR MEASURING LENGTHS UP TO 3040MM (COMPLETE UNIT, ONE-PIECE) MEASURING LENGTH: 1840 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: STANDARD OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 2000 X GRATING PERIOD ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 303 ML 170 ID.-NR. 228975-64 HEIDENHAIN SEALED LINEAR ENCODER ACCURACY GRADE +/- 0,010MM, REFERENZMARK AT Z= 85MM, CABLE LENGTH 3,00M, WITH CONNECTOR, WITH ARMOR MEASURING LENGTH 170MM

LS 403 ML 170 ID.-NR. 334755-69 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LF 185 ML 140 ID.-NR. 682442-50 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 140 MM GRATING PERIOD: 8.000 µM FASTENING TYPE: SCREW-ON STRIP OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 2240 ID.-NR. 689697-20 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 2240 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 106 ML 1840 ID.-NR. 336958-29 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1840 MM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASURING LENGTH ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 495S ML 1020 ID.-NR. 760943-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 1020 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, END BLOCK: 14A, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 406 ML 320 ID.-NR. 262181-21 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION 35 MM ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 485 ML 1140 ID.-NR. 689683-31 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1140 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 404 ML 520 ID.-NR. 228249-10 HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH 520 MM, ACCURACY GRADE +/-0,005 MM, REFERENCE MARK AT Z = 35 MM, Z1 = 450 MM, CABLE LENGTH 3,00 M, WITH CONNECTOR WITHOUT ARMOR

LC 493M ML 220 ID.-NR. 557668-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR,  OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE,  14-PIN

LC 415 ML 320 ID.-NR. 689676-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 320 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ID.-NR. 526974-25 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 190 MM FASTENING TYPE SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD FURTHER REFERENCE MARKS ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LF 182 ML 840 ID.-NR. 682433-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH 840 MM, ACCURACY GRADE ±3.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 440 ID.-NR. 526974-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 440 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LF 481C ML 150 ID.-NR. 298189-22 HEIDENHAIN INCREMENTAL ENCLOSED LENGTH MEASUREMENT DEVICE WITH SMALL PROFILE SCALE HOUSING FOR MAXIMUM REPEATABILITY MEASURING LENGTH: 150 MM ACCURACY CLASS: ± 3.0 µM FASTENING TYPE: MOUNTING RAIL; OUTPUT SIGNAL: SINE-SHAPED VOLTAGE SIGNALS (1 VSS) REFERENCE MARK LOCATION: DISTANCE CODED REFERENCE MARK WITH BASE DISTANCE 5000 X SIGNAL PERIOD; ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 1840 ID.-NR. 310752-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1840 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP),  REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 493F ML 920 ID.-NR. 557644-17 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 920 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 704 ML 370 ID.-NR. 237133-G7  HEIDENHAIN INCREMENTAL SEALED MEASURING SYSTEM

LC 493F ML 570 ID.-NR 557655-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 570 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 1040 ID.-NR. 760912-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1040 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION LANGE SOCKET, MALE, 14-PIN

LC 195F ML 440 ID.-NR. 760909-0 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 440 MM,  ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 406C ML 270 ID.-NR. 266045-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM ACCURACY GRADE 5.0 µM FASTENING TYPE B END BLOCK ELECTRICAL CONNECTION 41S08 SEPARATE ADAPTER CABLE OUTPUT SIGNAL ~11 µAPP SINUSOIDAL CURRENT SIGNALS (11 µAPP) PIN CONFIGURATION 66 D266650

LS 403C ML 170 ID.-NR. 334756-44 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 170 MM, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS), REFERENCE MARKS DISTANCE CODED ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITH ARMOR, ACCURACY +/- 0,003 MM

LC 485 ML 1740 ID.-NR. 689681-24 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1740 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 303C ML 120 ID.-NR. 334752-34 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 120 MM ACCURACY GRADE ± 10.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP) ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR CABLE LENGTH 3.00M

LC 495S ML 470 ID.-NR. 760936-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 470 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 370 ID.-NR. 760936-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 370 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 1020 ID.-NR. 760937-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1020 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 1340 ID.-NR. 689697-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1340 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 403 ML 1140 ID.-NR. 334755-32 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1140 MM OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS) ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITHOUT ARMOR REFERENCE MARK Z = 45 MM, Z1 = 1050 MM

LS 688C ML 1840 ID.-NR. 605799-29 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1840 MM FASTENING TYPE MOUNTING BRACKET OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 320 ID.-NR. 572248-06 HEIDENHAIN  INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 1140 ID.-NR. 689680-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 1140 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 107 ML 440 ID.-NR. 218496-81 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 440
