LS 187 ML 1640 ID.-NR. 527389-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1640 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187 ML 440 ID.-NR. 527389-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 440 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 303 ML 620 ID.-NR. 228975-18 HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020MM, ACCURACY GRADE +/- 0,010MM, REFERENZMARK AT Z= 35MM, Z1= 550MM CABLE LENGTH 3,00M, WITH CONNECTOR, WITH ARMOR, MEASURING LENGTH 620MM

LS 487 ML 720 ID.-NR. 560528-0E HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 720 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 803D ML 170 ID.-NR. 209089-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 170 MM, ACCURACY GRADE 10.0 µM, FASTENING TYPE END BLOCK, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION 35 MM, REFERENCE MARK POSITION 2 100 MM, ELECTRICAL CONNECTION CONNECTOR, MALE 9-PIN (BLANK), CABLE LENGTH 3.00 M

LC 491F ML 220 ID.-NR. 372852-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION  MEASURING LENGTH 220 MM

MASSBAND LIC 2109 ID.-NR. 1036329-04 HEIDENHAIN SCALE TAPE LIC 2109 SCALE FOR LIC ABSOLUTE EXPOSED LINEAR ENCODER THERMAL COEFFICIENT OF  MEASURING LENGTH 770 MM, ACCURACY GRADE ± 15.0 µM, FASTENING TYPE ADHERABLE, THICKNESS 0.20 MM, WIDTH 12.70 MM

LS 303 ML 820 ID.-NR. 228975-24 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 820MM ACCURACY GRADE +/- 0,010MM CABLE LENGTH 3,00M WITH CONNECTOR WITH ARMOR

LS 487C ML 920 ID.-NR. 560526-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 920 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

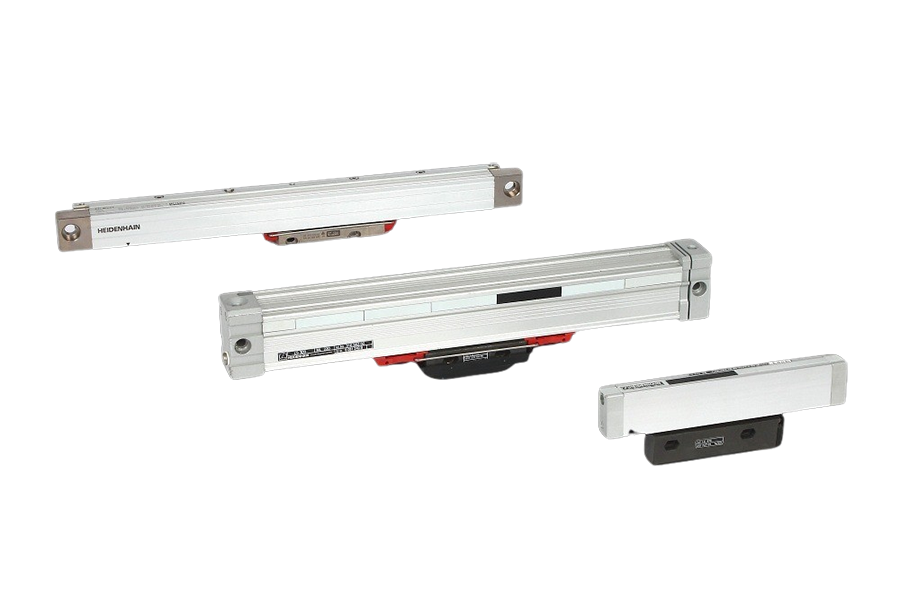

LS 903 ML 220 ID.-NR. 002R07F HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 220 MM

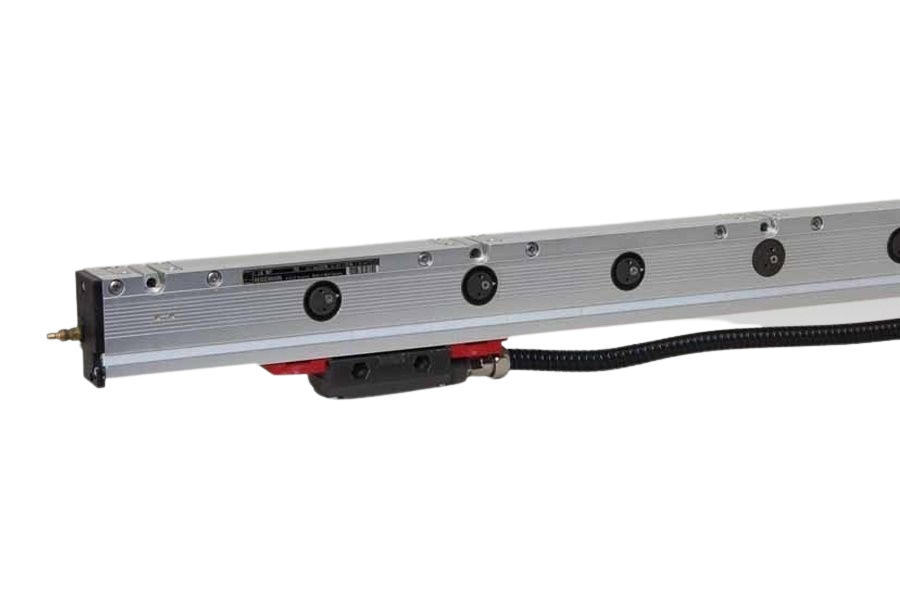

LS 107C ML 1440 ID.-NR. 264070-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1440

LS 477 ML 170 ID.-NR. 605379-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 170 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 10-FOLD INTERPOLATION, REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 493F ML 220 ID.-NR. 557645-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 220 MM ACCURACY GRADE ± 3.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL NO SPECIFIED VALUE OUTPUT CODE BINARY ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 803D ML 320 ID.-NR. 209089-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM, FASTENING TYPE END BLOCK, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION 35 MM, REFERENCE MARK POSITION 2 250 MM, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN (BLANK) WITH ARMOR, CABLE LENGTH 3.00 M

LS 486 ML 820 ID.-NR. 310757-24 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL MEASURING LENGTH 820 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM, ELECTRICAL CONNECTION EPARATE ADAPTER CABLE

LS 903 ML 220 ID.-NR. 209081-AG HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 220 MM

LS 503 ML 420 ID.-NR. 216760-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 420 MM

LC 485 ML 420 ID.-NR. 689678-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 420 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE BINARY, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 403 ML 370 ID.-NR. 226520-39 HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020MM, ACCURACY GRADE +/-0,005MM, REFERENCE MARK AT Z= 35MM, Z1= 300M, CABLE LENGTH 3,00M, WITH CONNECTOR, WITH ARMOR, MEASURING LENGTH 370MM

LB 301 ML 1840 ID.-NR. 284669-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1840

LB 301 ML 1840 ID.-NR. 284669-08 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1840

LS 106C ML 340 ID.-NR. 295712-39 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 340 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 303 ML 520 ID.-NR. 295790-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 520 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION R35 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS,

LS 303C ML 140 ID.-NR. 295791-59 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 140 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN, CABLE LENGTH 3.00 M

LS 187C ML 2240 ID.-NR. 526974-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2240 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2640 ID.-NR. 526974-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2640 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 170 ID.-NR. 572248-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2840 ID.-NR. 526974-23 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2840 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

ROD 1424-125 ID.-NR. 297252-10 HEIDENHAIN INCREMENTAL ROTARY ENCODER

LS 903 ML 520 ID.-NR. 316391-52 HEIDENHAIN SCALE HOUSING FOR LS 903 MEASURING LENGTH 520

LS 803 ML 770 ID.-NR. 316390-21 HEIDENHAIN SCALE HOUSING FOR LS 803 MEASURING LENGTH 770 MM

MASSBANDGEHAUSE LC 201 ID-NR. 746721-02 HEIDENHAIN MASSBANDGEHAUSE LC 201 1200MM

MASSBANDGEHAUSE LC 201 ID-NR. 746721-06 HEIDENHAIN MASSBANDGEHAUSE LC 201 2000MM

LB 302 ML 8440 ID.NR. 315421-27 HEIDENHAIN PARTS KIT LB 302 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF:1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS, MEASURING LENGTH: 8440 MM TYPE OF GRADUATION: AURODUR, THERMAL COEFFICIENT OF LINEAR EXPANSION: ~ 10·10-6K-1 STEEL, ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 40.000 µM, REFERENCE MARK: SELECTABLE BY MAGNET REFERENCE MARK POSITION: EVERY 50 MM, STARTING AT 20 MM FROM BEGINNING OF THE MEASURING LENGTH
