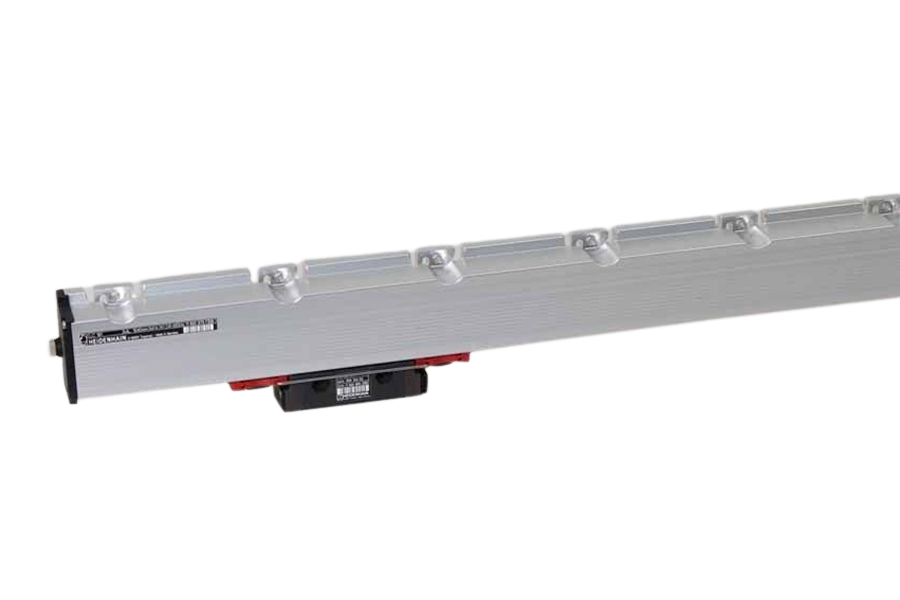

LC 181 ML 740 ID.-NR. 341240-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER MEASURING LENGTH 740, ACCURACY GRADE 5,0, FASTENING TYPE I SCREW-ON STRIP, OUTPUT SIGNAL 1 VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE ENDAT01 SYNCHRONOUS N-SERIAL ENDAT01 SYNCHRONOUS N-SERIAL ENDAT 2:1 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LC 181 ML 740 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER MEASURING LENGTH 740

LC 181 ML 740 ID.-NR. 295296-29 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER MEASURING LENGTH 740, ACCURACY GRADE 5,0, FASTENINGTYPE I SCREW-ON STRIP, OUTPUT SIGNAL 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE ENDAT01 SYNCHRONOUS N-SERIAL ENDAT 2:1, WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABEL

LC 181 ML 1640 ID.-NR. 332358-15 HEIDENHAIN ABSOLUTE LINEAR ENCODER MEASURING LENGTH: 1640 MM, ACCURACY GRADE: +/-0,005 MM, OUTPUT SIGNALS: CODE SIGNALS: SYNCHRONOUS-SERIAL FROM DIFFERENTIAL LINE DRIVER AS PER EIA STANDARD RS-485 INCREMENTAL SIGNALS: SINUSOIDAL VOLTAGE SIGNALS (1VPP), ELECTRICAL CONNECTION: VIA CABLE ASSEMBLY

LC 192F ML 2040 ID.-NR. 387089-38 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH SERIAL INTERFACE MEASURING LENGTH: 2040 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED DATA INTERFACE: FANUC01 SERIAL INTERFACE, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LB 382C ML 1240 ID.-NR. 315418-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR MEASURING LENGTHS UP TO 3040MM (COMPLETE UNIT, ONE-PIECE) MEASURING LENGTH: 1240 MM ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 40.000 µM FASTENING TYPE: STANDARD OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 2000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LB 302C ML 5440 ID.-NR. 315422-12 HEIDENHAIN PARTS KIT LB 302C FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF: 1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS MEASURING LENGTH: 5440 MM

LS 803 ML 220 ID.-NR. 204418-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 220, ACCURACY GRADE 10,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 110, ELECTRICAL CONNECTION 37S09 CONNECTOR MALE 9-PIN (METAL HOUSING), CABLE LENGTH 3,00 M

LS 487C ML 270 ID.-NR. 572248-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 270, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 1VPP SINUSOIDAL VOLTAGE SIGNALS, REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NORMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION 4ZS14 FLANGE SOCKET MALE 14-PIN

LS 704 ML 320 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 320

LS 303 ML 1020 ID.-NR. 334751-66 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1020 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION:ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN WITH ARMOR CABLE LENGTH: 3.00 M

LS 803 ML 1050 ID.-NR. 204418-68 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 1050, ACCURACY GRADE 10,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, FEFERENCE MARK POSITION 35, FURTHER REFERENCE MARK POSITION 1000, ELECTRICAL CONNECTION 01 FREE CABLE END, CABLE LENGTH 0,30 M

ULS 300C/0020 ML 270 ID.-NR. 236490-56 HEIDENHAIN ENCAPSULATED LINEAR ENCODER WITH DISTANCE-CODED REFERENCE MARKS MEASURING LENGTH 270 MM, ACCURACY GRADE +/- 0,002 MM, GRATING PITCH 0,020 MM

LS 486 ML 920 ID.-NR. 329990-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 920 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS:35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 620 ID.-NR. 329990-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS:35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 720 ID.-NR. 329990-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS:35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406C ML 820 ID.-NR. 266045-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 820 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 403 ML 520 ID.-NR  334755-90 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 35, FURTHER REFERENCE MARK POSITION 450 MM,  ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LC 483 ML 820, ID-NR. 557649-16 HEIDENAIN ABSOLUT SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 820, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION OMS14 VIA SEPARATE ADAPTER CABLE

LS 403 ML 770 ID.-NR. 334755-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 770, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 35, FURTHER REFERENCE MARK POSITION 700, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

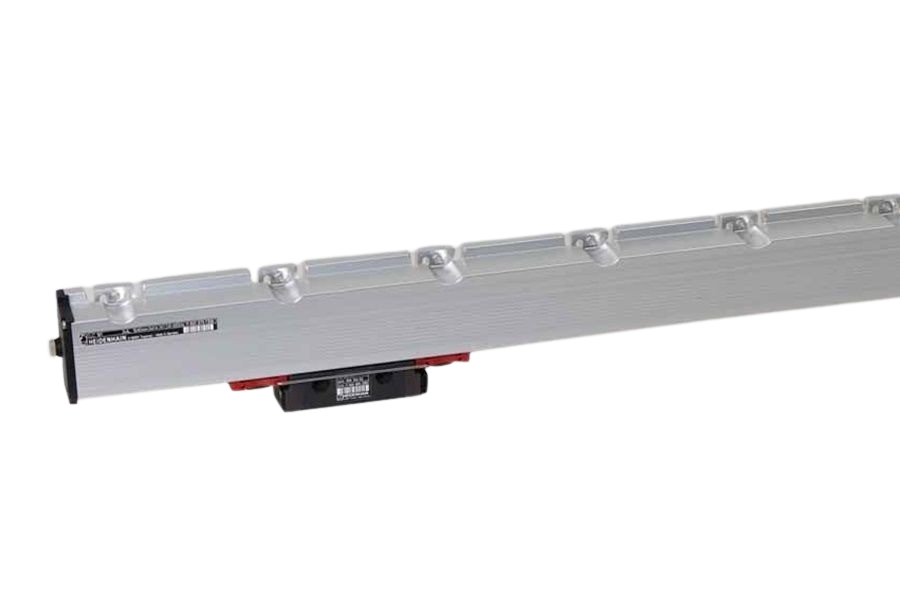

LC 183 ML 3040 ID.-NR. 557679-24 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 3040 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 193F ML 140 ID.-NR. 557676-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 140 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: FANUC02 SERIAL INTERFACE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LF 183C ML 340 ID.-NR. 315106-25 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 340 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: SCREW-ON STRIP, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENZ MARK POSITION: DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LF 183C ML 940 HEIDENHAIN INCREMETAL SEALED LINEAR ENCODER

LC 483 ML 1140 MM, ID-NR.: 557694-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1140 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 704 ML 2640 ID.-NR. 237133-EU HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 2640, ACCURACY GRADE 5,0, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 1320, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN, W / METALARMOR, CABLE LENGTH 3,00 M

LC 483 ML 1740 ID.-NR. 557647-25 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1740 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 1840 ID.-NR. 760912-18 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1840 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 720 ID.-NR. 572248-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 486C ML 920 ID.-NR. 329991-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 920 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486C ML 720 ID.-NR 310873-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 186C ML1040 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1040

LS 476C ML 520 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520

LS 476C ML 420 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 420 MM

LS 503 ML 420 ID.-NR. 216760-1B HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 420, ACCURACY GRADE 10,0, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 360, ELECTRICAL CONNECTION 55S08 SEPARATE ADAPTER CABLE

LS 903 ML 320 ID.-NR. 209081-44 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 320 MM, ACCURACY GRADE: 3.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 250 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE 9-PIN (BLANK)

LS 476C ML 1020 ID.-NR. 310756-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LNEGTH 1020 MM, MEASURING LENGTH 1020, ACCURACY GRADE 5,0, FASTENING TYPE M MOUNTING SPAR, OUTPUT SIGNAL TTLX5 SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION DISTANCE-CODED REFEENCE MARKS, ELECTRICAL CONNECTION

LS 803D ML 170 ID.-NR. 209089-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM, ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 100 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN (BLANK) WITH ARMOR, CABLE LENGTH: 3.00 M

LS 501 ML 470 ID.-NR. 206681-71 HEIDENHAIN INCREMENTAL LINEAR ENCODER MEASURING LENGTH 470, ACCURACY GRADE 5,5, OUTPUT SIGNAL 15...35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 235, ELECTRICAL CONNECTION 37S09 CONNECTOR MALE 9-PIN (METAL HOUSING)

LS 803D ML 270 ID.-NR. 209089-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM, ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 200 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN (BLANK) WITH ARMOR, CABLE LENGTH: 3.00 M

LS 486C ML 420 ID.-NR. 329993-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 603C ML 520 ID.-NR. 249922-76 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 520 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: MOUNTING BRACKET OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS, REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 476C ML 720 ID.-NR. 329989-14 HEIDENHAIN SEALED LINEAR ENCODER WITH OPTIMIZED THERMAL BEHAVIOR WITH MOUNTING SPAR MEASURING LENGTH: 720 MM, ACCURACY GRADE: 0,005 MM, OUTPUT SIGNALS: SQUAREWAVE TTL, REFERENCE MARK: DISTANCE CODED, ELECTRICALCONNECTION: WITH SEPARATE CABLE ASSEMBLY

LS 186C ML 1040 ID.-NR. 295714-21 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1040 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 704 ML 1140 ID.-NR. 237133-96 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1140, ACCURACY GRADE 5,0, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 570, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/ METAL ARMOR, CABLE LENGTH 3,00

LS 403 ML 120 ID.-NR. 334755-6V HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH: 120 MM, ACCURACY: +/- 0,003 MM, OUTPUT SIGNALS: SINUSOIDAL POWER SIGNALS (11 µASS), REFERENCE MARK: Z=35MM, Z1=50MM, ELECTRICAL CONNECTION: CABLE 3 M WITH CONNECTOR WITHOUT ARMOR CABLEDIAMETER 4,5 MM

LC 483 ML 570 ID.-NR. 557649-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 570 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 481 ML 1020, ID-NR.: 557653-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1020 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LB 382C ML 1640 ID.-NR. 315418-07 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR MEASURING LENGTHS UP TO 3040MM (COMPLETE UNIT, ONE-PIECE) MEASURING LENGTH: 1640 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: STANDARD, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 2000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 483 ML 720 ID.-NR. 557654-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS, SECTION,MEASURING LENGTH: 720 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL, ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN
