Linar Measurement Systems

LC 182 ML 1840 ID.-NR. 368563-67 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 1840 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 107 ML 1040 ID.-NR. 243889-71 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1040, ACCURACY GRADE 5,0, FASTENING TYPE G SCREW-ON STRIP, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 520, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/ METAL ARMOR, CABLE LENGTH 3,00 M

LS 303 ML 770 ID.-NR. 334751-55 HEIDENFHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 770 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH 3.00 M

LS 503D  ML 370 ID.-NR. 217392-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 370, ACCURACY GRADE 10,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 15....35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 185, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

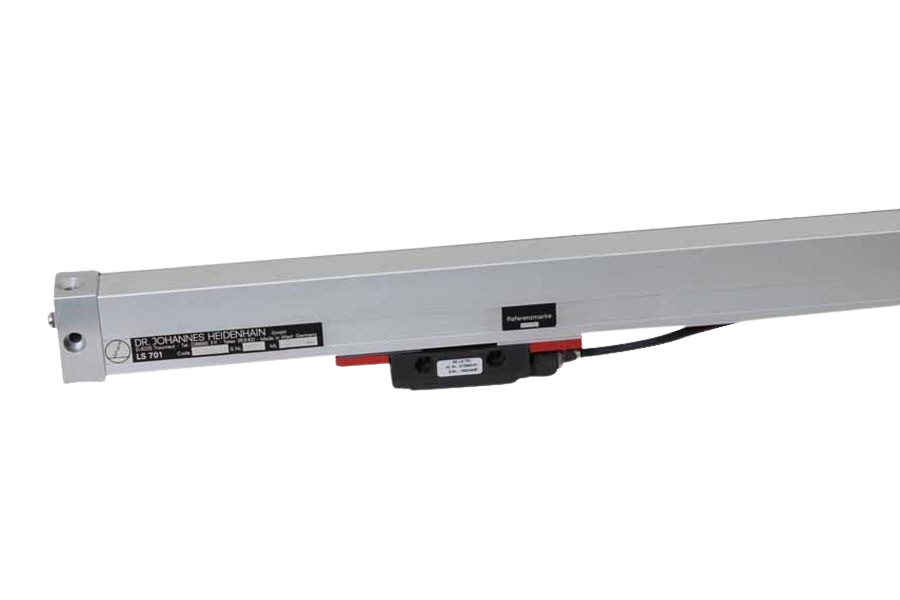

LS 701 ML 270 HEIDENHAIN INCREMENTALES SEALED LINEAR ENCODER

LB 326 ML 840 ID.-NR. 222370-29 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 440, ACCURACY GRADE 5,0, FASTENING TYPE N STANDARD, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 220, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/METAL ARMOR, CABLE LENGTH 3,00 M

LS 176C ML 440 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 187C ML 640 ID.-NR. 526974-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 640 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 740 ID.-NR. 526974-07 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 940 ID.-NR. 526974-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 940 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 186C ML 1040 ID.-NR. 336963-21 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1040 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 106C ML 1540 ID.-NR. 336961-26 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1540 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LB 326 ML 2640 ID.-NR. 222370-76 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 2640, ACCURACY GRADE 5,0, FASTENING TYPE N STANDARD, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 1320, ELECTRICAL CONNECTION 01 FREE CABLE END

LS 186C ML 240 ID.-NR. 295714-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 240 MM ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 20.000 µM, FASTENING TYPE: SCREW-ON STRIP OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487C ML 870 ID.-NR. 572248-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 870 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 1020 ID.-NR. 572249-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1020 MM TOTAL LENGTH: ML+105 MM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 186C ML 1740 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 404C ML 570 ID.-NR. 235720-05 HEIDENHAIN INCREMENTAL SEALED ENCODER MEASURING LENGTH 570, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 4444 DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 403C ML 570 ID.-Nr. 233191-48 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 570, ACCURACY GRADE 5,0, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 34S09 FLANSCHDOSE STIFT 9-POLIG AUF MONTAGEBLOCK, CABLE LNEGTH 0,30 M

LS 403C ML 870 ID.-NR. 233191-40 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 870, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERECE MARK POSITION 4444 DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 486 ML 470 ID.-NR. 310757-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 370 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LF 481C ML 150 ID.-NR. 355530-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 150 MM, ACCURACCY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 1VPP SINUSOIDAL VOLTAGE SIGNALS, REFERENCE MARK POSITION C003 DISTANCE-CODED REFERENCE MARKS WITH NORMINAL INCREMENT 5000 X SIGNAL PERIOS, ELECTRICAL CONNECTION 66S12 SEPARATE ADAPTER CABLE

LS 186C ML 1140 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

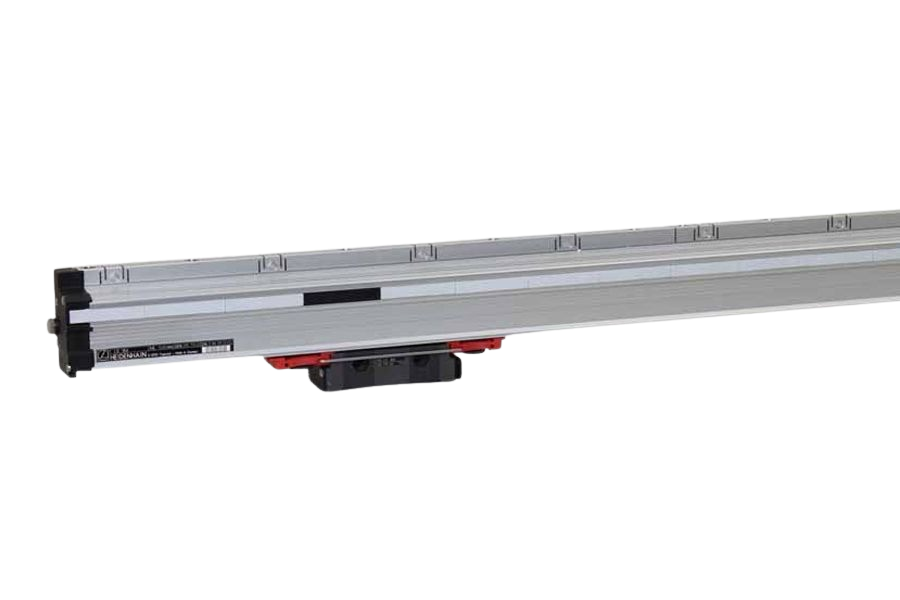

LS 186 ML 820 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 703 ML 290 ID.-NR. 216750-UT HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 290, ACCURACY GRADE 5,0, FASTENING TYPE R RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 45, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LC 182 ML 940 ID.-NR. 368563-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 940 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 106C ML 740 ID.-NR. 275067-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406 ML 470 ID.-NR. 329984-89 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 470 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS: 35MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 183 ML 1440 ID.-NR. 557679-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1440 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 303 ML 420 ID.-NR. 334751-2Y HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:R35 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS: 35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: FREE CABLE END CABLE LENGTH: 5.00 M

LC 182 ML 2440 ID.-NR. 368563-20 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 2440 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 483 ML 270 ID.NR. 557654-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 483 ML 220 ID.-NR. 557649-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 483 ML 370 ID.-NR. 557649-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 370 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 486 ML 420 ID.-NR. 329990-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS,  FURTHER REFERENCE MARKS:35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 183 ML 1740 ID.-NR. 557679-17 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1740 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 476C ML 120 ID.-NR. 329989-0B HEIDENHAIN SEALED LINEAR ENCODER WITH OPTIMIZED THERMAL BEHAVIOR WITH MOUNTING SPAR MEASURING LENGTH: 120 MM; ACCURACY GRADE: 0,005 MM; OUTPUT SIGNALS: SQUAREWAVE TTL; REFERENCE MARK: DISTANCE CODED; ELECTRICALCONNECTION: WITH SEPARATE CABLE ASSEMBLY

LS 704 ML 470 ID.-NR. 336978-BM HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 470, ACCURACY GRADE 3,0, FASTENNING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 235, ELECTRICAL CONNECTION 55S08 SEPARATE ADAPTER CABLE

LS 776 ML 170 ID.-NR. 336966-83 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH INTEGRAL INTERPOLATION AND DIGITIZING ELECTRONICS (5-FOLD) MEASURING LENGTH 170, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL TTLX5 SQUARE-WAVE SIGNALS, REFERENCE MARK POSITION 85, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

MASSBAND LB 301C ID.-NR. 329298-40 HEIDENHAIN SCALE TAPE LB 301C/381C MEASURING LENGTH: 3240 MM GRATING PERIOD: 100µM STANDARD MOUNTING: ST REFERENCE MARKS: DISTANCE-CODED

LC 183 ML 1740 ID.-NR. 557679-38 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1740 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

ULS 300C/0020 ML 420 ID.-NR. 236490-59 HEIDENHAIN INCREMENTAL UNIVERSAL ENCODER MEASURING LENGTH 420 MM, ACCURACY GRADE +/- 0,003 MM

LB 301 ML 840 ID.-NR. 284669-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 840, ACCURACY GRADE 5,5, DIVISION PERIOD 100,000, FASTENING TYPE N STANDARD, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNAL, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LF 481C ML 1220 ID.-NR.  298187-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 1220 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 186C ML 2840 ID.-NR. 336963-34 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2840 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 183 ML 3840 ID.-NR. 557678-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 3840 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 403C ML 220 ID.-NR. 334756-32 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 220, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µASS SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 4444 DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M

LS 186C ML 1540 ID.-NR. 336963-S2 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1540 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LB 326 ML 1400 ID.-NR. 232729-03 HEIDENHAIN SCALE HOUSING FOR LB 326 HOUSING SECTION 1400MM

LC 192F ML 940 ID.-NR. 387089-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH SERIAL INTERFACE MEASURING LENGTH: 940 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: FANUC01 SERIAL INTERFACE, ELECTRICAL CONNECTION: 52S12 SEPARATE ADAPTER CABLE
