Linar Measurement Systems

LS 406C ML 420 ID.-NR. 310750-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 903 ML 770 ID.-NR.209081-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 770 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: END BLOCK, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:35 MM REFERENCE MARK POSITION 2:, ELECTRICAL CONNECTION: CONNECTOR MALE 9-PIN (BLANK), CABLE LENGTH: 3.00 M

LS 186C ML 1540 ID.-NR. 336963-51 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1540 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 181 ML 440 ID.-NR. 352882-03 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 440, ACCURACY GRADE 5,0, DATA INTERFACE ENDAT01 SYNCHRONOUS N-SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, FASTENING TYPE SCREW-ON STRIP, ELECTRICAL CONNECTION 52S12 SEPARATE ADAPTER CABLE

LC 195S ML 1140 ID.-NR. 760916-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1140 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 620 ID.-NR 760943-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, DATA INTERFACE: DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 181 ML 1340 ID.-NR. 332358-12 HEIDENHAIN ABSOLUTE LINEAR ENCODER MEASURING LENGTH: 1340 MM, ACCURACY GRADE: +/-0,005 MM, OUTPUT SIGNALS: CODE SIGNALS: SYNCHRONOUS-SERIAL FROM DIFFERENTIAL LINE DRIVER AS PER EIA STANDARD RS-485 INCREMENTAL SIGNALS: SINUSOIDAL VOLTAGE SIGNALS (1VPP), INTERFACE: ENDAT INTERFACE (BI-DIREC- TIONAL SERIAL INTERFACE) ELECTRICAL CONNECTION: VIA CABLE ASSEMBLY

LC 483 ML 1640 ID.-NR. 557649-24 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1640 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 486 ML 620 ID.-NR. 329992-80 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 620 ID.-NR. 329992-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 185 ML 940 ID.-Nr. 689697-09 HEIDENHAIN ABSOLUT SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 940 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 481 ML 1140 ID.-NR. 372849-31 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 1140 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 186 ML 140 ID.-NR. 336960-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 140 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 183 ML 1640 ID.-NR. 557679-16 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1640 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 704C ML 620 ID.-NR. 237134-02 HEIDENHAIN INCREMENTAL SELEAD LINEAR ENCODER MEASURING LENGTH 620, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN

LS 106 ML 740 ID.-NR. 275066-43 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: SCREW-ON STRIP, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 704 ML 920 ID.-NR. 221123-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 920, ACCURACY GRADE 5,0, FASTENING TYPE MOUNTING BRACKET WITH SLOT, REFERENCE MARK POSITION 110, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN

LC 483 ML 170 ID.-NR. 557649-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 706C ML 420 ID.-NR. 336968-16 HEIDENHAIN INCREMENTALSEALED LINEAR ENCODER HIGH VIBRATION RATING MEASURING LENGTH: 420 MM, ACCURACY: +/- 0,005 MM, OUTPUT SIGNALS: SINUSSOIDAL 11UASS, SIGNAL PERIOD: 0,020 MM, ELECTRICAL CONNECTION: VIA ADAPTER CABLE

LS 703 ML 720 ID.-NR. 216750-YG HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 720, ACCURACY GRADE 5,0, FASTENING TYPE RIGHT END BLOCK FLEXIBLE, REFERENCE MARK POSITION 360, ELECTRICAL CONNECTION 55S08 SEPARATE ADAPTER CABLE

LS 704C ML 920 ID.-NR. 316565-84 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 920, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERECE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 55S08 SEPARATE ADAPTER CABLE

LS 1679 ML 470 ID.-NR. 589221-83 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDEWAY FOR BENDING MACHINES MEASURING LENGTH: 470 MM, FASTENING TYPE: END BLOCK, REFERENCE MARK POSITION:35 MM DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE, ELECTRICAL CONNECTION: CONNECTOR M23, MALE, 12-PIN, CABLE LENGTH: 6.00 M

LS 403 ML 170 ID.-NR. 334755-35 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 170, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 35, REFERENCE MARK POSIITION 2 100, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/METAL ARMOR

LC 481 ML 920 ID.-NR. 337461-25 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 920 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 476C ML 270 ID.-NR. 329987-1F HEIDENHAIN INCREMENTALS SEALED LINEAR ENCODER MEASURING LENGTH 270, ACCURACY GRADE 3,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL TTLX10 SQUARE-WAVE SIGNALS, TTL LEVELS WITH 10-FOLD INTERPOLATION, REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NORMINAL INCREMENT 1000XGRATING PERIOD, ELECTRICAL CONNECTION 66S12 SEPARATE ADAPTER CABLE

LS 476C ML 720 ID.-NR. 310754-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 720, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL TTLX5 SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION 66S12 ADAPTER CABLE

LS 477C ML 620 ID.-NR. 605361-62 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS WITH 10-FOLD INTERPOLATION, REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

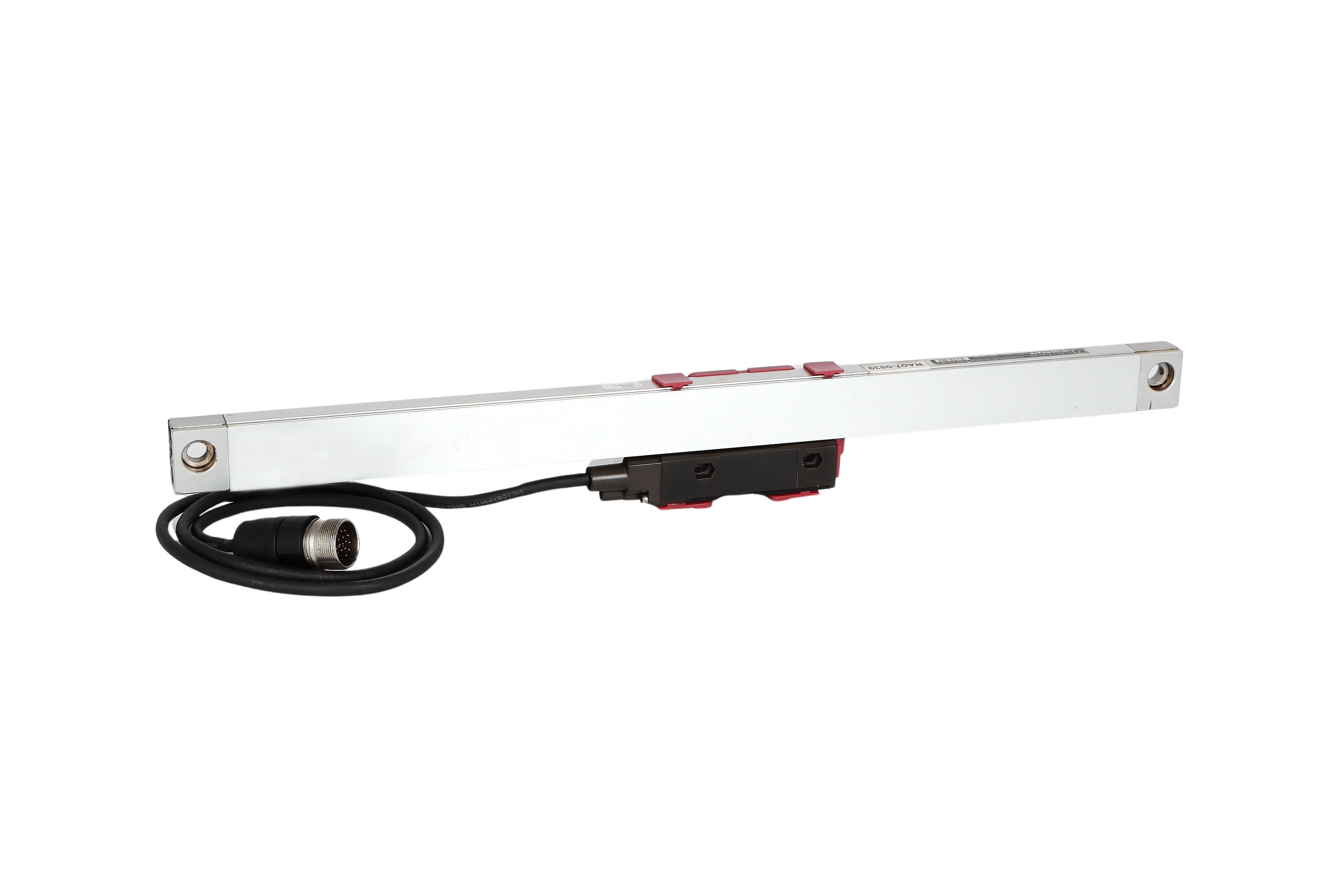

LC 481 ML 370 ID.-NR. 353703-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 370 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486C ML 570 ID.-NR. 310873-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 570 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 183 ML 2040 ID.-NR. 557679-40 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2040 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 183 ML 2240 ID.-NR. 557679-41 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2240 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 3840 ID.-NR. 689698-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 3840 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 183 ML 640 ID.-NR. 557679-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 640 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 403 ML 620 ID.-NR. 226520-43 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 620, ACCURACY GRADE 5,0, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 35, FURTHER REFERENCE MARK POSITION 550, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/ METAL ARMOR

LS 486C ML 720 ID.-NR. 285835-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 720 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 803D ML 620 ID.-NR. 209089-35 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) REFERENCE MARK POSITION:35 MM REFERENCE MARK POSITION 2: 550 MM, ELECTRICAL CONNECTION: CONNECTOR, MALE 9-PIN (BLANK), CABLE LENGTH: 3.00 M

LC 483 ML 1340 ID.-NR. 557647-21 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1340 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 486 ML 620 ID.-NR. 329990-95 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 620 ID.-NR. 285834-86 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:410 ML/2, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 303C ML120 ID.-NR. 334752-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 120 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION:C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: CONNECTOR M23, MALE, 9-PIN CABLE LENGTH: 3.00 M

LS 800 ML 420 CODE-NR. 006R05M HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 420 MM

LS 486 ML 770 ID.-NR. 329992-84 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 770 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 803 ML 420 ID.-NR. 204418-1N HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 420, ACCURACY GRADE 10,0, OUTPUT SIGNAL 15......35µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 60, FURTHER REFERENCE MARK POSITION 300, ELECTRICAL CONNECTION 37S09 CONNECTOR MALE 9-PIN (METAL HOUSING), CABLE LENGTH 3,00 M

LS 486 ML 920 ID.-NR. 329992-85 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 920 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487 ML 320 ID.-NR. 572250-06 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 320 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH FURTHER REFERENCE MARKS:35 MM DISTANCE FROM END OF MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 486 ML 220 ID.-NR. 310757-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION:35 MM, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 220 ID.-NR. 329990-10  HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS:35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LB 326 ML 840 ID.-NR. 222370-31 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 840, ACCURACY GRADE 5,0, FASTENING TYPE N STANDARD, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 420, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/ MEAL ARMOR

LC 181 ML 140 ID.-NR. 295296-47 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 140, ACCRACY GRADE 5,0, FASTENING TYP I SCREW-ON STRIP, OUTPUT SIGNAL 1VPP SINUSOIDAL VOLTAGE SIGNALS, DATA INTERFACE ENDAT01 SYNCHRONOUS N-SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS

LS 703 ML 770 ID.-NR. 216750-TM HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 770, ACCURACY GRADE 5,0, FASTENING TYPE, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 685, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CABLE LENGTH 3,00 M
