Linar Measurement Systems

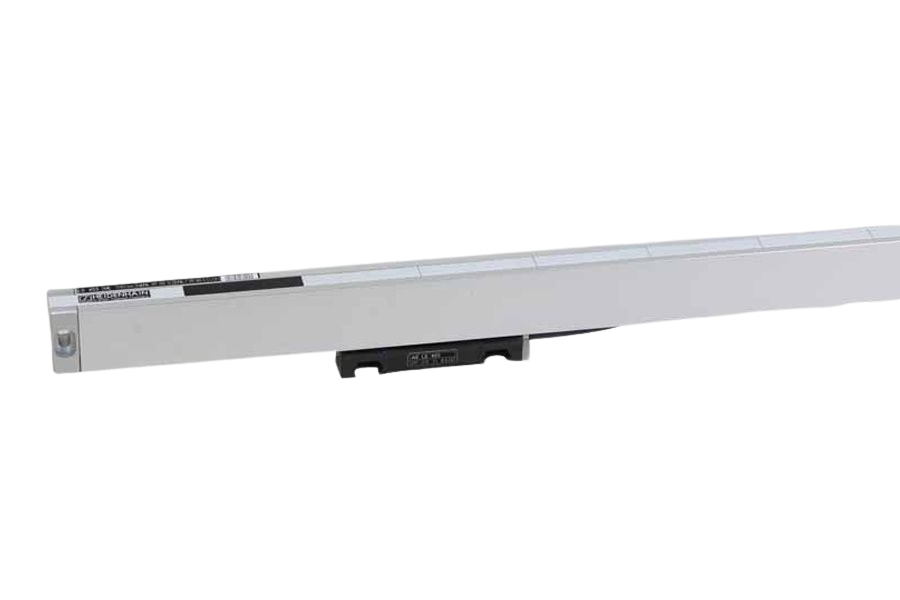

LS 403 ML 270 ID.-NR. 226520-HG HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020MM, ACCURACY GRADE +/-0,005MM, REFERENCE MARK AT Z= 35MM, Z1= 200MM, CABLE LENGTH 4,00M, WITH CONNECTOR WITHOUT ARMOR, MEASURING LENGTH 270MM

LS 603C ML 420 ID.-NR. 249922-74 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 420 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 487 ML 1340 ID.-NR. 572251-21 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1340 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 45 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 920 ID.-NR. 572250-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 920 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 510 ML 270 CODE-NR. 003T05G HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 270

LS 186 ML 140 ID.-NR. 336960-36 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 140 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 487C ML 270 ID.NR. 572249-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 270 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 493F ML 820 ID.-NR. 557643-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 820 MM ACCURACY GRADE ± 3.0 µM MEASURING STEP 10 NM FASTENING TYPE MOUNTING SPAR OUTPUT SIGNAL NO SPECIFIED VALUE OUTPUT CODE BINARY DATA INTERFACE FANUC02 SERIAL INTERFACE

LC 495S ML 220 ID.-NR. 760940-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 220 MM ACCURACY GRADE ± 3.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR END BLOCK 12A OUTPUT SIGNAL NO SPECIFIED VALUE OUTPUT CODE BINARY DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01 ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2240 ID.-NR. 526974-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2240 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2640 ID.-NR. 526974-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2640 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 170 ID.-NR. 572248-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2840 ID.-NR. 526974-23 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2840 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

ROD 1424-125 ID.-NR. 297252-10 HEIDENHAIN INCREMENTAL ROTARY ENCODER

LS 903 ML 520 ID.-NR. 316391-52 HEIDENHAIN SCALE HOUSING FOR LS 903 MEASURING LENGTH 520

LS 803 ML 770 ID.-NR. 316390-21 HEIDENHAIN SCALE HOUSING FOR LS 803 MEASURING LENGTH 770 MM

MASSBANDGEHAUSE LC 201 ID-NR. 746721-02 HEIDENHAIN MASSBANDGEHAUSE LC 201 1200MM

MASSBANDGEHAUSE LC 201 ID-NR. 746721-06 HEIDENHAIN MASSBANDGEHAUSE LC 201 2000MM

LB 302 ML 8440 ID.NR. 315421-27 HEIDENHAIN PARTS KIT LB 302 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF:1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS, MEASURING LENGTH: 8440 MM TYPE OF GRADUATION: AURODUR, THERMAL COEFFICIENT OF LINEAR EXPANSION: ~ 10·10-6K-1 STEEL, ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 40.000 µM, REFERENCE MARK: SELECTABLE BY MAGNET REFERENCE MARK POSITION: EVERY 50 MM, STARTING AT 20 MM FROM BEGINNING OF THE MEASURING LENGTH
