LC 495S ML 670 ID.-NR. 760942-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 670 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR END BLOCK 12A OUTPUT SIGNAL NO SPECIFIED VALUE OUTPUT CODE BINARY ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495M ML 170 ID.-NR. 760946-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, DATA INTERFACE MIT03-4 MITSUBISHI HIGH SPEED INTERFACE GENERATION 2 WITH TWO PAIR TRANSMISSION, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 182 ML 2840 ID.-NR. 368563-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 2840 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 501 ML 320 CODE-NR. 004T05F HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 320 MM

LS 486 ML 720 ID.-NR. 329992-82 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 720 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LF 185C ML 1240 ID.-NR. 682443-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 1240 MM, ACCURACY GRADE ±2.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C003 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 1679 ML 470 ID.-NR. 589221-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 470 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM (DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE), CABLE LENGTH 3.00 M, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 12-PIN

LS 487 ML 120 ID.-NR. 344837-04 HEIDENHAIN SEALED LINEAR ENCODER WITH OPTIMIZED THERMAL BEHAVIOR WITH LOW SCANNING HEAD WITHOUT MOUNTING SPAR, MEASURING LENGTH 120 MM, ACCURACY +/- 0,005 MM, OUTPUT SIGNALS SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION Z = 35 MM, Z1 = 50 MM FURTHER REFERENCE-MARKS: SELECTABLE BY MAGNET, ELECTRICAL CONNECTION VIA CABLE ASSEMBLY

LS 1679 ML 270 ID.-NR. 589220-2N HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 270 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM (DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE), ELECTRICAL CONNECTION CONNECTOR M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET LEFT, CABLE LENGTH 1.00 M

LC 485 ML 220 ID.-NR. 689678-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 477 ML 220 ID.-NR. 605374-25 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 10-FOLD INTERPOLATION, REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 476 ML 220 ID.-NR. 310755-67 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LC 485 ML 1740 ID.-NR. 689684-38 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1740 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 303 ML 620 ID.-NR. 334751-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 620 MM, ACCURACY GRADE ± 10.0 µM, GRATING PERIOD 20.000 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION R35 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH 3.00

LS 679 ML 270 ID.-NR. 345397-01 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 270 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCKS, RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 483 ML 720 ID.-NR. 557653-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 720 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 2640 ID.-NR. 760916-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 2640 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2240 ID.-NR. 526974-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2240 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2640 ID.-NR. 526974-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2640 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

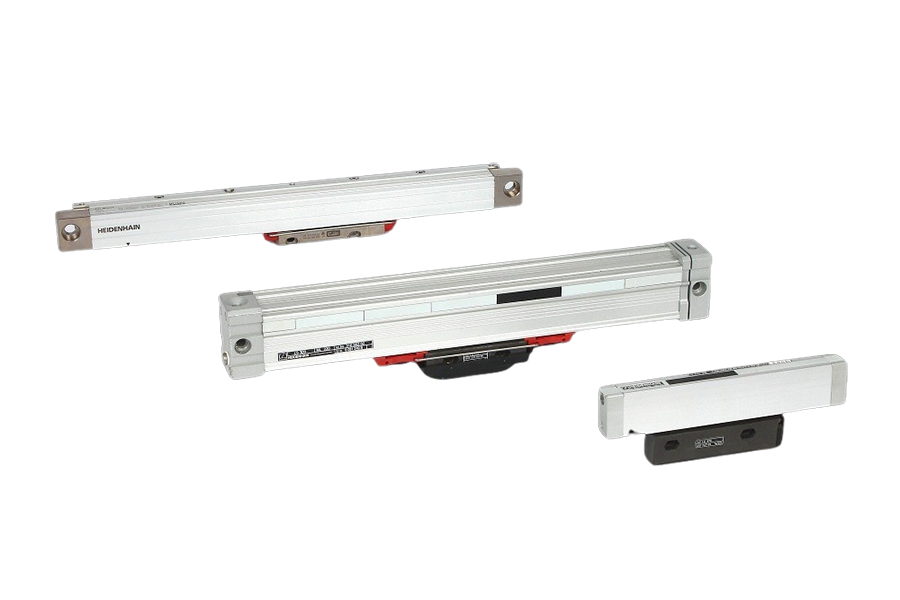

LS 487C ML 170 ID.-NR. 572248-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2840 ID.-NR. 526974-23 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2840 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

ROD 1424-125 ID.-NR. 297252-10 HEIDENHAIN INCREMENTAL ROTARY ENCODER

ERN 1080-2048 ID.-NR. 534913-27 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 6 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 5.00 M

LS 903 ML 520 ID.-NR. 316391-52 HEIDENHAIN SCALE HOUSING FOR LS 903 MEASURING LENGTH 520

LS 803 ML 770 ID.-NR. 316390-21 HEIDENHAIN SCALE HOUSING FOR LS 803 MEASURING LENGTH 770 MM

MASSBANDGEHAUSE LC 201 ID-NR. 746721-02 HEIDENHAIN MASSBANDGEHAUSE LC 201 1200MM

MASSBANDGEHAUSE LC 201 ID-NR. 746721-06 HEIDENHAIN MASSBANDGEHAUSE LC 201 2000MM

LB 302 ML 8440 ID.NR. 315421-27 HEIDENHAIN PARTS KIT LB 302 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF:1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS, MEASURING LENGTH: 8440 MM TYPE OF GRADUATION: AURODUR, THERMAL COEFFICIENT OF LINEAR EXPANSION: ~ 10·10-6K-1 STEEL, ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 40.000 µM, REFERENCE MARK: SELECTABLE BY MAGNET REFERENCE MARK POSITION: EVERY 50 MM, STARTING AT 20 MM FROM BEGINNING OF THE MEASURING LENGTH
