LC 195S ML 1340 ID.-NR. 760912-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1340 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 740 ID.-NR. 760912-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 640 ID.-NR. 760912-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 640 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 4240 ID.-NR 760917-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 4240 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 420 ID.-NR. 760938-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 70 ID.-NR. 689678-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 70 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE: DUAL, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 170 ID.-NR. 689678-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 1540 ID.-NR. 760907-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1540 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495 ML 220 ID.-NR. 760942-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 340 ID.-NR. 689701-24 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 340 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 2040 ID.-NR. 760916-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2040 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 107 ML 240 ID.-NR. 243889-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 240

LC 481 ML 1140 ID.-NR. 327300-31 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 1140 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 303C ML 620 ID.-NR. 334752-0E HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: CONNECTOR M23, MALE, 9-PIN, CABLE LENGTH: 6.00 M

LC 485 ML 370 ID.-NR. 689678-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER

LC 485 ML 370 ID.-NR. 689684-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER

LS 176C ML 1640 ID.-NR. 336962-69 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1640 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 177C ML 1640 ID.-NR. 605354-76 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1640 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD NTERPOLATION REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

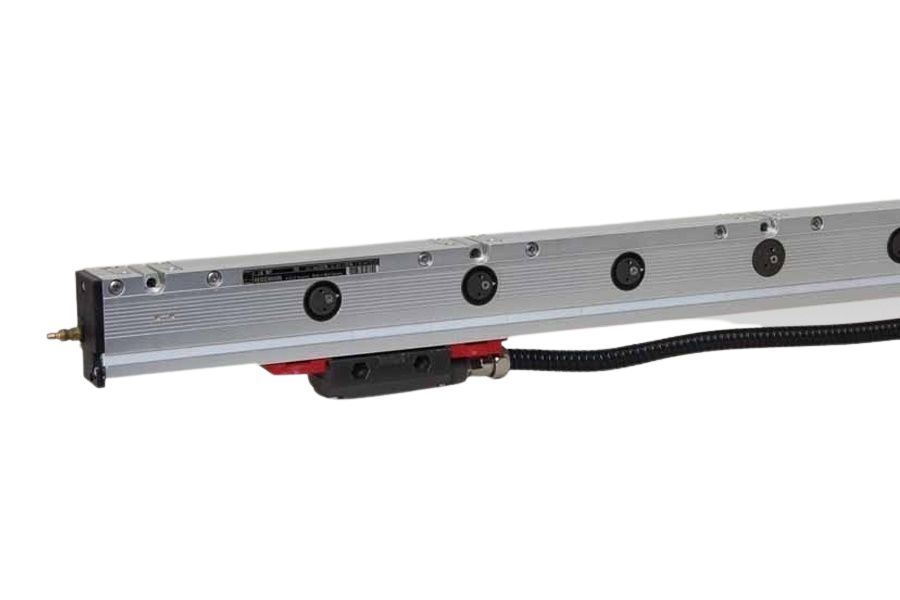

LS 107 ML 1140 ID.-NR. 264069-0F HEIDENHAIN SEALED LINEAR ENCODER, ACCURACY GRADE +/-0,003MM, REFERENCE MARK AT Z= 570MM, CABLE LENGTH 3,00M, WITH CONNECTOR WITHOUT ARMOR, MEASURING LENGTH 1140MM

LS 107 ML 940 ID.-NR. 218496-50 HEIDENHAIN SEALED LINEAR ENCODER

LS 107 ML 840 ID.-NR. 218496-92 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LC 481 ML 470 ID.-NR. 372849-17 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH: 470 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE: DUAL, DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 107 ML 840 ID.-NR. 218496-0W HEIDENHAIN SEALED LINEAR ENCODER

LS 107 ML 940 ID.-NR. 218496-1M HEIDENHAIN SEALED LINEAR ENCODER

LS 703 ML 770 ID.-NR. 216750-5Z HEIDENHAIN SEALED LINEAR ENCODER

LS 107 ML 640 ID.-NR. 264069-3Z HEIDENHAIN SEALED LINEAR ENCODER

LS 487 ML 820 ID.-NR. 572250-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 820 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 840 ID.-NR. 689697-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 840 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LF 185C ML 340 ID.-NR. 682443-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 340 MM ACCURACY GRADE: ±2.0 µM FASTENING TYPE: SCREW-ON STRIP OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 270 ID.-NR. 689684-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 14A OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 120 ID.-NR. 572251-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 120 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION: 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS: 35 MM DISTANCE FROM END OF MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 1140 ID.-NR. 572248-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1140 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 181 ML 340 ID.-NR. 352882-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER MEASURING LENGTH 340 MM

LC 181 ML 440 ID.-NR. 295296-03 HEIDENHAIN ABSOLUTE LINEAR ENCODER LINE COUNT 440 MM

LC 181 ML 640 ID.-NR. 352882-05 HEIDENHAIN ABSOLUTE LINEAR ENCODER LINE COUNT 640 MM

LC 181 ML 740 ID.-NR. 352882-06 HEIDENHAIN ABSOLUTE LINEAR ENCODER LINE COUNT 740 MM

LC 485 ML 70 ID.-NR. 689684-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 70 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 14A, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE: DUAL, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE,14-PIN

LC 481 ML 720 ID.-NR. 337461-22  HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT NTERFACE MEASURING LENGTH: 720 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 481 ML 1240 ID.-NR. 372849-45  HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 1240 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE, SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 181 ML 1140 ID.-NR. 352882-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER MEASURING LENGTH 1140 MM

LC 495F ML 820 ID.-NR. 760932-16 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 820 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-

LS 406 ML 570 ID.-NR. 262181-51 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 570 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: 35 MM, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487 ML 470 ID.-NR. 572251-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION; MEASURING LENGTH: 470 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 1740 ID.-NR. 689701-16 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1740 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 803 ML 770 ID.-NR. 204418-43 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 770 MM, ACCURACY GRADE: 10.0 µM, FASTENING TYPE: END BLOCK, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION:35 MM, REFERENCE MARK POSITION 2: 700 MM, ELECTRICAL CONNECTION: CONNECTOR M23, METAL HOUSING, MALE, 9-PIN, CABLE LENGTH: 3.00 M

LS 406C ML 1240 ID.-NR. 329983-29 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 1240 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 487C ML 470 ID.-NR. 572249-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 470 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 1140 ID.-NR. 760937-20 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1140 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 406C ML 370 ID.-NR. 310750-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 370 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 403 ML 170 ID.-NR. 226520-0W HEIDENHAIN SEALED LINEAR ENCODER ACCURACY GRADE +/-0,003MM REFERENCE MARK AT Z= 35MM, Z1= 100MM CABLE LENGTH 0,30M WITHOUT ARMOR MEASURING LENGTH 170MM
