Linar Measurement Systems

LC 485 ML 220 ID.-NR. 689684-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187 ML 340 ID.-NR. 527389-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 340 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 220 ID.-NR. 560528-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 673C ML 320 ID.-NR. 1366572-35 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 320 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 1-FOLD INTERPOLATION, NON-CLOCKED, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL  INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION D-SUB CONNECTOR, METALIZED PLASTIC HOUSING, 2-ROW, WITH LOCKING SCREWS, MALE, 9-PIN

LC 485 ML 1240 ID.-NR. 689684-45 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1240 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 340 ID.-NR. 526974-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 340 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 820 ID.-NR. 689683-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 820 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 770 ID.-NR. 572251-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 770 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 220 ID.-NR. 760930-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 220 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL NO SPECIFIED VALUE, DATA INTERFACE FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAi, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LF 185 ML 190 ID.-NR. 682442-27 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 190 MM, ACCURACY GRADE ±2.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION M25 - IN THE MIDDLE OF THE MEASURING LENGTH + 25 MM, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LF 185 ML 240 ID.-NR. 682442-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 240 MM, ACCURACY GRADE ±2.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 486 ML 1340 ID.-NR. 310113-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1340 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:45 MM ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 486 ML 120 ID.-NR. 285090-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 120 MM, ACCURACY GRADE ± 5.0 µM

LC 195S ML 1040 ID.-NR. 760914-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1040 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 303 ML 220 ID.-NR. 228975-04 HEIDENHAIN SEALED LINEAR ENCODER GRATING PITCH 0,020MM REFERENZMARK AT Z= 35MM Z1= 15 0MM CABLE LENGTH 3,00M WITH CONNECTOR WITH ARMOR MEASURING LENGTH 220MM

LS 187 ML 540 ID.-NR. 526971-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 540 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 186 ML 940 ID.-NR. 295711-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 940 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 470 ML/2, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 495S ML 270 ID.-NR. 760942-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 270 MM ACCURACY GRADE ± 5.0 µM GRATING PERIOD 20.000 µM FASTENING TYPE END BLOCK + MOUNTING SPAR END BLOCK 12A OUTPUT SIGNAL NO SPECIFIED VALUE OUTPUT CODE BINARY DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01 ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 803 ML 520 ID.-NR. 204418-EV HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 520 MM, ACCURACY GRADE 10.0 µM, FASTENING TYPE END BLOCK, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION 35 MM, REFERENCE MARK POSITION2 450 MM, ELECTRICAL CONNECTION CONNECTOR M23, METAL HOUSING, MALE, 9-PIN, CABLE LENGTH 3,00 M

LC 481 ML 470 ID.-NR. 327300-17 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 470 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 403 ML 270 ID.-NR. 334755-GS HEIDENHAIN SEALED LINEAR ENCODER, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS), SIGNAL PERIOD 0,020 MM, REFERENCE MARK Z=35MM, Z1=200MM, ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITHOUT ARMOR, ACCURACY +/- 0,003 MM, MEASURING LENGTH 270 MM

LS 603 ML 320 ID.-NR. 336972-6P HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 320 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 195S ML 440 ID.-NR. 760910-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 440 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 1040 ID.-NR. 760916-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1040 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 623 ML 170 ID.-NR. 228861-02 HEIDENHAIN SEALED LINEAR ENCODER WITH INTEGRAL DIGITIZING ELECTRONICS (TTL), ACCURACY GRADE +/-0,010MM, REFERENCE MARK AT Z= 85MM, CABLE LENGTH 3,00M, WITHOUT CONNECTOR, MEASURING LENGTH 170MM

LC 195S ML 3640 ID.-NR. 760913-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 3640 MM ACCURACY GRADE 5.0 µM FASTENING TYPE DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01 ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

MASSBAND LB 302C ID.-NR. 1292460-48 HEIDENHAIN SCALE TAPE FOR LB 302C MEASURING LENGTH 4040 MM

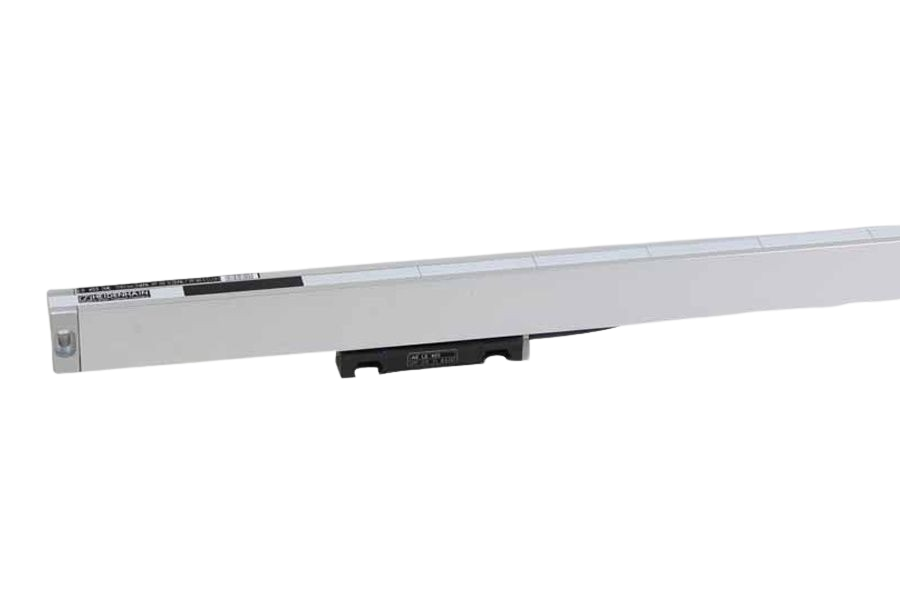

LS 403 ML 120 ID.-NR. 297810-5E HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 803 ML 320 ID.-NR. 204418-0Z HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 320 MM, ACCURACY GRADE 10.0 µM, FASTENING TYPE END BLOCK, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION 60 MM, REFERENCE MARK POSITION 2 200 MM, ELECTRICAL CONNECTION CONNECTOR M23, METAL HOUSING, MALE, 9-PIN, CABLE LENGTH 3.00 M

LC 483 ML 770 ID.-NR. 557650-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 770 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187 ML 1440 ID.-NR. 526971-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1440 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT  SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS NONE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 303C ML 520 ID.-NR. 295791-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 520 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, FURTHER REFERENCE MARKS NONE, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN, CABLE LENGTH 3.00 M

LS 487 ML 820 ID.-NR. 572250-70 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 820 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS NONE,ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 1679 ML 270 ID.-NR. ID.-NR. 589220-3J HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 270 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE, REFERENCE PULSE WIDTH 90°, CONNECTING DIRECTION CABLE OUTLET LEFT, CABLE LENGTH 0.50 M, ELECTRICAL CONNECTION FREE CABLE END

LS 679 ML 420 ID.-NR. 643309-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES, MEASURING LENGTH 420 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPEEND BLOCKS, RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS NONE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 481 ML 2040 ID.-NR. 337461-37 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 2040 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE,

LC 183 ML 1040 ID.-NR. 557679-54 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1040 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 183 ML 1640 ID.-NR. 557680-16 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1640 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 720 ID.-NR. 689684-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 720 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 403 ML 820 ID.-NR. 226520-F3 HEIDENHAIN INCRMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 820

LS 623 ML 270 ID.-NR. 228861-4L HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 270MM

LS 303 ML 720 ID.-NR. 228975-20 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 720MM, ACCURACY GRADE +/- 0,010MM, REFERENZMARK AT Z= 35MM, Z1= 650MM, CABLE LENGTH 3,00M, WITH CONNECTOR WITH ARMOR

LS 683C ML 470 ID.-NR. 1366576-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 470 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION D-SUB CONNECTOR, METALIZED PLASTIC HOUSING, 2-ROW, WITH LOCKING SCREWS, MALE, 15-PIN

LC 185 ML 640 ID.-NR. 689696-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 640 MM ACCURACY GRADE 3.0 µM FASTENING TYPE SCREW-ON STRIP INTEGRATED DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 491F ML 920 ID.-NR. 372852-25 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH SERIAL INTERFACE

LS 703 ML 370 ID.-NR. 216750-P8 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 370

LS 623 ML 220 ID.-NR. 228861-4Z HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 220

LS 403C ML 420 ID.-NR. 233191-10 HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020MM, ACCURACY GRADE +/-0,005MM, WITH DISTANCE-CODED REFERENCE-MARKS, CABLE LENGTH 3,50M, WITH CONNECTOR, WITHOUT ARMOR, MEASURING LENGTH 420MM

LS 403C ML 670 ID.-NR. 233191-15 HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH 670MM

LS 176 ML 740 ID.-NR. 279267-87 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 740 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION 370 ML/2, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE
