Linar Measurement Systems

LS 186C ML 3040 ID.-NR. 336963-S8 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 3040 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL MARKS WITH NOMINAL PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 495S ML 570 ID.-NR. 760942-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 570 MM TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 820 ID.-NR. 689680-16 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 820 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LC 493F ML 320 ID.-NR. 557644-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 320 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE:  END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL:  NO SPECIFIED VALUE, DATA INTERFACE:  FANUC02 SERIAL INTERFACE, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 620 ID.-NR. 760932-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 620 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, OUTPUT CODE: DUAL, DATA INTERFACE: FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 107 ML 1040 ID.-NR. 243889-5H HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 1040, ACCURACY GRADE 5,0, FASTENING TYPE G SCREW-ON STRIP, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS (11µAPP), REFERENCE MARK POSITION 520, ELECTRICAL CONNECTION 55S08 SEP. ADAPTER CABLE, CABLE LENGTH 0,00 WITHOUT CABLE

LC 183 ML 1840 ID.-NR. 557679-18 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 1840 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LC 493F ML 520 ID.-NR. 557644-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 520 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, OUTPUT CODE: DUAL, DATA INTERFACE: FANUC02 SERIAL INTERFACE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 520 ID.-NR. 760932-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 520 MM TOTAL LENGTH: ML+138 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML320 ID.-NR. 689680-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 320 MM TOTAL LENGTH: ML+138 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 420 ID.-NR. 689683-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 420 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 1840 ID.-NR. 526974-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1840 MM ACCURACY GRADE: ± 5.0 µM, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 481 ML 220 ID.-NR. 372849-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 220 MM ACCURACY GRADE: ± 5.0 µM

LC 481 ML 1340 ID.-NR. 372849-43 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 1340 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 483 ML 420 ID.-NR. 557653-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 420 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 483 ML 220 ID.-NR. 557647-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 220 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE:  ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 370 ID.-NR. 760938-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 370 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 540 ID.-NR. 760912-05 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 540 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 1540 ID.-NR. 760912-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1540 MM ACCURACY GRADE: 5.0 µM, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 940 ID.-NR. 760916-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 940 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 920 ID.-NR. 689681-18 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 920 MM TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 370 ID.-NR. 689683-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 370 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LS 704 ML 420 ID.-NR. 336978-C8 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 420, ACCURACY GRADE +/- 0,005 MM,OUTPUT SIGNALS 11µAPP SINUSOIDAL ELECTRIC SIGNALS, REFERENCE MARK EVERY 50 MM STARTING FROM MIDPOINT OF MEASURING LENGTH, AVAILABLE WITH ADD. SELECTOR MAGNETS, ELECTRICAL CONNEC TION VIA ADAPTER CABLE

LS 688C ML 820 ID.-NR. 605799-16 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 820 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: MOUNTING BRACKET OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD

LS 688C ML 470 ID.-NR. 605799-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 470 MM ACCURACY GRADE: ± 10.0 µM GRATING PERIOD: 20.000 µM FASTENING TYPE: MOUNTING BRACKET OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 1340 ID.-NR. 689701-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 1340 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

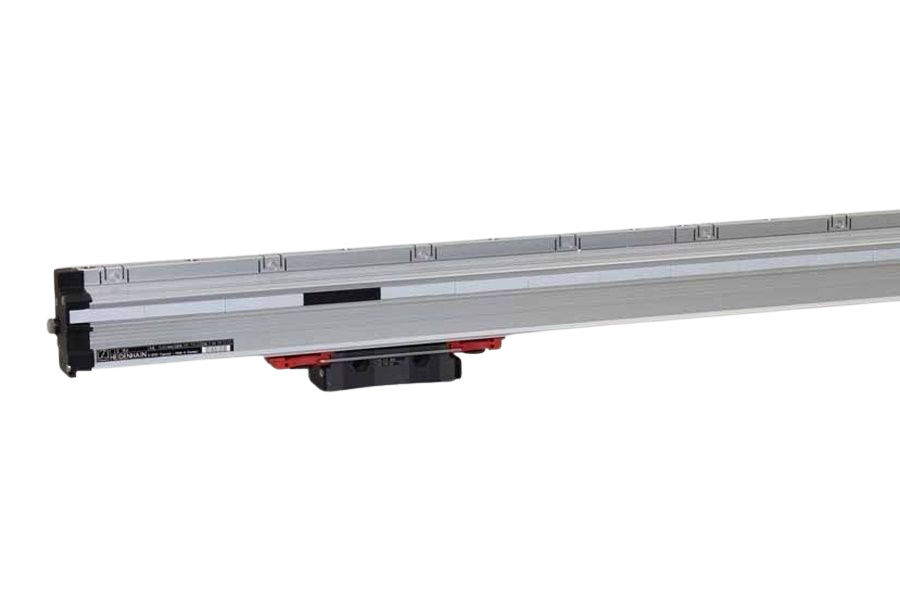

LS 187C ML 540 ID.-NR. 526974-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 540 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 186 ML 1440 ID.-NR. 295711-25 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 1440 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 776 ML 1340 ID.-NR. 336966-86 HEIDENHAINSEALED LINEAR ENCODER WITH INTEGRAL INTERPOLATION AND DIGITIZING ELECTRONICS (5-FOLD), INPUT FREQUENCY MAX.: 50 KHZ, ACCURACY GRADE: 0,005 MM, ELECTRICAL CONNECTION: VIA ADAPTER CABLE, MEASURING LENGTH: 1340 MM

LS 176 ML 340 ID.-NR. 295710-0N HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 340 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION: 170 ML/2, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

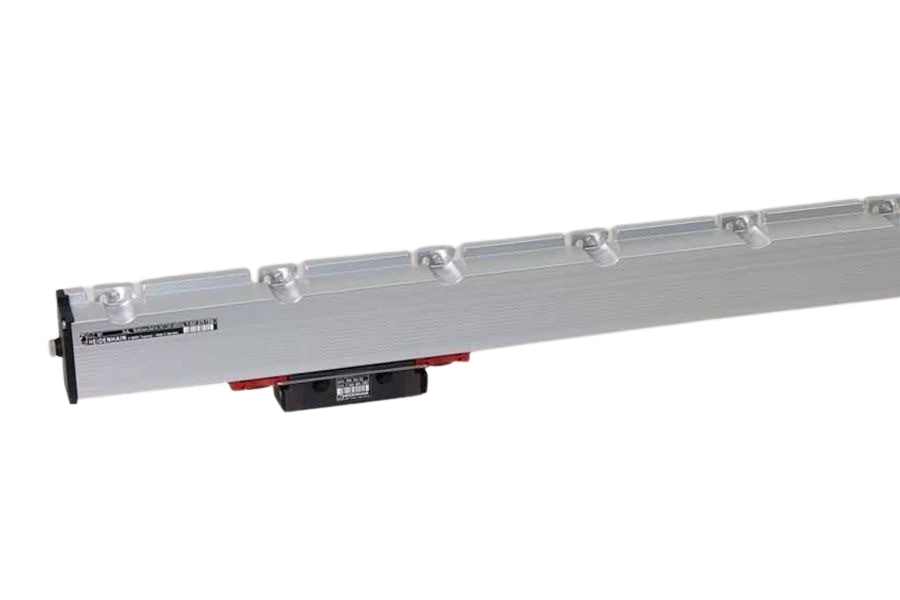

LC 185 ML 340 ID.-NR. 689697-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 340 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 106C ML 740 ID.-NR. 336961-43 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 403 ML 120 ID.-NR. 334755-0V HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH: 120 MM, ACCURACY: +/- 0,003 MM, OUTPUT SIGNALS: SINUSOIDAL POWER SIGNALS (11 µASS), REFERENCE MARK: Z=35MM, Z1=50MM, ELECTRICAL CONNECTION: CABLE 0,30 M WITH FLANGE SOCKET ON CONNECTION FIXTURE

LC 485 ML 70 ID.-NR. 689680-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 70 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 1240 ID.-NR. 689701-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1240 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 403 ML 520 ID.-NR. 226520-HS HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 520, ACCURACY GRADE 5,0, FASTENING TYPE B END BLOCK, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 135, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN

LS 107 ML 740 ID.-NR. 218496-48 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 740 MM, ACCURACY GRADE 3,0, FASTENING TYPE G SCREW-ON STRIP, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK POSITION 370, ELECTRICAL CONNECTION 31S09 CONNECTOR MALE 9-PIN W/ METAL ARMOR, CABLE LENGTH 3,00 M

LC 481 ML 620 ID.-NR. 353703-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 620 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LB 301 ML 4640 ID.-NR. 284667-08 HEIDENHAIN PARTS KIT LB 301 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF: 1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING, LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS, MEASURING LENGTH: 4640 MM, ACCURACY GRADE: ± 5.0 µM, REFERENCE MARK: SELECTABLE BY MAGNET, REFERENCE MARK POSITION: EVERY 50 MM, STARTING AT 20 MM FROM BEGINNING OF THE MEASURING LENGTH

LC 185 ML 1040 ID.-NR. 689697-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1040 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 340 ID.-NR. 760905-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 340 MM ACCURACY GRADE: 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495M ML 220 ID.-NR. 760946-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM TOTAL LENGTH: ML+138 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 706C ML 1340 ID.-NR. 336968-29 HEIDENHAIN SEALED LINEAR ENCODER HIGH VIBRATION RATING, OUTPUT SIGNALS: SINUSSOIDAL 11UASS, REFERENCE MARKS: DISTANCE-CODED, ELECTRICAL CONNECTION: VIA AAPTER CABLE, ACCURACY: +/- 0,005 MM, MEASURING LENGTH: 1340 MM

LS 406 ML 170 ID.-NR. 329982-57 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 170 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LC 485 ML 270 ID.-NR. 689681-05 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 270 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 240 ID.-NR. 689701-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 240 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 193F ML 1440 ID.-NR. 557677-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1440 MM, ACCURACY GRADE: 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 1440 ID.-NR. 760905-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 1440 MM, ACCURACY GRADE: 3.0 µM, GRATING PERIOD: 20.000 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI, POWER SUPPLY: 3.6 V ... 14 V, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 140 ID.-NR. 760905-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 140 MM, ACCURACY GRADE: 3.0 µM, GRATING PERIOD: 20.000 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI, POWER SUPPLY: 3.6 V ... 14 V, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 186C ML 1140 ID.-NR. 336963-47 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1140 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE
