Linar Measurement Systems

LS 486 ML 320 ID.-NR. 310757-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 320 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35MM, REFERENCE MARK POSITION 2 35 MM, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 403 ML 180 ID.-NR. 226520-SL HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 180,

LC 495S ML 1840 ID.-NR. 760942-27 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1840 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 520 ID.-NR. 760941-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 520 MM, ACCURACY GRADE ± 3.0 µM, GRATING PERIOD 20.000 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 199F2 ML 740 ID.-NR. 1196125-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 740 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 483 ML 2040 ID.-NR. 557654-37 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 2040 MM CCURACY GRADE ± 5.0 µM GRATING PERIOD 20.000 µM FASTENING TYPE MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE BINARY ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 373C ML 70 ID.-NR. 1326655-57 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 70 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCKS FOR M4 MOUNTING SCREWS, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 1-FOLD INTERPOLATION, NON-CLOCKED, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, CABLE LENGTH 3,00 M, ELECTRICAL CONNECTION D-SUB CONNECTOR, METALIZED PLASTIC HOUSING, 2-ROW, WITH LOCKING SCREWS, MALE, 9-PIN

LS 404 ML 370 ID.-NR. 228249-07 HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020 MM, ACCURACY GRADE +/-0,005 MM, REFERENCE MARK AT Z = 35 MM, Z1 = 300 MM, CABLE LENGTH 3,00 M, WITH CONNECTOR, WITHOUT ARMOR, MEASURING LENGTH 370 MM

LS 803 ML 620 ID.-NR. 204418-92 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 620 MM; ACCURACY GRADE 10.0 µM, FASTENING TYPE END BLOCK, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (25 µAPP), REFERENCE MARK POSITION 35 MM, REFERENCE MARK POSITION 2 550 MM, ELECTRICAL CONNECTION CONNECTOR M23, METAL HOUSING, MALE, 9-PIN, CABLE LENGTH 3,00 M

LF 183 ML 240 ID.-NR. 348225-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 240 MM, ACCURACY GRADE ± 2.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 373C ML 120 ID.-NR. 1326657-47 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 120 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCKS FOR M4 MOUNTING SCREWS, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 1-FOLD INTERPOLATION, NON-CLOCKED, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, CABLE LENGTH 3.00 M, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 12-PIN

LC 483 ML 620 ID.-NR 557650-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 620 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 803 ML 620 ID.-NR. 204418-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 620 MM

LS 903 ML 70 ID.-NR. 209081-7Z HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 70 MM

LS 703 ML 420 ID.-NR. 216750-6X HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 420

LS 623 ML 320 ID.-NR. 228861-2V HEIDENHAIN SEALED LINEAR ENCODER, WITH INTEGRAL DIGITIZING ELECTRONICS (TTL), GRATING PITCH 0,020MM, ACCURACY GRADE +/-0,010MM, REFERENCE MARK AT Z= 300MM, CABLE LENGTH 1,00M, WITHOUT CONNECTOR, MEASURING LENGTH 320MM

LS 405 ML 116 ID.-NR. 245100-05 HEIDENHAIN SEALED LINEAR ENCODER, OUTPUT SIGNALS SINUSOIDAL POWER SIGNALS (11 µASS), SIGNAL PERIOD 0,010 MM, REFERENCE MARK Z= 33, ELECTRICAL CONNECTION CABLE 3 M WITH CONNECTOR WITHOUT ARMOR, ACCURACY +/- 0,005 MM, MEASURING LENGTH 116 MM

LC 481 ML 170 ID.-NR. 327300-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 170 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LF 183C ML 840 ID.-NR. 348226-15 HEIDENHEIM INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH 840 MM ACCURACY GRADE ± 2.0 µM FASTENING TYPE SCREW-ON STRIP OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 486 ML 720 ID.-NR. 329992-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 720 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LF 481 ML 250 ID.-NR. 355529-62 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 250 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 25 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS 25 MM DISTANCE FROM THE END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 483 ML 1240 ID.-NR. 557650-20 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1240 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 483 ML 70 ID.-NR. 557653-05 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 70 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 177 ML 740 ID.-NR. 605357-88 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 740 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 183 ML 2240 ID.-NR. 557679-20 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2240 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 2640 ID.-NR. 760907-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2640 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 2840 ID.-NR. 760907-28 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2840 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 520 ID.-NR. 760930-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 520 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 620 ID.-NR. 760931-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 670 ID.-NR. 760932-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 670 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 481 ML 520 ID.-NR. 353703-50 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 520 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 185 ML 2240 ID.-NR. 689696-20 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 2240 MM ACCURACY GRADE 3.0 µM FASTENING TYPE SCREW-ON STRIP INTEGRATED DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 493F ML 370 ID.-NR. 557645-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 370 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, DATA INTERFACE FANUC02 SERIAL INTERFACE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 106C ML 1240 ID.-NR. 295712-23 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1240 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 485 ML 170 ID.-NR. 689684-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE BINARY, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 323 ML 120 ID.-NR. 334749-32 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 120 MM, OUTPUT SIGNALS SQUARE-WAVE SIGNAL, TTL, REFERENCE MARKS Z=35 MM, Z1=50 MM, ACCURACY +/- 0,010 MM, ELECTRICAL CONNECTION CABLE 3M WITHOUT CONNECT

LC 185 ML 1740 ID.-NR. 689696-17 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1740 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 603C ML 1240 ID.-NR. 249922-88 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1240 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 303C ML 170 ID.-NR. 295791-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH 3.00 M

LC 481 ML 370 ID.-NR. 337461-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 370 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 495F ML 770 ID.-NR. 760932-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 770 MM , TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 620 ID.-NR. 572250-12 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 620 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 820 ID.-NR. 760931-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 820 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 501 ML 370 ID.-NR. 206681-09 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 303C ML 1140 ID.-NR. 364019-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 1140 MM ACCURACY GRADE ± 10.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP)

LS 703 ML 1540 ID.-NR. 216750-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 1540 MM

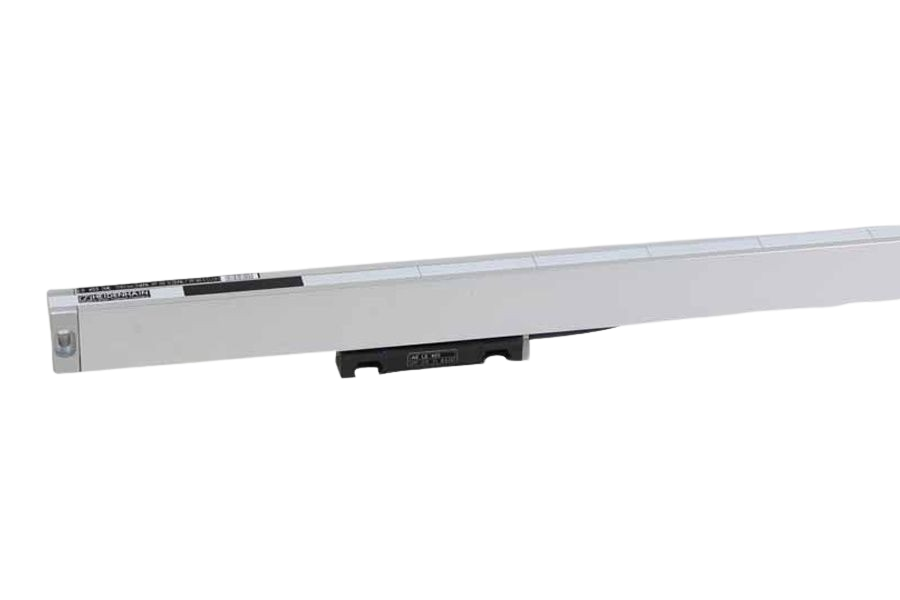

LS 403 ML 720 ID.-NR. 226520-1R HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 720 MM

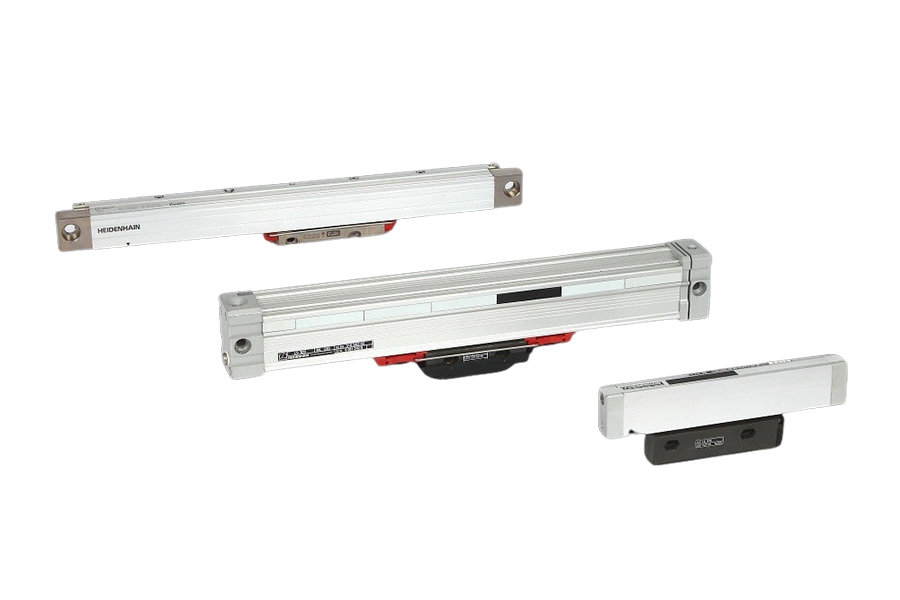

LS 403 ML 120 ID.-NR. 226520-22 HEIDENHAIN SEALED LINEAR ENCODER, GRATING PITCH 0,020MM, ACCURACY GRADE +/-0,005MM, REFERENCE MARK AT Z= 35MM, Z1= 50MM, CABLE LENGTH 3,00M, WITH CONNECTOR, WITHOUT ARMOR, MEASURING LENGTH 120MM

LS 486C ML 1020 ID.-NR. 329991-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1020 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 486C ML 1020 ID.-NR. 329991-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 1020 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE
