Linar Measurement Systems

LC 328C ML 570 ID.-NR. 559682-40 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 570 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 106C ML 340 ID.-NR. 295712-14 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 340 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKSELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 603C ML 620 ID.-NR. 316559-79 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 620 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 476C ML 220 ID.-NR. 329987-04 HEIDENHAIN SEALED LINEAR ENCODER WITH OPTIMIZED THERMAL BEHAVIOR WITHOUT MOUNTING SPAR, MEASURING LENGTH 220 MM, ACCURACY GRADE 0,005 MM, OUTPUT SIGNALS SQUAREWAVE TTL, REFERENCE MARK DISTANCE CODED, ELECTRICAL CONNECTION WITH SEPARATE CABLE ASSEMBLY

LS 186C ML 1740 ID.-NR. 336963-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1740 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION EPARATE ADAPTER CABLE

LS 303C ML 140 ID.-NR. 364019-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 140 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE, CABLE LENGTH 0.00 W/O CABLE

LS 388C ML 270 ID.-NR. 516270-05 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 270 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 1240 ID.-NR. 760914-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1240 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 1540 ID.-NR. 760943-24 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 1540 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 1340 ID.-NR. 526974-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1340 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, FURTHER REFERENCE MARKS NONE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

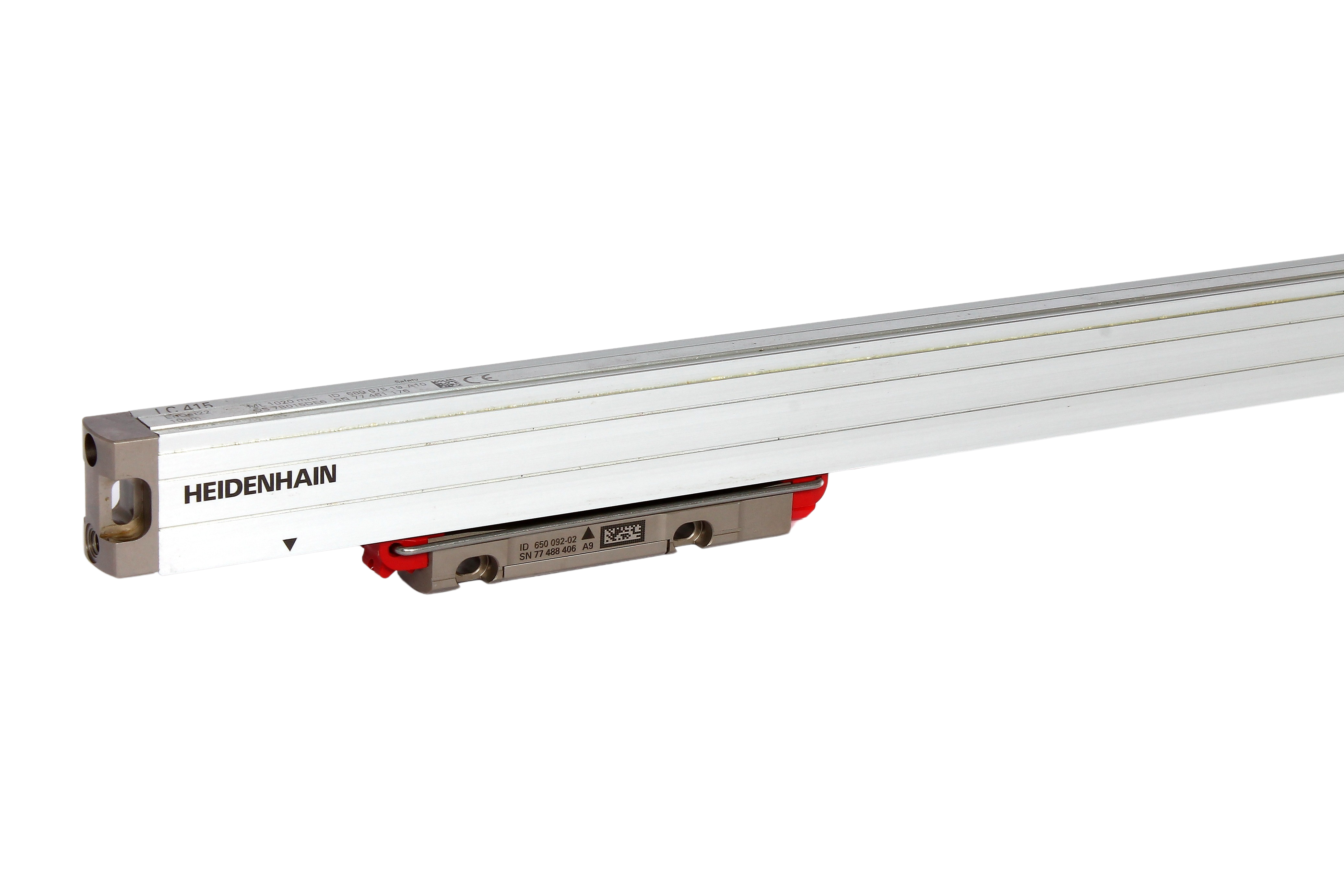

LC 415 ML 1020 ID.-NR. 689675-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER

LC 415 ML 870 ID.-NR. 689675-17 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER

LC 415 ML 1140 ID.-NR. 689675-20 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER

LC 495S ML 2040 ID.-NR. 760941-50 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER

LC 185 ML 540 ID.-NR. 689696-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 540 MM, ACCURACY GRADE: 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

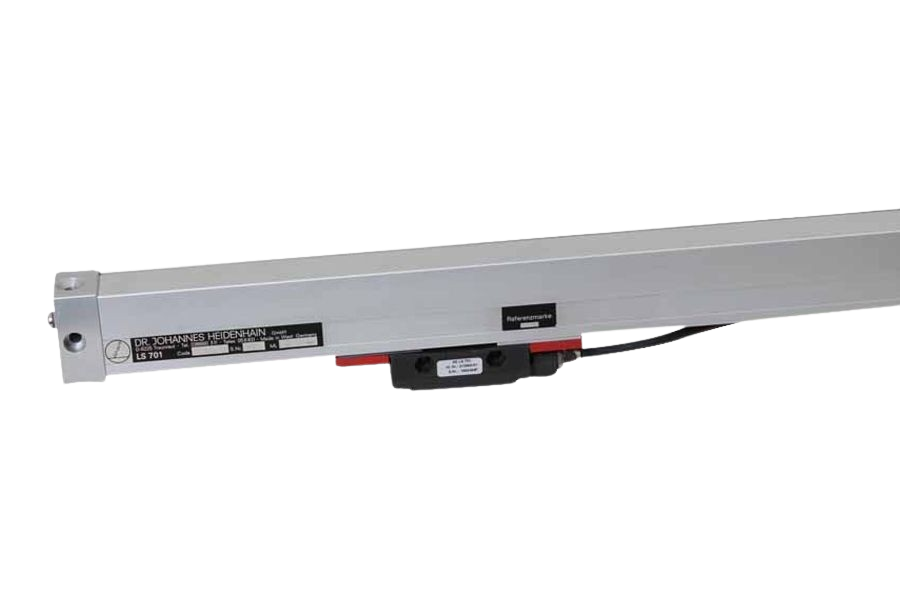

LS 704 ML 770 ID.-NR. 336978-BK HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH: 770 MM, ACCURACY GRADE: +/- 0,005 MM, OUTPUT SIGNALS: SINUSOIDAL ELECTRIC SIGNALS (11 UASS), REFERENCE MARK: EVERY 50 MM STARTING FROM MIDPOINT OF MEASURING LENGTH, AVAILABLE WITH ADD. SELECTOR MAGNETS, ELECTRICAL CONNECTION: VIA ADAPTER CABLE

LS 404 ML 320 ID.-NR. 228249-76 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LC 415 ML 770 ID.-NR. 689675-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 770 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 720 ID.-NR. 760935-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 720 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 14A, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 483 ML 370 ID.-NR. 557653-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 370 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495F ML 320 ID.-NR. 760934-05 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 320 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, END BLOCK 12A, OUTPUT SIGNAL NO SPECIFIED VALUE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185  ML 1040 ID.-NR. 689696-10 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 1040 MM, ACCURACY GRADE: 3.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LF 485 ML 550 ID.-NR. 635326-30 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION 25 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 328C ML 220 ID.-NR. 559682-33 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 220 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS, REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION:  FLANGE SOCKET, MALE, 14-PIN

LS 303 ML 420 ID.-NR. 334751-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 420 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION R35 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM END OF MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN, CABLE LENGTH 3.00

LS 303 ML 420 ID.-NR. 334751-77 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 420 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS NONE, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN, CABLE LENGTH 3.00

LC 495S ML 270 ID.-NR. 760939-05 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 270 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR

LC 195F ML 640 ID.-NR. 760907-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 640 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED

LF 185 ML 640 ID.-NR. 682433-07 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH 640 MM,  ACCURACY GRADE ±3.0 µM, FASTENING TYPE CREW-ON STRIP, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION ML/2 - IN THE MIDDLE OF THE MEASURING LENGTH

LC 481 ML 820 ID.-Nr. 353703-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT MEASURING LENGTH 820 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT CODE DUAL ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 486 ML 920 ID.-NR. 329990-85 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 920 MM; ACCURACY CLASS: ± 5.0 μM, MOUNTING TYPE: END PIECE AND MOUNTING RAIL; OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VSS) REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASUREMENT LENGTH;  ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 328C ID.-NR. 516281-13 HEIDENHAIN ENCODER

LS 406 ML 820 ID.-NR. 329982-81 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 406 ML 520 ID.-NR. 329982-72 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 520 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION: IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 187 ML 1140 ID.-NR. 526971-11 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1140 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 2040 ID.-NR. 689680-55 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 2040 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 270 ID.-NR. 689683-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 270 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, END BLOCK: 12A OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 406C ML 820 ID.-NR. 329983-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 820 MM ACCURACY GRADE ± 5.0 µM FASTENING TYPE END BLOCK + MOUNTING SPAR OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 403 ML 320 ID.-NR. 226520-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER GRATING PITCH 0,020MM ACCURACY GRADE +/-0,005MM CABLE LENGTH 3,00M, WITH CONNECTOR WITHOUT ARMOR MEASURING LENGTH 320MM

LS 804 ML 620 ID.-NR. 215394-01 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LS 403C ML 720 ID.-NR. 233191-05 HEIDENHAIN SEALED LINEAR ENCODER, MEASURING LENGTH 720 MM, ACCURACY GRADE +/-0,005 MM, CABLE LENGTH 3,00M, WITH CONNECTOR WITHOUT ARMOR

LS 704C ML 1140 ID.-NR. 237134-03 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 1140MM GRATING PITCH 0,020MM ACCURACY GRADE +/-0,005MM, CABLE LENGTH 03,00M, WITH CONNECTOR, WITHOUT ARMOR

LF 485C ML 200 ID.-NR. 635327-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR HIGHEST REPEATABILITY, MEASURING LENGTH 200 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 5000 X SIGNAL PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 107 ML 1340 ID.-NR. 218496-75 HIEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 1340

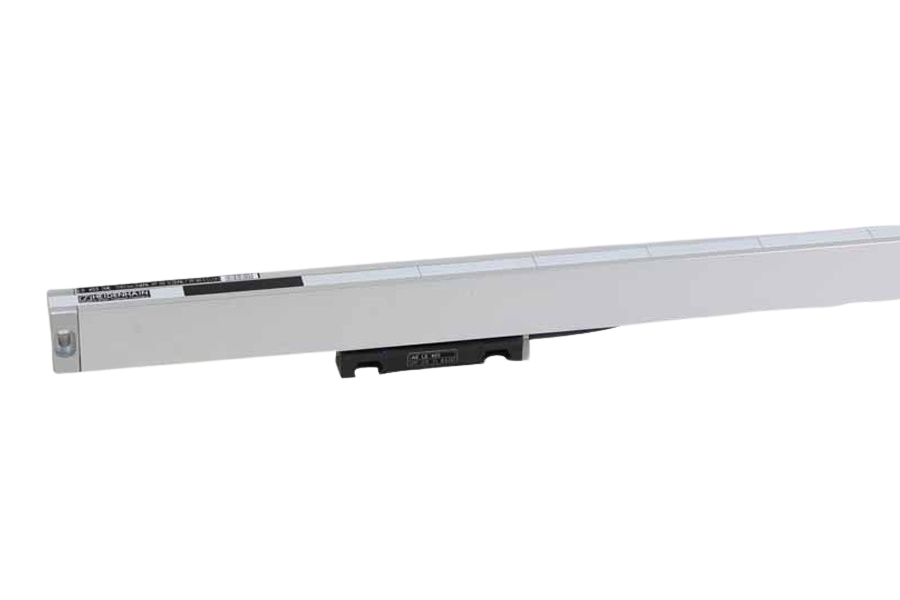

LS 403 ML 120 ID.-NR. 226520-5E HEIDENHAIN INCREMENTAL SEALED LINEAR MEASURING LENGTH 120MM, ACCURACY GRADE +/-0,003 CABLE LENGTH 3,00 M WITH PLUG

LS 486C ML 570 ID.-NR. 285260-19 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 570 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 176 ML 840 ID.-NR. 336959-39 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 840 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LC 495F ML 120 ID.-NR. 760934-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 120 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, OUTPUT CODE: DUAL DATA INTERFACE: FANUC05 SERIAL INTERFACE FANUC ALPHA/ALPHAI, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 403C ML 670 ID.-NR. 334756-50 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 670, OUTPUT SIGNAL 11µAPP SINUSOIDAL CURRENT SIGNALS, REFERENCE MARK DISTANCE-CODED, ELECTRICAL CONNECTION CABLE 0,30 M WITH FLANGE SOCKET ON CONNECTION FIXTURE

LC 183 ML 1040 ID.-NR. 557660-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1040 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN
