LS 328C ML 170 ID.-NR. 559682-32 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS, REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 x GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LB 326 ML 1200 ID.-NR. 232729-02 HEIDENHAIN SCALE HOUSING FOR LB 326, HOUSING SECTION 1200 MM

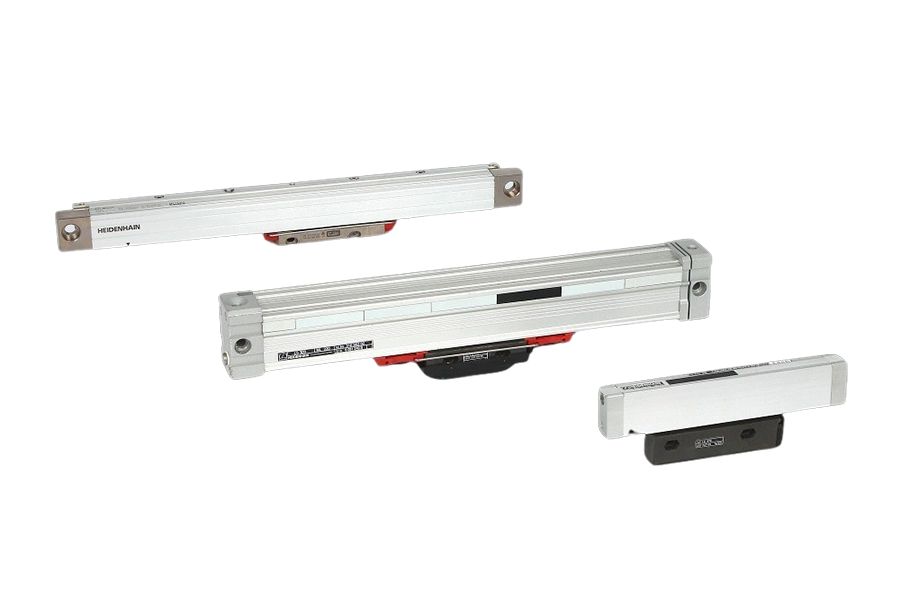

LB 326 ML 6240 ID.-NR. 251228-16 HEIDENHAIN PARTS KIT LB 326 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF: 1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING LIP, 3 HOUSING SEALS, SMALL PARTS, MEASURING LENGTH: 6240 MM, ACCURACY GRADE: ± 5.0 µM, REFERENCE MARK POSITION: EVERY 50 MM, STARTING AT 20 MM FROM BEGINNING OF THE MEASURING LENGTH, FASTENING TYPE: STANDARD

LC 485 ML 570 ID.-NR. 689681-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 570 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, END BLOCK: 14A, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 1540 ID.-NR. 689701-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH: 1540 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 120 ID.-NR. 572249-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 120 MM; TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, GRATING PERIOD: 20.000 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 303C ML 120 ID.-NR. 249909-34 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 120 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION:C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH: 3.00 M

LC 481 ML 770 ID.-NR. 372849-23 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, ACCURACY GRADE: ± 5.0 µM, MEASURING LENGTH: 770 MM

LC 483 ML 770 ID.-NR. 557654-23 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 770 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE: DUAL, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 803 ML 520 ID.-NR. 204418-2H HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 520 MM ACCURACY GRADE: 10.0 µM FASTENING TYPE: END BLOCK OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (25 µAPP) ELECTRICAL CONNECTION: CONNECTOR M23, METAL HOUSING, MALE, 9-PIN CABLE LENGTH: 3.00 M

LS 503 ML 1640 ID.-NR. 216760-40 HEIDENHAIN INCREMENTAL SEALED LNEAR ENCODER, MEASURING LENGTH 1640 MM, ACCURACY GRADE +/-0,010MM, REFERENCE MARK AT Z= 820MM, CABLE LENGTH 3,00 M WITH CONNECTOR WITH ARMOR

LC 485 ML 2040 ID.-NR. 689684-37 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 2040 MM, TOTAL LENGTH: ML+105 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, END BLOCK: 14A, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LB 326 ML 2440 ID.-NR. 229201-11 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 2440 MM, GRATING PERIOD 0,100MM, GRATING PERIOD 0,100 MM, ACCURACY GRADE 0,005 MM, CABLE LENGTH 3,00 M WITH CONNECTOR

LS 303C ML 220 ID.-NR. 249909-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 220 MM, ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION:C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: CONNECTOR, MALE, 9-PIN WITH ARMOR, CABLE LENGTH: 3.00 M

LC 195S ML 1340 ID.-NR. 760912-13 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1340 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 740 ID.-NR. 760912-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 740 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 640 ID.-NR. 760912-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 640 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 4240 ID.-NR 760917-12 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 4240 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 420 ID.-NR. 760938-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 420 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 70 ID.-NR. 689678-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 70 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE: DUAL, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 170 ID.-NR. 689678-03 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 170 MM TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 3.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 12A, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 1540 ID.-NR. 760907-15 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1540 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 495 ML 220 ID.-NR. 760942-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 220 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: NO SPECIFIED VALUE, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 340 ID.-NR. 689701-24 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 340 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 2040 ID.-NR. 760916-19 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2040 MM ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: DQ01 DRIVE-CLIQ ENCODER INTERFACE DQ01, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 107 ML 240 ID.-NR. 243889-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 240

LC 481 ML 1140 ID.-NR. 327300-31 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH: 1140 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 303C ML 620 ID.-NR. 334752-0E HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 620 MM ACCURACY GRADE: ± 10.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP) REFERENCE MARK POSITION:C001 DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: CONNECTOR M23, MALE, 9-PIN, CABLE LENGTH: 6.00 M

LC 485 ML 370 ID.-NR. 689678-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER

LC 485 ML 370 ID.-NR. 689684-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER

LS 176C ML 1640 ID.-NR. 336962-69 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1640 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION: DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 177C ML 1640 ID.-NR. 605354-76 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 1640 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL: SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD NTERPOLATION REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 107 ML 1140 ID.-NR. 264069-0F HEIDENHAIN SEALED LINEAR ENCODER, ACCURACY GRADE +/-0,003MM, REFERENCE MARK AT Z= 570MM, CABLE LENGTH 3,00M, WITH CONNECTOR WITHOUT ARMOR, MEASURING LENGTH 1140MM

LS 107 ML 940 ID.-NR. 218496-50 HEIDENHAIN SEALED LINEAR ENCODER

LS 107 ML 840 ID.-NR. 218496-92 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER

LC 481 ML 470 ID.-NR. 372849-17 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH: 470 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), OUTPUT CODE: DUAL, DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION: SEPARATE ADAPTER CABLE

LS 107 ML 840 ID.-NR. 218496-0W HEIDENHAIN SEALED LINEAR ENCODER

LS 107 ML 940 ID.-NR. 218496-1M HEIDENHAIN SEALED LINEAR ENCODER

LS 703 ML 770 ID.-NR. 216750-5Z HEIDENHAIN SEALED LINEAR ENCODER

LS 107 ML 640 ID.-NR. 264069-3Z HEIDENHAIN SEALED LINEAR ENCODER

LS 487 ML 820 ID.-NR. 572250-15 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 820 MM ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 840 ID.-NR. 689697-08 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 840 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LF 185C ML 340 ID.-NR. 682443-13 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR HIGHEST REPEATABILITY MEASURING LENGTH: 340 MM ACCURACY GRADE: ±2.0 µM FASTENING TYPE: SCREW-ON STRIP OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 270 ID.-NR. 689684-09 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 270 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: END BLOCK + MOUNTING SPAR END BLOCK: 14A OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) OUTPUT CODE: DUAL DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487 ML 120 ID.-NR. 572251-02 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH: 120 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION: 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS: 35 MM DISTANCE FROM END OF MEASURING LENGTH, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 1140 ID.-NR. 572248-18 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH: 1140 MM, TOTAL LENGTH: ML+138 MM, ACCURACY GRADE: ± 5.0 µM, FASTENING TYPE: END BLOCK + MOUNTING SPAR OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION:C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 181 ML 340 ID.-NR. 352882-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER MEASURING LENGTH 340 MM

LC 181 ML 440 ID.-NR. 295296-03 HEIDENHAIN ABSOLUTE LINEAR ENCODER LINE COUNT 440 MM

LC 181 ML 640 ID.-NR. 352882-05 HEIDENHAIN ABSOLUTE LINEAR ENCODER LINE COUNT 640 MM

LC 181 ML 740 ID.-NR. 352882-06 HEIDENHAIN ABSOLUTE LINEAR ENCODER LINE COUNT 740 MM
