Linar Measurement Systems

LC 192F ML 340 ID.-NR. 387093-25 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER, MEASURING LENGTH 340 MM

LC 182 ML 1540 ID.-NR. 387092-37 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 1540 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 403 ML 570 ID.-NR. 226520-1L HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 570 MM

LC 182 ML 840 ID.-NR. 387092-30 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE, MEASURING LENGTH 840 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATEDM DATA INTERFACE SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LF 103 ML 3040 ID.-NR. 345747-66 HEIDENHAIN INCREMENTAL LINEAR ENCODER WITH PLANAR PHASE GRATING ON STEEL, OUTPUT SIGNALS SINUSOIDAL (11 UAPP), REFERENCE MARKS IN THE MIDDLE OF MEASURING LENGTH FURTHER REFERENCE MARKS ALL 50 MM SELECTABLE THROUGH MAGNETS, ELECTR. CONNECTION WITHOUT CABLE, ACCURACY GRADE +/- 0,002 MM, MEASURING LENGTH 3040 MM

LS 186C ML 540 ID.-NR. 336963-41 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 540 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 176C ML 1340 ID.-NR. 336962-0V HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1340 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 5-FOLD INTERPOLATION, REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

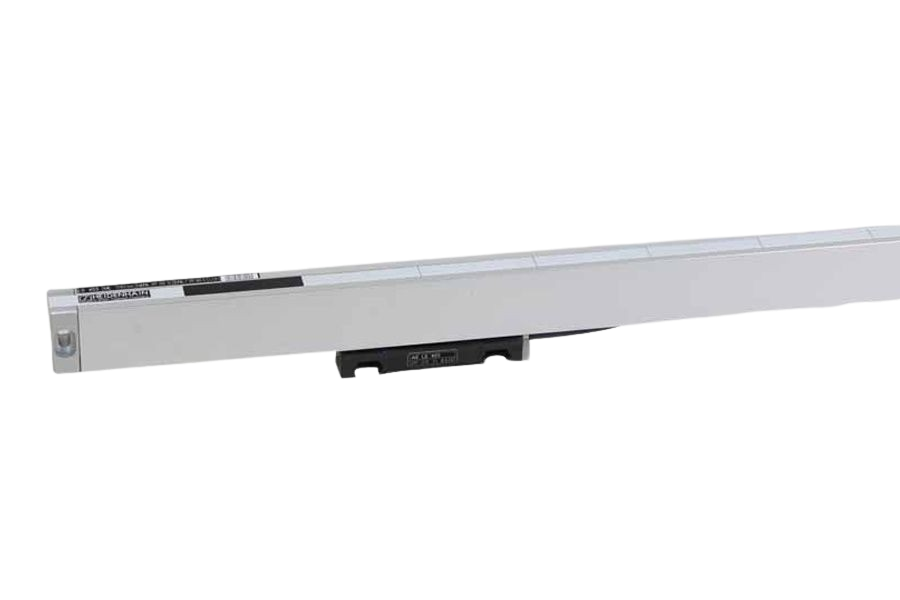

LS 403 ML 220 ID.-NR. 226520-2R HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER, MEASURING LENGTH 220 MM

LC 485 ML 170 ID.-NR. 689683-01 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), DATA INTERFACE ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 703 ML 370 ID.-NR. 336976-64 HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 370 MM, OUTPUT SIGNALS SINUSOIDAL (11 UASS), REFERENCE MARKS ONE REFERENCE MARK AT MID-POINT OF MEASURING LENGTH MOVEABLE BY 50 MM STEPS, ACCURACY GRADE +/- 0,003 MM, ELECTRICAL CONNECTION VIA ADAPTER CABLE

LS 187 ML 2240 ID.-NR. 526971-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 2240 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 406 ML 620 ID.-NR. 329982-52 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 620 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL CURRENT SIGNALS (11 µAPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH WITH TWO REFERENCE MARKS, ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

LS 187 ML 3040 ID.-NR. 526971-24 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 3040 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 3840 ID.-NR. 689698-14 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 3840 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 1679 ML 320 ID.-NR. 589220-2P HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES MEASURING LENGTH 320 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCK, REFERENCE MARK POSITION 35 MM (DISTANCE IN MM FROM THE END OF THE MEASURING LENGTH, SELECTABLE), CONNECTING DIRECTION CABLE OUTLET LEFT, CABLE LENGTH 1,00 M, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 12-PIN

LS 477 ML 220 ID.-NR. 605379-2B HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 220 MM, MEASURING LENGTH 220 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS WITH 10-FOLD INTERPOLATION, REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 688C ML 1740 ID.-NR. 605799-28 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 1740 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE MOUNTING BRACKET, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 629 ML 320 ID.-NR. 643307-04 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION WITH INTEGRATED GUIDE WAY FOR BENDING MACHINES MEASURING LENGTH 320 MM, ACCURACY GRADE ± 10.0 µM, FASTENING TYPE END BLOCKS, RIGHT END BLOCK FLEXIBLE, OUTPUT SIGNAL SQUARE-WAVE SIGNALS, TTL LEVELS, REFERENCE MARK POSITION ML/2 IN THE MIDDLE OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195S ML 640 ID.-NR. 760916-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 640 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 240 ID.-NR. 689696-05 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 240 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 195F ML 440 ID.-NR.760907-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 440 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 570 ID.-NR. 760939-11 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 570 MM, TOTAL LENGTH ML+105 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 183 ML 740 ID.-NR. 557680-07 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 740 MM, ACCURACY GRADE 3.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 3440 ID.-NR. 689698-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 3440 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 4240 ID.-NR. 689698-06 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 4240 MM, ACCURACY GRADE: 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 120 ID.-NR. 689678-02 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 120 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 485 ML 1740 ID.-NR. 689680-25 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 1740 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 185 ML 2840 ID.-NR. 689701-22 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 2840 MM, ACCURACY GRADE 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LC 495S ML 270 ID.-NR. 760936-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 270 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 3.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 476C ML 370 ID.-NR. 286212-1H HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 370 MM

LC 193M ML 440 ID.-NR. 598867-04 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH 440 MM ACCURACY GRADE 5.0 µM, FASTENING TYPE: SCREW-ON STRIP INTEGRATED, DATA INTERFACE MITSU01 MITSUBISHI INTERFACE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 403 ML 620 ID.-NR. 226520-3V HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 620MM GRATING PITCH 0,020MM ACCURACY GRADE +/-0,003MM CABLE LENGTH 0,03M WITH FLANGE SOCKET ON MOUNTING BLOCK WITHOUT ARMOR MEASU.

LS 703 ML 620 ID.-NR. 216750-0D HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER MEASURING LENGTH 620 MM

LS 107 ML 1440 ID.-NR. 264069-5R HEIDENHAIN SEALED LINEAR ENCODER MEASURING LENGTH 1440MM, ACCURACY GRADE +/-0,002MM, REFERENCE MARK AT Z= 720MM, WITHOUT CABLE AND LID FOR MOUNTING BLOCK

LS 487 ML 520 ID.-NR. 572250-10 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION MEASURING LENGTH 520 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION 35 MM DISTANCE FROM THE BEGINNING OF THE MEASURING LENGTH, FURTHER REFERENCE MARKS 35 MM DISTANCE FROM THE END OF THE MEASURING LENGTH, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LB 302 ML 8640 ID.-NR. 315421-28 HEIDENHAIN PARTS KIT LB 302 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS MEASURING LENGTH 8640 MM TYPE OF GRADUATION AURODUR ACCURACY GRADE ± 5.0 µM GRATING PERIOD: 40.000 µM FASTENING TYPE STANDARD

LB 302C ML 8640 ID.-NR. 315422-28 HEIDENHAIN PARTS KIT LB 302C FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS MEASURING LENGTH 8640 MM TYPE OF GRADUATION AURODUR ACCURACY GRADE ± 5.0 µM GRATING PERIOD: 40.000 µM FASTENING TYPE STANDARD

LB 302C ML 8640 ID.-NR. 1347273-28 HEIDENHAIN PARTS KIT LB 302C FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS MEASURING LENGTH 8640 MM TYPE OF GRADUATION METALLUR ACCURACY GRADE ± 5.0 µM GRATING PERIOD: 40.000 µM FASTENING TYPE STANDARD

LS 187C ML 2240 ID.-NR. 526974-20 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2240 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2640 ID.-NR. 526974-22 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION MEASURING LENGTH: 2640 MM ACCURACY GRADE: ± 5.0 µM FASTENING TYPE: SCREW-ON STRIP INTEGRATED OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK POSITION:DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 14-PIN

LS 487C ML 170 ID.-NR. 572248-03 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH SMALL CROSS SECTION, MEASURING LENGTH 170 MM, TOTAL LENGTH ML+138 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE END BLOCK + MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION C001 - DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

LS 187C ML 2840 ID.-NR. 526974-23 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 2840 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

ROD 1424-125 ID.-NR. 297252-10 HEIDENHAIN INCREMENTAL ROTARY ENCODER

LS 903 ML 520 ID.-NR. 316391-52 HEIDENHAIN SCALE HOUSING FOR LS 903 MEASURING LENGTH 520

LS 803 ML 770 ID.-NR. 316390-21 HEIDENHAIN SCALE HOUSING FOR LS 803 MEASURING LENGTH 770 MM

MASSBANDGEHAUSE LC 201 ID-NR. 746721-02 HEIDENHAIN MASSBANDGEHAUSE LC 201 1200MM

MASSBANDGEHAUSE LC 201 ID-NR. 746721-06 HEIDENHAIN MASSBANDGEHAUSE LC 201 2000MM

LB 302 ML 8440 ID.NR. 315421-27 HEIDENHAIN PARTS KIT LB 302 FOR INCREMENTAL MULTI-SECTION SEALED LINEAR ENCODER WITH LARGE CROSS-SECTION HOUSING FOR LARGE MEASURING LENGTHS CONSISTING OF:1 SCALE TAPE, 1 END SECTION WITH CLAMPING DEVICE, 1 END SECTION WITH TENSIONING DEVICE, 1 SEALING LIP, 3 BEARING STRIP, 3 HOUSING SEALS, SMALL PARTS, MEASURING LENGTH: 8440 MM TYPE OF GRADUATION: AURODUR, THERMAL COEFFICIENT OF LINEAR EXPANSION: ~ 10·10-6K-1 STEEL, ACCURACY GRADE: ± 5.0 µM GRATING PERIOD: 40.000 µM, REFERENCE MARK: SELECTABLE BY MAGNET REFERENCE MARK POSITION: EVERY 50 MM, STARTING AT 20 MM FROM BEGINNING OF THE MEASURING LENGTH
