1PH

1PH7137-2ND00-0BA0 SIEMENS SIMOTICS M KOMPAKT-ASYNCHRONMOTOR, 17 KW, 1000 U/MIN, 162.3 NM, VC: 19.5KW, 1150 U/MIN, 161.9NM 43 A, OHNE BREMSE; 3AC 400 V 50 HZ, MIT LUEFTER; REL. MOTORGEBER 1 VSS 2048 P/U; KL-KASTEN OBEN, KABEL RECHTS; BAUFORM IM B3 (IM V5, IM V6); SCHWINGSTAERKESTUFE R, WELLEN- UND FLANSCHGENAUIGKEIT R; PASSFEDER + HALBKEILWUCHTUNG, LUFTRICHTUNG VON AS NACH BS; IP 55, LUEFTER IP 54, OHNE FARBANSTRICH;

1PH7103-2NG00-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7 KW, 2000 RPM, 33.4 NM, VC:7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, W/O BRAKE 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT SIDE DESIGN IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE S, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, W/O PAINT FINISH

1PH6131-4NG46 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 12 KW, 2000 REV/MIN, 57 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH6137-4NB49-Z SIEMENS SPINDLE MOTOR

1PH5137-4CG40 SIEMENS AC MAIN SPINDLE MOTOR 20 KW AT 2000 REV/MIN 95 NM IM B 3

1PH6105-4NF49-Z SIEMENS AC MAIN SPINDLE MOTOR

1PH5101-4CG40-Z SIEMENS AC MAIN SPINDLE MOTOR 4 KW AT 2000 REV/MIN 19 NM IM B 3

1PH7131-2NF02-0BJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 11 KW, 1500 RPM, 70 NM, VC: 13 KW, 1750 RPM, 70.9 NM, 24 A, VC: 25 A, W/O BRAKE 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH7137-2NG00-0BA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28 KW, 2000 RPM, 133.7 NM, VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, W/O BRAKE, 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B3 (IM V5, IM V6), VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH7137-2NG20-0BA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28 KW, 2000 RPM, 133.7 NM, VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, W/O BRAKE, 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON NON-DRIVE END DESIGN IM B3 (IM V5, IM V6), VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH7137-2NF02-0DK2 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 22 KW, 1500 RPM, 140.1 NM, VC: 25 KW, 1750 RPM, 136.4 NM 56 A, W/O BRAKE, 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM NON-DRIVE END TO DRIVE END IP 55, FAN IP 54, W/O PAINT FINISH, FLANGE ON DRIVE END WITH SHAFT SEAL

1PH7133-2NG00-0BD0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 20 KW, 2000 RPM, 95.5 NM, VC: 22.5 KW, 2300 RPM, 93.4 NM, 45 A, W/O BRAKE; 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B3 (IM V5, IM V6), VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + FULL-KEY BALANCING AIR FLOW FROM NON-DRIVE END TO DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH7137-2SG02-0BJ0-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28 KW, 2000 RPM, 133.7 NM, VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, W/O BRAKE, 3AC 400 V 50 HZ, WITH FAN TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH7133-2NG30-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 20 KW, 2000 RPM, 95.5 NM, VC: 22.5 KW, 2300 RPM, 93.4 NM, 45 A, W/O BRAKE; 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE LEFT DESIGN IM B3 (IM V5, IM V6), VIBRATION SEVERITY GRADE S, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH6138-4ZZ84-Z SIEMENS AC MAIN SPINDLE MOTOR

1PH7131-2NF20-0BJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 11 KW, 1500 RPM, 70 NM, VC: 13 KW, 1750 RPM, 70.9 NM, 24 A, VC: 25 A, W/O BRAKE 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON NON-DRIVE END DESIGN IM B3 (IM V5, IM V6), VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH6103-4LZ84-3ZR1-Z SIEMENS MOTOR

1PH7167-2NF03-0BD0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37 KW, 1500 RPM, 235.5 NM, VC: 41 KW, 1750 RPM, 223.7 NM, 82 A, VC: 79 A, W/O BRAKE; 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + FULL-KEY BALANCING AIR FLOW FROM NON-DRIVE END TO DRIVE END IP 55, FAN IP 54, W/O PAINT FINISH

1PH7137-7QG00-0DA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28 KW, 2000 RPM, 133.7 NM, VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, W/O BRAKE, 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 REL. MOTOR ENCODER 1 VPP 2048 P/REV; WITH DRIVE-CLIQ INTERFACE, ND-END AT TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B3 (IM V5, IM V6), VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH7137-2EG02-0BJ0-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28 KW, 2000 RPM, 133.7 NM, VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, W/O BRAKE, 3AC 400 V 50 HZ, WITH FAN ABS. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH7107-2NF02-0CC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 9 KW, 1500 RPM, 57.3 NM, VC: 10 KW, 1750 RPM, 54.6 NM, 23.5 A, VC: 23 A, W/O BRAKE; 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT SIDE DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + FULL-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, W/O PAINT FINISH

1PH6103-4NF49-Z SIEMENS AC MAIN SPINDLE MOTOR

1PH7184-2NF23-0JJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 51 KW, 1500 RPM, 324.7 NM, VC: 60 KW, 1750 RPM, 327.4 NM, 122 A, W/O BRAKE; WITH FAN, PG CABLE ENTRY; REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON NON-DRIVE END DESIGN IM B35, FLANGE 400 BEARING F. COUPLING OUTPUT, (WITH ENHANCED MAX. SPEED), VIBRATION SEVERITY GRADE S, SHAFT A. FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STANDARD FINISH (RAL 7016)

1PH6131-4CF46-Z SIEMENS MOTOR

1PH6103-4ZF44-Z SIEMENS MAIN SPINDLE MOTOR

1PH7103-2NG22-0DJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7 KW, 2000 RPM, 33.4 NM, VC:7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, W/O BRAKE 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON NON-DRIVE END DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, W/O PAINT FINISH

1PH5138-4CF44-Z SIEMENS AC MAIN SPINDLE MOTOR 18 KW AT 1500 REV/MIN 115 NM IB V 1 INCLUDING ORDER CODE K04

1PH7137-2NF00-0DJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 22 KW, 1500 RPM, 140.1 NM, VC: 25 KW, 1750 RPM, 136.4 NM 56 A, W/O BRAKE, 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B3 (IM V5, IM V6), VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

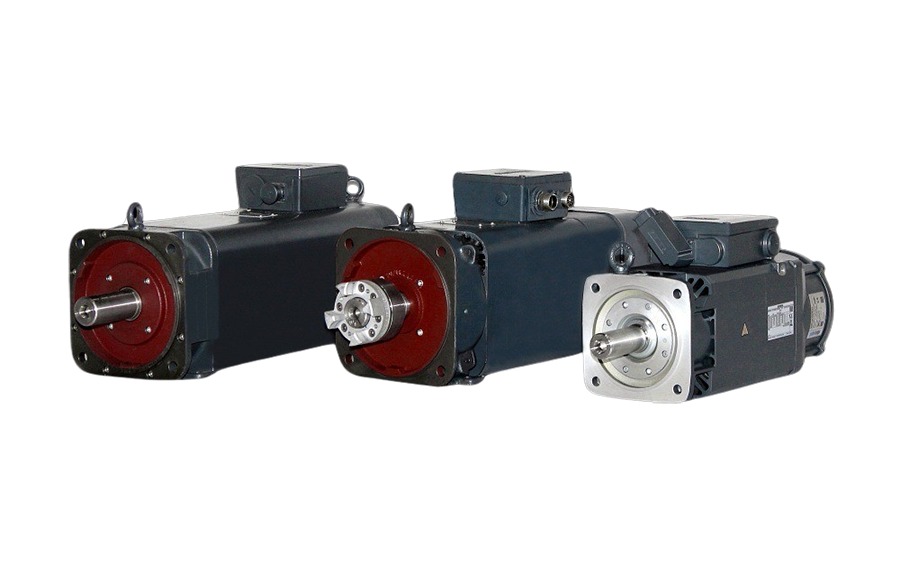

1PH7137-2NG23-0BJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28 KW, 2000 RPM, 133.7 NM, VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, W/O BRAKE, 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON NON-DRIVE END DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

1PH4105-4NF26 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V, 11 KW, 70 NM, 1500 RPM, WATER-COOLED, IP65, SHAFT GLAND IP55, ENCODER 1 VPP 2048 INCR/REV, IM B35, TERMINAL BOX, SIGNAL CONNECTOR

1PH7184-7QF00-0BA9-Z SIEMENS MOTOR

1PH7105-7QF02-0BA3-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7 KW, 1500 RPM, 44.6 NM, VC: 8 KW, 1750 RPM, 43.7 NM, 17.5 A, W/O BRAKE 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 REL. MOTOR ENCODER 1 VPP 2048 P/REV; WITH DRIVE-CLIQ INTERFACE, ND-END AT TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON THE RIGHT SIDE DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STANDARD PAINT FINISH (RAL 7016)

1PH7105-7QF00-0BA3-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7 KW, 1500 RPM, 44.6 NM, VC: 8 KW, 1750 RPM, 43.7 NM, 17.5 A, W/O BRAKE 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 REL. MOTOR ENCODER 1 VPP 2048 P/REV; WITH DRIVE-CLIQ INTERFACE, ND-END AT TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON THE RIGHT SIDE DESIGN IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STANDARD PAINT FINISH (RAL 7016)

1PH7101-7QF02-0BA3-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 3.7 KW, 1500 RPM, 23.6 NM, VC: 4.3 KW, 1750 RPM, 23.6 NM 10A, W/O BRAKE 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 REL. MOTOR ENCODER 1 VPP 2048 P/REV; WITH DRIVE-CLIQ INTERFACE, ND-END AT TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON THE RIGHT SIDE DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STANDARD PAINT FINISH (RAL 7016)

1PH7131-7QF02-0BA3-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 11 KW, 1500 RPM, 70 NM, VC: 13 KW, 1750 RPM, 70.9 NM, 24 A, VC: 25 A, W/O BRAKE 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 REL. MOTOR ENCODER 1 VPP 2048 P/REV; WITH DRIVE-CLIQ INTERFACE, ND-END AT TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STANDARD PAINT FINISH (RAL 7016)

1PH7224-7QU30-0BA9-Z SIEMENS MOTOR

1PH7167-7QF00-0BA3-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37 KW, 1500 RPM, 235.5 NM, VC: 41 KW, 1750 RPM, 223.7 NM, 82 A, VC: 79 A, W/O BRAKE; 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 REL. MOTOR ENCODER 1 VPP 2048 P/REV; WITH DRIVE-CLIQ INTERFACE, ND-END AT TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B3 (IM V5, IM V6), VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STAND. PAINT FINISH (RAL 7016)

1PH6105-4NF46 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 7.5 KW, 1500 REV/MIN, 48 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B35

1PH7163-7EG03-0BJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 36 KW, 2000 RPM, 171.9 NM, VC: 38 KW, 2300 RPM, 157.8 NM, 85 A VC: 82 A, W/O BRAKE; 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 ABS. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STAND. PAINT FINISH (RAL 7016)

1PH7103-7EG03-0BJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7 KW, 2000 RPM, 33.4 NM, VC:7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, W/O BRAKE 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 ABS. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT SIDE DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY GR. R PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STANDARD PAINT FINISH (RAL 7016)

1PH7137-7NG03-0CA5 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28 KW, 2000 RPM, 133.7 NM, VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, W/O BRAKE, 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE S, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, STANDARD PAINT FINISH (RAL 7016), FLANGE ON DRIVE END WITH SHAFT SEAL

1PH7167-7EF03-1KK3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37 KW, 1500 RPM, 235.5 NM, VC: 41 KW, 1750 RPM, 223.7 NM, 82 A, VC: 79 A, WITH BRAKE; 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 ABS. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B35 (IM V15, IM V36) WITH 230 V BRAKE; VIBRATION SEVERITY GRADE A, SHAFT A. FLANGE ACCURACY N; PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM NON-DRIVE END TO DRIVE END; IP 55, FAN IP 54, STAND. PAINT FINISH (RAL 7016)

1PH7137-7ED03-1KK3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 17 KW, 1000 RPM, 162.3 NM, VC: 19.5 KW, 1150 RPM, 161.9 NM 43 A, WITH BRAKE, 3 AC 400 V, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 ABS. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B35 (IM V15, IM V36) WITH 230 V BRAKE; VIBRATION SEVERITY GRADE A, SHAFT A. FLANGE ACCURACY N; PLAIN SHAFT W/O FITTED KEY, AIR FLOW FROM NON-DRIVE END TO DRIVE END; IP 55, FAN IP 54, STAND. PAINT FINISH (RAL 7016)

1PH7163-7NF03-0BC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 30 KW, 1500RPM, 191NM VC: 34KW, 1750RPM, 185.5NM 72A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7224-2NF10-0EC3 SIEMENS COMPACT MOTOR

1PH5161-4CF40-Z SIEMENS AC MAIN SPINDLE MOTOR 20 KW AT 1500 REV/MIN 127 NM IM B 3

1PH6135-4CZ49-Z SIEMENS AC MAIN SPINDLE MOTOR

1PH6167-4NF40-Z SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 37 KW, 1500 REV/MIN, 236 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 3

1PH7167-2NF03-0CA2 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37 KW, 1500 RPM, 235.5 NM, VC: 41 KW, 1750 RPM, 223.7 NM, 82 A, VC: 79 A, W/O BRAKE; 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE S, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM DRIVE END TO NON- DRIVE END IP 55, FAN IP 54, W/O PAINT FINISH, FLANGE ON DRIVE END WITH SHAFT SEAL

1PH4107-4EF26-Z SIEMENS AC MAIN SPINDLE MOTOR , 14KW, 1500 U/MIN, 90NM WATER COOLED, IP65 SHAFT GLAND IP55 ABS. MOTOR ENCODER 1 VPP 2048 P/REV IM B35 TERMINAL BOX
