1PH

1PH8107-1DF02-0CC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 9 KW 57 NM 23.5 A 330 V 1750 RPM 10 KW 55 NM 22 A 380 V 2000 RPM 11 KW 53 NM 21.5 A 428 V 2200 RPM 12.1 KW 53 NM 21.5 A 470 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8137-1DF02-0DC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 22 KW 140 NM 56 A 308 V 1750 RPM 25 KW 136 NM 56 A 352 V 2000 RPM 28 KW 134 NM 55 A 401 V 2200 RPM 30 KW 130 NM 53 A 440 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: SR/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8137-1DG02-0BC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 28 KW 134 NM 60 A 350 V 2300 RPM 29 KW 120 NM 56 A 398 V 2650 RPM 30 KW 108 NM 52 A 460 V 2800 RPM 31 KW 106 NM 52 A 494 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8131-1MG20-0MA1-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 18 KW 86 NM 40 A 352 V 2300 RPM 20 KW 83 NM 39 A 400 V 2650 RPM 23 KW 83 NM 39 A 458 V 2800 RPM 24 KW 82 NM 39 A 472 V WATER COOLING DEGREE OF PROTECTION IP65

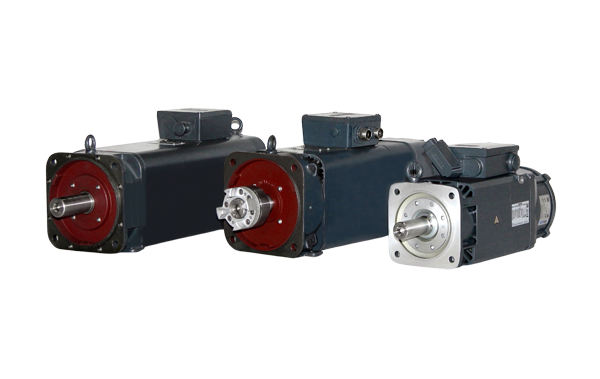

1PH7103-2NG32-3KA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITH BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) WITH BRAKE (230 V) AND MANUAL AIR LEVER VIBRATION SEVERITY GRADE A, SHAFT AND FLANGE PRECISION N FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7186-2NE03-0BJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 60 KW, 1250 RPM, 458.4 NM 120 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH7133-2JF00-0BA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 15 KW, 1500 RPM, 95.5 NM VC: 17.5 KW, 1750 RPM, 95.5 NM 34 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 2048 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8087-1EG02-2DA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 4.9 KW 23.4 NM 14.1 A 320 V 2300 RPM 5.4 KW 22.4 NM 13.7 A 353 V 2650 RPM 6 KW 21.6 NM 13.6 A 390 V 2800 RPM 6.3 KW 21.5 NM 13.5 A 425 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION ABSOLUTE ENCODER ENDAT 2048 S/R (ENCODER AM2048S/R) WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE SR/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7133-2NF00-0LJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 15 KW, 1500 RPM, 95.5 NM VC: 17.5 KW, 1750 RPM, 95.5 NM 34 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH6107-4LZ49-Z SIEMENS AC SPINDLE MOTOR

1PH8165-1MF03-2CA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 37 KW 236 NM 78 A 350 V 1750 RPM 41 KW 224 NM 76 A 400 V 2000 RPM 45 KW 215 NM 75 A 440 V 2200 RPM 49.5 KW 215 NM 75 A 493 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE S/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7103-2QG22-0CJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH6138-4HG56-Z SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 29 KW, 2000 REV/MIN, 138 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR WITH HTL ENCODER ROD431; TYPE IM B 35

1PH6138-4HG56 SIEMEN AC MAIN SPINDLE MOTOR, DC LINK 600 V 29 KW, 2000 REV/MIN, 138 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR WITH HTL ENCODER ROD431; TYPE IM B 35

1PH7107-7HF00-0BC3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 9 KW, 1500 RPM, 57.3 NM VC: 10 KW, 1750 RPM, 54.6 NM 23.5 A, VC: 23 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH6138-1NF07-0BA0 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 22 KW, 1500 REV/MIN, 140 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM V15; TERMINAL BOX; ON TOP; CABLE INFEED/RIGHT; ROT. ACCURACY TOLERANCE R VIBRATION SEVERITY S WITH TWIN-BEARINGS; SHAFT END ON D-END, W. FEATHER KEY , AIR FLOW DIR. BOTTOM; DEGREE OF PROT. IP 54

1PH7137-6NG00-0DB2-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 2000 RPM, 133.7 NM VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITHOUT FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7163-2NF03-0CA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR, CORE TYPE 30 KW, 1500 RPM, 191 NM VC: 34 KW, 1750 RPM, 185.5 NM 72 A, 400 V 3AC 50 HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP CABLE RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R FEATHER KEY AND HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7103-2ND02-0CA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 3.7 KW, 1000 RPM, 35.3 NM VC: 4.3 KW, 1150 RPM, 35.7 NM 10 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7167-7NF33-6KJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITH BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) WITH 24 V DC BRAKE AND MICROSWITCH VIBRATION SEVERITY GRADE A, SHAFT AND FLANGE PRECISION N SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7184-2JF00-0BB3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 51 KW, 1500 RPM, 324.7 NM VC: 60 KW, 1750 RPM, 327.4 NM 122 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY RELATIVE MOTOR ENCODER HTL 2048 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM NDE TO DE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7224-7NF00-0HJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 100 KW, 1500 RPM, 636.6 NM 188 A, WITHOUT BRAKE WITH FAN, METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 BEARING FOR BELT OUTPUT (WITH SHEAR FORCE) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH8105-1DF23-0CA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 11 KW 70 NM 28.5 A 340 V 1750 RPM 12.5 KW 68 NM 28.5 A 380 V 2000 RPM 14 KW 67 NM 27.5 A 426 V 2200 RPM 15.4 KW 67 NM 27.5 A 458 V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8107-1SM02-3MC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 3000 RPM 12 KW 38 NM 38 A 294 V 3300 RPM 13 KW 38 NM 38 A 314 V 3600 RPM 14 KW 37 NM 37.5 A 350 V 3900 RPM 14 KW 34 NM 35 A 380 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8137-1MG02-0GA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 28 KW 134 NM 60 A 350 V 2300 RPM 29 KW 120 NM 56 A 398 V 2650 RPM 30 KW 108 NM 52 A 460 V 2800 RPM 31 KW 106 NM 52 A 494 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8224-1FD03-0CA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 71KW, 678NM, 158A, 335V 1150RPM, 81KW, 673NM, 156A, 385 V 1350RPM, 92KW, 651NM, 154A, 450 V FORCED VENTILATION DIRECTION OF AIR FLOW DE-->NDE DEGREE OF PROTECTION IP55 ABSOLUTE ENCODER 22-BIT SINGLE-TURN AND 12-BIT MULTI-TURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 WITH FLANGE A550 (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD VIBRATION SEVERITY GRADE S/A SHAFT A.FLANGE ACCURACY GR.R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7137-2NG22-0LJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 2000 RPM, 133.7 NM VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7137-2NG00-0BD0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 2000 RPM, 133.7 NM VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH6163-4NG46 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 38 KW, 2000 REV/MIN, 182 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH7107-2NF02-0BK3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 9 KW, 1500 RPM, 57.3 NM VC: 10 KW, 1750 RPM, 54.6 NM 23.5 A, VC: 23 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7107-2NF22-0BC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 9 KW, 1500 RPM, 57.3 NM VC: 10 KW, 1750 RPM, 54.6 NM 23.5 A, VC: 23 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7107-2NG02-0LA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 10.5 KW, 2000 RPM, 50.1 NM VC: 12 KW, 2300 RPM, 49.8 NM 26 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7133-2HG00-0BB0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 20 KW, 2000 RPM, 95.5 NM VC: 22.5 KW, 2300 RPM, 93.4 NM 45 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7167-2ND03-0BJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 1000 RPM, 267.4 NM VC: 31 KW, 1150 RPM, 257.4 NM 71 A, VC: 70 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8135-1CS01-3MA2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM, 24.5 KW, 117 NM, 51 A, 372 V 5000 RPM, 18.5 KW, 47 NM, 52 A, 425 V 1500 RPM, 18.5 KW, 118 NM, 51 A, 283 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE --> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 256 S/R WITHOUT C AND D TRACK (ENCODER IN256S/R) WITH TEMPERATURE SENSOR PT1000 PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1JG10-2GA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 28 KW 134 NM 60 A 350 V 2300 RPM 29 KW 120 NM 56 A 398 V 2650 RPM 30 KW 108 NM 52 A 460 V 2800 RPM 31 KW 106 NM 52 A 494 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER HTL 2048 S/R (ENCODER HTL2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8163-1MF03-2BA2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 30 KW 191 NM 71 A 319 V 1750 RPM 34 KW 186 NM 70 A 366 V 2000 RPM 37 KW 177 NM 68 A 416 V 2200 RPM 40.7 KW 177 NM 68 A 456 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE --> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR PT1000 DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8166-1DF20-0FA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 52 KW 331 NM 116 A 332 V 1750 RPM 61 KW 333 NM 116 A 381 V 2000 RPM 68 KW 325 NM 116 A 426 V 2200 RPM 75 KW 326 NM 116 A 470 V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: INCREASED RADIAL FORCES, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8184-1JF10-2FA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 51KW 325NM, 116A, 335V 1750RPM, 60KW 327NM, 120 A, 390V 2000RPM, 68KW 325NM, 118A, 405V FORCED VENTILATION DIRECTION OF AIR FLOW NDE-->DE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER HTL 2048 S/R (ENCODER HTL2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8184-1JF10-2FA1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 51KW 325NM, 116A, 335V 1750RPM, 60KW 327NM, 120 A, 390V 2000RPM, 68KW 325NM, 118A, 405V FORCED VENTILATION DIRECTION OF AIR FLOW NDE-->DE DEGREE OF PROTECTION IP55

1PH8083-1MF22-0BA1-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 3.5 KW 22.3 NM 8.9 A 357 V 1750 RPM 4 KW 21.8 NM 8.7 A 416 V 2000 RPM 4.6 KW 22 NM 8.7 A 457 V 2200 RPM 5 KW 21.7 NM 8.7 A 500 V WATER COOLING DEGREE OF PROTECTION IP65

1PH6167-4CG56-Z SIEMENS MAIN SPINDLE MOTOR

1PH8107-1SF02-3LA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 9 KW 57 NM 23.5 A 330 V 1750 RPM 10 KW 55 NM 22 A 380 V 2000 RPM 11 KW 53 NM 21.5 A 428 V 2200 RPM 12.1 KW 53 NM 21.5 A 470 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH6107-4NG49-Z SIEMENS SPINDLE MOTOR

1PH7103-2NG32-0CC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7133-7FG02-0WK5 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 20 KW, 2000 RPM, 95.5 NM VC: 22.5 KW, 2300 RPM, 93.4 NM 45 A, WITHOUT BRAKE; 400 V 3AC, 50 HZ, WITH FAN, METRIC CABLE ENTRY ACCORDING TO EN 50262 ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U; WITH DRIVE- CLIQ INTERFACE ON NDE SIDE ON TERMINAL BOX, TERMINAL BOX ON TOP CABLE ON THE RIGHT; TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3); CUSTOMER-SPECIFIC BEARING VERSION WITH WIDE BEARINGS; PLAIN WITHOUT FEATHER KEY,DIRECTION OF DIRECTION OF AIR FLOW FROM NDE TO DE; IP55, FAN IP54, STANDARD PAINT FINISH (RAL 7016) DE FLANGE WITH SH(*) IP 55, FAN IP 54, STANDARD PAINT FINISH (RAL 7016), FLANGE ON DRIVE END WITH SHAFT SEAL

1PH7137-7QD03-0BA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 17 KW, 1000 RPM, 162.3 NM VC: 19.5 KW, 1150 RPM, 161.9 NM 43 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7167-2NF23-0DJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8107-1MF00-0FB1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 R/MIN 9 KW 57 NM 23.5 A 330 V 1750 R/MIN 10 KW 55 NM 22 A 380 V 2000 R/MIN 11 KW 53 NM 21.5 A 428 V 2200 R/MIN 12.1 KW 53 NM 21.5 A 470 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B3 (IM V5, IM V6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: INCREASED RADIAL FORCES, VIBRATION SEVERITY GRADE: R/A, SHAFT+FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END

1PH4135-4NF26-Z SIEMENS AC-HSA MOTOR, DC LINK 600 V 22 KW, 1500 RPM, 140 NM WATER-COOLED, IP65 SHAFT OUTLET IP55 ENCODER 1 VSS 2048 P/U, IM B35 TERMINAL BOX, SIGNAL CONNECTOR
