1PH

1PH8131-1DF03-2BA1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 11KW, 70 NM, 24A, 360V 1750RPM, 13KW, 71NM, 24A, 416V 2000RPM, 15 KW, 72NM, 24A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH8135-2DF03-1CC1 SIEMENS SIMOTICS M COMPACT SYNCHRONOUS MOTOR 1500RPM, 23.7KW 151NM, 43A, 383V 1750RPM, 27.2KW 149NM, 42A, 415 V 2000RPM, 30.2KW 144NM, 42A, 449V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8163-1AD03-2BA2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000 RPM, 22 KW, 210 NM, 55 A, 300 V 1150 RPM, 25 KW, 208 NM, 55 A, 343 V 1350 RPM, 28 KW, 198 NM, 52 A, 400 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE --> NDE; DEGREE OF PROTECTION IP55 W/O ENCODER WITH TEMPERAT. SENSOR PT1000 DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8163-1AD03-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 22KW, 210NM, 55A, 300V 1150RPM, 25KW, 208NM, 55A, 343V 1350RPM, 28KW, 198NM, 52A, 400 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 W/O ENCODER WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1FF02-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 22KW, 140 NM, 56A, 308V 1750RPM, 25KW, 136NM, 56A, 352V 2000RPM, 28KW, 134NM, 55A, 401V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 ABSOLUTE ENCODER 22-BIT SINGLE-TURN AND 12-BIT MULTI-TURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1DG02-1DC1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 28KW, 134NM, 60A, 350 V 2300RPM, 29KW, 120NM, 56A, 400 V 2650RPM, 30 KW, 108NM, 52A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: SR/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8137-1DG02-1DC1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 28KW, 134NM, 60A, 350 V 2300RPM, 29KW, 120NM, 56A, 400 V 2650RPM, 30 KW, 108NM, 52A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH8105-1CF02-3LC2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM, 7.0 KW, 45 NM, 17.5 A, 348 V 1750 RPM, 8.0 KW, 44 NM, 17.5 A, 400 V 2000 RPM, 9.0 KW, 43 NM, 17.0 A, 453 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE --> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 256 S/R WITHOUT C AND D TRACK (ENCODER IN256S/R) WITH TEMPERATURE SENSOR PT1000 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8107-1SF02-3LC1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 9.0KW 57NM, 23.5A, 330V 1750RPM, 10.0KW 55NM, 22A, 380 V 2000RPM, 11 KW 53NM, 21.5A, 428V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8107-1VF02-3LC1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 9.0KW 57NM, 23.5A, 330V 1750RPM, 10.0KW 55NM, 22A, 380 V 2000RPM, 11 KW 53NM, 21.5A, 428V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 19 BIT WITH COMMUTATING POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8137-1MD02-0LC1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 17KW 162NM, 43A, 307V 1150RPM, 19.5KW 162NM, 43A, 350 V 1350RPM, 22 KW 156NM, 42A, 404V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE: SPECIAL/B, SHAFT AND FLANGE ACCURACY: SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8165-1HG13-2LA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 41KW, 196NM, 88A, 350 V 2300RPM, 44 KW, 183NM, 85A, 394V 2650RPM, 50 KW, 180NM, 85A, 440 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; DEGREE OF PROTECTION IP55 INCREMENT. ENCODER HTL 1024 S/R (ENCODER HTL1024S/R) WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8165-1HG23-2LA1 SIEMENS IMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 53KW 253NM, 110 A, 352V 2300RPM, 60KW 249NM, 107A, 410V 2650RPM, 65KW 234NM, 100 A, 460 V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENT. ENCODER HTL 1024 S/R (ENCODER HTL1024S/R) WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH6138-4NF06 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 22 KW, 1500 REV/MIN, 140 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH8107-1CF02-3LC2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM, 9.0 KW, 57 NM, 23.5 A, 330 V 1750 RPM, 10.0 KW, 55 NM, 22 A, 380 V 2000 RPM, 11 KW, 53 NM, 21.5 A, 428 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE --> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 256 S/R WITHOUT C AND D TRACK (ENCODER IN256S/R) WITH TEMPERATURE SENSOR PT1000 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH6101-4NF40 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 3.7 KW, 1500 REV/MIN, 24 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B3

1PH7133-2EG33-0BJ3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 20 KW, 2000 RPM, 95.5 NM VC: 22.5 KW, 2300 RPM, 93.4 NM 45 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7167-2NG23-0LJ0 SIEMENS SIMOTICS M KOMPAKT-ASYNCHRONMOTOR 41KW, 2000U/MIN, 195.8NM VC: 44KW, 2300U/MIN, 182.7NM 89A, VC: 88A, OHNE BREMSE 3AC 400V 50HZ, MIT LÜFTER REL. MOTORGEBER 1 VSS 2048 P/U KLEMMENKASTEN OBEN, KABEL BS BAUFORM IM B35 (IM V15, IM V36) LAGERUNG FÜR ERHÖHTE MAXIMALDREHZAHL SCHWINGSTÄRKESTUFE SR, WELLEN- UND FLANSCHGENAUIGKEIT R GLATTE WELLE OHNE PASSFEDER LUFTRICHTUNG VON AS NACH BS IP55, LÜFTER IP54 OHNE FARBANSTRICH

1PH8137-1DF03-1BB1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 22KW, 140 NM, 56A, 308V 1750RPM, 25KW, 136NM, 56A, 352V 2000RPM, 28KW, 134NM, 55A, 401V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END

1PH8165-1DG10-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 41KW, 196NM, 88A, 350 V 2300RPM, 44 KW, 183NM, 85A, 394V 2650RPM, 50 KW, 180NM, 85A, 440 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8184-1DF10-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 51KW 325NM, 116A, 335V 1750RPM, 60KW 327NM, 120 A, 390V 2000RPM, 68KW 325NM, 118A, 405V FORCED VENTILATION DIRECTION OF AIR FLOW NDE-->DE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8186-1DF10-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 74KW 471NM, 166A, 330V 1750RPM, 85KW 464NM, 164A, 385 V 2000RPM, 94KW 449NM, 160 A, 445V FORCED VENTILATION DIRECTION OF AIR FLOW NDE-->DE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1DG10-1GA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 28KW, 134NM, 60A, 350 V 2300RPM, 29KW, 120NM, 56A, 400 V 2650RPM, 30 KW, 108NM, 52A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7167-7FF00-0BB3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U; WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8107-1DF02-0CA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 9.0KW 57NM, 23.5A, 330V 1750RPM, 10.0KW 55NM, 22A, 380 V 2000RPM, 11 KW 53NM, 21.5A, 428V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1SD02-3LE1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 17KW 162NM, 43A, 307V 1150RPM, 19.5KW 162NM, 43A, 350 V 1350RPM, 22 KW 156NM, 42A, 404V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE: SPECIAL/B, SHAFT AND FLANGE ACCURACY: SPECIAL POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7101-2NF32-0CJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 3.7 KW, 1500 RPM, 23.6 NM VC: 4.3 KW, 1750 RPM, 23.6 NM 10 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7133-2ND02-0CB0-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 12 KW, 1000 RPM, 114.6 NM, VC: 13.5KW, 1150 RPM, 112.1 NM, 30 A, VC: 29.5 A, W/O BRAKE 3AC 400 V 50 HZ, WITH FAN REL. MOTOR ENCODER 1 VPP 2048 P/REV TERMINAL BOX ON TOP, CABLE ON THE RIGHT DESIGN IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S, SHAFT AND FLANGE ACCURACY GR. R FITTED KEY + HALF-KEY BALANCING AIR FLOW FROM NON-DRIVE END TO DRIVE END IP 55, FAN IP 54, WITHOUT PAINT FINISH

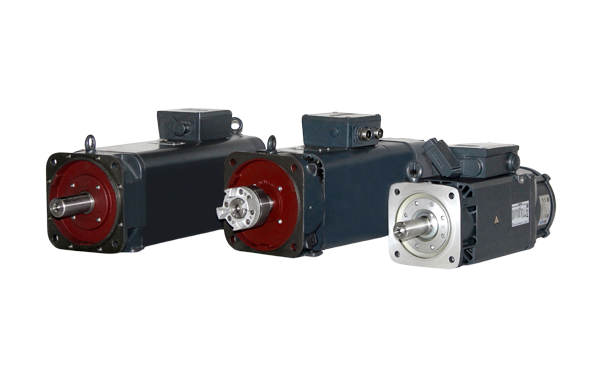

1PH7103-7RF22-0BA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 5.5 KW, 1500 RPM, 35 NM VC: 6.3 KW, 1750 RPM, 34.4 NM 13 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 MOTOR ENCODER RESOLVER TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7131-7NF00-0DK3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 11 KW, 1500 RPM, 70 NM VC: 13 KW, 1750 RPM, 70.9 NM 24 A, VC: 25 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7133-2NF02-0CK0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 15 KW, 1500 RPM, 95.5 NM VC: 17.5 KW, 1750 RPM, 95.5 NM 34 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7137-2ND02-0CA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR, CORE TYPE 17 KW, 1000 RPM, 162.3 NM VC: 19.5 KW, 1150 RPM, 161.9 NM 43 A, 400 V 3AC 50 HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP CABLE RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R FEATHER KEY AND HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7137-2NF32-0LJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 22 KW, 1500 RPM, 140.1 NM VC: 25 KW, 1750 RPM, 136.4 NM 57 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8137-1FG12-0GA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 28KW, 134NM, 60A, 350 V 2300RPM, 29KW, 120NM, 56A, 400 V 2650RPM, 30 KW, 108NM, 52A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; DEGREE OF PROTECTION IP55 ABSOLUTE ENCODER 22-BIT SINGLE-TURN AND 12-BIT MULTI-TURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8186-1DF13-2FA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 74KW 471NM, 166A, 330V 1750RPM, 85KW 464NM, 164A, 385 V 2000RPM, 94KW 449NM, 160 A, 445V FORCED VENTILATION DIRECTION OF AIR FLOW NDE-->DE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 WITH FLANGE A450 (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1DG00-0BH1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 28KW, 134NM, 60A, 350 V 2300RPM, 29KW, 120NM, 56A, 400 V 2650RPM, 30 KW, 108NM, 52A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION LEFT

1PH7107-7NF02-0CJ0 SIEMENS SIMOTICS M TERMINAL BOX ON TOP CABLE RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R PLAIN SHAFT WITHOUT FEATHER KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8184-1DF10-0BB1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 51KW 325NM, 116A, 335V 1750RPM, 60KW 327NM, 120 A, 390V 2000RPM, 68KW 325NM, 118A, 405V FORCED VENTILATION DIRECTION OF AIR FLOW NDE-->DE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END

1PH8105-1CS02-0LA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR Y2000RPM, 10.0KW 48NM, 23A, 366V D5000RPM, 9.3KW 18NM, 24A, 398V Y1500RPM, 7.5 KW 48NM, 23A, 285V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1VPP 256 S/R WITHOUT ND-END AT TERMINAL BOX (ENCODER IN256S/R) WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7103-7NG02-0LJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8107-1CM02-3MZ1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 3000RPM, 12KW 38NM, 38A, 294V 3300RPM, 13KW 38NM, 38A, 326V 3600RPM 14KW 37NM, 37.5A, 355V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH8107-1CM02-3MZ1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 3000RPM, 12KW 38NM, 38A, 294V 3300RPM, 13KW 38NM, 38A, 326V 3600RPM 14KW 37NM, 37.5A, 355V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH8163-1DF03-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 30 KW, 191NM, 71A, 319V 1750RPM, 34KW, 186NM, 70A, 366V 2000RPM, 37KW, 177NM, 68A, 416V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH6161-4NF06 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 22 KW, 1500 REV/MIN, 140 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH7137-2NG02-0DK2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 2000 RPM, 133.7 NM VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7186-2QE01-0GD0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 60 KW, 1250 RPM, 458.4 NM 120 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY INCREMENTAL ENCODER SIN/COS 1 VPP (WITH C AND D TRACK) WITH DRIVE-CLIQ INTERFACE TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B3 FOR VERTICAL MOUNTING (IM V5, IM V6) BEARING FOR BELT OUTPUT (WITH SHEAR FORCE) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM NDE TO DE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH8226-1MF00-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 130KW, 828NM, 270A, 340V 1750RPM, 135KW, 737NM, 250 A, 395V 2000RPM, 153KW, 731NM, 254A, 450 V FORCED VENTILATION DIRECTION OF AIR FLOW DE-->NDE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8226-1MF00-2BA1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 130KW, 828NM, 270A, 340V 1750RPM, 135KW, 737NM, 250 A, 395V 2000RPM, 153KW, 731NM, 254A, 450 V FORCED VENTILATION DIRECTION OF AIR FLOW DE-->NDE DEGREE OF PROTECTION IP55

1PH8105-1SG22-3LA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 13 KW 62 NM 34.5 A 326 V 2300 RPM 15 KW 62 NM 34 A 370 V 2650 RPM 17 KW 61 NM 33.5 A 424 V 2800 RPM 18 KW 61 NM 33.5 A 450 V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8107-1DG02-2BA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 10.5 KW 50 NM 26 A 355 V 2300 RPM 12 KW 50 NM 26 A 406 V 2650 RPM 13 KW 47 NM 24 A 460 V 2800 RPM 13.7 KW 47 NM 24 A 480 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
