1PH

1PH8083-1DM02-0BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 3000RPM, 4.1KW 13NM, 13.6A, 293V 3300RPM, 4.5KW 13NM, 13.5A, 332V 3600RPM 4.9KW 13NM, 14A, 376V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH5161-4CF06-Z SIEMENS AC MAIN SPINDLE MOTOR

1PH8105-1SG23-3LA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 13KW 62NM, 34.5A, 326V 2300RPM, 15 KW 62NM, 34A, 370V 2650RPM, 17KW 61NM, 33.5A, 424V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7107-2ND32-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 6.25KW, 1000RPM, 59.7NM VC: 7.2KW, 1150RPM, 59.8NM 17.5A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7167-2NF00-0DC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37KW, 1500RPM, 235.5NM VC: 41KW, 1750RPM, 223.7NM 82A, VC: 79A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8107-1CS02-3LC1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR Y2000RPM, 11 KW 53NM, 26.7A, 368V D5000RPM, 11 KW 21NM, 28A, 410V Y1500RPM, 8.5KW 54NM, 27A, 275V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1VPP 256 S/R WITHOUT ND-END AT TERMINAL BOX (ENCODER IN256S/R) WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH4135-4NF26 SIEMENS AC HSA MOTOR, DC LINK 600 V 22KW, 1500RPM, 140NM WATER-COOLED, IP65 SHAFT OUTLET IP55 ENCODER 1 VSS 2048 P/U, IM B35 TERMINAL BOX, SIGNAL CONNECTOR

1PH6138-1NF06-1AA0 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 22 KW, 1500 REV/MIN, 140 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B35; TERMINAL BOX; ON TOP;CABLE INFEED/D-END; ROT. ACCURACY TOLERANCE N VIBRATION SEVERITY R WITH TWIN-BEARINGS; SHAFT END ON D-END, W. FEATHER KEY , AIR FLOW DIR. BOTTOM; DEGREE OF PROT. IP 54

1PH7163-2NB03-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 12KW, 500RPM, 229.2NM VC: 9.5KW, 400RPM, 226.8NM 30 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH4167-4NF26 SIEMENS AC HSA MOTOR, DC LINK 600 V 46KW, 1500RPM, 293NM WATER-COOLED, IP65 SHAFT OUTLET IP55 ENCODER 1 VSS 2048 P/U, IM B35 TERMINAL BOX, SIGNAL CONNECTOR

1PH4167-4NF26-Z SIEMENS AC-HSA-MOTOR, DC LINK 600 V 46KW, 1500RPM, 293NM WATER-COOLED, IP65 SHAFT OUTLET IP55 ENCODER 1 VSS 2048 P/U, IM B35 TERMINAL BOX, SIGNAL CONNECTOR

1PH8087-1DG02-0HE1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 4.9KW 23NM, 14.1A, 320V 2300RPM, 5.4KW 22NM, 13.7A, 353V 2650RPM, 6.0KW 22NM, 13.6A, 390V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD, VIBRATION SEVERITY GRADE S/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7137-2NG02-0BA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28KW, 2000RPM, 133.7NM VC: 29KW, 2300RPM, 120.4NM 60A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8107-1CF22-3MC1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 14KW 89NM, 43.4A, 277V 1750RPM, 15.5KW 85NM, 42A, 314V 2000RPM, 18KW 86NM, 42.6A, 363V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER SIN/COS 1VPP 256 S/R WITHOUT ND-END AT TERMINAL BOX (ENCODER IN256S/R) WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH7133-2ND22-0BA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 12KW, 1000RPM, 114.6NM VC: 13.5KW, 1150RPM, 112.1NM 30 A, VC: 29.5A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7137-2NG32-0CB2 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28KW, 2000RPM, 133.7NM VC: 29KW, 2300RPM, 120.4NM 60A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7103-7NG02-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR, CORE TYPE 7KW, 2000RPM, 33.4NM VC: 7.5KW, 2300RPM, 31.1NM 17.5A, VC: 17A, 400V 3AC 50HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP CABLE RIGHT METRICAL CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3)

1PH7131-2NF20-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 11KW, 1500RPM, 70NM VC: 13KW, 1750RPM, 70.9NM 24A, VC: 25A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7103-2ND00-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 3.7KW, 1000RPM, 35.3NM VC: 4.3KW, 1150RPM, 35.7NM 10A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7105-2NF20-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7KW, 1500RPM, 44.6NM VC: 8KW, 1750RPM, 43.7NM 17.5A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7137-7NG32-0DJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28KW, 2000RPM, 133.7NM VC: 29KW, 2300RPM, 120.4NM 60A, VC: 56A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7167-2NF03-0LD0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37KW, 1500RPM, 235.5NM VC: 41KW, 1750RPM, 223.7NM 82A, VC: 79A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH4137-4NF26 SIEMENS AC HSA MOTOR, DC LINK 600 V 27KW, 1500RPM, 170NM WATER-COOLED, IP65 SHAFT OUTLET IP55 ENCODER 1 VSS 2048 P/U, IM B35 TERMINAL BOX, SIGNAL CONNECTOR

1PH7137-2NG22-0DJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28KW, 2000RPM, 133.7NM VC: 29KW, 2300RPM, 120.4NM 60A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7163-2QF03-0CJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR, CORE TYPE 30 KW, 1500RPM, 191NM VC: 34KW, 1750RPM, 185.5NM 72A, 400V 3AC 50HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE ON NDE SIDE ON TERMINAL BOX TERMINAL BOX ON TOP: CABLE ON RIGHT PG CABLE ENTRY DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7163-2QF03-0CJ2 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 30 KW, 1500RPM, 191NM VC: 34KW, 1750RPM, 185.5NM 72A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7137-2ND22-0BA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 17KW, 1000RPM, 162.3NM VC: 19.5KW, 1150RPM, 161.9NM 43A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7184-2NL11-0EJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 78KW, 2500RPM, 297.9NM VC: 81KW, 2900RPM, 266.7NM 172A, VC: 158A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE DE DESIGN IM B3 FOR VERTICAL MOUNTING (IM V5, IM V6) BEARING FOR BELT OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH7184-2NT03-0BJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 21.5KW, 500RPM, 410.6NM 76A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35, FLANGE 400 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7105-2NF02-0CC2 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7KW, 1500RPM, 44.6NM VC: 8KW, 1750RPM, 43.7NM 17.5A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7167-2NG03-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 41KW, 2000RPM, 195.8NM VC: 44 KW, 2300RPM, 182.7NM 89A, VC: 88A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH6103-4NG40 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 7 KW, 2000 REV/MIN, 33 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B3

1PH7133-7NG02-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR, CORE TYPE 20 KW, 2000RPM, 95.5NM VC: 22.5KW, 2300RPM, 93.4NM 45 A, 400V 3AC 50HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP CABLE RIGHT METRICAL CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3)

1PH7167-2NF03-0BC3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37KW, 1500RPM, 235.5NM VC: 41KW, 1750RPM, 223.7NM 82A, VC: 79A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8107-1CF02-3LZ1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 9.0KW 57NM, 23.5A, 330V 1750RPM, 10.0KW 55NM, 22A, 380 V 2000RPM, 11 KW 53NM, 21.5A, 428V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

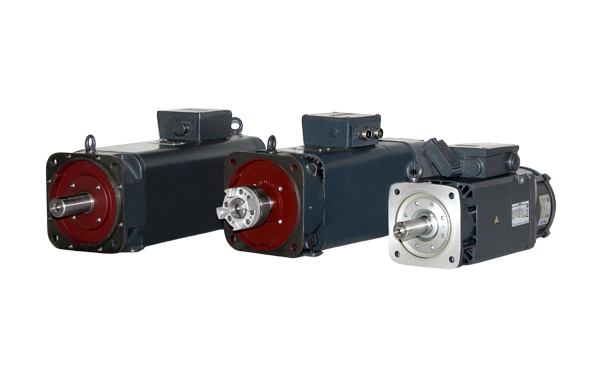

1PH8107-1CF02-3LZ1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 9.0KW 57NM, 23.5A, 330V 1750RPM, 10.0KW 55NM, 22A, 380 V 2000RPM, 11 KW 53NM, 21.5A, 428V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH7137-2QD02-0CJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR, CORE TYPE 17KW, 1000RPM, 162.3NM VC: 19.5KW, 1150RPM, 161.9NM 43A, 400V 3AC 50HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE ON NDE SIDE ON TERMINAL BOX TERMINAL BOX ON TOP CABLE ON RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7103-2FG32-3KA3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7KW, 2000RPM, 33.4NM VC: 7.5KW, 2300RPM, 31.1NM 17.5A, VC: 17A, WITH BRAKE 400V 3AC 50HZ, WITH FAN ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U; WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) WITH BRAKE (230 V) AND MANUAL AIR LEVER VIBRATION SEVERITY GRADE A, SHAFT AND FLANGE PRECISION N FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7167-2NF00-0BC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37KW, 1500RPM, 235.5NM VC: 41KW, 1750RPM, 223.7NM 82A, VC: 79A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7103-2QG02-0CJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR, CORE TYPE 7KW, 2000RPM, 33.4NM VC: 7.5KW, 2300RPM, 31.1NM 17.5A, VC: 17A, 400V 3AC 50HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE ON NDE SIDE ON TERMINAL BOX TERMINAL BOX ON TOP CABLE RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7224-7FD10-0AJ3-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 71KW, 1000RPM, 678NM VC: 81KW, 1150RPM, 672.6NM 165A, VC: 164A, WITHOUT BRAKE WITH FAN, METRIC CABLE ENTRY TO EN 50262 ABSOLUTE ENCODER ENDAT 2048 S/R WITH DRIVE-CLIQ INTERFACE TERMINAL BOX ON TOP, CABLE DE TYPE OF CONSTRUCTION IM B3 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH6107-1NF47-2AN0 SIEMENS AC-HSA-MOTOR, ZK 600 V 9 KW, 1500 U/MIN, 57 NM FREMDBELUEFTET, OPT. INKR.,IP54 KLEMMENKASTEN, SIGNALSTECKER; MIT ERN 1381-GEBEREINBAU; BAUFORM IM V15; KLEMMENKASTEN; OBEN;KABELEINFUEHRUNG B-SEITIG; RUNDLAUFGENAUIGKEIT TOLERANZ N SCHWINGSTAERKE STUFE R BEI DOP- PELLAGERUNG; WELLENENDE AUF AS, OHNE PASS- FEDER, AUSBLASRICHTUNG UNTEN; SCHUTZART IP 54

1PH7133-2MG00-0BA3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 20 KW, 2000RPM, 95.5NM VC: 22.5KW, 2300RPM, 93.4NM 45 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7163-2NF03-0LC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 30 KW, 1500RPM, 191NM VC: 34KW, 1750RPM, 185.5NM 72A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7103-2NG02-0BC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7KW, 2000RPM, 33.4NM VC: 7.5KW, 2300RPM, 31.1NM 17.5A, VC: 17A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7107-2NF32-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 9KW, 1500RPM, 57.3NM VC: 10 KW, 1750RPM, 54.6NM 23.5A, VC: 23A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7107-2ND32-0BB0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 6.25KW, 1000RPM, 59.7NM VC: 7.2KW, 1150RPM, 59.8NM 17.5A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7107-7ND32-0BB0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 6.25KW, 1000RPM, 59.7NM VC: 7.2KW, 1150RPM, 59.8NM 17.5A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7103-2QG02-0CB3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7KW, 2000RPM, 33.4NM VC: 7.5KW, 2300RPM, 31.1NM 17.5A, VC: 17A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7131-2EF00-0BB0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 11KW, 1500RPM, 70NM VC: 13KW, 1750RPM, 70.9NM 24A, VC: 25A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED
