1PH

1PH7103-2NG03-0DJ3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-2NG02-0BJ3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 2000 RPM, 133.7 NM VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7103-2NF22-0BJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 5.5 KW, 1500 RPM, 35 NM VC: 6.3 KW, 1750 RPM, 34.4 NM 13 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7163-2ND23-0LC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 22 KW, 1000 RPM, 210.1 NM VC: 25 KW, 1150 RPM, 207.6 NM 55 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE DESIGN IM B35 (IM V15, IM V36) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8107-1JD13-0BA2-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000 RPM, 6.3 KW, 60 NM, 17.5 A, 307 V 1150 RPM, 7.2 KW, 60 NM, 17.5 A, 348 V 1350 RPM, 8 KW, 57 NM, 17 A, 400 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE --> DE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER HTL 2048 S/R (ENCODER HTL2048S/R) WITH TEMPERATURE SENSOR PT1000 DESIGN IM B35 (IM V15, (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7133-2EF22-3KA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 15 KW, 1500 RPM, 95.5 NM VC: 17.5 KW, 1750 RPM, 95.5 NM 34 A, WITH BRAKE 400V 3AC 50HZ, WITH FAN ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) WITH BRAKE (230 V) AND MANUAL AIR LEVER VIBRATION SEVERITY GRADE A, SHAFT AND FLANGE PRECISION N FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8103-1MG22-0DE2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM, 9.5 KW, 45 NM, 23.8 A, 343 V 2300 RPM, 10.9 KW, 45 NM, 23.8 A, 390 V 2650 RPM, 12.5 KW, 45 NM, 23.5 A, 454 V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR PT1000 DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: SR/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7163-2ND23-0BA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 22 KW, 1000 RPM, 210.1 NM VC: 25 KW, 1150 RPM, 207.6 NM 55 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7133-2NF02-0LJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 15 KW, 1500 RPM, 95.5 NM VC: 17.5 KW, 1750 RPM, 95.5 NM 34 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8165-1DF03-0HA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 37KW, 236NM, 78A, 350 V 1750RPM, 41KW, 224NM, 76A, 400 V 2000RPM, 45KW, 215NM, 75 A, 440 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD, VIBRATION SEVERITY GRADE S/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7107-2QF02-0BJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 9 KW, 1500 RPM, 57.3 NM VC: 10 KW, 1750 RPM, 54.6 NM 23.5 A, VC: 23 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8103-1DG02-0BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 7.0 KW 31NM, 17A, 345V 2300RPM, 7.5KW 33NM, 17.5A, 400 V 2650RPM, 8.0KW 29NM, 16A, 434V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7107-2NF30-0CJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 9 KW, 1500 RPM, 57.3 NM VC: 10 KW, 1750 RPM, 54.6 NM 23.5 A, VC: 23 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7101-2NF20-0CJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 3.7 KW, 1500 RPM, 23.6 NM VC: 4.3 KW, 1750 RPM, 23.6 NM 10 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8107-1LF02-3LA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 9.0KW 57NM, 23.5A, 330V 1750RPM, 10.0KW 55NM, 22A, 380 V 2000RPM, 11 KW 53NM, 21.5A, 428V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1VPP 256 S/R WITH ND-END AT TERMINAL BOX (ENCODER IN256S/R) DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7133-2NF00-0CJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 15 KW, 1500 RPM, 95.5 NM VC: 17.5 KW, 1750 RPM, 95.5 NM 34 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7133-2NF02-0LC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 15 KW, 1500 RPM, 95.5 NM VC: 17.5 KW, 1750 RPM, 95.5 NM 34 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8137-1FD02-2DH1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 17KW 162NM, 43A, 307V 1150RPM, 19.5KW 162NM, 43A, 350 V 1350RPM, 22 KW 156NM, 42A, 404V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 ABSOLUTE ENCODER 22-BIT SINGLE-TURN AND 12-BIT MULTI-TURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: SR/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION LEFT

1PH8101-1SF02-3LA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 3.7KW 24NM, 12.5A, 265V 2000RPM, 4.3KW 22NM, 12.5A, 304V 2000RPM, 4.7KW 22NM, 12.5A, 343V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8105-1DF02-0BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 7.0 KW 45NM, 17.5A, 348V 1750RPM, 8.0KW 44NM, 17.5A, 400 V 2000RPM, 9.0KW 43NM, 17.0A, 453V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8135-1CG22-3MG1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 29KW, 138NM, 64A, 348V 2300RPM, 31KW, 129NM, 61A, 397V 2650RPM, 32 KW, 115NM, 58A, 448V WATER COOLING DEGREE OF PROTECTION IP65

1PH5137-4CG40-Z SIEMENS AC MAIN SPINDLE MOTOR 20 KW AT 2000 REV/MIN 95 NM IM B 3

1PH8107-1FF22-0CZ1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 14KW 89NM, 43.4A, 277V 1750RPM, 15.5KW 85NM, 42A, 314V 2000RPM, 18KW 86NM, 42.6A, 363V WATER COOLING DEGREE OF PROTECTION IP65

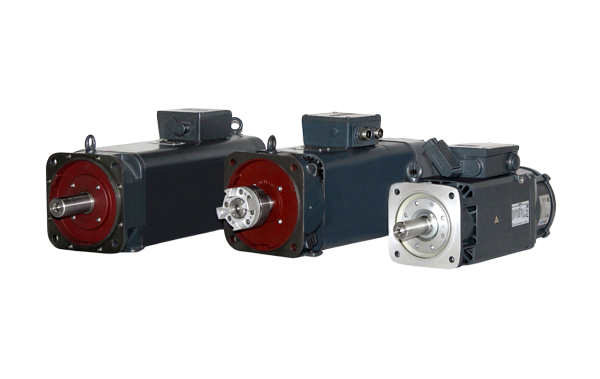

1PH8087-1DG02-0DE1 SIEMESN SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 4.9KW 23NM, 14.1A, 320V 2300RPM, 5.4KW 22NM, 13.7A, 353V 2650RPM, 6.0KW 22NM, 13.6A, 390V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE SR/A; SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8107-1FF22-0CZ1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 14KW 89NM, 43.4A, 277V 1750RPM, 15.5KW 85NM, 42A, 314V 2000RPM, 18KW 86NM, 42.6A, 363V WATER COOLING DEGREE OF PROTECTION IP65

1PH8184-1DF00-0FB1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 51KW 325NM, 116A, 335V 1750RPM, 60KW 327NM, 120 A, 390V 2000RPM, 68KW 325NM, 118A, 405V FORCED VENTILATION DIRECTION OF AIR FLOW DE-->NDE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END

1PH4103-4NF26 SIEMENS AC-HSA MOTOR 7.5 KW, 1500 RPM, 48 NM WATER-COOLED, IP65 SHAFT OUTLET IP55 ENCODER 1 VSS 2048 P/U, IM B35 TERMINAL BOX, SIGNAL CONNECTOR

1PH8133-1DF02-0CA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 15 KW 96NM, 34A, 342V 1750RPM, 17.5KW 96NM, 34A, 392V 2000RPM, 20 KW 96NM, 34A, 445V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8135-1DF10-1BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 18.5 KW 118NM, 43A, 330V 1750RPM, 21.5KW 117NM, 43A, 383V 2000RPM, 24 KW 115NM, 43A, 434V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8138-1SF23-3LG1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 30 KW, 191NM, 80 A, 289V 1750RPM, 33 KW, 180NM, 77A, 332V 2000RPM, 37KW, 177NM, 76A, 380 V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) PLAIN HOLLOW-SHAFT BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE: SPECIAL/B, SHAFT AND FLANGE ACCURACY: SPECIAL POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH5138-4CG46 SIEMENS AC MAIN SPINDLE MOTOR 24 KW AT 2000 REV/MIN 115 NM IM B 35

1PH7103-2NF22-0CJ3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 5.5 KW, 1500 RPM, 35 NM VC: 6.3 KW, 1750 RPM, 34.4 NM 13 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7133-2ND02-0CK0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 12 KW, 1000 RPM, 114.6 NM VC: 13.5 KW, 1150 RPM, 112.1 NM 30 A, VC: 29.5 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH8165-1DD02-0CA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 28KW, 267NM, 71A, 292V 1150RPM, 31KW, 257NM, 69A, 333V 1350RPM, 34KW, 241NM, 66A, 387V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE S/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8131-1CS02-3MA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 14.6KW 70 NM, 39A, 302V 5000RPM, 14.6KW 28NM, 40A, 360V 1500RPM, 11 KW 70 NM, 39A, 227V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 256 S/R WITHOUT C AND D TRACK (ENCODER IN256S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8131-1CS02-3MA1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 14.6KW 70 NM, 39A, 302V 5000RPM, 14.6KW 28NM, 40A, 360V 1500RPM, 11 KW 70 NM, 39A, 227V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH8137-1DG00-2GA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 28KW, 134NM, 60A, 350 V 2300RPM, 29KW, 120NM, 56A, 400 V 2650RPM, 30 KW, 108NM, 52A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1DG00-2GA1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 28KW, 134NM, 60A, 350 V 2300RPM, 29KW, 120NM, 56A, 400 V 2650RPM, 30 KW, 108NM, 52A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH7167-2NF00-0CC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH2095-6WF42 SIEMENS SIMOTICS M AC-MSD BUILT-IN MOTOR, DC LINK 600 V 13 KW, 105K, 1500 RPM WATER-COOLED, IP00 INDIVIDUAL COMPONENTS: ROTOR, STATOR BARE CABLE ENDS; L=0.5 M

1PH7133-2ND32-0CK0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 12 KW, 1000 RPM, 114.6 NM VC: 13.5 KW, 1150 RPM, 112.1 NM 30 A, VC: 29.5 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7224-2ND00-0FA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 71 KW, 1000 RPM, 678 NM VC: 81 KW, 1150 RPM, 672.6 NM 165 A, VC: 164 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 BEARING FOR BELT OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH7224-7NC00-0EA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 55 KW, 700 RPM, 750.3 NM 117 A, WITHOUT BRAKE WITH FAN, METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 BEARING FOR BELT OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8105-1UF02-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 7.0 KW 45NM, 17.5A, 348V 1750RPM, 8.0KW 44NM, 17.5A, 400 V 2000RPM, 9.0KW 43NM, 17.0A, 453V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 20-BIT WITHOUT COMMUTATION POSITION (ENCODER IN20DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1DF02-0CH1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 22KW, 140 NM, 56A, 308V 1750RPM, 25KW, 136NM, 56A, 352V 2000RPM, 28KW, 134NM, 55A, 401V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION LEFT

1PH7105-2EF00-0BB0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 1500 RPM, 44.6 NM VC: 8 KW, 1750 RPM, 43.7 NM 17.5 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7137-2MG02-0BB0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 2000 RPM, 133.7 NM VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7163-2JD03-0BA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 22 KW, 1000 RPM, 210.1 NM VC: 25 KW, 1150 RPM, 207.6 NM 55 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 2048 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7184-2NF13-0GC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 51 KW, 1500 RPM, 324.7 NM VC: 60 KW, 1750 RPM, 327.4 NM 122 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE DE DESIGN IM B35, FLANGE 400 BEARING FOR BELT OUTPUT (WITH SHEAR FORCE) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH8131-1DF03-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 11KW, 70 NM, 24A, 360V 1750RPM, 13KW, 71NM, 24A, 416V 2000RPM, 15 KW, 72NM, 24A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
