1PH

1PH6167-4NF46-Z SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 37 KW, 1500 REV/MIN, 236 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH6133-4NF40-Z SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 11 KW, 1500 REV/MIN, 70 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 3

1PH7167-2NF03-0DJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 37KW, 1500RPM, 235.5NM VC: 41KW, 1750RPM, 223.7NM 82A, VC: 79A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7107-2NF02-0CJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR, CORE TYPE 9KW, 1500RPM, 57.3NM VC: 10 KW, 1750RPM, 54.6NM 23.5A, 23A, 400V 3AC 50HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP CABLE RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8133-1DD02-0CE1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 12KW 115NM, 30 A, 319V 1150RPM, 13.5KW 112NM, 29A, 361V 1350RPM, 15 KW 106NM, 28A, 417V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8133-1SG02-2LA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 20 KW 96NM, 45 A, 350 V 2300RPM, 22.5KW 93NM, 44A, 400 V 2650RPM, 24 KW 86NM, 41A, 456V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE: SPECIAL/B, SHAFT AND FLANGE ACCURACY: SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH6163-4NB80 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 11.5 KW, 500 REV/MIN, 220 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, DELTA-STAR SELECTABLE TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 3

1PH7103-2QG02-0BJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 7KW, 2000RPM, 33.4NM VC: 7.5KW, 2300RPM, 31.1NM 17.5A, VC: 17A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7186-2NF25-0BJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 74KW, 1500RPM, 471.1NM VC: 85KW, 1750RPM, 463.8NM 173A, VC: 172A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE DESIGN IM B35 FOR VERTICAL MOUNTING (IM V15, IM V35) BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH7107-2NF32-0CA3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 9KW, 1500RPM, 57.3NM VC: 10 KW, 1750RPM, 54.6NM 23.5A, VC: 23A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7186-2HF00-0BB3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 74KW, 1500RPM, 471.1NM VC: 85KW, 1750RPM, 463.8NM 173A, VC: 172A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM NDE TO DE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-2NG22-0BJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28KW, 2000RPM, 133.7NM VC: 29KW, 2300RPM, 120.4NM 60A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7167-7RG00-0BA3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 41KW, 2000RPM, 195.8NM VC: 44 KW, 2300RPM, 182.7NM 89A, VC: 88A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 MOTOR ENCODER RESOLVER TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7133-2JG02-0BB3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 20 KW, 2000RPM, 95.5NM VC: 22.5KW, 2300RPM, 93.4NM 45 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 2048 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7133-2ND02-0CJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR, CORE TYPE 12KW, 1000RPM, 114.6NM VC: 13.5KW, 1150RPM, 112.1NM 30 A, VC: 29.5A, 400V 3AC 50HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP CABLE RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-2JG00-0BB3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28KW, 2000RPM, 133.7NM VC: 29KW, 2300RPM, 120.4NM 60A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 2048 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-2MF03-0CA2 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 22KW, 1500RPM, 140.1NM VC: 25KW, 1750RPM, 136.4NM 57A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7137-2NF00-0BJ3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 22KW, 1500RPM, 140.1NM VC: 25KW, 1750RPM, 136.4NM 57A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-2NF03-0CC3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 22KW, 1500RPM, 140.1NM VC: 25KW, 1750RPM, 136.4NM 57A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-2NF03-0CJ2 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 22KW, 1500RPM, 140.1NM VC: 25KW, 1750RPM, 136.4NM 57A, VC: 56A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7163-7NF03-0LJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 30 KW, 1500RPM, 191NM VC: 34KW, 1750RPM, 185.5NM 72A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7107-2AF02-0CC5 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 9KW, 1500RPM, 57.3NM VC: 10 KW, 1750RPM, 54.6NM 23.5A, VC: 23A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN NO MOTOR ENCODER TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016) AS FLANGE WITH SHAFT SEALING RING

1PH8105-1EG22-0CH1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 13KW 62NM, 34.5A, 326V 2300RPM, 15 KW 62NM, 34A, 370V 2650RPM, 17KW 61NM, 33.5A, 424V WATER COOLING DEGREE OF PROTECTION IP65 ABSOLUTE ENCODER ENDAT 2048 S/R (ENCODER AM2048S/R) WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

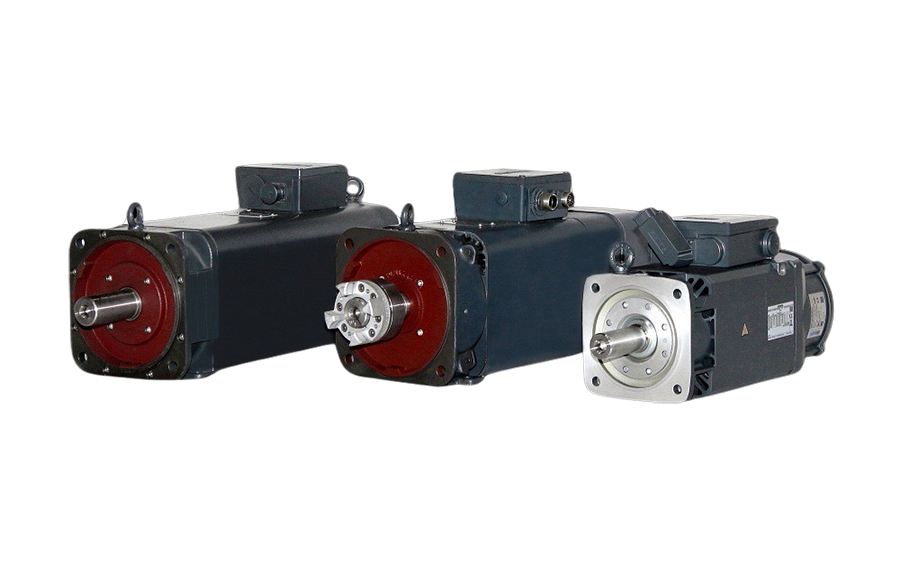

1PH8131-1DF02-0CA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 11KW, 70 NM, 24A, 360V 1750RPM, 13KW, 71NM, 24A, 416V 2000RPM, 15 KW, 72NM, 24A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1DD00-0BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 17KW 162NM, 43A, 307V 1150RPM, 19.5KW 162NM, 43A, 350 V 1350RPM, 22 KW 156NM, 42A, 404V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8165-1MF13-1LA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 37KW, 236NM, 78A, 350 V 1750RPM, 41KW, 224NM, 76A, 400 V 2000RPM, 45KW, 215NM, 75 A, 440 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8284-1HF13-2AU1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 196KW 1248NM, 390A, 345V 1750RPM, 225KW 1228NM, 390A, 400 V 2000RPM, 255KW 1218NM, 390A, 455V FORCED VENTILATION DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER HTL 1024 S/R (ENCODER HTL1024S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B35 WITH FLANGE A660 (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX NDE RIGHT CABLE ENTRY BELOW SIGNAL CONNECTION D-END

1PH7167-2ND23-0LC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 28KW, 1000RPM, 267.4NM VC: 31KW, 1150RPM, 257.4NM 71A, VC: 70A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE DESIGN IM B35 (IM V15, IM V36) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8107-1SF02-3LZ1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 9.0KW 57NM, 23.5A, 330V 1750RPM, 10.0KW 55NM, 22A, 380 V 2000RPM, 11 KW 53NM, 21.5A, 428V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH8137-1UG00-2LG1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 28KW, 134NM, 60A, 350 V 2300RPM, 29KW, 120NM, 56A, 400 V 2650RPM, 30 KW, 108NM, 52A, 460 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55

1PH7107-2EF32-0CA5 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 9KW, 1500RPM, 57.3NM VC: 10 KW, 1750RPM, 54.6NM 23.5A, VC: 23A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016) AS FLANGE WITH SHAFT SEALING RING

1PH8184-1AF03-1CA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 51KW 325NM, 116A, 335V 1750RPM, 60KW 327NM, 120 A, 390V 2000RPM, 68KW 325NM, 118A, 405V FORCED VENTILATION DIRECTION OF AIR FLOW DE-->NDE DEGREE OF PROTECTION IP55 WITHOUT ENCODER WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B35 WITH FLANGE A450 (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE S/A SHAFT A.FLANGE ACCURACY GR.R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7131-2NG02-0BJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR

1PH7163-2ND03-0BA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 22KW, 1000RPM, 210.1NM VC: 25KW, 1150RPM, 207.6NM 55A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH6137-4NZ09-Z SIEMENS SPINDLE MOTOR

1PH7103-2NF02-0BA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 5.5KW, 1500RPM, 35NM VC: 6.3KW, 1750RPM, 34.4NM 13 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7228-2JF30-0GJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 179KW, 1750RPM, 977NM 348A, VC OPERATION, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY RELATIVE MOTOR ENCODER HTL 2048 INCR./REV. TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B3 BEARING FOR BELT OUTPUT (WITH SHEAR FORCE) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH6103-1NF46-1AA0 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 5.5 KW, 1500 REV/MIN, 35 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B35; TERMINAL BOX; ON TOP;CABLE INFEED/D-END; ROT. ACCURACY TOLERANCE N VIBRATION SEVERITY R WITH TWIN-BEARINGS; SHAFT END ON D-END, W. FEATHER KEY , AIR FLOW DIR. BOTTOM; DEGREE OF PROT. IP 54

1PH6103-1NF47-5AA0 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 5.5 KW, 1500 REV/MIN, 35 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM V15; TERMINAL BOX; RIGHT; CABLE INFEED/D-END; ROT. ACCURACY TOLERANCE N VIBRATION SEVERITY R WITH TWIN-BEARINGS; SHAFT END ON D-END, W. FEATHER KEY , AIR FLOW DIR. BOTTOM; DEGREE OF PROT. IP 54

1PH6107-1NF46-0AA0 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 9 KW, 1500 REV/MIN, 57 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B35; TERMINAL BOX; ON TOP; CABLE INFEED/RIGHT; ROT. ACCURACY TOLERANCE N VIBRATION SEVERITY R WITH TWIN-BEARINGS; SHAFT END ON D-END, W. FEATHER KEY , AIR FLOW DIR. BOTTOM; DEGREE OF PROT. IP 54

1PH6107-4NG46 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 11.5 KW, 2000 REV/MIN, 55 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B35

1PH6167-4NF06 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 37 KW, 1500 REV/MIN, 236 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH6137-4NB46 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 7.5 KW, 500 REV/MIN, 143 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH7101-2AF00-0BA0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 3.7KW, 1500RPM, 23.6NM VC: 4.3KW, 1750RPM, 23.6NM 10A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN NO MOTOR ENCODER TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7103-2HF02-0BA3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 5.5KW, 1500RPM, 35NM VC: 6.3KW, 1750RPM, 34.4NM 13 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-7ED02-1KJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 17KW, 1000RPM, 162.3NM VC: 19.5KW, 1150RPM, 161.9NM 43A, WITH BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) WITH 230 V BRAKE VIBRATION SEVERITY GRADE A, SHAFT AND FLANGE PRECISION N SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7133-2NG02-0BC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 20 KW, 2000RPM, 95.5NM VC: 22.5KW, 2300RPM, 93.4NM 45 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7184-2NF03-0CJ0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 51KW, 1500RPM, 324.7NM VC: 60KW, 1750RPM, 327.4NM 122A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35, FLANGE 400 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH7226-2HF00-0EB3 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 130KW, 1500RPM, 827.6NM VC: 135KW, 1750RPM, 736.7NM 282A, VC: 258A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 BEARING FOR BELT OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM NDE TO DE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7131-2NF02-0DC0 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 11KW, 1500RPM, 70NM VC: 13KW, 1750RPM, 70.9NM 24A, VC: 25A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED
