1PH

1PH8138-1UF23-0LC1-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 30 KW, 191NM, 80 A, 289V 1750RPM, 33 KW, 180NM, 77A, 332V 2000RPM, 37KW, 177NM, 76A, 380 V WATER COOLING DEGREE OF PROTECTION IP65

1PH6103-1NF46-3AA0 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 5.5 KW, 1500 REV/MIN, 35 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B35; TERMINAL BOX; ON TOP; CABLE INFEED/LEFT; ROT. ACCURACY TOLERANCE N VIBRATION SEVERITY R WITH TWIN-BEARINGS; SHAFT END ON D-END, W. FEATHER KEY , AIR FLOW DIR. BOTTOM; DEGREE OF PROT. IP 54

1PH8226-1JF10-2BA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 130KW, 828NM, 270A, 340V 1750RPM, 135KW, 737NM, 250 A, 395V 2000RPM, 153KW, 731NM, 254A, 450 V FORCED VENTILATION DIRECTION OF AIR FLOW NDE-->DE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER HTL 2048 S/R (ENCODER HTL2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8131-1SS02-3MA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 14.6KW 70 NM, 39A, 302V 5000RPM, 14.6KW 28NM, 40A, 360V 1500RPM, 11 KW 70 NM, 39A, 227V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 19-BIT WITHOUT COMMUTATION POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7103-7HF03-0CD3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 5.5 KW, 1500 RPM, 35 NM VC: 6.3 KW, 1750 RPM, 34.4 NM 13 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-2ND02-0CJ2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 17 KW, 1000 RPM, 162.3 NM VC: 19.5 KW, 1150 RPM, 161.9 NM 43 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7186-2NF33-0BC2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 74 KW, 1500 RPM, 471.1 NM VC: 85 KW, 1750 RPM, 463.8 NM 173 A, VC: 172 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH AS FLANGE WITH SHAFT SEALING RING PREPARED FOR ZF GEARS

1PH6137-4NF46 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 18.5 KW, 1500 REV/MIN, 118 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH8165-1DG13-2BA1 SIEMENS SIMOTICS M KOMPAKT-ASYNCHRONMOTOR 2000RPM 41KW 196NM 88A 350V 2300RPM 44KW 183NM 85A 394V 2650RPM 50KW 180NM 85A 440V 2800RPM 50KW 171NM 81A 483V FREMDBELÜFTUNG; LUFTRICHTUNG NDE--> DE; SCHUTZART IP55 INKREMENTALGEBER 22 BIT MIT KOMMUTIERUNGSLAGE (ENCODER IC22DQ) MIT DRIVE-CLIQ-SCHNITTSTELLE BAUFORM IM B35 (IM V15, IM V35) WELLE MIT PASSFEDER HALBKEILWUCHTUNG LAGERAUSFÜHRUNG: STANDARD MIT FESTLAGER SCHWINGGÜTE: R/A WELLEN-UND FLANSCHGENAUIGKEIT: R KLEMMENKASTEN (OBEN) LEITUNGSEINFÜHRUNG RECHTS SIGNALANSCHLUSS DE

1PH7103-2RG32-0LB0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN MOTOR ENCODER RESOLVER TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7107-7NF03-0CK0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 9 KW, 1500 RPM, 57.3 NM VC: 10 KW, 1750 RPM, 54.6 NM 23.5 A, VC: 23 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7131-2HF30-0BA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 11 KW, 1500 RPM, 70 NM VC: 13 KW, 1750 RPM, 70.9 NM 24 A, VC: 25 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7167-2ND03-0DC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 1000 RPM, 267.4 NM VC: 31 KW, 1150 RPM, 257.4 NM 71 A, VC: 70 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7186-2NE05-0ED2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 60 KW, 1250 RPM, 458.4 NM 120 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 FOR VERTICAL MOUNTING (IM V15, IM V35) BEARING FOR BELT OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM NDE TO DE IP55, FAN IP54 PRIME-COATED PAINT FINISH AS FLANGE WITH SHAFT SEALING RING PREPARED FOR ZF GEARS

1PH7186-2NE33-0AD0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 60 KW, 1250 RPM, 458.4 NM 120 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM NDE TO DE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH8103-1DF02-0DA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 5.5 KW 35 NM 13.5 A 368 V 1750 RPM 6.3 KW 34 NM 13.1 A 412 V 2000 RPM 7 KW 33 NM 12.7 A 460 V 2200 RPM 7.7 KW 33 NM 12.7 A 480 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: SR/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7103-2NG02-0CC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8137-1MD00-2BB1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000 RPM 17 KW 162 NM 43 A 307 V 1150 RPM 19.5 KW 162 NM 43 A 350 V 1350 RPM 22 KW 156 NM 42 A 404 V 1500 RPM 24 KW 153 NM 41 A 447 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END

1PH8103-1FG13-2BA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 7 KW 33 NM 17.5 A 345 V 2300 RPM 7.5 KW 31 NM 17 A 382 V 2650 RPM 8 KW 29 NM 16 A 434 V 2800 RPM 8.5 KW 29 NM 16 A 455 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION ABSOLUTE ENCODER 22-BIT SINGLE-TURN AND 12-BIT MULTI-TURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7103-2NF22-0BJ2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 5.5 KW, 1500 RPM, 35 NM VC: 6.3 KW, 1750 RPM, 34.4 NM 13 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH6167-4CF09-Z SIEMENS AC MAIN SPINDLE MOTOR

1PH7163-2ND03-0CJ3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR, CORE TYPE 22 KW, 1000 RPM, 210.1 NM VC: 25 KW, 1150 RPM, 207.6 NM 55 A, 400 V 3AC 50 HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP CABLE RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R PLAIN SHAFT WITHOUT FEATHER KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8083-1MF22-0BC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 3.5 KW 22.3 NM 8.9 A 357 V 1750 RPM 4 KW 21.8 NM 8.7 A 416 V 2000 RPM 4.6 KW 22 NM 8.7 A 457 V 2200 RPM 5 KW 21.7 NM 8.7 A 500 V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8105-3FG22-0AH1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 13 KW 62 NM 34.5 A 326 V 2300 RPM 15 KW 62 NM 34 A 370 V 2650 RPM 17 KW 61 NM 33.5 A 424 V 2800 RPM 18 KW 61 NM 33.5 A 450 V WATER COOLING IP55 DEGREE OF PROTECTION ABSOLUTE ENCODER 22-BIT SINGLE-TURN AND 12-BIT MULTI-TURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8105-3FG22-0AH1-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 13 KW 62 NM 34.5 A 326 V 2300 RPM 15 KW 62 NM 34 A 370 V 2650 RPM 17 KW 61 NM 33.5 A 424 V 2800 RPM 18 KW 61 NM 33.5 A 450 V WATER COOLING IP55 DEGREE OF PROTECTION

1PH8137-1DG13-2BA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 28 KW 134 NM 60 A 350 V 2300 RPM 29 KW 120 NM 56 A 398 V 2650 RPM 30 KW 108 NM 52 A 460 V 2800 RPM 31 KW 106 NM 52 A 494 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8137-1DG13-2BA1-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000 RPM 28 KW 134 NM 60 A 350 V 2300 RPM 29 KW 120 NM 56 A 398 V 2650 RPM 30 KW 108 NM 52 A 460 V 2800 RPM 31 KW 106 NM 52 A 494 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION

1PH7133-2NF22-0BJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 15 KW, 1500 RPM, 95.5 NM VC: 17.5 KW, 1750 RPM, 95.5 NM 34 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7163-2ND00-0BJ2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 22 KW, 1000 RPM, 210.1 NM VC: 25 KW, 1150 RPM, 207.6 NM 55 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH8137-1CZ02-3MZ2-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR

1PH7137-2ND02-0CB0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 17 KW, 1000 RPM, 162.3 NM VC: 19.5 KW, 1150 RPM, 161.9 NM 43 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

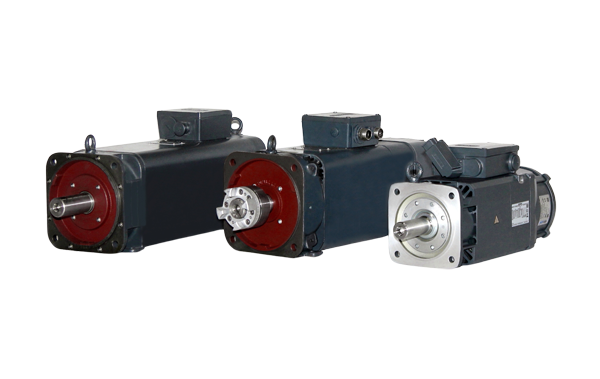

1PH7167-2NF33-0DC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7186-2NE05-0GA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 60 KW, 1250 RPM, 458.4 NM 120 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 FOR VERTICAL MOUNTING (IM V15, IM V35) BEARING FOR BELT OUTPUT (WITH SHEAR FORCE) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH8107-1CS02-3MC2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR Y2000 RPM, 11 KW, 53 NM, 26.7 A, 368 V D5000 RPM, 11 KW, 21 NM, 28 A, 410 V Y1500 RPM, 8.5 KW, 54 NM, 27 A, 275 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE --> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 256 S/R WITHOUT C AND D TRACK (ENCODER IN256S/R) WITH TEMPERATURE SENSOR PT1000 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8165-1DF10-1GA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 37 KW 236 NM 78 A 350 V 1750 RPM 41 KW 224 NM 76 A 400 V 2000 RPM 45 KW 215 NM 75 A 440 V 2200 RPM 49.5 KW 215 NM 75 A 493 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7137-2QD03-2KJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 17 KW, 1000 RPM, 162.3 NM VC: 19.5 KW, 1150 RPM, 161.9 NM 43 A, WITH BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) WITH 230 V BRAKE AND MICROSWITCH VIBRATION SEVERITY GRADE A, SHAFT AND FLANGE PRECISION N SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7163-2NF33-0CD2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 30 KW, 1500 RPM, 191 NM VC: 34 KW, 1750 RPM, 185.5 NM 72 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7107-7FG02-0WK5 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 10.5 KW, 2000 RPM, 50.1 NM VC: 12 KW, 2300 RPM, 49.8 NM 26 A, WITHOUT BRAKE; 400 V 3AC, 50 HZ, WITH FAN METRICAL CABLE ENTRY ACCORDING TO EN 50262; ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U; WITH DRIVE-CLIQ INTERFACE ON NDE ON TERMINAL BOX TERMINAL BOX ON TOP CABLE ON THE RIGHT; TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3); CUSTOMER-SPECIFIC BEARING VERSION WITH WIDE BEARINGS; PLAIN SHAFT WITHOUT FEATHER KEY DIRECTION OF AIR FLOW FROM NDE TO DE; IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016); IP 55, FAN IP 54, STANDARD PAINT FINISH (RAL 7016), FLANGE ON DRIVE END WITH SHAFT SEAL

1PH7133-2NG02-0CA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR, CORE TYPE 20 KW, 2000 RPM, 95.5 NM VC: 22.5 KW, 2300 RPM, 93.4 NM 45 A, 400 V 3AC 50 HZ WITH FAN, WITHOUT BRAKE RELATIVE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP CABLE RIGHT PG CABLE ENTRY TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE S SHAFT/FLANGE ACCURACY R FEATHER KEY AND HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8165-1DF03-2GC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 37 KW 236 NM 78 A 350 V 1750 RPM 41 KW 224 NM 76 A 400 V 2000 RPM 45 KW 215 NM 75 A 440 V 2200 RPM 49.5 KW 215 NM 75 A 493 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8137-3FD02-0AF1-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000 RPM 17 KW 162 NM 43 A 307 V 1150 RPM 19.5 KW 162 NM 43 A 350 V 1350 RPM 22 KW 156 NM 42 A 404 V 1500 RPM 24 KW 153 NM 41 A 447 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION

1PH7133-2ND33-0BC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 12 KW, 1000 RPM, 114.6 NM VC: 13.5 KW, 1150 RPM, 112.1 NM 30 A, VC: 29.5 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8135-1CS02-3MC1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 2000RPM, 24.5KW, 117NM, 51A, 372V; 5000RPM, 18.5KW, 47NM, 52A, 425V; 1500RPM, 18.5KW, 118NM, 51A, 283V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 256 S/R WITHOUT C AND D TRACK (ENCODER IN256S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH7103-2NG33-0DC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7163-2NG30-0LK0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 36 KW, 2000 RPM, 171.9 NM VC: 38 KW, 2300 RPM, 157.8 NM 85 A, VC: 82 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH7167-2NF33-0BC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH6138-4NF46 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 22 KW, 1500 REV/MIN, 140 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B 35

1PH8103-1CM02-3LZ1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 3000 RPM 8.4 KW 27 NM 25.7 A 297 V 3300 RPM 9.3 KW 27 NM 25.7 A 326 V 3600 RPM 10 KW 27 NM 25.4 A 355 V 3900 RPM 10.8 KW 26 NM 25 A 383 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION

1PH7137-7ED02-1KJ0-Z SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 17KW, 1000RPM, 162.3NM VC: 19.5KW, 1150RPM, 161.9NM 43A, WITH BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) WITH 230 V BRAKE VIBRATION SEVERITY GRADE A, SHAFT AND FLANGE PRECISION N SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7137-2ED03-0BJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 17 KW, 1000 RPM, 162.3 NM VC: 19.5 KW, 1150 RPM, 161.9 NM 43 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED
