1PH

1PH7107-2NF32-0CK0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 9 KW, 1500 RPM, 57.3 NM VC: 10 KW, 1750 RPM, 54.6 NM 23.5 A, VC: 23 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTIO

1PH8186-1DF05-0CA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 74KW 471NM, 166A, 330V 1750RPM, 85KW 464NM, 164A, 385 V 2000RPM, 94KW 449NM, 160 A, 445V FORCED VENTILATION DIRECTION OF AIR FLOW DE-->NDE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM V15 WITH FLANGE A450 PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD VIBRATION SEVERITY GRADE S/A SHAFT A.FLANGE ACCURACY GR.R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7135-7JF02-0BB3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 18.5 KW, 1500 RPM, 117.8 NM VC: 21.5 KW, 1750 RPM, 117.3 NM 42 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 RELATIVE MOTOR ENCODER HTL 2048 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7224-2NF00-0EA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 100 KW, 1500 RPM, 636.6 NM 188 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 BEARING FOR BELT OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH7184-2EL04-0DA8 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 78 KW, 2500 RPM, 297.9 NM VC: 81 KW, 2900 RPM, 266.7 NM 172 A, VC: 158 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35, FLANGE 450 BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 SPECIAL FINISH (RAL 7016) AS FLANGE WITH SHAFT SEALING RING PREPARED FOR ZF GEARS

1PH8103-1DM23-0CC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 3000 RPM 10.6 KW 34 NM 30 A 309 V 3300 RPM 11.7 KW 34 NM 30 A 340 V 3600 RPM 12.7 KW 34 NM 29.7 A 368 V 3900 RPM 13 KW 32 NM 29 A 397 V WATER COOLING DEGREE OF PROTECTION IP65 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8137-2DL02-0BA1 SIEMENS SIMOTICS M COMPACT SYNCHRONOUS MOTOR 2500RPM, 48.4KW 185NM, 83A, 371V 2800RPM, 53.4KW 182NM, 82A, 415 V 3000RPM, 56.9KW 181NM, 81A, 449V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8184-1AF25-0LA2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM, 70 KW, 446 NM, 150 A, 335 V 1750 RPM, 82 KW, 447 NM, 150 A, 390 V 2000 RPM, 95 KW, 454 NM, 152 A, 450 V WATER COOLING DEGREE OF PROTECTION IP55 WITHOUT ENCODER WITH TEMPERATURE SENSOR PT1000 DESIGN IM V15 WITH FLANGE A450 PLAIN SHAFT WITHOUT FITTED KEY; BEARING: PERFORMANCE VIBRATION SEVERITY GRADE SR/B SHAFT A. FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8184-1AF25-0LA2-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM, 70 KW, 446 NM, 150 A, 335 V 1750 RPM, 82 KW, 447 NM, 150 A, 390 V 2000 RPM, 95 KW, 454 NM, 152 A, 450 V WATER COOLING DEGREE OF PROTECTION IP55

1PH8224-1MF10-2ED2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM, 95 KW, 605 NM, 200 A, 340 V 1750 RPM, 110 KW, 600 NM, 198 A, 395 V 2000 RPM, 124 KW, 592 NM, 196 A, 460 V FORCED VENTILATION DIRECTION OF AIR FLOW NDE-->DE DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR PT1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION RIGHT

1PH8224-1FD05-0CA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 71KW, 678NM, 158A, 335V 1150RPM, 81KW, 673NM, 156A, 385 V 1350RPM, 92KW, 651NM, 154A, 450 V FORCED VENTILATION DIRECTION OF AIR FLOW DE-->NDE DEGREE OF PROTECTION IP55 ABSOLUTE ENCODER 22-BIT SINGLE-TURN AND 12-BIT MULTI-TURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM V15 WITH FLANGE A550 PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD VIBRATION SEVERITY GRADE S/A SHAFT A.FLANGE ACCURACY GR.R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7167-2NF33-0BC3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

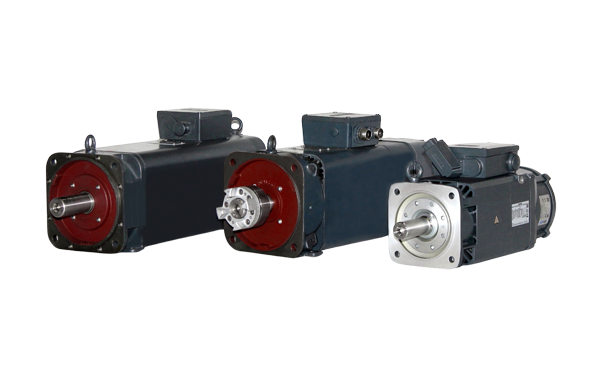

1PH7107-2HG00-0BA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 10.5 KW, 2000 RPM, 50.1 NM VC: 12 KW, 2300 RPM, 49.8 NM 26 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8184-1DD20-1EA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1000RPM, 47KW 449NM, 114A, 300V 1150RPM, 54KW 448NM, 112A, 350 V 1350RPM, 64KW 453NM, 112A, 410V WATER COOLING DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH6135-4CF06-Z SIEMENS AC MAIN SPINDLE MOTOR

1PH8186-1MF25-1LA1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 93KW 592NM, 198A, 330V 1750RPM, 111KW 606NM, 200 A, 385 V 2000RPM, 126KW 602NM, 200 A, 445V WATER COOLING DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM V15 WITH FLANGE A450 SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: PERFORMANCE VIBRATION SEVERITY GRADE SR/B SHAFT A. FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8163-1DD03-0CA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000 RPM 22 KW 210 NM 55 A 300 V 1150 RPM 25 KW 208 NM 55 A 343 V 1350 RPM 28 KW 198 NM 52 A 400 V 1500 RPM 31 KW 197 NM 52 A 442 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE S/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH7186-7QE03-0EJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 60 KW, 1250 RPM, 458.4 NM 120 A, WITHOUT BRAKE WITH FAN, METRIC CABLE ENTRY TO EN 50262 INCREMENTAL ENCODER SIN/COS 1 VPP (WITH C AND D TRACK) WITH DRIVE-CLIQ INTERFACE TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 BEARING FOR BELT OUTPUT VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY N SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH7224-2FD05-0CJ0-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 71 KW, 1000 RPM, 678 NM VC: 81 KW, 1150 RPM, 672.6 NM 165 A, VC: 164 A, WITHOUT BRAKE WITH FAN CABLE GLAND ENTRY ABSOLUTE ENCODER ENDAT 2048 S/R WITH DRIVE-CLIQ INTERFACE TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 FOR VERTICAL MOUNTING (IM V15, IM V35) BEARING FOR COUPLING OUTPUT VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 PRIME-COATED PAINT FINISH

1PH7105-2NF00-0DA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 1500 RPM, 44.6 NM VC: 8 KW, 1750 RPM, 43.7 NM 17.5 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7105-2NF00-0BC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 1500 RPM, 44.6 NM VC: 8 KW, 1750 RPM, 43.7 NM 17.5 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7163-2NF03-0BC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 30 KW, 1500 RPM, 191 NM VC: 34 KW, 1750 RPM, 185.5 NM 72 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH6103-4NF40 SIEMENS AC MAIN SPINDLE MOTOR, DC LINK 600 V 5.5 KW, 1500 REV/MIN, 35 NM SEPARATE VENTILATION, INCR. OPTICAL ENCODER, IP54, TERMINAL BOX, SIGNAL CONNECTOR; WITH ERN 1381 ENCODER FITT.; TYPE IM B3

1PH7107-7HF02-0BA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 9 KW, 1500 RPM, 57.3 NM VC: 10 KW, 1750 RPM, 54.6 NM 23.5 A, VC: 23 A, WITHOUT BRAKE 400 V 3 AC, 50 HZ, WITH FAN METRIC CABLE ENTRY TO EN 50262 RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7133-2HD02-0BB3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 12 KW, 1000 RPM, 114.6 NM VC: 13.5 KW, 1150 RPM, 112.1 NM 30 A, VC: 29.5 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7137-2ND00-0BC0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 17 KW, 1000 RPM, 162.3 NM VC: 19.5 KW, 1150 RPM, 161.9 NM 43 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7167-2NF03-0LC3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) BEARING FOR INCREASED MAXIMUM SPEED VIBRATION SEVERITY GRADE SR, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8103-1DD12-0BA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000 RPM 3.7 KW 35 NM 10 A 333 V 1150 RPM 4.3 KW 36 NM 10 A 380 V 1350 RPM 4.7 KW 33 NM 9.7 A 423 V 1500 RPM 5.2 KW 33 NM 9.7 A 470 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8107-1CS02-3MC1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR Y2000RPM, 11 KW 53NM, 26.7A, 368V D5000RPM, 11 KW 21NM, 28A, 410V Y1500RPM, 8.5KW 54NM, 27A, 275V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1VPP 256 S/R WITHOUT ND-END AT TERMINAL BOX (ENCODER IN256S/R) WITH TEMPERAT. SENSOR KTY84-130 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH7103-2FG32-0KA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 2000 RPM, 33.4 NM VC: 7.5 KW, 2300 RPM, 31.1 NM 17.5 A, VC: 17 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN ABSOLUTE MOTOR ENCODER 1 VSS 2048 P/U; WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON LEFT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY GRADE A, SHAFT AND FLANGE ACCURACY N FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH7101-2NF00-0BJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 3.7 KW, 1500 RPM, 23.6 NM VC: 4.3 KW, 1750 RPM, 23.6 NM 10 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7137-2NG00-0BK0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 2000 RPM, 133.7 NM VC: 29 KW, 2300 RPM, 120.4 NM 60 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B3 (IM V5, IM V6) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED

1PH8105-1DF02-1BG1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 7 KW 45 NM 17.5 A 348 V 1750 RPM 8 KW 44 NM 17.5 A 400 V 2000 RPM 9 KW 43 NM 17 A 453 V 2200 RPM 9.9 KW 43 NM 17 A 485 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8107-1FF02-0CE1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 9 KW 57 NM 23.5 A 330 V 1750 RPM 10 KW 55 NM 22 A 380 V 2000 RPM 11 KW 53 NM 21.5 A 428 V 2200 RPM 12.1 KW 53 NM 21.5 A 470 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION ABSOLUTE ENCODER 22-BIT SINGLE-TURN AND 12-BIT MULTI-TURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8105-1FG22-0CH1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 2000RPM, 13KW,62NM, 34,5A,326V 2300RPM, 15KW, 62NM, 34A, 370V 2650RPM, 17KW,61NM, 33,5A, 424V WATER COOLING DEGREE OF PROTECTION IP65 ABSOLUTE ENCODER 22 BIT SINGLETURN AND 12 BIT MULTITURN (ENCODER AM22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH7167-2NF33-0BD2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 37 KW, 1500 RPM, 235.5 NM VC: 41 KW, 1750 RPM, 223.7 NM 82 A, VC: 79 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM BS TO AS IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH8107-1DF00-2BA1-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 9 KW 57 NM 23.5 A 330 V 1750 RPM 10 KW 55 NM 22 A 380 V 2000 RPM 11 KW 53 NM 21.5 A 428 V 2200 RPM 12.1 KW 53 NM 21.5 A 470 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION

1PH7167-2HD03-0BA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 28 KW, 1000 RPM, 267.4 NM VC: 31 KW, 1150 RPM, 257.4 NM 71 A, VC: 70 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN RELATIVE MOTOR ENCODER HTL 1024 INCR./REV. TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8107-1DF00-0FB1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 R/MIN 9 KW 57 NM 23.5 A 330 V 1750 R/MIN 10 KW 55 NM 22 A 380 V 2000 R/MIN 11 KW 53 NM 21.5 A 428 V 2200 R/MIN 12.1 KW 53 NM 21.5 A 470 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B3 (IM V5, IM V6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: INCREASED RADIAL FORCES, VIBRATION SEVERITY GRADE: R/A, SHAFT+FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END

1PH8135-1DF13-2BA1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 18.5 KW 118 NM 43 A 330 V 1750 RPM 21.5 KW 117 NM 43 A 383 V 2000 RPM 24 KW 115 NM 43 A 434 V 2200 RPM 26.4 KW 115 NM 43 A 468 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

1PH8186-1MF23-0DD1 SIEMENS SIMOTICS M COMPACT INDUCTION MOTOR 1500RPM, 93KW 592NM, 198A, 330V 1750RPM, 111KW 606NM, 200 A, 385 V 2000RPM, 126KW 602NM, 200 A, 445V WATER COOLING DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER SIN/COS 1 VPP 2048 S/R WITH C AND D TRACK (ENCODER IC2048S/R) WITH TEMPERATURE SENSOR KTY 84-130 DESIGN IM B35 WITH FLANGE A450 (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD VIBRATION SEVERITY GRADE SR/A; SHAFT A.FLANGE ACCURACY GR.R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION RIGHT

1PH7163-2NF03-0CC3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 30 KW, 1500 RPM, 191 NM VC: 34 KW, 1750 RPM, 185.5 NM 72 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R FITTED KEY + FULL-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 STANDARD PAINT FINISH (RAL 7016)

1PH8107-1VM02-3MC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 3000 RPM 12 KW 38 NM 38 A 294 V 3300 RPM 13 KW 38 NM 38 A 314 V 3600 RPM 14 KW 37 NM 37.5 A 350 V 3900 RPM 14 KW 34 NM 35 A 380 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 19 BIT WITH COMMUTATING POSITION (ENCODER IN19DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT

1PH8133-1DD12-2CB1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000 RPM 12 KW 115 NM 30 A 319 V 1150 RPM 13.5 KW 112 NM 29 A 361 V 1350 RPM 15 KW 106 NM 28 A 417 V 1500 RPM 16.6 KW 106 NM 28 A 459 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END

1PH8133-1DD12-2CB1-Z SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000 RPM 12 KW 115 NM 30 A 319 V 1150 RPM 13.5 KW 112 NM 29 A 361 V 1350 RPM 15 KW 106 NM 28 A 417 V 1500 RPM 16.6 KW 106 NM 28 A 459 V FORCED VENTILATION; DIRECTION OF AIR FLOW NDE--> DE; IP55 DEGREE OF PROTECTION

1PH7137-2NF22-0CJ2 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 22 KW, 1500 RPM, 140.1 NM VC: 25 KW, 1750 RPM, 136.4 NM 57 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE NDE TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED AS FLANGE WITH SHAFT SEALING RING

1PH7137-2NF33-0BJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 22 KW, 1500 RPM, 140.1 NM VC: 25 KW, 1750 RPM, 136.4 NM 57 A, VC: 56 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON LEFT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7163-2NG03-0BA0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 36 KW, 2000 RPM, 171.9 NM VC: 38 KW, 2300 RPM, 157.8 NM 85 A, VC: 82 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U TERMINAL BOX ON TOP, CABLE ON RIGHT DESIGN IM B35 (IM V15, IM V36) VIBRATION SEVERITY GRADE R, SHAFT AND FLANGE ACCURACY R FITTED KEY + HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH7105-2QF02-0CJ0 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 7 KW, 1500 RPM, 44.6 NM VC: 8 KW, 1750 RPM, 43.7 NM 17.5 A, WITHOUT BRAKE 400V 3AC 50HZ, WITH FAN REL. MOTOR ENCODER 1 VSS 2048 P/U WITH DRIVE-CLIQ INTERFACE NDE-SIDE ON TERMINAL BOX TERMINAL BOX ON TOP, CABLE ON RIGHT TYPE OF CONSTRUCTION IM B5 (IM V1, IM V3) VIBRATION SEVERITY LEVEL S, SHAFT AND FLANGE ACCURACY R SMOOTH SHAFT WITHOUT FITTED KEY DIRECTION OF AIR FLOW FROM DE TO NDE IP55, FAN IP54 UNPAINTED

1PH8087-1DF02-0DC1 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1500 RPM 3.7 KW 23.6 NM 10 A 336 V 1750 RPM 4.3 KW 23.5 NM 10 A 396 V 2000 RPM 4.9 KW 23.4 NM 10 A 435 V 2200 RPM 5.3 KW 23 NM 10 A 480 V FORCED VENTILATION; DIRECTION OF AIR FLOW DE--> NDE; IP55 DEGREE OF PROTECTION INCREMENTAL ENCODER 22-BIT WITH COMMUTATION POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE SR/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT
