Sinamics

6SL3126-2TE21-0AA0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 9A/9A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3136-6AE15-0AA0 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ OUTPUT: 600 V DC, 8.3 A, 5 KW FRAME SIZE: BOOKSIZE COLD PLATE AIR COOLING INCL. CONTROL VOLTAGE ADAPTER

6SL3136-6AE21-0AA0 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ OUTPUT: 600 V DC, 17 A, 10 KW FRAME SIZE: BOOKSIZE COLD PLATE COOLING INCL. CONTROL VOLTAGE ADAPTER

6SL3244-0BB12-1PA0 SIEMENS SINAMICS G120 CONTROL UNIT CU240E-2 DP E-TYPE SAFETY INTEGRATED STO PROFIBUS DP 6DI, 3DO, 2AI, 2AO, MAX 1F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

6SL3353-1AE37-3AA0 SIEMENS SINAMICS REPLACEMENT POWER BLOCK FOR 3AC 380-480V, 50/60HZ, 730A SMART LINE MODULE RECTIFIER AND 3 PHASES VARNISHED ASSEMBLIES AND NICKEL-PLATED CONDUCTOR BAR

6SL3224-0BE27-5UA0 SIEMENS SINAMICS G120 PM240 POWER MODULE UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 7.5 KW AT 200% 3 S,150% 57 S,100% 240 S AMBIENT TEMPERATURE -10 TO +50 °C POWER LOW OVERLOAD: 11 KW AT 150% 3 S,110% 57 S,100% 240 S AMBIENT TEMPERATURE -10 TO +40 °C 334 X 189 X 185 (HXWXD), FSC DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3066-2DA00-0AB0 SIEMENS SINAMICS COUPLING FOR DRIVE-CLIQ CABLE PROTECTION IP67

6SL3246-0BA22-1FA0 SIEMENS SINAMICS G120 CONTROL UNIT CU250S-2 PN INTEGRIERT PROFINET SUPPORT OF VECTOR CONTROL, EASY POSITIONING EPOS VIA EXTENDED FUNCTION LICENSE 4 CONFIGURABLE DI/DO, 6 DI (USABLE AS 3 F-DI), 5 DI, 3 DO (USABLE AS 1 F-DO), 2 AI, 2 AO SAFETY INTEGRATED STO, SBC, SS1 FURTHER SAFETY FUNCTIONS VIA EXTENDED SAFETY LICENSE ENCODER: D-CLIQ + HTL/TTL/SSI, RESOLVER/HTL VIA TERMINAL PROTECTION IP20 USB- AND SD/MMC-INTERFACE

6SL3210-1KE21-7AF1 SIEMENS SINAMICS G120C RATED POWER 7,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X225,5(HXWXD) EXTERNAL 24V

6SL3120-2TE21-8AD0 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A/18A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL5120-2UE21-8SC0 SIEMENS SINAMICS S220 DOUBLE MOTOR MODULE INPUT: 495-720 V DC, 2X22.5 A OUTPUT: 0-480 V 3AC, 2X18 A RATED POWER: 2X7.5 KW DESIGN: BOOKSIZE C TYPE IP20, INTERNAL AIR COOLING ONLY FROM FW V5.2 SP3 HF10

6SL3224-0BE35-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITH BUILT IN CL. A FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 75KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 934 X 350 X 316 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1KE21-3AP0 SIEMENS SINAMICS G120C RATED POWER 5,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD)

6SL3211-0AB21-5AA1 SIEMENS SINAMICS G110 - CPM110 AC-DRIVE, BUILT IN CL. A FILTER 1AC200-240V +10/-10% 47-63HZ ANALOG INPUT CT: 1.5KW; VT: 1.5KW CT-OVERLOAD: 150% 60S 160 X 140 X 142 (HXWXD) PROTECTION IP20 AMBIENT TEMP -10 TO +40 DEG C WITHOUT BOP WITHOUT RS485-INTERFACE

6SL3136-7TE31-2AA1 SIEMENS SINAMICS ACTIVE LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ OUTPUT: 600 V DC, 200 A, 120 KW COLD-PLATE COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE

6SL3126-1TE32-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH 400 V, 200 A COLD PLATE AIR-COOLING INCL. DRIVE-CLIQ CABLE

6SL3126-1TE32-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 200A OUTPUT: AT 8 kHz / 140A FRAME SIZE: BOOKSIZE OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE COLD-PLATE COOLING

6SL3136-7TE31-2AA3 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 200A, 120KW FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING INCL. DRIVE-CLIQ CABLE

6SL3120-2TE15-0AD0 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A/5A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3120-2TE13-0AD0 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 3A/3A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

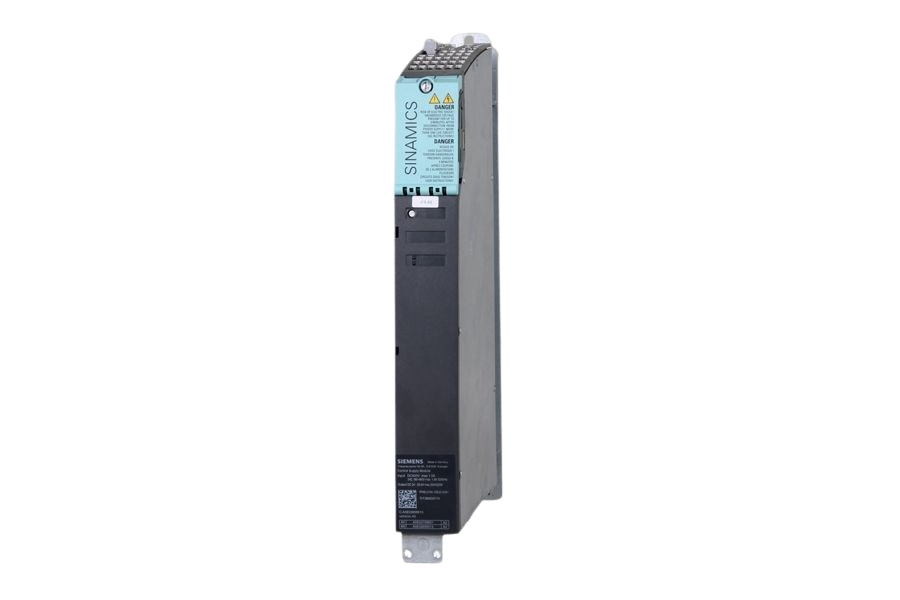

6SL3120-1TE21-0AD0 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3-PH 400V, 9A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3210-1KE18-8AP1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V

6SL3120-1TE31-3AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400 V, 132 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3224-0BE34-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITH BUILT IN CL. A FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 55KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 934 X 350 X 316 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1KE11-8AF1 SIEMENS SINAMICS G120C RATED POWER 0.55 KW WITH 150% OVERLOAD FOR 3 SEC. 380-480V3AC+10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O INTERFACE: 6DI, 2 DO, 1 AI, 1 AO SAFE-TORQUE-OFF INTEGRATED FIELDBUS INTEGRATED: PROFINET PN DEGREE OF PROTECTION IP20/UL OPEN TYPE VARIABLE: FSA 196X 73X 225.4 (HXWXD) EXTERNAL 24 V

6SL3210-1KE13-2UF2 SIEMENS SINAMICS G120C RATED POWER 3AC380-480V +10/-20% 47-63HZ LOW OVERLOAD: 1,1KW AT 150% 3S, 110% 57S, 100% 240S HIGH OVERLOAD: 0,75KW AT 200% 3S, 150% 57S, 100% 240S UNFILTERED EXTERNAL 24V I/O INTERFACE: 6DI, 2DO,1AI,1AO, 1MOT_T SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X160(HXWXD)

6SL3224-0BE13-7UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITHOUT FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 0,37KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C 173 X 73 X 145 (HXWXD), FSA PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1SE31-5AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 145A (75KW) FRAME SIZE: BLOCKSIZE SIZE FSF WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3121-1TE24-5AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 45A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3121-1TE21-8AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT 3-PH. 400 V, 18 A EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3121-1TE21-8AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3111-4VE21-6EA0 SIEMENS SINAMICS S120 COMBI POWER MODULE INPUT: 3AC 400V, 16KW OUTPUT: 3AC 400V, 24A, 9A, 9A, 9A, FRAME SIZE: COMBI EXTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS

6SL3210-1SE21-0UA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 10A (4,0KW) FRAME SIZE: BLOCKSIZE SIZE FSB INTERNAL AIR COOLING

6SL3224-0BE33-7AA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITH BUILT IN CL. A FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 37KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 45KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 635 X 275 X 204 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3136-6AE21-0AA1 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ OUTPUT: 600 V DC, 17 A, 10 KW FRAME SIZE: BOOKSIZE COLD PLATE COOLING INCL. CONTROL VOLTAGE ADAPTER

6SL3136-6AE15-0AA1 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ OUTPUT: 600 V DC, 8.3 A, 5 KW FRAME SIZE: BOOKSIZE COLD PLATE AIR COOLING INCL. CONTROL VOLTAGE ADAPTER

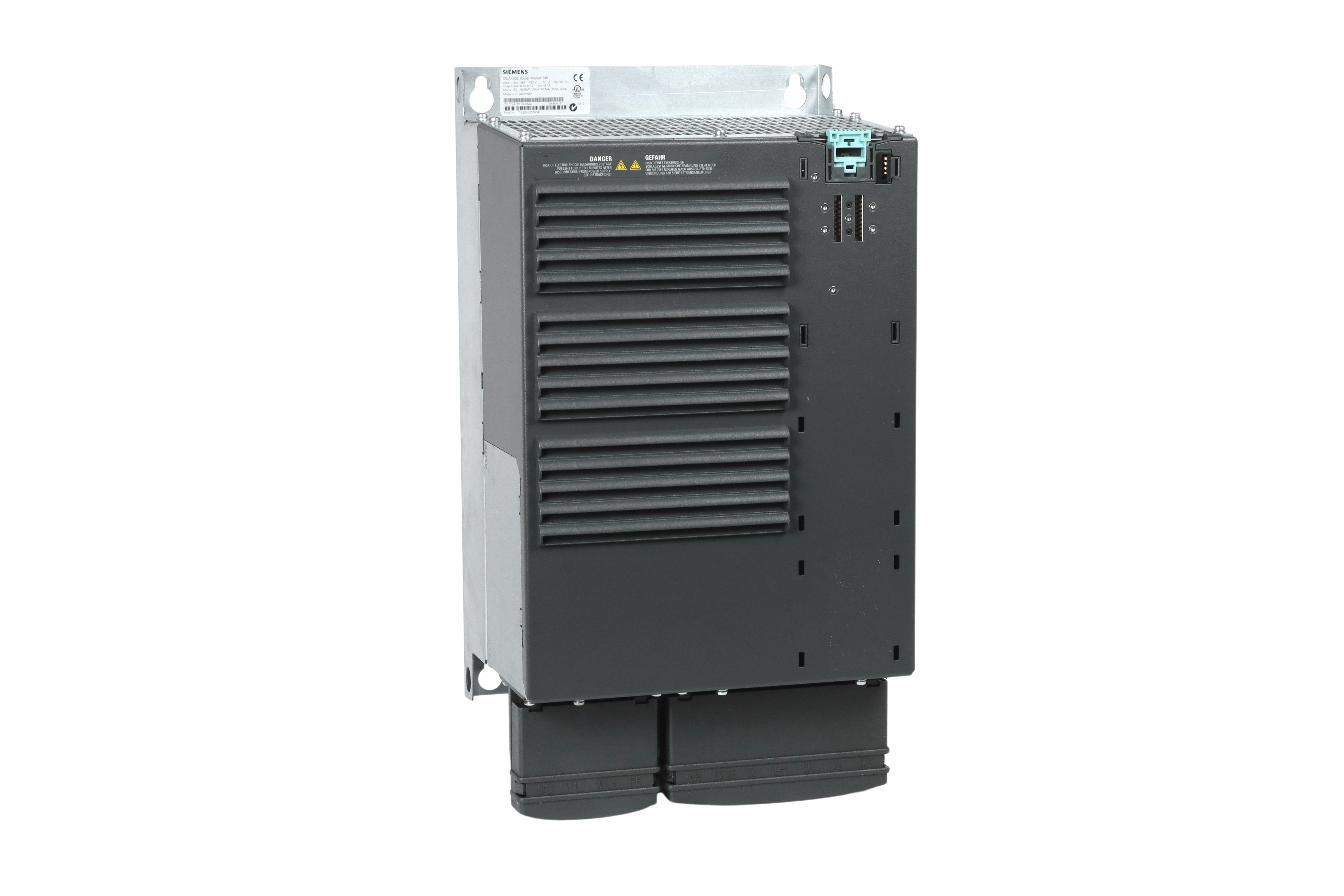

6SL3210-1SE23-8AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 38A (18,5KW) FRAME SIZE: BLOCKSIZE SIZE FSD WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1KE12-3AF1 SIEMENS SINAMICS G120C RATED POWER 0,75KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X225,4(HXWXD) EXTERNAL 24V

6SL3130-6TE25-5AA3 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 90A, 55KW FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3210-5CC21-0UA0 SIEMENS SINAMICS V60 CONTROLLED POWER MODULE CPM60.1 INPUT: 220-240V 3AC 50/60HZ OUTPUT: 3AC 10A (2KW)

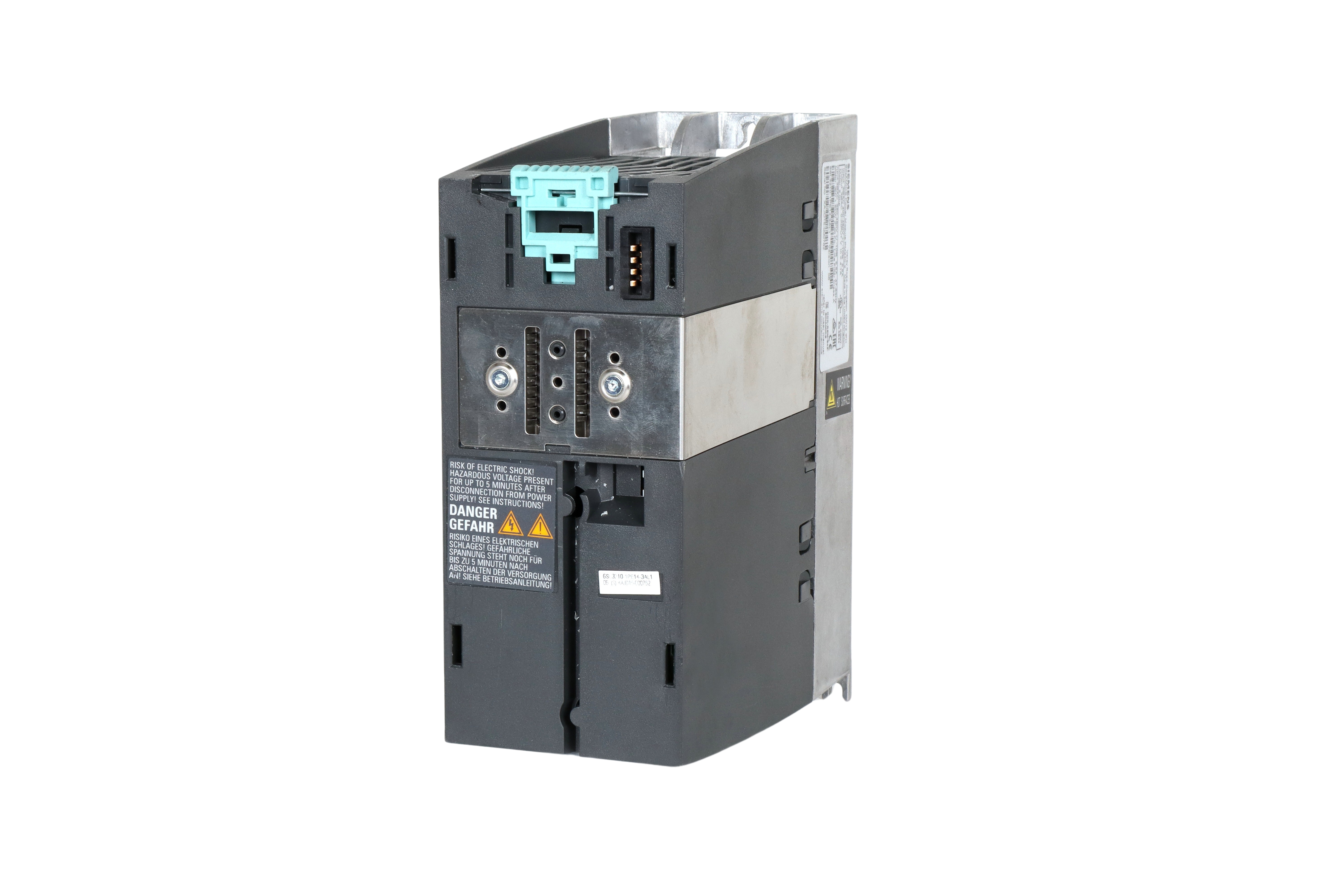

6SL3210-1SE11-7UA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 1,7A (0,55KW) FRAME SIZE: BLOCKSIZE SIZE FSA INTERNAL AIR COOLING

6SL3300-7TE35-0AA1 SIEMENS SINAMICS ACTIVE INTERFACE MODULES FOR 3-PH 380-480 V, 50/60 HZ 300 KW ACTIVE LINE MODULE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE PT1000

6SL3162-1AF00-0AA1 SIEMENS SINAMICS SHIELD CONNECTION SHEET FOR 150 MM LINE/MOTOR MODULES INTERNAL AIR COOLING

6SL3120-1TE13-0AD0 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3-PH 400V, 3A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

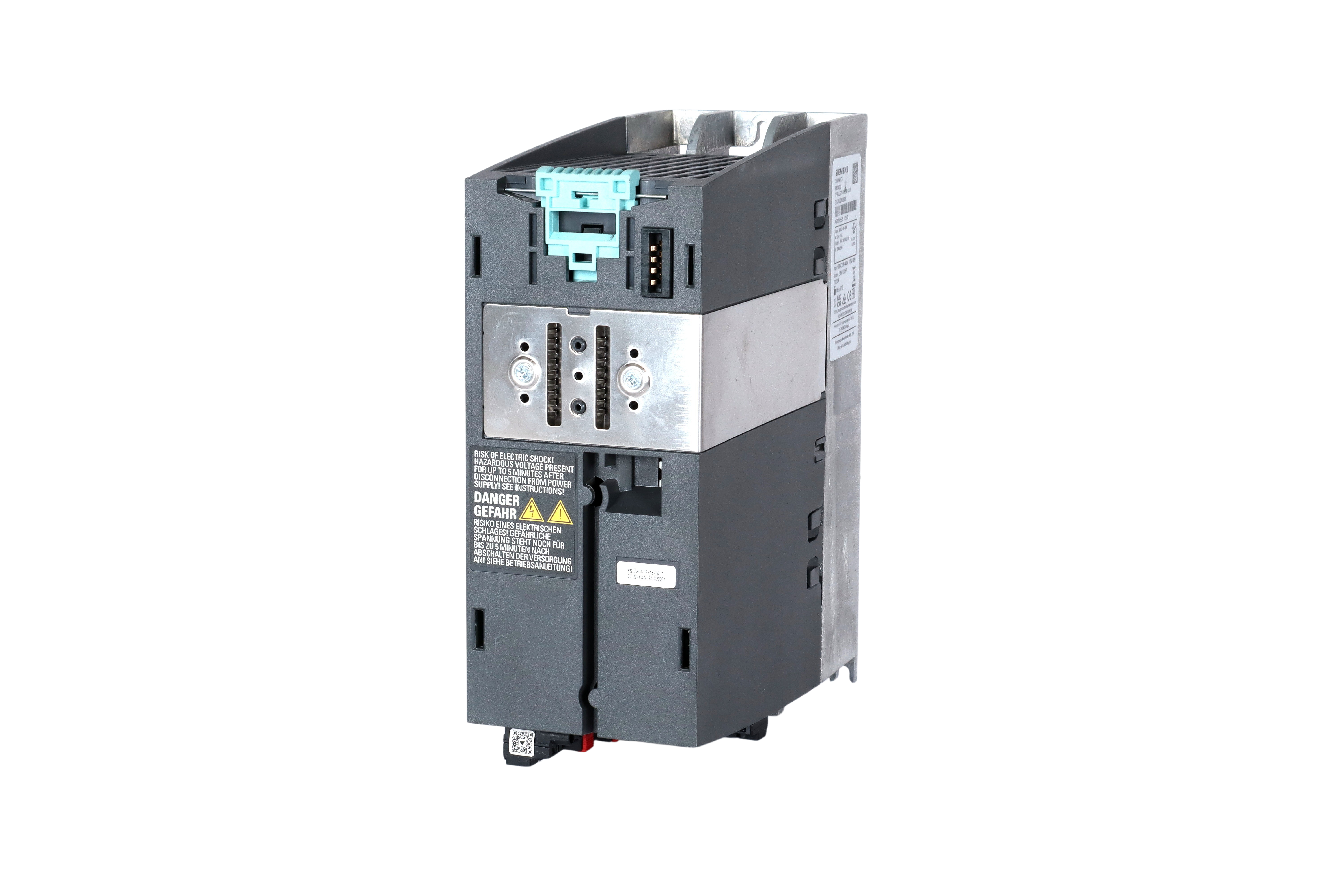

6SL3210-1PE16-1AL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 STANDARD WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 1,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LOW OVERLOAD: 2,2KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 196 X 73 X 165 (HXWXD), FSA PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL

6SL3244-0BB12-1BA0 SIEMENS SINAMICS G120 CONTROL UNIT CU240E-2 E-TYPE SAFETY INTEGRATED STO RS485-INTERFACE, USS-PROTOCOL 6DI, 3DO, 2AI, 2AO, MAX 1F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

6SL3210-5HB10-8UF0 SIEMENS SINAMICS S210 INPUT VOLTAGE: 1AC 200-240V; -10%/+10%; 9.3A; 45-66HZ; OUTPUT VOLTAGE: 0-INPUT V; 4.4A; 0-550HZ; MOTOR: 0.75KW; PROTECTION: IP20; FRAME SIZE C; 70 X 170 X 195 (WXHXD)

6SN2703-3AB10-0BA0 SIEMENS POSMO CA, 3PH. 400 V 1-AXIS, 9/18 A SELF-CONVECTION, IP65 POWER/SIGNAL CONNECTOR WITHOUT DIR. MEASURING SYSTEM PROFIBUS COUPLING COPPER (ECOFAST) WITH INTEGRATED MAINS FILTER

6SL3126-1TE21-8AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3224-0BE31-1AA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITH BUILT IN CL. A FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 11KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 15KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 334 X 189 X 185 (HXWXD), FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP
