Sinamics

6SL3210-1KE23-2AP1 SIEMENS SINAMICS G120C RATED POWER 15,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V

6SL3120-1TE21-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3 AC 400 V, 9 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE WITHOUT UL APPROVAL

6SL3120-1TE28-5AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3 AC 400 V, 85 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE WITHOUT UL APPROVAL

6SL3120-1TE26-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3 AC 400 V, 60 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE WITHOUT UL APPROVAL

6SL3120-1TE15-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 5 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3120-1TE24-5AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3 AC 400 V, 45 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE WITHOUT UL APPROVAL

6SL3120-1TE13-0AA1 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 3A FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND HELP HIGHER ORDER SAFETY FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3120-1TE23-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400 V, 30 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE WITHOUT UL APPROVAL

6SL3120-1TE21-8AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400 V, 18 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE WITHOUT UL APPROVAL

6SL3330-1TE35-3AA3 SIEMENS SINAMICS S120 BASIC LINE MODULE INPUT: 3-PH 380-480V, 50/60HZ OUTPUT: 510-650 VDC, 530A, 250KW FRAME SIZE: CHASSIS WITH PLUG-IN BOARD (CIM) INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3121-2TE15-0AA0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT 3-PH. 400 V, 5 A/5 A EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3131-6TE25-5AA3 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 90A, 55KW FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3300-1AE32-5BA0 SIEMENS SINAMICS BRAKING MODULE INPUT: 600 V DC OUTPUT: 250 KW/15 S FOR CHASSIS UNITS H AND J

6SL3126-2TE21-0AA4 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 9A/9A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3320-1TE33-1AA0 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH 400 V, 310 A FRAME SIZE: CHASSIS INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3320-1TE33-1AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH 400 V, 310 A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3130-1TE22-0AA0 SIEMENS SINAMICS S120 BASIC LINE MODULE INPUT: 3PH 380-480V, 50/60HZ OUTPUT: DC 600V, 34 A, 20KW FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3210-1PE21-8AL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 5,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 7,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3055-0AA00-2EB0 SIEMENS SINAMICS S120 CBE20 PROFINET MODULE TO CONNECTION ON PROFINET IO WITH 4 RJ45 PORTS WITH SWITCH FUNCTIONALITY

6SL3210-1SE21-0AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 10A (4,0KW) FRAME SIZE: BLOCKSIZE SIZE FSB WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3224-0BE33-7UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 37 KW AT 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP. -10 TO +50 °C POWER LOW OVERLOAD: 45 KW AT 150% 3S, 110% 57S, 100% 240S AMBIENT TEM. -10 TO +40 °C 497 X 275 X 204 (HXWXD), FSE DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3126-1TE23-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 30A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

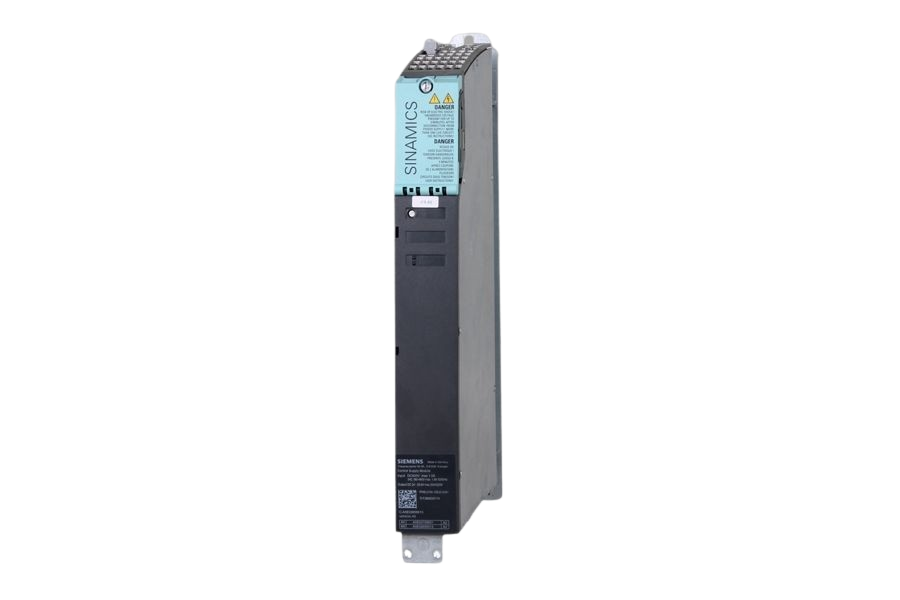

6SL3120-1TE21-0AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600VDC OUTPUT: 3AC 400V, 9A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE MODULES PAINTED

6SL3120-2TE21-8AB0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400V, 18A/18A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

6SL3161-0EP00-0AA0 SIEMENS SINAMICS S120 COMBI EXTERNAL FAN UNIT INPUT: DC 20,4 - 28,8V POWER CONSUMPTION: 18W CURRENT CONSUMPTION: 0,8A VOLUMETRIC AIR FLOW: 290 CBM/H W:258MM, H:104MM, D:86MM

6SL3224-0BE33-0UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 30 KW AT 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP. -10 TO +50 °C POWER LOW OVERLOAD: 37 KW AT 150% 3S, 110% 57S, 100% 240S AMBIENT TEM. -10 TO +40 °C 497 X 275 X 204 (HXWXD), FSE DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3224-0BE25-5UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 5.5 KW AT 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP. -10 TO +50 °C POWER LOW OVERLOAD: 7.5 KW AT 150% 3S, 110% 57S, 100% 240S AMBIENT TEM. -10 TO +40 °C 334 X 189 X 185 (HXWXD), FSC DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3224-0BE32-2UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 22 KW AT 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP. -10 TO +50 °C POWER LOW OVERLOAD: 30 KW AT 150% 3S, 110% 57S, 100% 240S AMBIENT TEM. -10 TO +40 °C 419 X 275 X 204 (HXWXD), FSD DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3111-4VE21-6EA1 SIEMENS SINAMICS S120 COMBI POWER MODULE INPUT: 400 V 3AC, 16 KW OUTPUT: 400 V 3AC, 24 A, 9 A, 9 A, 9 A, DESIGN: COMBI EXTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS

6SL3130-7TE23-6AB0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 600V DC, 60A, 36KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE BOARD COATED

6SL3224-0BE24-0UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 4.0 KW AT 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP. -10 TO +50 °C 270 X 153 X 165 (HXWXD), FSB DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1SE24-5AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 45A (22KW) FRAME SIZE: BLOCKSIZE SIZE FSD WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3225-0BE31-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM250 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 18,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 512 X 275 X 204 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3225-0BE27-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM 250 WITH INTEGRATED CLASS A FILTER CAPABLE OF ENERGY RECOVERY. 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 7.5KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C POWER LOW OVERLOAD: 11KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 334X 189X 185 (HXWXD), FSC DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3225-0BE27-5AA1 SIEMENS SINAMICS G120 POWER MODULE PM 250 WITH INTEGRATED CLASS A FILTER CAPABLE OF ENERGY RECOVERY. 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 7.5KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +50 °C POWER LOW OVERLOAD: 11KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C 334X 189X 185 (HXWXD), FSC DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1NE21-0AG1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 4KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 292X 100X 165 (HXWXD), FSB WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER

6SL3121-1TE31-3AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 132A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3131-7TE28-0AA3 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 133A, 80KW FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3210-1SE31-8AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 178A (90KW) FRAME SIZE: BLOCKSIZE SIZE FSF WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1KE11-8UF2 SIEMENS SINAMICS G120C RATED POWER 0,55KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V

6SL3210-1KE18-8UB1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V

6SL3121-2TE21-0AA4 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 9A/9A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3223-0DE33-0AA0 SIEMENS SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 30KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 640 X 320 X 329 (HXBXT), FSD WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2

6SL3163-8HH00-0AA0 SIEMENS SINAMICS S120 TERMINAL KIT ALM/SLM/BLM 200MM

6SL3121-1TE24-5AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT 3-PH. 400 V, 45 A EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3224-0BE31-8UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 18.5 KW AT 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP. -10 TO +50 °C POWER LOW OVERLOAD: 22 KW AT 150% 3S, 110% 57S, 100% 240S AMBIENT TEM. -10 TO +40 °C 419 X 275 X 204 (HXWXD), FSD DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1PE16-1UL1 SIEMENS SINAMICS POWER MODULE PM240-2 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 1.5KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C; POWER LOW OVERLOAD: 2.2KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3210-1PE18-0UL1 SIEMENS SINAMICS POWER MODULE PM240-2 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 2.2KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C; POWER LOW OVERLOAD: 3KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3210-1PE21-1UL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 3KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 4KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3210-1PE21-8UL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 5,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 7,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
