Sinamics

6SL3210-1NE21-0AG1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 4KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 292X 100X 165 (HXWXD), FSB WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER

6SL3121-1TE31-3AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 132A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3131-7TE28-0AA3 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 133A, 80KW FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3210-1SE31-8AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 178A (90KW) FRAME SIZE: BLOCKSIZE SIZE FSF WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1KE11-8UF2 SIEMENS SINAMICS G120C RATED POWER 0,55KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V

6SL3210-1KE18-8UB1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V

6SL3121-2TE21-0AA4 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 9A/9A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3223-0DE33-0AA0 SIEMENS SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 30KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 640 X 320 X 329 (HXBXT), FSD WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2

6SL3163-8HH00-0AA0 SIEMENS SINAMICS S120 TERMINAL KIT ALM/SLM/BLM 200MM

6SL3121-1TE24-5AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT 3-PH. 400 V, 45 A EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3224-0BE31-8UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 18.5 KW AT 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP. -10 TO +50 °C POWER LOW OVERLOAD: 22 KW AT 150% 3S, 110% 57S, 100% 240S AMBIENT TEM. -10 TO +40 °C 419 X 275 X 204 (HXWXD), FSD DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1PE16-1UL1 SIEMENS SINAMICS POWER MODULE PM240-2 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 1.5KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C; POWER LOW OVERLOAD: 2.2KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3210-1PE18-0UL1 SIEMENS SINAMICS POWER MODULE PM240-2 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 2.2KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C; POWER LOW OVERLOAD: 3KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3210-1PE21-1UL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 3KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 4KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3210-1PE21-8UL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 5,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 7,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3224-0BE23-0UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 3.0 KW AT 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP. -10 TO +50 °C 270 X 153 X 165 (HXWXD), FSB DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3400-1AE31-0AA1 SIEMENS SINAMICS BRAKING MODULE COMPACT INPUT: DC600V OUTPUT: PDB/PMAX 5/100KW

6SL3210-1PE11-8UL1 SIEMENS SINAMICS POWER MODULE PM240-2 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 0.37KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C; POWER LOW OVERLOAD: 0.55KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3126-2TE15-0AA4 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A/5A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3126-1TE15-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

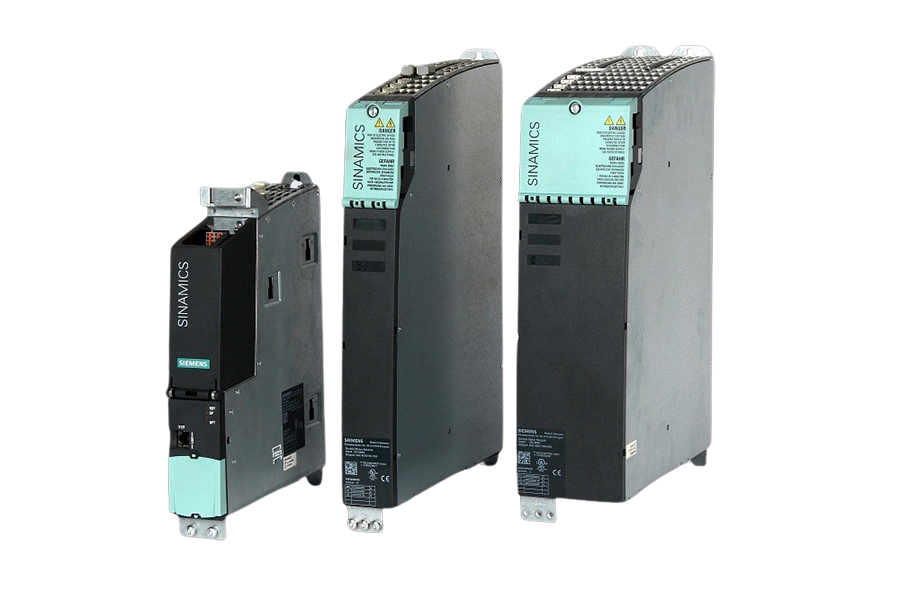

6SL3210-5HE10-4UF0 SIEMENS SINAMICS S210 INPUT VOLTAGE: 200-480 V 3AC; -10%/+10%; 1.6 A; 45-66 HZ; OUTPUT VOLTAGE: 0-INPUT V 1.2 A; 0-550 HZ; MOTOR: 0.4 KW; DEGREE OF PROTECTION: IP20; FRAME SIZE A; 50 X 270 X 220 (WXHXD)

6SL3210-5HE11-5UF0 SIEMENS SINAMICS S210 INPUT VOLTAGE: 200-480 V 3AC -10%/+10% 6.0 A 45-66 HZ OUTPUT VOLTAGE: 0 INPUT V 5.0 A 0-550 HZ MOTOR: 1.5 KW DEGREE OF PROTECTION: IP20 FRAME SIZE B 70 X 322 X 223 (WXHXD)

6SL3210-5HE13-5UF0 SIEMENS SINAMICS S210 INPUT VOLTAGE 200-480 V 3AC -10%/+10% 12.5 A 45-66 HZ OUTPUT VOLTAGE: 0 INPUT V 9.0 A 0-550 HZ MOTOR: 3.5 KW DEGREE OF PROTECTION: IP20 FRAME SIZE C 105 X 322 X 223 (WXHXD)

6SL3162-0AN00-0AA0 SIEMENS SINAMICS S120 BOOKSIZE SPARE FAN FOR 50MM C-/D-TYPE MOTOR MODULE

6SL3162-0AP00-0AA0 SIEMENS SINAMICS S120 BOOKSIZE SPARE FAN FOR 100MM C-/D-TYPE MOTOR MODULE

6SL3162-2BE00-0AA0 SIEMENS SINAMICS S120 DC LINK RECTIFIER ADAPTER FOR DIRECT INFEED SCREW TERMINALS -35 MM2 72A FOR 100, 150, 200 AND 300 MM LINE/MOTOR MODULES IN BOOKSIZE FORMAT

6SL3126-1TE21-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 9A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3126-1TE21-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 9A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3126-1TE21-8AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3210-1PE23-3AL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 11KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 15KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 (HXWXD), FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3330-7TE38-4AA3 SIEMENS SINAMICS ACTIVE LINE MODULE 380-480V 3AC, 50/60 HZ, 840 A OUTPUT: 510-720 V DC RATED POWER: 500KW BUILT-IN UNIT IP00 DESIGN CIM INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3335-1TE41-2AA3 SIEMENS SINAMICS S120 BASIC LINE MODULE INPUT: 380-480V 3AC, 50/60 HZ OUTPUT: 510-650 V DC, 1220A RATED POWER: 600KW BUILT-IN UNIT IP00 LIQUID COOLING

6SL3210-1PE18-0AL1 SIEMENS SINAMICS POWER MODULE PM240-2 WITH INTEGRATED CLASS A FILTER WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 2.2KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C; POWER LOW OVERLOAD: 3KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3310-1PE35-8AA0  SIEMENS SINAMICS G120P POWER MODULE IP20 380-480V 3AC, 50/60 HZ, 585A RATED POWER: 315KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY VERSION WITHOUT CONTROL UNIT

6SL3320-1TG28-5AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 675 V - 1035V OUTPUT: 3AC 500 - 690V, 85A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3330-6TG35-5AA3 SIEMENS SINAMICS S120 SMART LINE MODULE 500-690V 3AC, 50/60 HZ OUTPUT: 675-930 V DC, 550 A RATED POWER: 450KW BUILT-IN UNIT IP00 INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3320-1TG32-6AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 675V - 1035V OUTPUT: 3AC 500V - 690V, 260A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3320-1TG32-2AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 675V - 1035V OUTPUT: 3AC 500V -690V, 215A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3320-1TG31-5AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 675 V - 1035V OUTPUT: 3AC 500 V - 690V, 150A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3210-5BB21-1BV1 SIEMENS SINAMICS V20 1 AC 200-240 V -10/+10% 47-6 RATED POWER 1.1 KW WITH 150% OVERLOAD FOR 60 SEC. INTEGRATED FILTER C1 I/O INTERFACE: 4 DI, 2 DQ, FIELDBUS: USS/MODBUS RTU WITH BUILT-IN BOP PROTECTION: IP20/ UL OPEN SIZE: SIZE AC 160X90X147(HXWXD)

6SL3353-1AG35-5AA0 SIEMENS SINAMICS REPLACEMENT POWER BLOCK FOR 500-690V 3AC, 50/60 HZ, 550 A SMART LINE MODULE RECTIFIER AND 3 PHASES PAINTED MODULES AND NICKEL-PLATED BUSBARS

6SL3100-0EE21-6AA0 SIEMENS SINAMICS LINE REACTOR FOR 16 KW COMBI LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ

6SL3210-1KE22-6AB1 SIEMENS SINAMICS G120C RATED POWER 11,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU; PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V

6SL3211-0AB15-5BA1 SIEMENS SINAMICS G110-CPM110 AC DRIVE, WITH INTEGR. FILTER B 200-240V1AC+10/-10% 47-63HZ ANALOG INPUT CT: 0.55KW; VT: 0.55KW CT OVERLOAD: 150% 60S 150X 90X 131 (HXWXD) DEGREE OF PROTECTION IP20 AMBIENT TEMPERATURE -10+50 °C WITHOUT BOP WITHOUT RS485 INTERFACE

6SL3210-1KE13-2AF2 SIEMENS SINAMICS G120C RATED POWER 1,1KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V

6SL3210-1PE11-8AL1 SIEMENS SINAMICS POWER MODULE PM240-2 WITH INTEGRATED CLASS A FILTER WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 0.37KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C; POWER LOW OVERLOAD: 0.55KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3210-1PE21-4AL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 4KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 5,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3420-1TE13-0AA1 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 3A FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND HELP HIGHER ORDER SAFETY FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3162-1AD00-0AA0 SIEMENS SINAMICS SHIELD CONNECTION SHEET FOR 100MM45A/60A MOTOR MODULES INTERNAL AIR COOLING

6SL3224-0BE41-1UA0 SIEMENS SINAMICS G120 PM240 POWER MODULE UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 110 KW AT 160% 3 S,136% 57 S,100% 240 S AMBIENT TEMPERATURE 0 TO +50 °C POWER LOW OVERLOAD: 132 KW AT 150% 3 S, 110% 57 S, 100% 240 S AMBIENT TEMPERATURE 0 TO +40 °C 634 X 350 X 316 (HXWXD), FSF DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOPSINAMICS G120 PM240 POWER MODULE UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 110 KW AT 160% 3 S,136% 57 S,100% 240 S AMBIENT TEMPERATURE 0 TO +50 °C POWER LOW OVERLOAD: 132 KW AT 150% 3 S, 110% 57 S, 100% 240 S AMBIENT TEMPERATURE 0 TO +40 °C 634 X 350 X 316 (HXWXD), FSF DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP
