Sinamics

6SL3420-1TE15-0AA0 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND HELP HIGHER ORDER SAFETY FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3040-1MA01-0AA0 SIEMENS SINAMICS CONTROL UNIT CU320-2 PN WITHOUT COMPACT FLASH CARD

6SL3224-0BE31-1UA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITHOUT FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 11KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 15KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 334 X 189 X 185 (HXWXD), FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

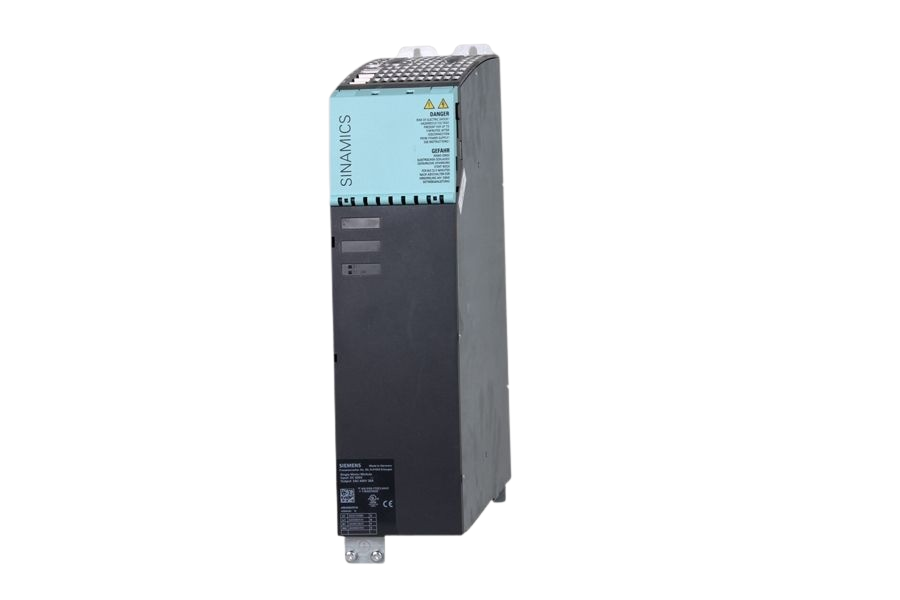

6SL3126-1TE23-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 30 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3126-1TE21-8AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 18 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3136-7TE23-6AA0 SIEMENS SINAMICS ACTIVE LINE MODULE INPUT: 3-PH. 380-480 V 50/60 HZ OUTPUT: 600 V DC, 60 A, 36 KW COLD-PLATE CCOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE

6SL3224-0BE24-0AA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITH BUILT IN CL. A FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 4,0KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C 270 X 153 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3225-0BH31-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM260 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC660-690V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 18,5KW FOR 140% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 512 X 275 X 204 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3544-0FA21-1PA0 SIEMENS SINAMICS G120D CONTROL UNIT CU240D DP-F PROFIBUS AND SAFETY INTEGRATED 6 DI, 2 DO PTC/KTY INTERFACE EM-BRAKE CONTROL, MMC INTERFACE ENCODER INTERFACE PROTECTION IP65 AMBIENT TEMP 0 TO +40 DEG C WITHOUT POWER MODULE

6SL3211-0AB11-2BA1 SIEMENS SINAMICS G110 - CPM110 AC-DRIVE,BUILT IN CL. B FILTER 1AC200-240V +10/-10% 47-63HZ ANALOG INPUT CT: 0.12KW; VT: 0.12KW CT-OVERLOAD: 150% 60S 150 X 90 X 116 (HXWXD) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C WITHOUT BOP WITHOUT RS485-INTERFACE

6SL3211-1PE16-1AL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 PUSH-THROUGH WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 1,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LOW OVERLOAD: 2,2KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 238 X 126 X 171 (HXWXD), FSA PROTECTION IP20 / PT WITHOUT CONTROL UNIT AND PANEL

6SL3330-6TE35-5AA0 SIEMENS SINAMICS S120 SMART LINE MODULE 3-PHASE AC 380-480V, 50/60HZ OUTPUT: 510-650V DC, 550A RATED OUTPUT: 250KW CHASSIS UNIT IP00 INTERNAL AIR COOLING INCL. DRIVE CLIQ CABLE

6SL3120-1TE31-3AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400 V, 132 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3121-1TE21-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 9A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3121-1TE21-8AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3224-0BE23-0AA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITH BUILT IN CL. A FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 3,0KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C 270 X 153 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3246-0BA22-1BA0 SIEMENS SINAMICS G120 CONTROL UNIT CU250S-2 INTEGRIERT RS485/USS/MODBUS RTU SUPPORT OF VECTOR CONTROL, EASY POSITIONING EPOS VIA EXTENDED FUNCTION LICENSE 4 CONFIGURABLE DI/DO, 6 DI (USABLE AS 3 F-DI), 5 DI, 3 DO (USABLE AS 1 F-DO), 2 AI, 2 AO SAFETY INTEGRATED STO, SBC, SS1 FURTHER SAFETY FUNCTIONS VIA EXTENDED SAFETY LICENSE ENCODER: D-CLIQ + HTL/TTL/SSI, RESOLVER/HTL VIA TERMINAL PROTECTION IP20 USB- AND SD/MMC-INTERFACE

6SL3121-1TE28-5AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH 400 V, 85 A EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3136-7TE28-0AA3 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 133A, 80KW FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING INCL. DRIVE-CLIQ CABLE

6SL3136-7TE23-6AA3 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 60A, 36KW FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING INCL. DRIVE-CLIQ CABLE

6SL3131-6AE21-0AA1 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3 AC 380-480 V, 50/60HZ OUTPUT: 600 V DC, 17 A, 10 KW FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE

6SL3430-6TE21-6AA1 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 27A, 16KW FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3330-7TE33-8AA3 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3-PH 380-480V, 50/60HZ OUTPUT: 600 V DC, 425 A, 235 KW INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3300-7TE33-8AA0 SIEMENS SINAMICS ACTIVE INTERFACE MODULES FOR 3-PH 380-480 V, 50/60 HZ 235 KW ACTIVE LINE MODULE INTERNAL AIR COOLING

6SL3055-0AA00-5HA0 SIEMENS SINAMICS SENSOR MODULE SME25 ABSOLUTE ENCODER: ENDAT PROTECTION IP67

6SL3055-0AA00-5JA0 SIEMENS SINAMICS SENSOR MODULE SME120 INCREMENTAL ENCODER: SIN/COS 1VPP; PTC- AND KTY-INPUTS WITH SET; DEGREE OF PROTECTION IP67; WITHOUT DRIVE-CLIQ CABLE

6SL3055-0AA00-3BA0 SIEMENS SINAMICS S120 TERMINAL MODULE CABINET TM54F WITHOUT DRIVE-CLIQ CABLE ADD ON BOARD FOR SINAMICS CONVERTORS WITH FAIL-SAFE IN- AND OUTPUTS

6SL3130-6AE21-0AB1 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 600VDC, 17A, 10KW FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER MODULES PAINTED

6SL3420-1TE15-0AA1 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND HELP HIGHER ORDER SAFETY FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3225-0BE34-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM250 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 55KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 934 X 350 X 316 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3162-3AF00-0AA1 SIEMENS SINAMICS S120 FRAME SIZE BOOKSIZE REPLACEMENT DC LINK COVER FOR 150 MM LINE/MOTOR MODULES WITH SCREW LOCK

6SL3121-1TE13-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT 3AC 400V, 3A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3121-1TE21-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT 3-PH. 400 V, 9 A EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3121-2TE21-8AA3 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A/18A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3121-2TE15-0AA3 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A/5A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3121-1TE28-5AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 85A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3121-1TE21-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 9A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3320-1TE32-1AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULES INPUT: 600 V DC OUTPUT: 3-PH 400 V, 210 A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3320-1TE36-1AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 510-720V DC OUTPUT: 3-PHASE AC 0-480V, 605A NOMINAL POWER RATING: 315KW CHASSIS UNIT IP00 INTERNAL AIR COOLING INCL. DRIVE CLIQ CABLE

6SL3320-1TE36-1AA3 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: DC 510 - 720V OUTPUT: 3AC 0 - 480V, 605A RATED POWER: 315KW CHASSIS UNIT IP00 INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3330-6TE35-5AA3 SIEMENS SINAMICS S120 SMART LINE MODULE 3-PHASE AC 380-480V, 50/60HZ OUTPUT: 510-650V DC, 550A RATED OUTPUT: 250KW CHASSIS UNIT IP00 INTERNAL AIR COOLING INCL. DRIVE CLIQ CABLE

6SL3420-1TE21-0AA1 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 9A FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND HELP HIGHER ORDER SAFETY FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3420-2TE11-7AA1 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 1,7A/1,7A FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND HELP HIGHER ORDER SAFETY FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3420-2TE13-0AA1 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 3A/3A FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND HELP HIGHER ORDER SAFETY FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3420-2TE15-0AA1 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A/5A FRAME SIZE BOOKSIZE COMPACT INTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND HELP HIGHER ORDER SAFETY FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3225-0BH31-5AA1 SIEMENS SINAMICS G120 POWER MODULE PM260 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC500-690V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 18,5KW FOR 140% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 512 X 275 X 204 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1KE23-8AB1 SIEMENS SINAMICS G120C RATED POWER 18,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V

6SL3544-0FB20-1FA0 SIEMENS SINAMICS G120D CONTROL UNIT CU240D-2 PN PROFINET, STO ON-BOARD 6 DI/1 F-DI, 2 DO, 2 AI USB INTERFACE SD/MMC-INTERFACE HTL-ENCODER INTERFACE PROTECTION IP65 AMBIENT TEMP -10 TO +50 DEG C WITHOUT POWER MODULE

6SL3121-1TE13-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT 3AC 400V, 3A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3544-0FB21-1PA0 SIEMENS SINAMICS G120D CONTROL UNIT CU240D-2 DP-F PROFIBUS DP AND SAFETY INTEGRAT 6 DI/3 F-DI, 2 DO/1 F-DO, 2 AI USB INTERFACE SD/MMC-INTERFACE HTL-ENCODER INTERFACE PROTECTION IP65 AMBIENT TEMP 0 TO +55 DEG C WITHOUT POWER MODULE
