Sinamics

6SL3325-1TE38-4AA3 SIEMENS SINAMICS S120 MOTOR MODULE INPUT: 510-720 V DC OUTPUT: 380-480V 3AC, 50/60 HZ. 840 A, RATED POWER: 450KW BUILT-IN UNIT IP00 LIQUID COOLING

6SL3210-5HE10-8UF0 SIEMENS SINAMICS S210 INPUT VOLTAGE: 200-480 V 3AC -10%/+10% 2.8 A 45-66 HZ OUTPUT VOLTAGE: 0 INPUT V 2.3 A 0-550 HZ MOTOR: 0.75 KW DEGREE OF PROTECTION: IP20 FRAME SIZE A 50 X 270 X 220 (WXHXD)

6SL3210-5HE17-0UF0 SIEMENS SINAMICS S210 INPUT VOLTAGE 200-480 V 3AC -10%/+10% 17.9 A 45-66 HZ OUTPUT VOLTAGE: 0 INPUT V 15.0 A 0-550 HZ MOTOR: 7.0 KW DEGREE OF PROTECTION: IP20 FRAME SIZE C 105 X 322 X 223 (WXHXD)

6SL3210-5FE10-8UF0 SIEMENS SINAMICS V90, WITH PROFINET INPUT VOLTAGE: 380-480 V 3 A -15%/+10% 2.6 A 45-66 HZ OUTPUT VOLTAGE: 0 – INPUT 2.1 A 0-330 HZ MOTOR: 0.75 KW DEGREE OF PROTECTION: IP20 SIZE A, 80X180X200 (WXHXD)

6SL3210-5HB10-4UF0 SIEMENS SINAMICS S210 INPUT VOLTAGE: 200-240V 1AC; -10%/+10%; 5.0A; 45-66HZ; OUTPUT VOLTAGE: 0-INPUT V; 2.4A; 0-550HZ; MOTOR: 0.4 KW; DEGREE OF PROTECTION: IP20; FRAME SIZE B; 55 X 170 X 170 (WXHXD)

6SL3121-1TE32-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 200A OUTPUT: with 8 kHz / 140A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3131-7TE31-2AA3 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 200A, 120KW FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SN2703-2AA00-0BA1 SIEMENS POSMO CD, DC LINK 600 V 1-AXIS, 9/18 A NATURAL CONVECTION, IP65 POWER/SIGNAL CONNECTORS WITHOUT DIR. MEASURING SYSTEM, PROFIBUS INTERFACE COPPER (M20)

6SL3120-2TE21-0AB0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400 V, 9A/9A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

6SL3210-1KE22-6UP1 SIEMENS SINAMICS G120C RATED POWER 11,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V

6SL3210-1KE21-7UP1 SIEMENS SINAMICS G120C RATED POWER 7,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD) EXTERNAL 24V

6SL3210-1KE17-5UP1 SIEMENS SINAMICS G120C RATED POWER 3,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V

6SL3210-5FE10-8UA0 SIEMENS SINAMICS V90 INPUT VOLTAGE: 380-480 V 3 A -15%/+10% 2.6 A 45-66 HZ OUTPUT VOLTAGE: 0 – INPUT 2.1 A 0-330 HZ MOTOR: 0.75 KW DEGREE OF PROTECTION: IP20 SIZE A, 80X180X200 (WXHXD)

6SL3246-0BA22-1PA0 SIEMENS SINAMICS G120 CONTROL UNIT CU250S-2 DP INTEGRIERT PROFIBUS SUPPORT OF VECTOR CONTROL, EASY POSITIONING EPOS VIA EXTENDED FUNCTION LICENSE 4 CONFIGURABLE DI/DO, 6 DI (3 F-DI), 5 DI, 3 DO (1 F-DO), 2 AI, 2 AO SAFETY INTEGRATED STO, SBC, SS1 FURTHER SAFETY FUNCTIONS VIA EXTENDED SAFETY LICENSE ENCODER: D-CLIQ + HTL/TTL/SSI, RESOLVER/HTL VIA TERMINAL PROTECTION IP20 USB- AND SD/MMC-INTERFACE

6SL3320-1TE33-8AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH 400 V, 380 A FRAME SIZE: CHASSIS INTERNAL AIR COOLING SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3210-1KE14-3AF1 SIEMENS SINAMICS G120C RATED POWER: 1.5 KW WITH 150% OVERLOAD FOR 3 S 380-480V3AC+10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O INTERFACE: 6 DI, 2 DQ, 1 AI, 1 AQ SAFE TORQUE OFF INTEGRATED FIELDBUS INTEGRATED: PROFINET PN DEGREE OF PROTECTION IP20/UL OPEN TYPE SIZE: FSA 196X 73X 225.4 (HXWXD) EXTERNAL 24 V

6SL3210-1KE15-8AF1 SIEMENS SINAMICS G120C RATED POWER: 2.2 KW WITH 150% OVERLOAD FOR 3 S 380-480V3AC+10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O INTERFACE: 6 DI, 2 DQ, 1 AI, 1 AQ SAFE TORQUE OFF INTEGRATED FIELDBUS INTEGRATED: PROFINET PN DEGREE OF PROTECTION IP20/UL OPEN TYPE SIZE: FSA 196X 73X 225.4 (HXWXD) EXTERNAL 24 V

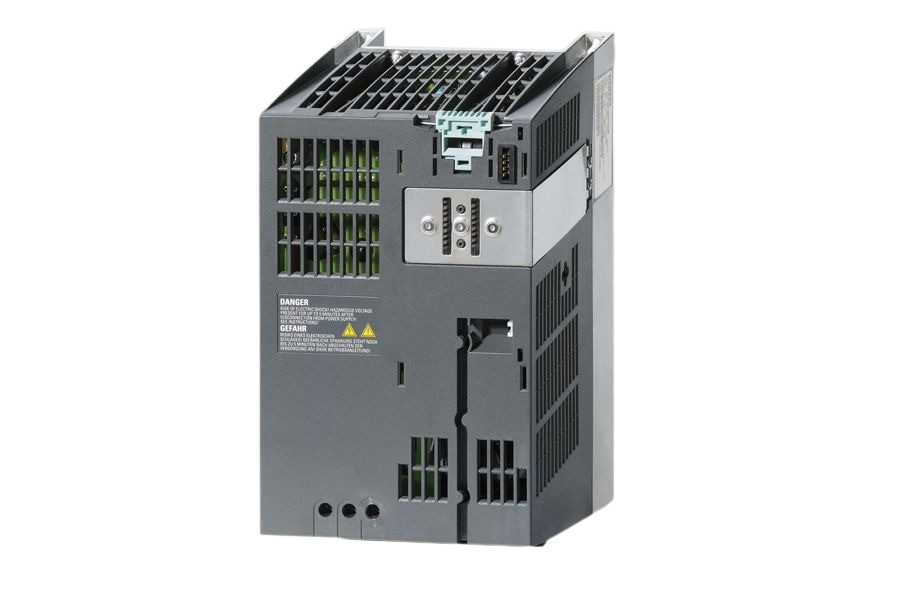

6SL3224-0BE22-2UA0 SIEMENS SINAMICS G120 PM240 POWER MODULE UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 2.2 KW AT 200% 3 S,150% 57 S,100% 240 S AMBIENT TEMPERATURE -10 TO +50 °C 270 X 153 X 165 (HXWXD), FSB DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

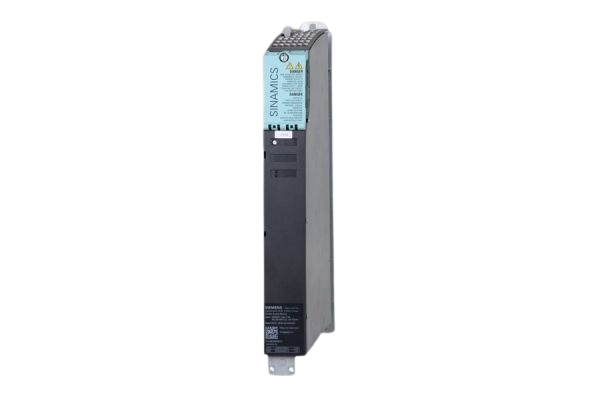

6SL3126-1TE13-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 3A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3160-0AH30-0AA0 SIEMENS SINAMICS REPLACEMENT FAN FOR ACTIVE INTERFACE MODULE 55 KW UP TO VERSION D 80 KW/120 KW UP TO VERSION C BOOKSIZE FORMAT

6SL3121-1TE15-0AA0 SIEMENS SINAMICS SINGLE MOTOR-MODULE EINGANG: DC 600V AUSGANG: 3AC 400V, 5A EXTERNE LUFTKÜHLUNG INKL. DRIVE-CLIQ LEITUNG

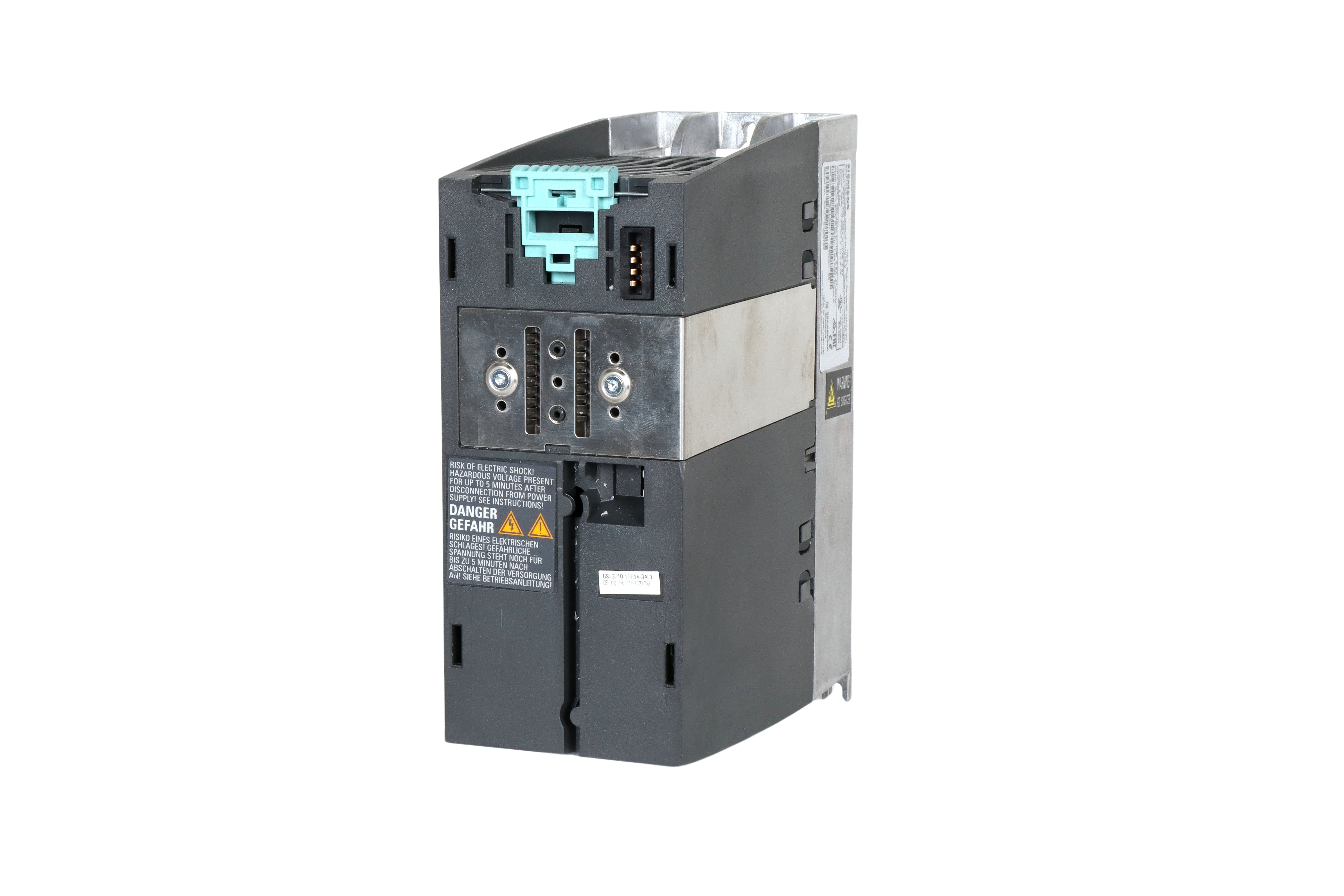

6SL3210-1PE14-3AL1 SIEMENS SINAMICS POWER MODULE PM240-2 WITH INTEGRATED CLASS A FILTER WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 1.1 KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C, POWER LOW OVERLOAD: 1.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3210-1PE16-1AL1 SIEMENS SINAMICS POWER MODULE PM240-2 WITH INTEGRATED CLASS A FILTER WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 1.5KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C; POWER LOW OVERLOAD: 2.2KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3121-1TE15-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3350-6TK00-0EA0 SIEMENS SINAMICS SPARE PART CONTROL INTERFACE MODULE (CIM) FOR AIR-COOLED DEVICES

6SL3243-0BA30-1HA0 SIEMENS SINAMICS G120 CONTROL UNIT CU230P-2 HVAC INTEGRATED USS/MODBUS RTU 6 DI, 3 DQ, 4 AI, 2 AQ 1 MOTOR TEMPERATURE SENSOR INPUT 2 PSU-OUT (10 V DC, 24 V DC) 1 PSU-IN (24 V DC) USB AND MMC INTERFACE DEGREE OF PROTECTION IP20 WITHOUT POWER MODULE AND PANEL

6SL3210-1SE21-8UA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 380-480 V 3AC, 50/60 HZ OUTPUT: 3 AC 18 A (7.5 KW) TYPE OF CONSTRUCTION: BLOCKSIZE FRAME SIZE FSC INTERNAL AIR COOLING

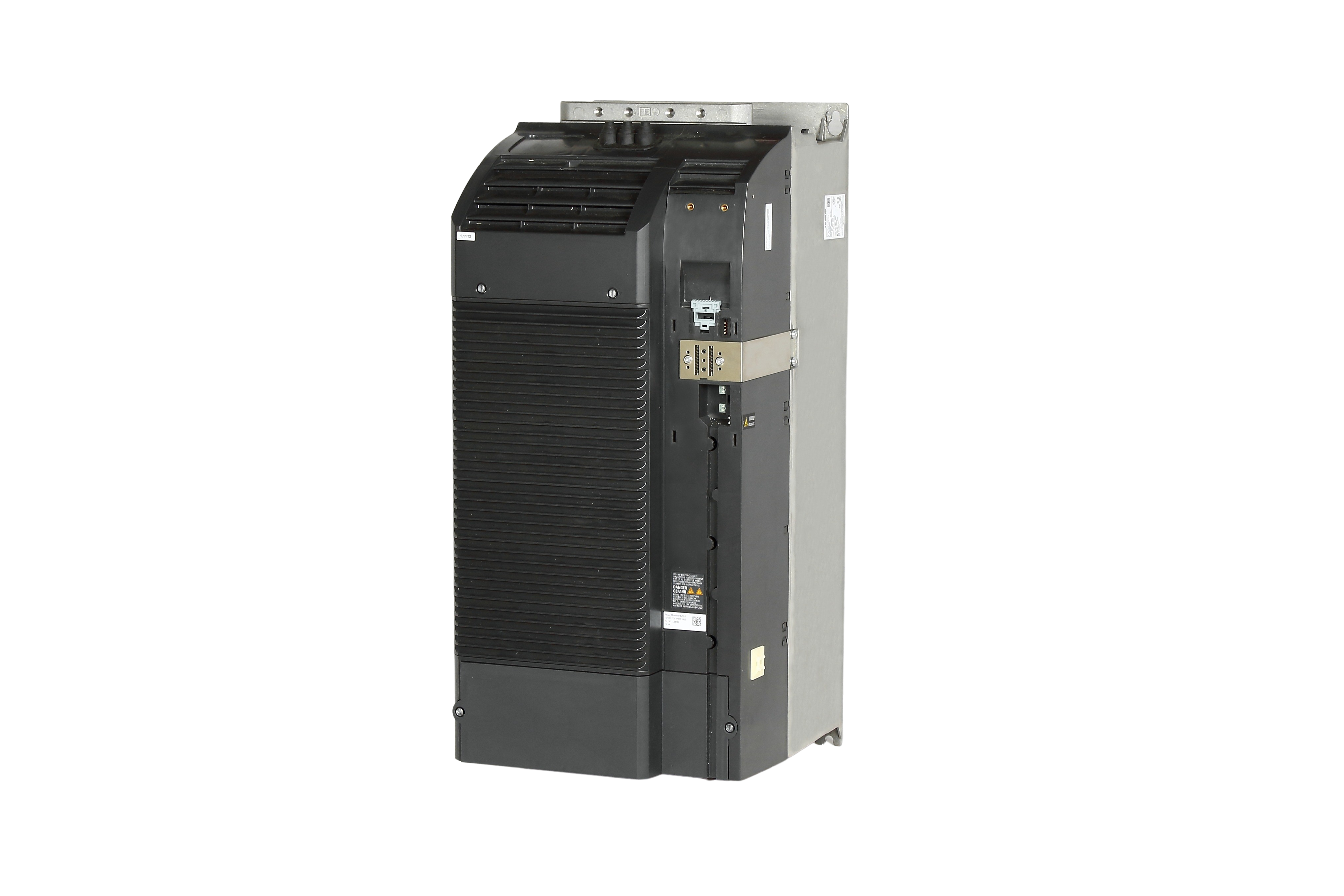

6SL3210-1PE32-5AL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 110KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 132KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

6SL3160-0AF30-0AA0 SIEMENS SINAMICS S120 REPLACEMENT FAN PACKAGE CONSISTING OF 2 FANS AND EXPANDING RIVET FOR MOUNTING FOR ACTIVE INTERFACE MODULE 36 KW BOOKSIZE FORMAT

6SL3353-6TH41-1BA3 SIEMENS SINAMICS S REPLACEMENT CONTROL INTERFACE BOARD FOR 500-690V 3AC, 50/60 HZ, 1100A BASIC LINE MODULE

6SL3210-1KE18-8AF1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X225,4(HXWXD) EXTERNAL 24V

6SL3320-1TE37-5AA3 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 510-720 V DC OUTPUT: 0-480V 3AC, 745 A TYPE RATING: 400KW BUILT-IN UNIT IP00 INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3330-7TE36-1AA3 SIEMENS SINAMICS ACTIVE LINE MODULE 380-480V 3AC, 50/60 HZ, 605 A OUTPUT: 510-720 V DC RATED POWER: 380KW BUILT-IN UNIT IP00 DESIGN CIM INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3325-1TE41-4AA3 SIEMENS SINAMICS S120 MOTOR MODULE INPUT: 510-720 V DC OUTPUT: 380-480V 3AC, 50/60 HZ, 1405A, RATED POWER: 800KW BUILT-IN UNIT IP00 LIQUID COOLING

6SL3126-2TE13-0AA3 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 3 A/3 A TYPE OF CONSTRUCTION: BOOKSIZE COLD PLATE COOLING OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3126-2TE15-0AA3 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 5 A/5 A TYPE OF CONSTRUCTION: BOOKSIZE COLD PLATE COOLING OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3126-2TE21-0AA3 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 9 A/9 A TYPE OF CONSTRUCTION: BOOKSIZE COLD PLATE COOLING OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3126-2TE13-0AA0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 3 A/3 A COLD PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3126-2TE21-8AA0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH 400 V, 18 A/18 A COLD PLATE AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3126-2TE21-8AA3 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A/18A FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3130-7TE21-6AA0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3 AC 380-480 V, 50/60HZ OUTPUT: 600 V DC, 27 A, 16 KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE WITHOUT UL APPROVAL

6SL3130-7TE21-6AB0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 600VDC, 27A, 16KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE MODULE PAINTED

6SL3130-7TE23-6AA0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3 AC 380-480 V, 50/60HZ OUTPUT: 600 V DC, 60 A, 36 KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE WITHOUT UL APPROVAL

6SL3130-7TE25-5AA1 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480 V, 50/60HZ OUTPUT: 600 V DC, 92 A, 55 KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE

6SL3130-7TE25-5AB0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 600 V DC, 92A, 55KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE BOARD COATED

6SL3130-7TE28-0AB0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 600 V DC, 133A, 80KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE BOARD COATED

6SL3130-7TE31-2AA1 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3 AC 380-480 V, 50/60HZ OUTPUT: 600 V DC, 200 A, 120 KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE

6SL3130-7TE31-2AB0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 600 V DC, 200A, 120KW INTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE BOARD COATED

6SL3131-7TE28-0AA0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 600V DC, 134A, 80KW EXTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE

6SL3131-7TE31-2AA0 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 600V DC, 200A, 120KW EXTERNAL AIR COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE
