Sinamics

6SL3210-5HE11-0UF0 SIEMENS SINAMICS S210 INPUT VOLTAGE: 200-480 V 3AC -10%/+10% 3.8 A 45-66 HZ OUTPUT VOLTAGE: 0-INPUT V; 3.0 A; 0-550 HZ MOTOR: 1.0 KW DEGREE OF PROTECTION: IP20 FRAME SIZE A 50 X 270 X 220 (WXHXD)

6SL3210-1KE21-3AF1 SIEMENS SINAMICS G120C RATED POWER 3AC380-480V +10/-20% 47-63HZ LOW OVERLOAD: 5,5KW AT 150% 3S, 110% 57S, 100% 240S HIGH OVERLOAD: 4,0KW AT 200% 3S, 150% 57S, 100% 240S INTEGRATED FILTER CLASS A EXTERNAL 24V I/O INTERFACE: 6DI, 2DO,1AI,1AO, 1MOT_T SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD)

6SL3225-0BE31-1AA1 SIEMENS SINAMICS G120 POWER MODULE PM 250 WITH INTEGRATED CLASS A FILTER CAPABLE OF ENERGY RECOVERY. 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 11KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +50 °C POWER LOW OVERLOAD: 15KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C 334X 189X 185 (HXWXD), FSC DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3120-1TE15-0SP0 SIEMENS VSL SPARE PART KIT FOR 6SL3120-1TE15-0AAX CONTENTS: - 1 X 6SL3120-1TE15-0AD0 - 1 X 6SL3162-2ME01-0AC0

6SL3120-2TE21-8SP0 SIEMENS VSL SPAREPART KIT FOR 6SL3120-2TE21-8AAX CONTENTS: - 1 X 6SL3120-2TE21-8AC0 - 2 X 6SL3162-2ME01-0AC0

6SL3120-2TE15-0SP0 SIEMENS VSL SPAREPART KIT FOR 6SL3120-2TE15-0AAX CONTENTS: - 1 X 6SL3120-2TE15-0AD0 - 2 X 6SL3162-2ME01-0AC0

6SL3353-1AE41-2DA1 SIEMENS SINAMICS REPLACEMENT POWER BLOCK FOR 380-480V 3AC, 50/60 HZ, 1200A BASIC LINE MODULE RECTIFIER PAINTED MODULES AND NICKEL-PLATED BUSBARS

6SL3525-0PE24-0AA1 SIEMENS SINAMICS G120D POWER MODULE PM250D WITH INTEGRATED CLASS A FILTER CAPABLE OF ENERGY RECOVERY. 380-480 V 3 AC+10/-10% 47-63HZ POWER HIGH OVERLOAD: 4.0KW AT 200% 3S, 150% 60S, 100% 300S AMBIENT TEMPERATURE -10 TO +55 °C 210X 450X 220 (HXWXD), FSC DEGREE OF PROTECTION IP65 WITHOUT CONTROL UNIT

6SL3040-0MA00-0AA1 SIEMENS SINAMICS CONTROL UNIT CU320 WITHOUT COMPACT FLASH CARD

6SL3040-0JA00-0AA0 SIEMENS SINAMICS S110 CONTROL UNIT CU305 DP WITH PROFIBUS INTERFACE WITHOUT MEMORY CARD

6SN2414-1AB00-0AA0 SIEMENS PROFIBUS MODUL FOR POSMO CD OR CA COPPER ECOFAST

6SL3040-0MA00-0AA0 SIEMENS SINAMICS CU320 CONTROL UNIT WITHOUT COMPACT FLASH CARD WITHOUT UL APPROVAL

6SN2463-2BF00-0GH2 SIEMENS POSMO SI, DC LINK 600 V 11.0 NM, 100 K, 3000 RPM SEPARATE VENTILATION, OPT. ABS, M. 32S/R FAN IP54 IM B5 (V1, V3) POWER/SIGNAL CONNECTOR, PLAIN SHAFT, TOLER. N WITH HOLDING BRAKE; PROTECTION IP65, D-END FLANGE IP67

6SN2463-2CF00-0GH2 SIEMENS POSMO SI, DC LINK 600 V 11,0NM, 100K, 3000 RPM FORCED VENTILATION OPT. ABS, M. 32S/R FAN IP54 IMB5 (V1, V3) POWER/SIGNAL CONNECTORS SMOOTH SHAFT, TOLERANCE N WITH HOLDING BRAKE; DEGREE OF PROTECTION IP65 DE FLANGE IP67

6SL3420-2HX00-0AA0 SIEMENS SINAMICS S120 HYDRAULIC LINEAR ACTOR 2 AXIS-CONTROLLER

6SN2460-2BF00-0GH0 SIEMENS POSMO SI, DC LINK 600 V 6.0 NM, 100 K, 3000 RPM SEPARATE VENTILATION; OPT. ABS, M.32S/R FAN IP54, IM B5 (V1, V3) POWER/SIGNAL CONNECTOR PLAIN SHAFT, TOLER. N WITH HOLDING BRAKE; PROTECTION IP64

6SN2157-0AA01-0BA1 SIEMENS SIMODRIVE POSMO A DRIVE UNIT POSMO A 300W

6SL3000-0DE23-6AA0 SIEMENS SINAMICS HFD LINE REACTOR FOR 36 KW ACTIVE LINE MODULE INPUT: 3AC 380-480 V, 50/60 HZ

6SL3000-0DE28-0AA0 SIEMENS SINAMICS / SIMODRIVE611 HFD LINE REACTOR FOR 80 KW ACTIVE LINE MODULE INPUT: 3AC 380-480 V, 50/60 HZ

6SL3000-0BE21-6AA0 SIEMENS SINAMICS/SIMODRIVE 611 LINE FILTER FOR 16 KW ACTIVE LINE MODULE INPUT: 3AC 380-480 V, 50/60HZ

6SL3100-1BE22-5AA0 SIEMENS SINAMICS PULSED RESISTOR PLUS INPUT: 600 V DC, 15.6 OHM 15.6 OHM

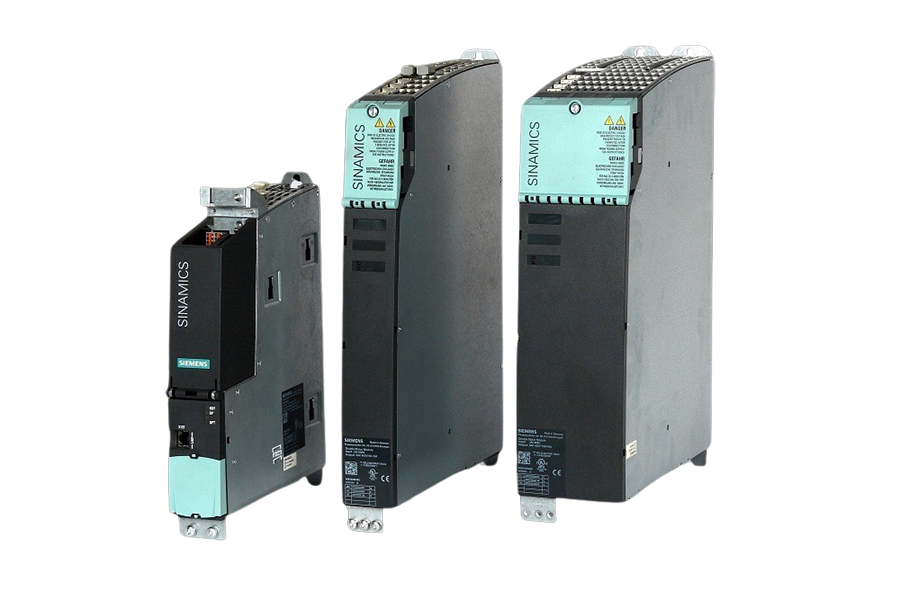

6SL3000-0FE31-2AA0 SIEMENS SINAMICS/SIMODRIVE 611 HF LINE FILTER PACKAGE 120 KW INPUT: 3-PH 380-480 V, 50/60HZ COMPRISING: HF LINE REACTOR TYPE 6SN1111-0AA00-0FA0 AND LINE FILTER TYPE 6SL3000-0BE31-2AA0

6SL3000-0BE32-5AA0 SIEMENS SINAMICS/MICROMASTER PX LINE FILTER INPUT: 3AC 380-480 V, 50/60 HZ 250 A

6SL3201-0BE12-0AA0 SIEMENS SINAMICS BRAKING RESISTOR FOR POWER MODULE FSB FOOT PRINT

6SL3000-0BE23-6DA1 SIEMENS SINAMICS S120 BASIC LINE FILTER SUITABLE FOR 36 KW SMART LINE MODULE 36 KW ACTIVE LINE MODULE 40 KW BASIC LINE MODULE INPUT: 3PH 380-480V, 50/60HZ

6SL3000-0CE21-0AA0 SIEMENS SINAMICS LINE REACTOR FOR 10 KW SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ

6SL3100-1DE22-0AA0 SIEMENS SINAMICS CONTROL SUPPLY MODULE INPUT: 600 V DC/3-PH. 380-480 V 50/60 HZ OUTPUT: 26 V DC +/-2%, 20 A

6SL3255-0AA00-4JA0 SIEMENS SINAMICS G120 INTELLIGENT OPERATOR PANEL (IOP)

6SL3255-0AA00-4JA1 SIEMENS SINAMICS G120 INTELLIGENT OPERATOR PANEL IOP OPTIONAL OPERATOR PANEL FOR SINAMICS G120, G120P, G110M, G110D, G120D, G120C, S110, ET200S FC, ET200PRO FC

6SL3000-0CE15-0AA0 SIEMENS SINAMICS LINE REACTOR FOR 5 KW SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ

6SL3203-0CD25-3AA0 SIEMENS SINAMICS REACTOR FOR POWER MODULE FSD 30 KW TYPE RATING BASED ON I_N BASE POSSIBLE

6SL3254-0AM00-0AA0 SIEMENS SINAMICS G MMC 64 MBYTE FIRST GENERATION PARAMETER STORAGE FOR SINAMICS CU240E, CU240S, CU240D, ET 200S FC, ET 200PRO FC

6SL3255-0AA00-2AA1 SIEMENS SINAMICS G110 / G120 PC-INVERTER CONNECTION KIT 3M RS232 STANDARD CABLE AND ONE 9-PIN SUB-D CONNECTOR FOR G110 AND G120 CONTROL UNITS CU240E, CU240S

6SL3255-0AA00-4CA1 SIEMENS SINAMICS G120 BASIC OPERATOR PANEL (BOP-2)

6SL3100-1AE31-0AB0 SIEMENS SINAMICS BREAKING MODULE INPUT: 600 V DC OUTPUT: PEAK 100 KW/2 S

6SL3100-1AE31-0AB1 SIEMENS SINAMICS BREAKING MODULE INPUT: 600 V DC OUTPUT: PEAK 100 KW/2 S

6SL3100-1BE31-0AA0 SIEMENS SINAMICS BRAKING RESISTOR INPUT: 600 V DC 1.5 KW/100 KW

6SL3255-0AA00-4BA1 SIEMENS SINAMICS G110 BASIC OPERATOR PANEL (BOP)

6SL3000-0BE31-2DA0 SIEMENS SINAMICS BASIC LINE FILTER FOR 100 KW BASIC LINE MODULE FOR 120 KW ACTIVE LINE MODULE INPUT: 3PH 380-480V, 50/60HZ

6SL3000-0BE28-0DA0 SIEMENS SINAMICS BASIC LINE FILTER FOR 80KW ACTIVE LINE MODULE INPUT: 3-PH 380-480V, 50/60HZ

6SL3100-1CE14-0AA0 SIEMENS SINAMICS CAPACITOR MODULE INPUT: 600 V DC 4000 UF

6SL3100-1BE21-3AA0 SIEMENS SINAMICS/SIMODRIVE HFD-RESISTOR 15 R 800 W FOR HFD-REACTOR

6SL3054-0CG01-1AA0 SIEMENS SINAMICS S120 COMPACTFLASH CARD WITH FIRMWARE OPTION PERFORMANCE-EXTENSION 1

6SL3000-0DE25-5AA1 SIEMENS SINAMICS/SIMODRIVE HFD COMMUTATING REACTOR FOR 55KW ACTIVE LINE MODULE

6SL3000-0DE31-2BA0 SIEMENS SIMODRIVE 611 LINE REACTOR FOR 120 KW INFEED / REGENERATIV FEEDBACK MODULE INPUT: 3AC 380-480V, 50/60HZ

6SL3255-0AA00-4BA0 SIEMENS SINAMICS G110 BASIC OPERATOR PANEL (BOP)

6SL3256-0AP00-0JA0 SIEMENS SINAMICS G120 DOOR MOUNTING KIT IP54/UL TYP12 FOR INTELLIGENT OPERATOR PANEL AND BASIC OPERATOR PANEL BOP-2 CONTAINS SEAL, MOUNTING MATERIAL AND CONNECTION CABLE (5M)

6SL3000-0CE21-6AA0 SIEMENS SINAMICS LINE REACTOR FOR 16 KW SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ

6SL3200-0AE60-0AA0 SIEMENS STARTER KIT SINAMICS S210 & 1FK2 CONSISTING OF SINAMICS S210 6SL3210-5HB10-4UF0 INPUT VOLTAGE: 1AC 200-240 V -10%/+10%, 5.0 A, 45-66 HZ OUT: 0-240 V, 2.4 A, 0-550 HZ, 0.4 KW IP20, 55 X 170 X 170 (WXHXD) SIMOTICS S, 1FK2103-4AG00-1DA0 HD, IP64, M0=1.27 NM, PN=0.4 KW; AT NN=3000 RPM AH30 WITHOUT BRAKE, WITH PARALLEL KEY WITH MULTITURN ABSOLUTE ENCODER SINGLE-CABLE SOLUTION PREFABRICATED MC 500 6FX5002-8QN04-1AD0 4G0.38+2X0.38+4X0.2 C, M12 WIRES WITH WIRE END FERRULE IX CONNECTOR, LENGTH 3 M

6SL3000-0CE24-0AA0 SIEMENS SINAMICS LINE REACTOR FOR 40KW BASIC LINE MODULE INPUT: 3PH 380-480V, 50/60HZ
