Sinamics

6SL3225-0BH31-5AA1 SIEMENS SINAMICS G120 POWER MODULE PM260 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC500-690V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 18,5KW FOR 140% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 512 X 275 X 204 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3244-0BB12-1BA1 SIEMENS SINAMICS G120 CONTROL UNIT CU240E-2 E-TYPE SAFETY INTEGRATED STO RS485-INTERFACE, USS-PROTOCOL 6DI, 3DO, 2AI, 2AO, MAX 1F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

6SL3244-0BA21-1PA0 SIEMENS SINAMICS G120 CONTROL UNIT CU240S DP-F S-TYPE SAFETY INTEGRATED PROFIBUS DP 8 DI, 3 DO, 2 AI, 2 AO PTC/KTY INTERFACE EM-BRAKE RELAY, MMC INTERFACE ENCODER INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +45 DEG C WITHOUT POWER MODULE AND BOP

6SL3244-0BB12-1PA1 SIEMENS SINAMICS G120 CONTROL UNIT CU240E-2 DP E-TYPE SAFETY INTEGRATED STO PROFIBUS DP 6DI, 3DO, 2AI, 2AO, MAX 1F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

6SL3244-0BB13-1BA1 SIEMENS SINAMICS G120 CONTROL UNIT CU240E-2 F E-TYPE SAFETY INTEGRATED STO, SS1, SLS, RS485-INTERFACE, 6DI, 3DO, 2AI, 2AO, MAX 3F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

6SL3244-0BB13-1FA0 SIEMENS SINAMICS G120 CONTROL UNIT CU240E-2 PN-F E-TYPE SAFETY INTEGRATED STO, SS1, SLS, PROFINET 6DI, 3DO, 2AI, 2AO, MAX 3F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

6SL3244-0BB13-1PA1 SIEMENS SINAMICS G120 CONTROL UNIT CU240E-2 DP-F E-TYPE SAFETY INTEGRATED STO, SS1, SLS, PROFIBUS DP 6DI, 3DO, 2AI, 2AO, MAX 3F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

6SL3210-1KE23-8AB1 SIEMENS SINAMICS G120C RATED POWER 18,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V

6SL3544-0FB20-1FA0 SIEMENS SINAMICS G120D CONTROL UNIT CU240D-2 PN PROFINET, STO ON-BOARD 6 DI/1 F-DI, 2 DO, 2 AI USB INTERFACE SD/MMC-INTERFACE HTL-ENCODER INTERFACE PROTECTION IP65 AMBIENT TEMP -10 TO +50 DEG C WITHOUT POWER MODULE

6SL3121-1TE13-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT 3AC 400V, 3A FRAME SIZE: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3544-0FB21-1PA0 SIEMENS SINAMICS G120D CONTROL UNIT CU240D-2 DP-F PROFIBUS DP AND SAFETY INTEGRAT 6 DI/3 F-DI, 2 DO/1 F-DO, 2 AI USB INTERFACE SD/MMC-INTERFACE HTL-ENCODER INTERFACE PROTECTION IP65 AMBIENT TEMP 0 TO +55 DEG C WITHOUT POWER MODULE

6SL3210-1KE17-5AB1 SIEMENS SINAMICS G120C RATED POWER 3,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V

6SL3210-1KE17-5AP1 SIEMENS SINAMICS G120C RATED POWER 3,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V

6SL3211-0AB13-7BA1 SIEMENS SINAMICS G110 - CPM110 AC-DRIVE,BUILT IN CL. B FILTER 1AC200-240V +10/-10% 47-63HZ ANALOG INPUT CT: 0.37KW; VT: 0.37KW CT-OVERLOAD: 150% 60S 150 X 90 X 116 (HXWXD) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C WITHOUT BOP WITHOUT RS485-INTERFACE

6SL3210-1SE17-7AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 7,7A (3,0KW) FRAME SIZE: BLOCKSIZE SIZE FSB WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1SE31-0AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 90A (45KW) FRAME SIZE: BLOCKSIZE SIZE FSE WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1SE16-0AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 5,9A (2,2KW) FRAME SIZE: BLOCKSIZE SIZE FSB WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1SE26-0AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 60A (30KW) FRAME SIZE: BLOCKSIZE SIZE FSD WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

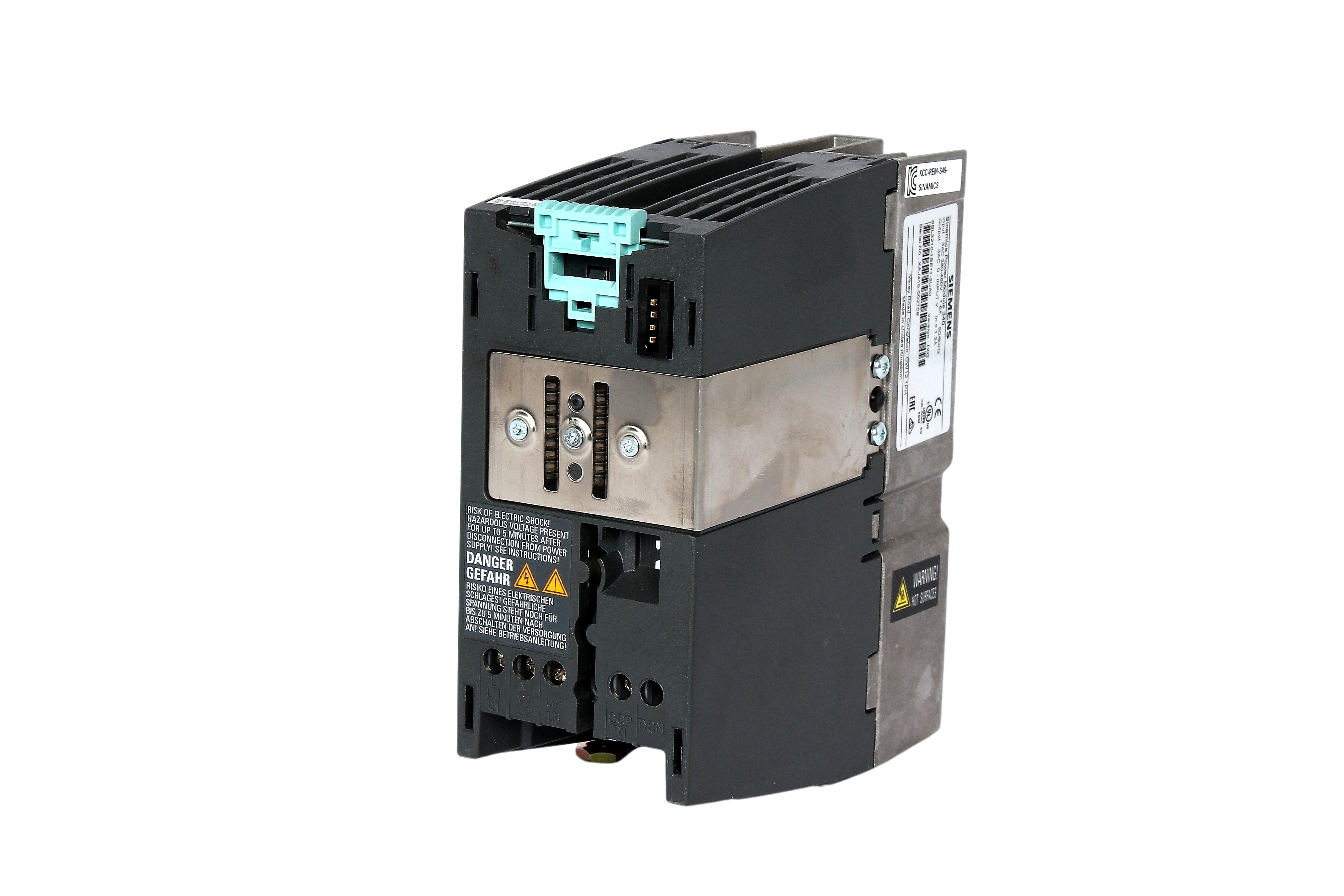

6SL3210-1SE13-1UA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 3,1A (1,1KW) FRAME SIZE: BLOCKSIZE SIZE FSA INTERNAL AIR COOLING

6SL3210-1SE27-5UA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 75A (37KW) FRAME SIZE: BLOCKSIZE SIZE FSE INTERNAL AIR COOLING

6SL3210-1SE31-1AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 110A (55KW) FRAME SIZE: BLOCKSIZE SIZE FSF WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1SE12-2UA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 2,2A (0,75KW) FRAME SIZE: BLOCKSIZE SIZE FSA INTERNAL AIR COOLING

6SL3210-1SE14-1UA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 4,1A (1,5KW) FRAME SIZE: BLOCKSIZE SIZE FSA INTERNAL AIR COOLING

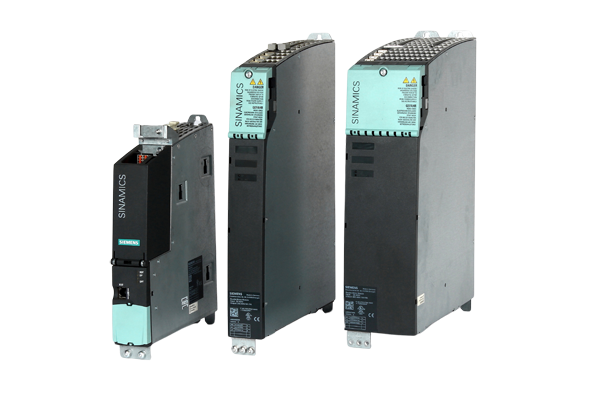

6SL3210-1SE21-8AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 18A (7,5KW) FRAME SIZE: BLOCKSIZE SIZE FSC WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1SE23-2AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 32A (15KW) FRAME SIZE: BLOCKSIZE SIZE FSC WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

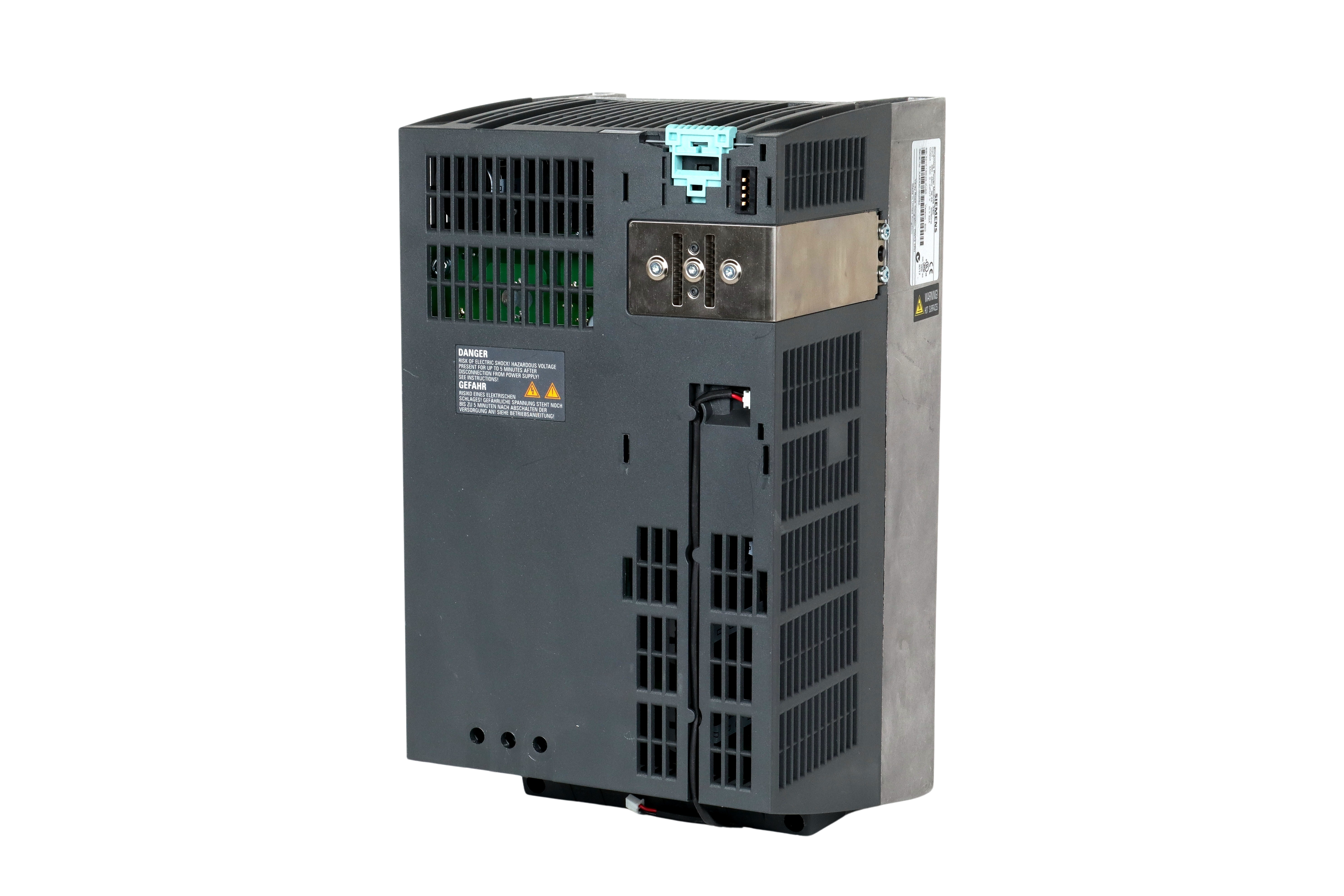

6SL3210-1SE22-5AA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 25A (11KW) FRAME SIZE: BLOCKSIZE SIZE FSC WITH INTEGRATED LINE FILTER INTERNAL AIR COOLING

6SL3210-1SE23-8UA0 SIEMENS SINAMICS S120 CONVERTER POWER MODULE PM340 INPUT: 3AC 380-480V, 50/60HZ OUTPUT: 3AC 38A (18,5KW) FRAME SIZE: BLOCKSIZE SIZE FSD INTERNAL AIR COOLING

6SL3210-1KE23-8AB0 SIEMENS SINAMICS G120C RATED POWER 18,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD)

6SL3211-0AB23-0UA1 SIEMENS SINAMICS G110 - CPM110 AC-DRIVE, WITHOUT FILTER 1AC200-240V +10/-10% 47-63HZ ANALOG INPUT CT: 3.0KW; VT: 3.0KW CT-OVERLOAD: 150% 60S 181 X 184 X 152 (HXWXD) PROTECTION IP20 AMBIENT TEMP -10 TO +40 DEG C WITHOUT BOP WITHOUT RS485-INTERFACE

6SL3126-2TE15-0AA0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: DC 600 V OUTPUT: 3-PH. 400 V, 5 A/5 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3126-2TE21-0AA0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 9A/9A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3136-6AE15-0AA0 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ OUTPUT: 600 V DC, 8.3 A, 5 KW FRAME SIZE: BOOKSIZE COLD PLATE AIR COOLING INCL. CONTROL VOLTAGE ADAPTER

6SL3136-6AE21-0AA0 SIEMENS SINAMICS S120 SMART LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ OUTPUT: 600 V DC, 17 A, 10 KW FRAME SIZE: BOOKSIZE COLD PLATE COOLING INCL. CONTROL VOLTAGE ADAPTER

6SL3244-0BB12-1PA0 SIEMENS SINAMICS G120 CONTROL UNIT CU240E-2 DP E-TYPE SAFETY INTEGRATED STO PROFIBUS DP 6DI, 3DO, 2AI, 2AO, MAX 1F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

6SL3353-1AE37-3AA0 SIEMENS SINAMICS REPLACEMENT POWER BLOCK FOR 3AC 380-480V, 50/60HZ, 730A SMART LINE MODULE RECTIFIER AND 3 PHASES VARNISHED ASSEMBLIES AND NICKEL-PLATED CONDUCTOR BAR

6SL3066-2DA00-0AB0 SIEMENS SINAMICS COUPLING FOR DRIVE-CLIQ CABLE PROTECTION IP67

6SL3246-0BA22-1FA0 SIEMENS SINAMICS G120 CONTROL UNIT CU250S-2 PN INTEGRIERT PROFINET SUPPORT OF VECTOR CONTROL, EASY POSITIONING EPOS VIA EXTENDED FUNCTION LICENSE 4 CONFIGURABLE DI/DO, 6 DI (USABLE AS 3 F-DI), 5 DI, 3 DO (USABLE AS 1 F-DO), 2 AI, 2 AO SAFETY INTEGRATED STO, SBC, SS1 FURTHER SAFETY FUNCTIONS VIA EXTENDED SAFETY LICENSE ENCODER: D-CLIQ + HTL/TTL/SSI, RESOLVER/HTL VIA TERMINAL PROTECTION IP20 USB- AND SD/MMC-INTERFACE

6SL3210-1KE21-7AF1 SIEMENS SINAMICS G120C RATED POWER 7,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X225,5(HXWXD) EXTERNAL 24V

6SL3120-2TE21-8AD0 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 18A/18A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3224-0BE35-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM240 WITH BUILT IN CL. A FILTER WITH BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 75KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 934 X 350 X 316 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1KE21-3AP0 SIEMENS SINAMICS G120C RATED POWER 5,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD)

6SL3211-0AB21-5AA1 SIEMENS SINAMICS G110 - CPM110 AC-DRIVE, BUILT IN CL. A FILTER 1AC200-240V +10/-10% 47-63HZ ANALOG INPUT CT: 1.5KW; VT: 1.5KW CT-OVERLOAD: 150% 60S 160 X 140 X 142 (HXWXD) PROTECTION IP20 AMBIENT TEMP -10 TO +40 DEG C WITHOUT BOP WITHOUT RS485-INTERFACE

6SL3136-7TE31-2AA1 SIEMENS SINAMICS ACTIVE LINE MODULE INPUT: 3-PH 380-480 V, 50/60 HZ OUTPUT: 600 V DC, 200 A, 120 KW COLD-PLATE COOLING INCL. CONTROL VOLTAGE ADAPTER AND DRIVE-CLIQ CABLE

6SL3126-1TE32-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH 400 V, 200 A COLD PLATE AIR-COOLING INCL. DRIVE-CLIQ CABLE

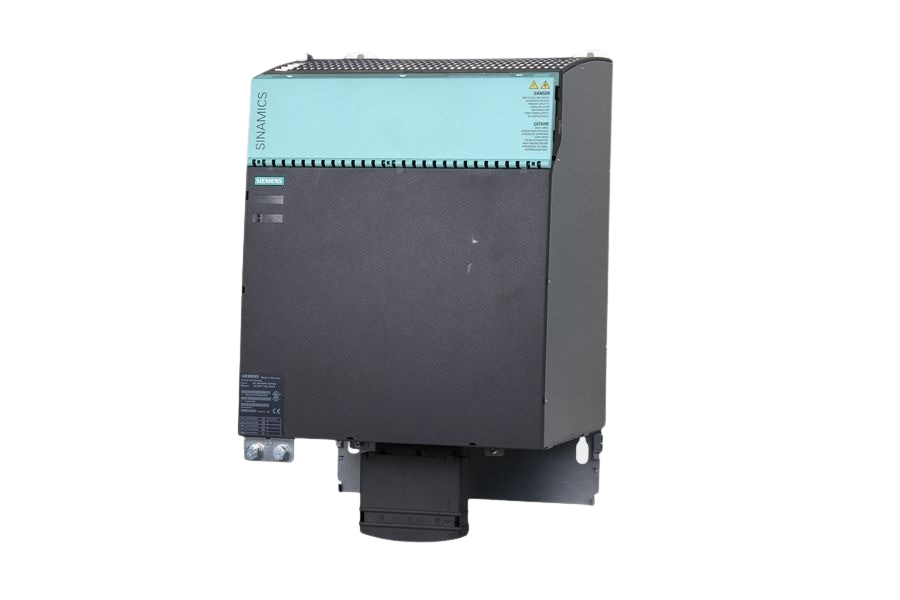

6SL3126-1TE32-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 200A OUTPUT: AT 8 kHz / 140A FRAME SIZE: BOOKSIZE OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE COLD-PLATE COOLING

6SL3136-7TE31-2AA3 SIEMENS SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 200A, 120KW FRAME SIZE: BOOKSIZE COLD-PLATE-COOLING INCL. DRIVE-CLIQ CABLE

6SL3120-2TE15-0AD0 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A/5A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3120-2TE13-0AD0 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 3A/3A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3120-1TE21-0AD0 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3-PH 400V, 9A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3210-1KE18-8AP1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V
