Sinamics

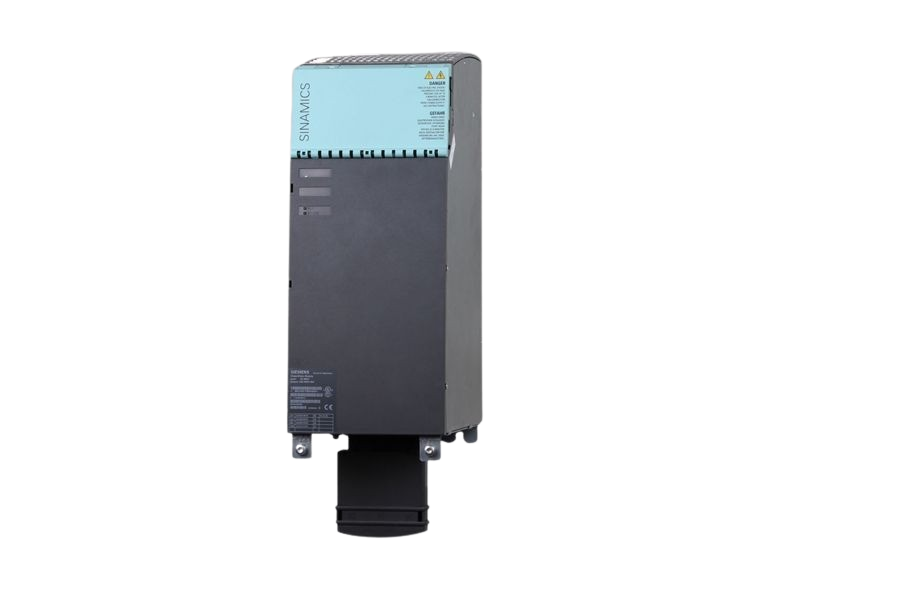

6SL3126-1TE24-5AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 45 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3126-1TE21-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 9 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3126-1TE15-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 5 A TYPE OF CONSTRUCTION: BOOKSIZE COLD PLATE COOLING OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3126-1TE15-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 5 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3126-1TE13-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 3 A TYPE OF CONSTRUCTION: BOOKSIZE COLD PLATE COOLING OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3126-1TE13-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: DC 600 V OUTPUT: 3-PH. 400 V, 3 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE

6SL3125-1TE32-0AA4 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 200 A OUTPUT: AT 8 KHZ/140 A TYPE OF CONSTRUCTION: BOOKSIZE LIQUID-COOLED OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE (WITHOUT CONTROL UNIT)

6SL3125-1TE32-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 200 A TYPE OF CONSTRUCTION: BOOKSIZE LIQUID-COOLED OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE (WITHOUT CONTROL UNIT)

6SL3121-2TE21-8AA0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT 3-PH. 400 V, 18 A/18 A EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3121-1TE32-0AA3 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 200 A TYPE OF CONSTRUCTION: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3121-1TE13-0AA0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT 3-PH. 400 V, 3 A EXTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3120-2TE13-0AB0 SIEMENS SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400 V, 3A/3A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

6SL3120-1TE32-0AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400V, 200A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

6SL3120-1TE28-5AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400V, 85A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

6SL3120-1TE26-0AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400V, 60A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

6SL3120-1TE24-5AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400V, 45A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

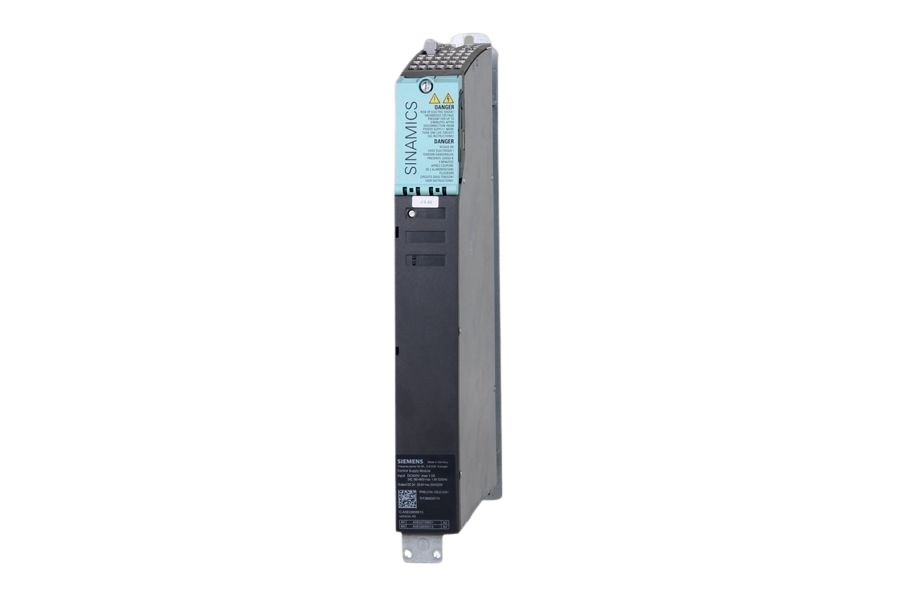

6SL3120-1TE21-8AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3PH 400 V, 18 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE PAINTED MODULES

6SL3120-1TE13-0AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400V, 3A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

6SL3120-1TE15-0AB0 SIEMENS SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400V, 5A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE BOARD COATED

6SL3055-0AA00-3PA0 SIEMENS SINAMICS TERMINAL MODULE CABINET TM41 WITHOUT DRIVE-CLIQ CABLE

6SL3160-0AE30-0AA0 SIEMENS  SINAMICS REPLACEMENT FAN FOR ACTIVE INTERFACE MODULE 55 KW BOOKSIZE FORMAT

6SL3210-1PE27-5AL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 30KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 37kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

6SL3223-0DE27-5AG1 SIEMENS SINAMICS G120P POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP55/UL TYPE 12 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 7.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C (LO) 540X 180X 249 (HXWXD), FSB WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU230P-2 FIRMWARE VERSION V4.3.2 OR HIGHER

6SL3225-0BE37-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM250 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 90KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 934 X 350 X 316 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3055-0AA00-3LA0 SIEMENS SINAMICS TM150 TERMINAL MODULE ADDITIONAL MODULE FOR TEMPERATURE EVALUATION FOR G130/G150, S120/S150, GM150/GL150, SM120/SM150, SL150 AND SINAMICS DCM

6SL3210-1PE14-3UL1 SIEMENS SINAMICS POWER MODULE PM240-2 UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 1.1 KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C, POWER LOW OVERLOAD: 1.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 196X 73X 165 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED AS OF CU FIRMWARE VERSION V4.6

6SL3040-0PA01-0AA0 SIEMENS UA32 CONTROL UNIT ADAPTER FOR PM340/PM240-2 POWER MODULES WITH INTERFACE FOR INCREMENTAL ENCODER HTL/TTL

6SL3225-0BE25-5AA1 SIEMENS SINAMICS G120 POWER MODULE PM 250 WITH INTEGRATED CLASS A FILTER CAPABLE OF ENERGY RECOVERY. 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 5.5KW AT 200% 3S, 150% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +50 °C, POWER LOW OVERLOAD: 7.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C 334X 189X 185 (HXWXD), FSC DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3320-1TE33-8AA0 SIEMENS SINAMICS S120 SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3AC, 380 A TYPE OF CONSTRUCTION: BUILT-IN INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

6SL3210-1KE22-6UF1 SIEMENS SINAMICS G120C RATED POWER 11,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X 140X 225,4 (HXWXD) EXTERNAL 24V

6SL3224-0BE38-8UA0 SIEMENS SINAMICS G120 PM240 POWER MODULE UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 90 KW AT 160% 3 S,136% 57 S,100% 240 S AMBIENT TEMPERATURE 0 TO +50 °C POWER LOW OVERLOAD: 110 KW AT 150% 3 S,110% 57 S,100% 240 S AMBIENT TEMPERATURE 0 TO +40 °C 634 X 350 X 316 (HXWXD), FSF DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3225-0BE33-0AA0 SIEMENS SINAMICS G120 POWER MODULE PM250 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 30KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 37KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 635 X 275 X 204 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3223-0DE33-7AA0 SIEMENS SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 37KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 751 X 320 X 329 (HXBXT), FSE WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2

6SL3121-2TE13-0AA4 SIEMENS SINAMICS S120 DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 400 V 3 AC, 3 A/3 A TYPE OF CONSTRUCTION: BOOKSIZE EXTERNAL AIR COOLING OPTIMIZED PULSE PATTERNS AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE

6SL3210-1KE22-6AF1 SIEMENS SINAMICS G120C RATED POWER 11,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295x 140x 225,4 (HXWXD) EXTERNAL 24V

6SL3210-1KE23-2AF1 SIEMENS SINAMICS G120C RATED POWER 15,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295x 140x 225,4 (HXWXD) EXTERNAL 24V

6SL3210-1NE21-3AL1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 5.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 292X 100X 165 (HXWXD), FSB WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER NOTE: PM230 SUPPORTED NO SAFETY

6SL3210-1NE21-3AG1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 5.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 292X 100X 165 (HXWXD), FSB WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER

6SL3210-5FE11-5UF0 SIEMENS SINAMICS V90, WITH PROFINET INPUT VOLTAGE: 380-480 V 3 A -15%/+10% 6.6 A 45-66 HZ OUTPUT VOLTAGE: 0 – INPUT 5.3 A 0-330 HZ MOTOR: 1.5/1.75 KW DEGREE OF PROTECTION: IP20 SIZE B, 100X180X220 (WXHXD)

6SL3210-1KE21-7AB1 SIEMENS SINAMICS G120C RATED POWER 7,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD) EXTERNAL 24V

6SL3210-1KE18-8UF1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X225,4(HXWXD) EXTERNAL 24V

6SL3210-1KE18-8UP1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V

6SL3224-0BE21-1UA0 SIEMENS SINAMICS G120 PM 240 POWER MODULE UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 1.1 KW AT 200% 3 S, 150% 57 S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C 173X 73X 145 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1KE22-6UB1 SIEMENS SINAMICS G120C RATED POWER 11,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V

6SL3210-1NE23-2AL1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 15KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 355X 140X 165 (HXWXD), FSC WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER NOTE: PM230 SUPPORTED NO SAFETY

6SL3210-1PE22-7AL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 7,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 11KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 (HXWXD), FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3210-1NE23-2AG1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 15KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 355X 140X 165 (HXWXD), FSC WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER

6SL3310-1TE32-1AA3 SIEMENS SINAMICS S120 CONVERTER POWER MODULE 3AC 380-480V, 50/60HZ, 210A (110 KW) INTERNAL AIR COOLING FRAME SIZE: CHASSIS SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE AND MOUNTING PLATE FOR CU310

6SL3210-1PE31-8AL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 90kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

6SL3210-1KE15-8AP1 SIEMENS SINAMICS G120C RATED POWER: 2.2 KW WITH 150% OVERLOAD FOR 3 S 380-480V3AC+10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O INTERFACE: 6 DI, 2 DQ, 1 AI, 1 AQ SAFE TORQUE OFF INTEGRATED FIELDBUS INTEGRATED: PROFIBUS DP DEGREE OF PROTECTION IP20/UL OPEN TYPE SIZE: FSA 196X 73X 203 (HXWXD) EXTERNAL 24 V
