CNC Controls

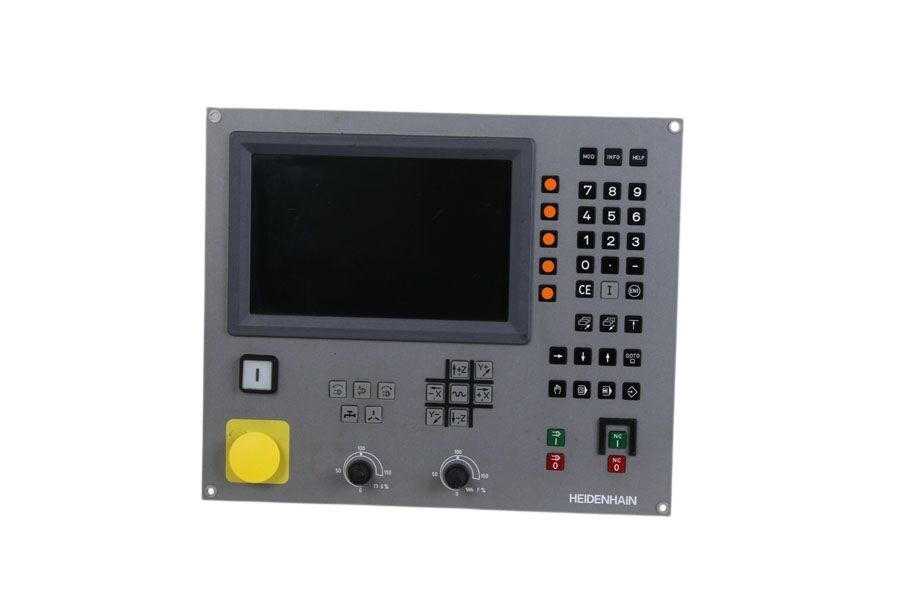

TNC124 ID.-NR. 316728-05 HEIDENHAIN STRAIGHT CUT CONTROL FOR MILLING, DRILLING AND BORING MACHINES 3 CONTROLLES AXES 1 NON-CONTROLLES AXIS (FOR POSITION DISPLAY) 3 ANALOG NOMINAL SPEED OUTPUTS (AXES) 1 ANALOG NOMINAL SPEED OUTPUT (SPINDLE) 4 INPUTS FOR POSITION ENCODERS 1 VSS INTEGRATED PLC 15 PLC INPUTS, 15 PLC OUTPUTS MEMORY FOR 20 PROGRAMS WITH A TOTAL OF 2 000 NC BLOCKS

TNC124 ID.-NR. 289352-03 HEIDENHAIN STRAIGHT CUT CONTROL FOR MILLING, DRILLING AND BORING MACHINES

LE410MA ID.-NR. 313490-11 HEIDENHAIN LOGICAL UNIT FOR INTEGRATED POWER STAGE UE AND POWER SUPPLY (400 V) AXES: 4 AXES PLUS SPINDLE PROGRAMM MEMORY: 128 KBYTE ( 6000 HEIDENHAIN NC-BLOCKS ) INTERPOLATION: 3 OF 4 AXES (LINEAR) INTEGRATED PLC: MEMORY OF 8000 COMMANDS 56 INPUTS, 31 OUTPUTS EXTENDABLE INPUTS FOR POSTION ENCODERS: 1 VSS

SSDR ITNC ID.-NR. 1189696-01 HEIDENHAIN SSDR NC SOFTWARE: ITNC MAIN COMPUTER TYPE: SINGLE PROCESSOR STORAGE CAPACITY: 64 GB

TNC145ST ID.-NR. 217330-96 HEIDENHAIN CONTOURING CONTROL

LE426PB ID.-NR. 312000-59 HEIDENHAIN LOGIC UNIT AXES: 5 AND SPINDLE, PROGRAM MEMORY: 1.5 GB HARD DISK, INTERPOLATION: 5 OF 5 AXES (LINEAR , INTERPOLATION) , INTEGRATED PLC: MEMORY FOR APPROX. 18,000 COMMANDS (ON HARD DISK) 56 INPUTS, 31 OUTPUTS ENCODER INPUTS: 1 VPP (POSITION AND SPEED)

HR 410 ID.-NR. 296469-13 HEIDENHAIN ELECTRONIC HANDWHEEL

TNC124 ID.-NR. 594057-06 HEIDENHAIN COMPACT CONTROL 3 CONTROLLED AXES, 1 DISPLAYED AXIS, 3 ANALOG OUTPUTS FOR AXES, 4 ENCODER INPUTS 1VSS, INTEGRATED MACHINE KEYS (SNAP ON KEYS), FEED  OVERRIDE, MONOCHROME FLATSCREEN, DUAL CHANNEL EMERGENCY STOP

LE355C ID.-NR. 246813-99 HEIDENHAIN LOGIC UNIT FOR TNC 3550

LE355B -TNC 355O.PL ID.-NR. 254581-99 HEIDENHAIN LOGIC UNIT FOR TNC 355 WITHOUT BOARD CONTOURING CONTROL FOR 4 AXES

MC420 ID.-NR. 515929-01 HEIDENHAIN HOST COMPUTER MC 420,  HOST COMPUTER CPU1: INTEL CELERON 400 MHZ, WORKING MEMORY OF CPU1: 128 MB, ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE: RS232 + RS422 + ETHERNET+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

MC422 ID.-NR. 364178-01 HEIDENHAIN HOST COMPUTER MC 422 WITH INTEGRATED HARD DISK, HOST COMPUTER CPU1: AMD K6/2 266MHZ, WORKING MEMORY OF CPU1: 64 MB, ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL INTEGRATED OPERATOR SAFETY SYSTEM

MC420 ID.-NR. 515927-01 HEIDENHAIN HOST COMPUTER MC 420, HOST COMPUTER CPU1: INTEL CELERON 400 MHZ, WORKING MEMORY OF CPU1: 128 MB, ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE: RS232 + RS422 + ETHERNET+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT VGA 640X480 PIXEL

LE426MBF120 ID.-NR. 324991-39 HEIDENHAIN LOGIKEINHEIT 5 ACHSEN + SPINDEL INTEGRIERTE ANTRIEBSREGELUNG, EINGÄNGE FÜR LAGE-MESSSYSTEME: 6 X 1VSS UMSCHALTBAR AUF 11UASS, EINGÄNGE FÜR MOTORGEBER: 6 X 1VSS, INTEGRIERTE PLC, INTEGRIERTE FESTPLATTE MIT 1,5 GBYTE, DIGITALE DREHZAHL BEI 2-POLPAAREN: MAX.12000 U/MIN MIT PASSENDER ABDECKUNG FÜR FLACHBANDKABEL LINEAR-INTERPOLATION 5 AUS 5 ACHSEN

HR 336C ID.-NR. 285378-21 HEIDENHAIN HANDWHEEL

LE426PB ID.-NR. 312000-39 HEIDENHAIN LOGIKEINHEIT ACHSEN: 5 UND SPINDEL, PROGRAMMSPEICHER: FESTPLATTE MIT 900 MBYTE, INTERPOLATION: 5 AUS 5 ACHSEN (LINEAR-INTERPOLATION), INTEGRIERTE PLC: SPEICHER FÜR CA. 18000 BEFEHLE (AUF FESTPLATTE) 56 EINGÄNGE, 31 AUSGÄNGE, MESSYSTEM-EINGÄNGE: 1 VSS (LAGE UND DREHZAHL)

MB 420 ID.-NR. 293757-13 HEIDENHAIN MB 420 MACHINE OPERATING PANEL FOR TE420

LE410CA ID.-NR. 313518-59 HEIDENHAIN LOGIC UNIT

TNC124 ID.-NR. 289352-05 HEIDENHAIN COMPACT STRAIGHT CUT CONTROL WITH FLAT-PANEL DISPLAY (MONOCHROME) AND INTEGRATED MACHINE OPERATING PANEL FOR MILLING, DRILLING, AND BORING MACHINES WITH INDEPENDENT OR CENTRAL DRIVE - 3 CONTORLLED AXES AND 1 AXIS FOR POSITION DISPLAY - INPUTS FOR POSITION ENCODERS: 4 X 11 µAPP - INTEGRATED PLC - 15 PLC INPUTS AND 15 PLC OUTPUTS - MEMORY FOR 20 PROGRAMS WITH A TOTAL OF 2000 NC BLOCKS

LE410PA ID.-NR. 313516-59 HEIDENHAIN LOGIC UNIT

LE426MBF120 ID.-NR. 324995-39 HEIDENHAIN LOGIC UNIT

PL405 ID.-NR. 263371-21 HEIDENHAIN PLC-INPUT/OUTPUT UNIT

LE426PB ID.-NR. 318178-59H HEIDENHAIN LOGIC UNIT

LE426 ID.-NR. 286839-29 HEIDENHAIN LOGIC UNIT

MC422 ID.-NR. 371265-01 HEIDENHAIN MC 422 WITH INTEGRATED HARD DISK HOST COMPUTER CPU1: AMD K6/2 266MHZ WORKING MEMORY OF CPU1: 64 MB, ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100 DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB

CC424B ID.-NR. 580501-01 HEIDENHAIN CONTROL UNIT CC 424B NUMBER OF CONTROL LOOPS DEPENDS ON THE SIK USED POSITION ENCODER: ROTATIONAL SPEED ENCODERS: 4 AXES SINGLE SPEED/ 2 AXES DOUBLE SPEED POWER SUPPLY: 5V+-1% COVER INCLUDED FOR THE RIBBON CABLES

LE426PA ID.-NR. 286839-49 HEIDENHAIN LOGIC UNIT

HR 330D ID.-NR. 1120315-01 HEIDENHAIN ELECTRONICAL HANDWHEEL, DATA TRANSFER: CABLE

TNC 310 D/GB ID.-NR. 330814-02 HEIDENHAIN KOMPAKTE BAHNSTEUERUNG; 5 ANALOGE DREHZAHL-SOLLWERT-AUSGÄNGE, 4 EINGÄNGE FÜR LAGEMESSGERÄTE 1VSS ODER 11µASS, INTEGRIERTE PLC, 23 PLC-EINGÄNGE, 23 PLC-AUSGÄNGE, INTEGRIERTE MASCHINENTASTEN, INTEGRIERTER MONOCHROMER FLACHBILDSCHIRM, DIALOGSPRACHE: DEUTSCH/ENGLISCH

TE 420AX ID.-NR. 313038-03 HEIDENHAIN KEYBOARD

LAUFWERK ID.-NR. 323019-01 HEIDENHAIN LAUFWERK

LAUFWERK ID.-NR. 322250-03 HEIDENHAIN LAUFWERK AGPFL WEIL - LEERE FESTPLATTE, KANN IM REPARATURFALLE 5-ACHS-SOFTWARE DES KUNDEN AUFGESPIELT BEKOMMEN (MUSS ABER NICHT)

HANDBEDIENPULT iD.-NR. 318779-01 HEIDENHAIN HANDBEDIENPULT RCU DREHEN (3101) CNC5000/VME

HANDBEDIENPULT RCU FRÄSEN ID.-NR. 318673-01 HEIDENHAIN HANDBEDIENPULT RCU FRÄSEN (3051) CNC5000/VME RCU 532 MIT ANSCHLUSSLEITUNG

UVR160D 80 ID.-NR. 728257-01 HEIDENHAIN INVERTER-POWER SUPPLY REGENERATIVE WITH DIAGNOSTIC FUNCTIONS AND ELECTRONIC ID LABLE, RATED POWER: 80 KW, DC-LINK VOLTAGE: 650 V, TYPE OF HEAT REMOVAL: INTERNAL, MODULE WIDTH: 250.00 MM

IPC 6140 ID.-NR. 820991-01 HEIDENHAIN INDUSTRIAL-PC, DESIGN: MODULAR ELECTRICAL CABINET, MEMORY TYPE: SLOT FOR CFR, DISPLAY: --, HOST COMPUTER CPU1: INTEL CELERON M 1.0 GHZ, WORKING MEMORY OF CPU1: 1024 MB, DATA INTERFACE: RS232 + SER.PORT + 1XETHERNET + 2XUSB

HR 332 ID.-NR. 266064-22 HEIDENHAIN ELEKTRONISCHES HANDRAD IN STOSSFESTEM GEHÄUSE, ELEKTR. ANSCHLUß ÜBER FLANSCHDOSE 12 POL.(STIFT)

HR 410 ID.-NR. 296469-34 HEIDENHAIN PORTABLE ELECTRONIC HANDWHEEL

LE411M ID.-NR. 329034-29 HEIDENHAIN LOGIC UNIT KOMP. BFT121

MC422B ID.-NR. 387179-01 HEIDENHAIN HOST COMPUTER MC 422B

ITC761 ID.-NR. 1170094-01 HEIDENHAIN BEDIENEINHEIT

LE426PB ID.-NR. 318178-49 HEIDENHAIN LOGIC UNIT

LE 426CB ID.-NR. 312002-59 HEIDENHAIN LOGIC UNIT

MC420 ID.-NR. 515929-12 HEIDENHAIN HOST COMPUTER CPU1: INTEL CELERON 400 MHZ, WORKING MEMORY OF CPU1: 512 MB, ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE: RS232 + RS422 + ETHERNET+USB, WITH INTEGRATED PLC, INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

LE 410MA ID.-NR. 319435-11 HEIDENHAIN LOGIC UNIT

LE426M ID.-NR. 344958-36 HEIDENHAIN LE 426M LOGIC UNIT

LE426M ID.-NR. 324994-39 HEIDENHAIN LE 426M LOGIC UNIT

LE 430M BC120 ID.-NR. 324992-39 HEIDENHAIN LOGIC UNIT LE 430M

TNC 155P ID.-NR. 233553-99 HEIDENHAIN COMPACT CONTOURING CONTROL

CC422 ID.-NR. 359652-01 HEIDENHAIN CONTROL LOOPS CC 422 NUMBER OF CONTROL LOOPS DEPENDS ON THE SIK USED ROTATIONAL SPEED ENCODERS: POWER SUPPLY: 5V+-1% COVER INCLUDED FOR THE RIBBON CABLES
