CNC Controls

679678-01 HEIDENHAIN 3D-TOOLCOMP (OPTION 92) 3D RADIUS COMPENSATION BASED ON ANGLE OF INCIDENCE (TNC7, TNC 640) THE 3D-TOOLCOMP OPTION DELIVERS POWERFUL, THREE-DIMENSIONAL TOOL-RADIUS COMPENSATION. ANGLE-DEPENDENT DELTA VALUES CAN BE DEFINED IN A COMPENSATION TABLE. THESE VALUES DESCRIBE THE TOOL’S DEVIATION FROM AN IDEAL CIRCULAR SHAPE. THE TNC THEN COMPENSATES FOR THE RADIUS THAT IS DEFINED FOR WHEREVER THE TOOL IS CURRENTLY TOUCHING THE WORKPIECE.   BENEFITS   MEASURE 3D SHAPES   COMPENSATE FOR TOOL-SHAPE ERRORS   CONTROLS   TNC7: NC-SOFTWARE 81762X-16 OR LATER TNC 640: NC-SOFTWARE 34059X-07 OR LATER

579648-01 HEIDENHAIN AFC: ADAPTIVE FEED CONTROL (OPTION 45) ADAPTIVE FEED CONTROL (TNC7, TNC 640) ADAPTIVE FEED CONTROL (AFC) AUTOMATICALLY REGULATES THE CONTOURING FEED RATE OF THE TNC BASED ON THE CURRENT SPINDLE PERFORMANCE AND OTHER PROCESS DATA. PRIOR TO MACHINING, A TABLE LETS YOU DEFINE THE LIMITS WITHIN WHICH THE TNC CAN REGULATE THE FEED RATE IN CONTROL MODE.   BENEFITS   OPTIMIZE YOUR MACHINING TIME IMPLEMENT TOOL MONITORING GO EASY ON MACHINE PARTS   CONTROLS   TNC7: NC-SOFTWARE 81762X-16 OR LATER TNC 640: NC-SOFTWARE 34059X-02 OR LATER

353905-01 HEIDENHAIN SOFTWARE-OPTION 2: "ADDITIONAL AXIS 3"   ZUSÄTZLICHER REGELKREIS 3 FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC7 AB NC-SOFTWARE 81762X-16, TNC 640, TNC 620, ITNC 530, CNC PILOT 640, MANUALPLUS 620

367867-01 HEIDENHAIN SOFTWARE OPTION 3: "ADDITIONAL AXIS 4"   ADDITIONAL CONTROL LOOP 4 ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640, TNC 620, ITNC 530, CNC PILOT 640, MANUALPLUS 620

367868-01 HEIDENHAIN SOFTWARE OPTION 4: "ADDITIONAL AXIS 5"   ADDITIONAL CONTROL LOOP 5 ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640, ITNC 530, CNC PILOT 640, MANUALPLUS 620

370291-01 HEIDENHAIN  SOFTWARE OPTION 5: "ADDITIONAL AXIS 6"   ADDITIONAL CONTROL LOOP 6 ACTIVATED BY CODE ZAHL   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640, ITNC 530, CNC PILOT 640, MANUALPLUS 620

370292-01 HEIDENHAIN SOFTWARE OPTION 6: "ADDITIONAL AXIS 7"   ADDITIONAL CONTROL LOOP 7 ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16,  640, ITNC 530, CNC PILOT 640, MANUALPLUS 620

370293-01 HEIDENHAIN SOFTWARE OPTION 7: "ADDITIONAL AXIS 8"   ADDITIONAL CONTROL LOOP 8 ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640, ITNC 530, CNC PILOT 640

367591-01 HEIDENHAIN SOFTWARE OPTION 8: "SOFTWARE-OPTION 1"   PROGRAMMING OF CYLINDRICAL CONTOURS AS IF IN TWO AXES FEED RATE IN DISTANCE PER MINUTE TILTING THE WORKING PLANE, PLANE FUNCTION CIRCULAR IN 3 AXES WITH TILTED WORKING PLANE ACTIVATED BY CODE NUMBER FOR ITNC 530 AS OF NC SOFTWARE 34049X-01

367590-01 HEIDENHIAN SOFTWARE OPTION 9: "SOFTWARE-OPTION 2"   - ESPECIALLY LOW-JERK MOTION CONTROL(ONLY NC SOFTWARE 34049X) - 3-D TOOL COMPENSATION THROUGH SURFACENORMAL VECTORS - TCPM: TOOL CENTER POINT MANAGEMENT - KEEPING THE TOOL NORMAL TO THE CONTOUR - TOOL RADIUS COMPENSATION NORMAL TO THETOOL DIRECTION - MANUAL TRAVERSE IN THE ACTIVE TOOL-AXISSYSTEM - LINEAR INTERPOLATION IN 5 AXES (SUBJECT TO EXPORT LICENSE) - EXECUTION OF SPLINES (3RD DEGREE POLYNOMIALS) - BLOCK PROCESSING TIME 0.5 MS (ONLY NC SOFTWARE 34049X) - ACTIVATED BY CODE NUMBER - FOR ITNC 530 AS OF NC SOFTWARE 34049X-01

526452-01 HEIDENHAIN SOFTWARE OPTION 40: "DYNAMIC COLLISION MONITORING"   DYNAMIC COLLISION MONITORING DCM ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-02, ITNC 530 AS OF NC SOFTWARE 34049X-02

576057-01 HEIDENHAIN SOFTWARE OPTION 44: "GLOBAL PROGRAM SETTINGS"   MODAL PROGRAM-RUN SETTINGS FOR MOLD MAKING ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-08, ITNC 530 AS OF NC SOFTWARE 34949X-03

579650-01 HEIDENHAIN SOFTWARE OPTION 46: "PYTHON OEM PROCESS"   PYTHON APPLICATIONS ON THE CONTROL ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-01, TNC 620 AS OF NC SOFTWARE 34056X-02 OR 73498X-01 OR 81760X-01, TNC 320 AS OF NC SOFTWARE 340551-04 OR 771851-01, TNC 128 AS OF NC SOFTWARE 771841-01, ITNC 530 AS OF NC SOFTWARE 34049X-04, CNC PILOT 640 AS OF NC SOFTWARE 68894X-01, FOR MANUALPLUS 620 AS OF NC SOFTWARE 548328-04 OR 54843X-01

632223-01 HEIDENHAIN SOFTWARE-OPTION 49: "DOUBLE SPEED AXES"   DOUBLE SPEED CONTROL LOOPS (CONTROLLER CYCLE TIME 100 µS) PRIMARILY FOR HIGH-FREQUENCY SPINDLES AS WELL AS LINEAR AND TORQUE MOTORS ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-01, TNC 620 AS OF NC SOFTWARE 34056X-01 OR 73498X-01 OR 81760X-01, ITNC 530 AS OF NC SOFTWARE 60642X-01, CNC PILOT 640 AS OF NC SOFTWARE 68894X-01, MANUALPLUS 620 AS OF NC SOFTWARE 54843X-01

661879-01 HEIDENHAIN SOFTWARE-OPTION 52: "KINEMATICSCOMP"   ERROR-COMPENSATION TABLES USED WITHIN THE KINEMATICS PREREQUISITE: KNOWLEDGE OF SOURCES AND MAGNITUDES OF ERRORS IN THE MACHINE ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC 640 AS OF NC SOFTWARE 340590-05, ITNC 530 AS OF NC SOFTWARE 340490-05

529969-01 HEIDENHAIN SOFTWARE OPTION 53: "FEATURE CONTENT LEVEL"   FOR ENABLING SOFTWARE EXPANSIONS AFTER A SOFTWARE UPGRADE ACTIVATED BY CODE NUMBER FOR ITNC 530 AS OF NC SOFTWARE 34049X-01

634613-01 HEIDENHAIN SOFTWARE OPTION 77: "4 ADDITIONAL AXES"   4 ADDITIONAL CONTROL LOOPS ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-02, ITNC 530 AS OF NC SOFTWARE 34049X-04, CNC PILOT 640 AS OF NC SOFTWARE 68894X-03, MANUALPLUS 620 AS OF NC SOFTWARE 54843X-03

634614-01 HEIDENHAIN SOFTWARE OPTION 78: "8 ADDITIONAL AXES"   8 ADDITIONAL CONTROL LOOPS ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AB NC-SOFTWARE 81762X-16, TNC 640 AS OF NC-SOFTWARE 34059X-02, ITNC 530 AS OF NC-SOFTWARE 34049X-04, CNC PILOT 640 AS OF NC-SOFTWARE 68894X-03

676938-01 HEIDENHAIN SOFTWARE OPTION 93: "EXTENDED TOOL MANAGEMENT"   EXTENDED TOOL MANAGEMENT ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-01, TNC 620 AS OF NC SOFTWARE 81760X-02, ITNC 530 AS OF NC SOFTWARE 34049X-05

751653-01 HEIDENHAIN SOFTWARE OPTION 96: "ADV. SPINDLE INTERPOLATION"   CYCLE FOR INTERPOLATION TURNING ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-05, ITNC 530 AS OF NC SOFTWARE 34049X-07 AND 60642X-02

800553-01 HEIDENHAIN SOFTWARE OPTION 98: "CAD VIEWER"   OPEN 3-D CAD DATA ON THE CONTROL ACTIVATED BY CODE NUMBER   FOR ITNC 530 AS OF NC SOFTWARE 34049X-07 AND 60642X-02

800542-01 HEIDENHAIN SOFTWARE OPTION 141: "CROSS TALK COMPENSATION"   CTC: COMPENSATION OF AXIS COUPLINGS ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-02, TNC 620 AS OF NC SOFTWARE 81760X-01 OR 73498X-02,  PNC 610 AS OF NC SOFTWARE 817591-02, ITNC 530 AS OF NC SOFTWARE 60642X-02

800544-01 HEIDENHAIN SOFTWARE OPTION 142: "POSITION ADAPTIVE CONTROL"   PAC: POSITION-DEPENDENT ADAPTATION OF CONTROL PARAMETERS ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AB NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-02, TNC 620 AS OF NC SOFTWARE 81760X-01 OR 73498X-02, PNC 610 AS OF NC SOFTWARE 817591-02, ITNC 530 AS OF NC SOFTWARE 60642X-02

800545-01 HEIDENHAIN SOFTWARE OPTION 143: "LOAD ADAPTIVE CONTROL"   LAC: LOAD-DEPENDENT ADAPTATION OF CONTROL PARAMETERS ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-02, TNC 620 AS OF NC SOFTWARE 81760X-01 OR 73498X-02, ITNC 530 AS OF NC SOFTWARE 60642X-02, CNC PILOT 640 AS OF NC SOFTWARE 68894X-01, MANUALPLUS 620 AS OF NC SOFTWARE 54843X-01, PNC 610 AS OF NC SOFTWARE 817591-02

800546-01 HEIDENHAIN SOFTWARE OPTION 144: "MOTION ADAPTIVE CONTROL"   MAC: MOTION-DEPENDENT ADAPTION OFCONTROL PARAMTERS ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-02, TNC 620 AS OF NC SOFTWARE 81760X-01 OR 73498X-02, PNC 610 AS OF NC SOFTWARE 817591-02, ITNC 530 AS OF NC SOFTWARE 60642X-03

800547-01 HEIDENHAIN SOFTWARE OPTION 145: "ACTIVE CHATTER CONTROL"   ACC: ACTIVE SUPPRESSION OF CHATTER ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-02, TNC 620 AS OF NC SOFTWARE 81760X-01 OR 73498X-02, ITNC 530 AS OF NC SOFTWARE 60642X-03

800548-01 HEIDENHAIN SOFTWARE OPTION 146: "MACHINE VIBRATION CONTROL" MACHINE VIBRATION CONTROL (MVC) INCLUDES THE FOLLOWING FUNCTIONS:   ACTIVE VIBRATION DAMPING (AVD): ACTIVE VIBRATION DAMPING IN THE CONTROL LOOP FREQUENCY SHAPING CONTROL (FSC): REDUCTION OF VIBRATION EXCITATION VIA FREQUENCY FREQUENCY-DEPENDENT FEEDFORWARD CONTROL ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640 AS OF NC SOFTWARE 34059X-11, TNC 620 AS OF NC SOFTWARE 81760X-08   PLEASE NOTE: FOR THE FOLLOWING CONTROLS UP TO THE NC SOFTWARE VERSIONS LISTED ABOVE THE "ACTIVE VIBRATION DAMPING (AVD)" FUNCTION:   TNC 640 UP TO NC SOFTWARE 34059X-10 TNC 620 UP TO NC SOFTWARE 81760X-07 ITNC 530

579651-01 HEIDENHAIN SOFTWARE-OPTION 101: OEM OPTION 1   SOFTWARE-OPTIONEN ZUR VERWENDUNG DURCH DEN OEM FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC 640 AB NC-SOFTWARE 34059X-02, iTNC  530 AB NC-SOFTWARE 34049X-02, CNC PILOT 640 AB NC-SOFTWARE 68894X-01, MANUALPLUS 620 AB NC-SOFTWARE 548431-01

TNC135S ID.-NR. 212281-24 HEIDENHAIN COMPACT CONTROLLER TNC 135S GB

MB 420 ID.-NR. 293757-23 HEIDENHAIN MB420 MACHINE OPERATING PANEL SUITABLE FOR TE 420

LE407A ID.-NR. 264430-79 HEIDENHAIN LOGIC UNIT LE 407A FOR TNC 407 R CONTOURING CONTROL FOR 5 AXES WITH SPINDLE ORIENTATION INTEGRATED PLC MEMORY FOR 6000 PROGRAM BLOCKS MEMORY FOR 6000 PROGRAM BLOCKS WITH OPTION DIGITIZING

LE415 ID.-NR. 267223-48 HEIDENHAIN LOGIC UNIT FOR TNC 415 EXPORT VERSION CONTOURING CONTROL FOR 5 AXES 5 SINUSOIDAL INPUTS AND 1 SQUARE-WAVE INPUT; INTEGRATED PLC, INTEGRATED PLC

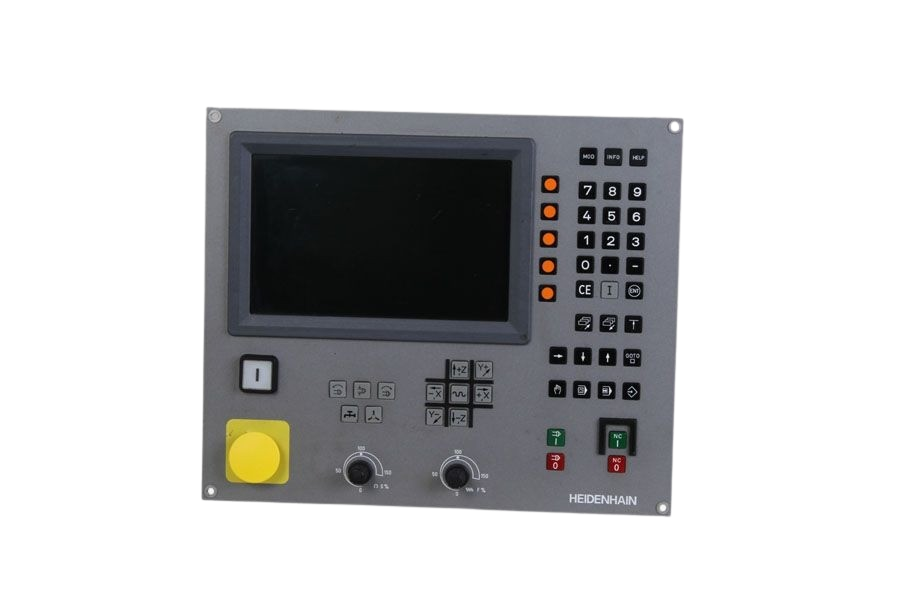

TNC124 ID.-NR. 289352-06 HEIDENHAIN COMPACT STRAIGHT CUT CONTROL TNC 124 WITH FLAT-PANEL DISPLAY (MONOCHROME) AND INTEGRATED MACHINE, MACHINES WITH INDEPENDENT OR CENTRAL DRIVE - 3 CONTORLLED AXES AND 1 AXIS FOR POSITION

TNC124 ID.-NR. 289353-25 HEIDENHAIN COMPACT CONTROL 3 CONTROLLED AXES

LE430CA ID.-NR. 311050-29 HEIDENHAIN LOGIC UNIT

LE426CF ID.-NR. 312001-28 HEIDENHAIN LOGIC UNIT

LE426CB ID.-NR. 312001-29 HEIDENHAIN LOGIC UNIT

LE410PA ID.-NR. 313516-39 HEIDENHAIN LOGIC UNIT

LE426PB ID.-NR. 313527-39 HEIDENHAIN LOGIC UNIT

TNC124 ID.-NR. 316727-05 HEIDENHAIN COMPACT STRAIGHT CUT CONTROL TNC 124

MC 422 ID.-NR. 367223-01 HEIDENHAIN MAIN COMPUTER MC 422 HOST COMPUTER CPU1 AMD K6/2 266MHZ, WORKING MEMORY OF CPU1 64 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, CONTROL COMPONENTS SOFTWARE OPTION 1, 2, 3 AND 4 NOT SET, WITH INTEGRATED PLC, INTERFACE FOR COLOR DISPLAY, TFT XGA 1024X768 PIXEL

MC 422E ID.-NR. 371260-51 HEIDENHAIN MAIN COMPUTER MC 422 E WITH INTEGRATED HARD DISK HOST COMPUTER CPU1 AMD K6/2 266MHZ, WORKING MEMORY OF CPU1 64 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, FIELD BUS PROFIBUS WITH INTEGRATED PLC, INTERFACE FOR COLOR DISPLAY, TFT XGA 1024X768 PIXEL

MC 422E ID.-NR. 359641-51 HEIDENHAIN MAIN COMPUTER MC 422E WITH INTEGRATED HARD DISK WITH SECOND PROCESSOR HOST COMPUTER CPU1: AMD K6/2 266MHZ, WORKING MEMORY OF CPU1: 128 MB, HOST COMPUTER CPU2: AMD K6/2 266MHZ, WORKING MEMORY OF CPU2: 64 MB, ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

SIKiTNC ID.-NR. 510085-51 HEIDENHAIN SIK NC SOFTWARE LICENSE FOR ITNC FOR INSTALLATION IN MAIN COMPUTER MC 4 ACTIVE CONTROL LOOPS LINEAR INTERPOLATION WITH A MAXIMUM OF 4 AXES, OPTION 17: TOUCH PROBE, OPTION 19: ADV. PROGR. FEATURES, OPTION 20: ADV. GRAPH. FEATURES, OPTION 21: SOFTWARE OPTION 3, OPTION 22: PALLET MANAGEMENT, EXPORT PERMIT: NOT SUBJECT TO EXPORT LICENSE

579651-012 HEIDENHAIN SOFTWARE-OPTION 102: OEM OPTION 2   SOFTWARE-OPTIONEN ZUR VERWENDUNG DURCH DEN OEM FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC 640 AB NC-SOFTWARE 34059X-02, iTNC  530 AB NC-SOFTWARE 34049X-02, CNC PILOT 640 AB NC-SOFTWARE 68894X-01, MANUALPLUS 620 AB NC-SOFTWARE 548431-01

579651-03 HEIDENHAIN SOFTWARE-OPTION 103: OEM OPTION 3   SOFTWARE-OPTIONEN ZUR VERWENDUNG DURCH DEN OEM FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC 640 AB NC-SOFTWARE 34059X-02, iTNC  530 AB NC-SOFTWARE 34049X-02, CNC PILOT 640 AB NC-SOFTWARE 68894X-01, MANUALPLUS 620 AB NC-SOFTWARE 548431-01

579651-04 HEIDENHAIN SOFTWARE-OPTION 104: OEM OPTION 4   SOFTWARE-OPTIONEN ZUR VERWENDUNG DURCH DEN OEM FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC 640 AB NC-SOFTWARE 34059X-02, iTNC  530 AB NC-SOFTWARE 34049X-02, CNC PILOT 640 AB NC-SOFTWARE 68894X-01, MANUALPLUS 620 AB NC-SOFTWARE 548431-01

579651-05 HEIDENHAIN SOFTWARE-OPTION 105: OEM OPTION 5   SOFTWARE-OPTIONEN ZUR VERWENDUNG DURCH DEN OEM FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC 640 AB NC-SOFTWARE 34059X-02, iTNC  530 AB NC-SOFTWARE 34049X-02, CNC PILOT 640 AB NC-SOFTWARE 68894X-01, MANUALPLUS 620 AB NC-SOFTWARE 548431-01

579651-06 HEIDENHAIN SOFTWARE-OPTION 106: OEM OPTION 6   SOFTWARE-OPTIONEN ZUR VERWENDUNG DURCH DEN OEM FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC 640 AB NC-SOFTWARE 34059X-02, iTNC  530 AB NC-SOFTWARE 34049X-02, CNC PILOT 640 AB NC-SOFTWARE 68894X-01, MANUALPLUS 620 AB NC-SOFTWARE 548431-01

579651-07 HEIDENHAIN SOFTWARE-OPTION 107: OEM OPTION 7   SOFTWARE-OPTIONEN ZUR VERWENDUNG DURCH DEN OEM FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC 640 AB NC-SOFTWARE 34059X-02, iTNC  530 AB NC-SOFTWARE 34049X-02, CNC PILOT 640 AB NC-SOFTWARE 68894X-01, MANUALPLUS 620 AB NC-SOFTWARE 548431-01
