CNC Controls

HR 330 HEIDENHAIN HANDWHEEL

LE426PB ID.-NR. 326414-59 HEIDENHAIN LOGIC UNIT

MC6242 ID.-NR. 804786-01 HEIDENHAIN HOST COMPUTER, HOST COMPUTER CPU1 INTEL PENTIUM M 1.8 GHZ, WORKING MEMORY OF CPU1 1024 MB, DATA INTERFACE RS232 + SER.PORT + 2XETHERNET + 2XUSB + EXT01, FIELD BUS PROFIBUS, FIELD BUS INTERFACE 2 HSCI-BUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY, TYPE OF DISPLAY HEIDENHAIN DISPLAY LINK

HR 410 ID.-NR. 296469-55 HEIDENHAIN PORTABLE ELECTRONIC HANDWHEEL

HR 410 FS ID.-NR. 578114-01 HEIDENHAIN HAND WHEEL

LE430M ID.-NR. 344965-19 HEIDENHAIN LOGIC UNIT LE430M

LE355A ID.-NR. 236482-05 HEIDENHAIN LOGIC UNIT LE355A- CNC 332 MAHO

UVR130D ID.-NR. 1095626-01 HEIDENHAIN INVERTER-POWER SUPPLY REGENERATIVE WITH DIAGNOSTIC FUNCTIONS AND ELECTROC ID LABLE RATED POWER: 30 KW, POWER S6-40%: 45 KW, DC-LINK VOLTAGE: 650 V, TYPE OF HEAT REMOVAL: INTERNALLY MODULE WIDTH: 150.00 MM

LE426PB ID.-NR. 311999-49 HEIDENHAIN LOGIC UNIT

LE425 ID.-NR. 267214-29 HEIDENHAIN LOGIC UNIT FOR TNC 425

TNC 135 B ID.-NR. 233207-09 HEIDENHAIN COMPACT CONTROLLER

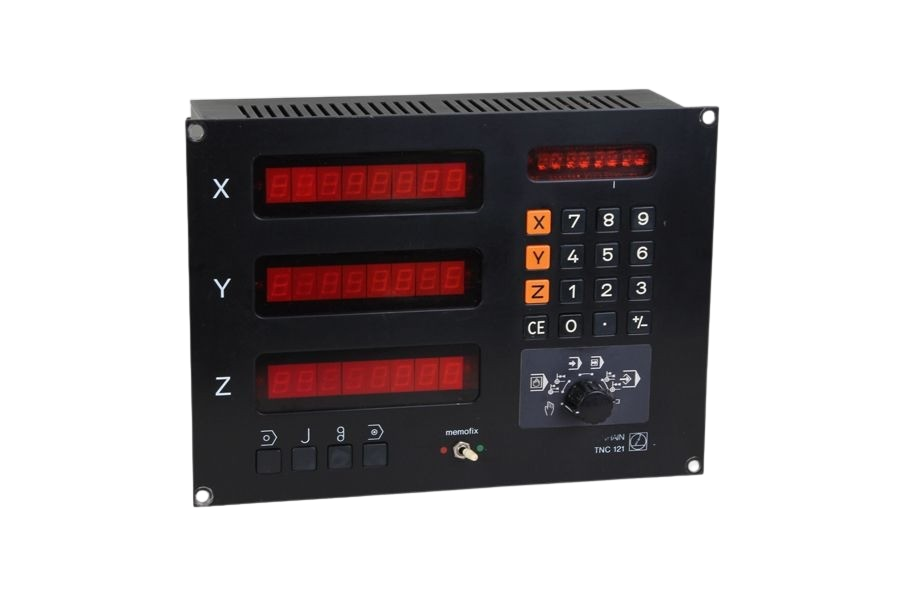

TNC121 C HEIDENHAIN COMPACT CONTROLLER

HR 410 ID.-NR. 535220-05 HEIDENHAIN HAND WHEEL

LE426PB ID.-NR. 313527-59 HEIDENHAIN LOGIC UNIT

LE410PA ID.-NR. 313519-49 HEIDENHAIN LOGIC UNIT

TNC223 ID.-NR. 229367-99 HEIDENHAIN CONTOURING CONTROL

TNC 310 ID.-NR. 341477-02 HEIDENHAIN COMPACT CONTOURING CONTROL WITH FLAT-PANEL DISPLAY (MONOCHROME) AND INTEGRATED MACHINE OPERATIN PANEL: - 4 CLOSED-LOOP AXES AND SPINDLE S OR - 3 CLOSED-LOOP AXES AND CLOSED-LOOP SPINDLE S - INPUTS FOR POSITION ENCODERS: 4 X 1VPP* (SWICHABLE TO 11µAPP) - INTEGRATED PLC - 23 PLC INPUTS AND 23 PLC OUTPUTS - MEMORY FOR 64 PROGRAMMS WITH A TOTAL OF 6000 BLOCKS - EXCHANGEABLE MACHINE KEYS

LE426CB ID.-NR. 312002-29 HEIDENHAIN LOGIC UNIT

UV120 ID.-NR. 344504-02 HEIDENHAIN UV 120 INVERTER-POWER SUPPLY RATED POWER: 22 KW POWER S6-40%: 30 KW PEAK POWER: 40KW<0.2SEC DC-LINK VOLTAGE: 650 V LOW-VOLTAGE POWER SUPPLY UNIT: 200 W TYPE OF HEAT REMOVAL: INTERNALLY MODULE WIDTH: 150.00 MM

TNC 135S ID.-NR. 212281-53 HEIDENHAIN COMPACT CONTROLLER

HR 550 FS ID.-NR. 606622-03 HEIDENHAIN PORTABLE ELECTRONIC HANDWHEEL WITH DISPLAY. TWO PERMISSIVE BUTTONS (24V). EMERGENCY STOP KEY (24V).

LE430M ID.-NR. 344964-36 HEIDENHAIN LOGIC UNIT

TNC124 ID.-NR. 594052-06 HEIDENHAIN COMPACT CONTROL 3 CONTROLLED AXES, 1 CONTROLLED SPINDLE

TNC121 C ID.-NR. 213706-18 HEIDENHAIN COMPACT CONTROLLER

EPC 100 ID.-NR. 685162-01 HEIDENHAIN ENDAT-PARALLEL-CONVERTER

TNC131 S ID.-NR. 210850-33 HEIDENHAIN COMPACT CONTROLLER

LE426PB ID.-NR. 311999-39 HEIDENHAIN LOGIC UNIT

TNC155 B ID.-NR. 240922-99 HEIDENHAIN COMPACT CONTOURING CONTROL

HR 410 ID.-NR. 296469-45 HEIDENHAIN HAND WHEEL

TNC135 RT ID.-NR. 217006-49 HEIDENHAIN COMPACT CONTROLLER

LE426M ID.-NR. 344959-19 HEIDENHAIN LE426M LOGIC UNIT

MC6542 ID.-NR. 1081188-01 HEIDENHAIN HOST COMPUTER MC 6542 CPU1: INTEL CORE I7-3 1,70 GHZ 2 CORES WORKING MEMORY OF CPU1: 4096 MB DATA INTERFACE: RS232 + SER.PORT + 2XETHERNET + 4XUSB + EXT01 + PCIE FIELD BUS INTERFACE 2: HSCI-BUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY

CC422 ID.-NR. 364277-01 HEIDENHAIN CONTROL UNIT CC 422 NUMBER OF CONTROL LOOPS DEPENDS ON THE SIK USED ROTATIONAL SPEED ENCODERS: POWER SUPPLY: 5V+-1% INTEGRATED OPERATOR SAFETY SYSTEM IPS-BOARD 2X COVER INCLUDED FOR THE RIBBON CABLES

MC6241 ID.-NR. 573398-03 HEIDENHAIN HOST COMPUTER MC 6241 INTEL PENTIUM M 1.8 GHZ WORKING MEMORY OF CPU1: 1024 MB DATA INTERFACE: RS232 + SER.PORT + 2XETHERNET + 2XUSB + EXT01 FIELD BUS INTERFACE 2: HSCI-BUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY

MC422B ID.-NR. 387176-01 HEIDENHAIN HOST COMPUTER MC 422B WITH SECOND PROCESSOR HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU1: 512 MB HOST COMPUTER CPU2: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU2: 512 MB ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100 DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

CC6106 ID.-NR. 662636-02 HEIDENHAIN CONTROL UNIT CC 6106 NUMBER OF CONTROL CC 6106 LOOPS DEPENDS ON THE SIK USED POSITION ENCODER: 6X1VPP/ENDAT ROTATIONAL SPEED ENCODERS: 6X1VPP/ENDAT FIELD BUS: HSCI - BUS COVER INCLUDED FOR THE RIBBON CABLES

UV105 ID.-NR. 344980-12 HEIDENHAIN POWER SUPPLY UNIT FOR LOGIC UNIT

TNC121 ID.-NR. 213706-02 HEIDENHAIN COMPACT CONTROLLER

TNC135 ST ID.-NR. 217004-85 HEIDENHAIN COMPACT CONTROLLER

HR 520 ID.-NR. 670303-01 HEIDENHAIN HAND WHEEL HR 520

LE430 CA ID.-NR. 326424-59 HEIDENHAIN LOGIC UNIT

HR 250-5000 ID.-NR. 745909-01 HEIDENHAIN ELECTRONIC HANDWHEEL 5000 LINES IN PLASTIC HOUSING CABLE LENGTH 3,00 M WITH CONNECTOR

TNC124 ID.-NR. 316728-05 HEIDENHAIN STRAIGHT CUT CONTROL FOR MILLING, DRILLING AND BORING MACHINES 3 CONTROLLES AXES 1 NON-CONTROLLES AXIS (FOR POSITION DISPLAY) 3 ANALOG NOMINAL SPEED OUTPUTS (AXES) 1 ANALOG NOMINAL SPEED OUTPUT (SPINDLE) 4 INPUTS FOR POSITION ENCODERS 1 VSS INTEGRATED PLC 15 PLC INPUTS, 15 PLC OUTPUTS MEMORY FOR 20 PROGRAMS WITH A TOTAL OF 2 000 NC BLOCKS

TNC124 ID.-NR. 289352-03 HEIDENHAIN STRAIGHT CUT CONTROL FOR MILLING, DRILLING AND BORING MACHINES

LE410MA ID.-NR. 313490-11 HEIDENHAIN LOGICAL UNIT FOR INTEGRATED POWER STAGE UE AND POWER SUPPLY (400 V) AXES: 4 AXES PLUS SPINDLE PROGRAMM MEMORY: 128 KBYTE ( 6000 HEIDENHAIN NC-BLOCKS ) INTERPOLATION: 3 OF 4 AXES (LINEAR) INTEGRATED PLC: MEMORY OF 8000 COMMANDS 56 INPUTS, 31 OUTPUTS EXTENDABLE INPUTS FOR POSTION ENCODERS: 1 VSS

IPC 6110 ID.-NR. 597968-03 HEIDENHAIN IPC 6110 INDUSTRIAL-PC DESIGN: COMPACT OPERATING PANEL MEMORY TYPE: SLOT FOR CFR DISPLAY: 15.0-INCH DIAGONAL / RESOLUTION XGA 1024 X 768 PIXELS HOST COMPUTER CPU1: INTEL CELERON M 1.0 GHZ WORKING MEMORY OF CPU1: 1024 MB DATA INTERFACE: RS232 + SER.PORT + 1XETHERNET + 2XUSB + USB EXTERN

SSDR ITNC ID.-NR. 1189696-01 HEIDENHAIN SSDR NC SOFTWARE: ITNC MAIN COMPUTER TYPE: SINGLE PROCESSOR STORAGE CAPACITY: 64 GB

TNC145ST ID.-NR. 217330-96 HEIDENHAIN CONTOURING CONTROL

LE426PB ID.-NR. 312000-59 HEIDENHAIN LOGIC UNIT AXES: 5 AND SPINDLE, PROGRAM MEMORY: 1.5 GB HARD DISK, INTERPOLATION: 5 OF 5 AXES (LINEAR , INTERPOLATION) , INTEGRATED PLC: MEMORY FOR APPROX. 18,000 COMMANDS (ON HARD DISK) 56 INPUTS, 31 OUTPUTS ENCODER INPUTS: 1 VPP (POSITION AND SPEED)

HR 410 ID.-NR. 296469-13 HEIDENHAIN ELECTRONIC HANDWHEEL
