CNC Controls

TASTATUR ID.-NR. 326128-01 HEIDENHAIN TASTATUR ASCII CNC5000/VME MIT RAFI-TASTATUR

TASTATUR ID.-NR. 326986-01 HEIDENHAIN TASTATUR ASCII VME

BF 130B ID.-NR.358852-02 HEIDENHAIN COLOUR-, FLAT-PANEL DISPLAY;  DISPLAY:

TNC114B ID.-NR. 233206-07 HEIDENHAIN POSITIONING CONTROL FOR CONNECTION TO LINEAR ENCODERS

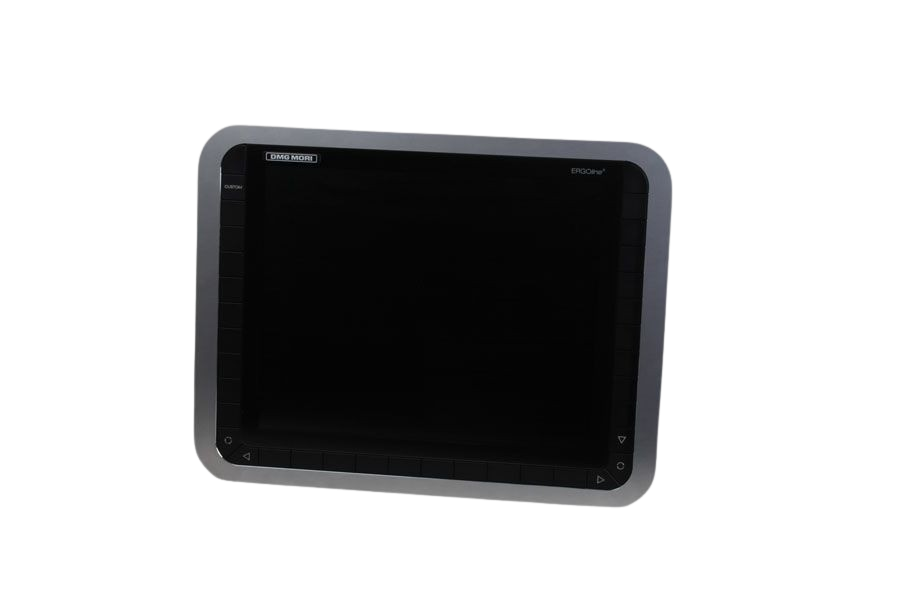

BF265D ID.-NR. 622795-02 HEIDENHAIN COLOUR-, FLAT-PANEL DISPLAY, VERSION: DMG CHROME, DISPLAY 19.0-INCH DIAGONAL / RESOLUTION SXGA 1280 X 1024 PIXELS, DATA INTERFACE: 6XUSB, POWER SUPPLY: 24V

BFT 131 ID.-NR. 583683-01 HEIDENHAIN SCREEN 12,1 INCH XVGA WITH INTEGRATED KEYBOARD FOR MANUALPLUS 620

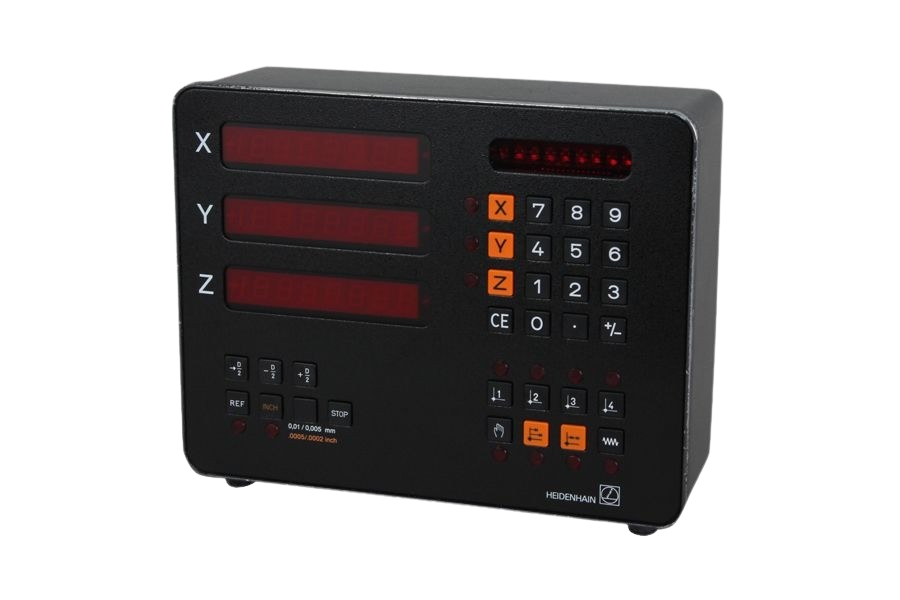

TNC113 ID.-NR. 216130-23 HEIDENHAIN POSITIONING CONTROL FOR CONNECTION TO LINEAR ENCODERS WITH GRATING PERIOD SWITCHABLE 0,020 / 0,040 MM

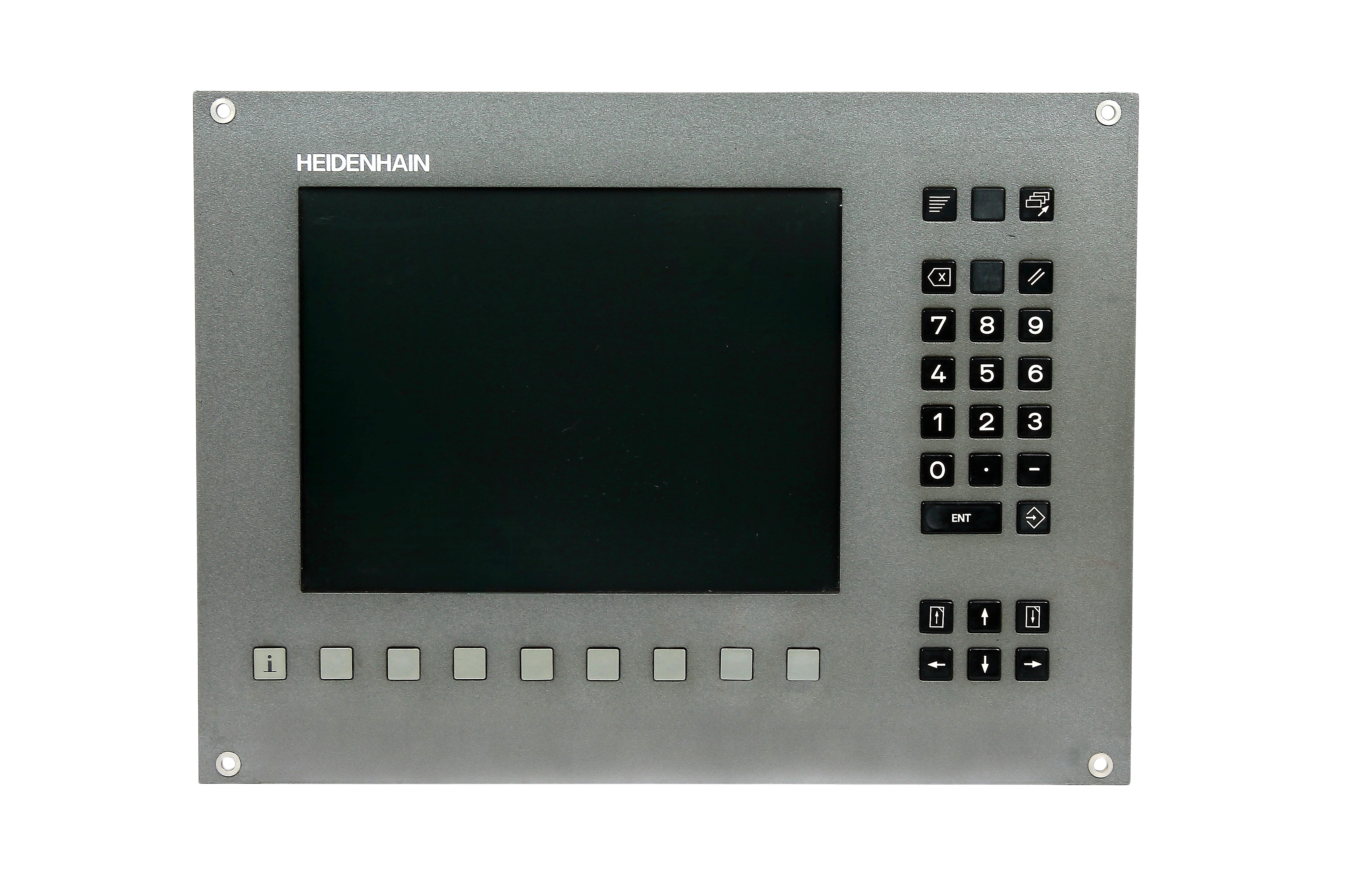

BFT 121 ID.-NR. 326206-03 HEIDENHAIN TASTATUR MIT INTEGRIERTEM 10,4 ZOLL TFT-FARB FLACHBILDSCHIRM FÜR MANUALPLUS M

TNC 135 S ID.-NR. 212281-66 HEIDENHAIN COMPACT CONTROLLER

MC 320 (TNC 320)  ID.-NR. 511442-03 HEIDENHAIN HOST COMPUTER  MC 320 DESIGN: COMPACT OPERATING PANEL MEMORY TYPE: SLOT FOR CFR MAIN COMPUTER TYPE: SINGLE PROCESSOR HOST COMPUTER CPU1: INTEL CELERON 400 MHZ WORKING MEMORY OF CPU1: 512 MB DATA INTERFACE: RS232 + SER.PORT + 1XETHERNET + 2XUSB + EXT01 + EXT02 + USB EXTERN POSITION ENCODER: 4X1VPP/ENDAT TOUCH PROBE INPUTS: WORKPIECE TOUCH PROBE + TOOL TOUCH PROBE POWER SUPPLY: AC 100 ... 240 V, 50/60 HZ WITH INTEGRATED PLC DISPLAY 15.0-INCH DIAGONAL/RESOLUTION XGA 1024*768 PIXELS

MC422C ID.-NR. 587931-01 HEIDENHAIN HOST COMPUTER MC422C HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU1: 512 MB ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100 DATA INTERFACE: RS232 + RS422 + ETHERNET+USB FIELD BUS: PROFIBUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

MC422C ID.-NR. 629975-01 HEIDENHAIN HOST COMPUTER MC422C WITH SECOND PROCESSOR HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU1: 512 MB HOST COMPUTER CPU2: INTEL PENTIUM M 1.8 GHZ WORKING MEMORY OF CPU2: 512 MB ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100 DATA INTERFACE: RS232 + RS422 + ETHERNET+USB FIELD BUS: PROFIBUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT SXGA 1280X1024 PIXEL

MC422C ID.-NR. 629981-01 HEIDENHAIN HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU1: 512 MB POSITION ENCODER: ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100 DATA INTERFACE: RS232 + RS422 + ETHERNET+USB FIELD BUS: PROFIBUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT SXGA 1280X1024 PIXEL

MC321 ID.-NR. 824012-01 HEIDENHAIN HOST COMPUTER MC 321 DESIGN: COMPACT OPERATING PANEL MEMORY TYPE: SLOT FOR CFR MAIN COMPUTER TYPE: SINGLE PROCESSOR HOST COMPUTER CPU1: INTEL CELERON 1047 1.40 GHZ 2 CORES WORKING MEMORY OF CPU1: 2048 MB POSITION ENCODER: 4X1VPP/ENDAT TOOL TOUCH PROBE POWER SUPPLY: 24 V NC WITH INTEGRATED PLC DISPLAY 15.0-INCH DIAGONAL/RESOLUTION XGA 1024*768 PIXELS

MC420 ID.-NR. 629971-01 HEIDENHAIN HOST COMPUTER MC 420, CPU1 INTEL CELERON 400 MHZ, WORKING MEMORY OF CPU1 512 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE RS232 + RS422 + ETHERNET+USB, FIELD BUS PROFIBUS WITH INTEGRATED PLC, INTERFACE FOR COLOR DISPLAY TFT SXGA 1280X1024 PIXEL

CNC1190 HEIDENHAIN / GRUNDIG STEUERUNG MODULAR / ANALOG  ID.-NR.31875101

SE 540 ID.-NR. 626001-01 HEIDENHAIN TRANSMITTER/RECEIVER UNIT (IR: TS) ELECTRICAL CONNECTION: FLANGE SOCKET M9, MALE, 8-PIN

SE 540 ID.-NR. 626001-02 HEIDENHAIN TRANSMITTER/RECEIVER UNIT

SE 540 ID.-NR. 733185-02 HEIDENHAIN TRANSMITTER/RECEIVER UNIT FOR TOUCH PROBES (IR: TS) ELECTRICAL CONNECTION FLANGE SOCKET M9, MALE, 8-PIN

LC 481 ML 1140 ID.-NR. 337461-31 HEIDENHAIN ABSOLUTE SEALED LINEAR ENCODER WITH SMALL CROSS SECTION FOR ABSOLUTE POSITION CAPTURE WITH ENDAT INTERFACE MEASURING LENGTH 1140 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE MOUNTING SPAR, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), ELECTRICAL CONNECTION SEPARATE ADAPTER CABLE

MC422B ID.-NR. 387189-01 HEIDENHAIN HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU1: 256 MB POSITION ENCODER: ANALOG INPUTS: 3XANALOG ± 10V/3XPT100 DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB, WITH INTEGRATES PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024 X 768 PIXEL

LS 187C ML 1740 ID.-NR. 526974-17 HEIDENHAIN INCREMENTAL SEALED LINEAR ENCODER WITH LARGE CROSS SECTION, MEASURING LENGTH 1740 MM, ACCURACY GRADE ± 5.0 µM, FASTENING TYPE SCREW-ON STRIP INTEGRATED, OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK POSITION DISTANCE-CODED REFERENCE MARKS WITH NOMINAL INCREMENT 1000 X GRATING PERIOD, FURTHER REFERENCE MARKS NONE, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 14-PIN

HR 336D ID.-NR. 285378-31 HEIDENHAIN HAND WHEEL / FURTURA / TNC

HR 336E ID.-NR. 285378-42 HEIDENHAIN ELECTRONIC HANDWHEEL PORTABLE WITH MEMBRANE KEYBOARD BUTTONS FOR 5-AXIS WITH MOVING DIRECTION, TWO BUTTONS WITH SPECIAL FUNCTIONS TWO PERMISSIVE BUTTON (24V-) EMERGENCY STOP PUSH BUTTON (24V-) WITH HOLDER

HR 250 ID.-NR. 245762-01 HEIDENHAIN ELECTRONIC HANDWHEEL IMPACT RESISTANT HOUSING WITH SPIRAL CABLE

ADAPTERPLATINE ID.-NR. 316786-02 HEIDENHAIN ADAPTER BOARD
