CNC Controls

HR 332 ID.-NR. 266064-31 HEIDENHAIN HANDWHEEL

MC422 ID.-NR. 359630-01 HEIDENHAIN HOST COMPUTER MC 422 WITH INTEGRATED HARD DISK HOST COMPUTER CPU1: AMD K6/2 266MHZ WORKING MEMORY OF CPU1: 64 MB POSITION ENCODER: ANALOG INPUTS: 3XANALOG ± 10V/3XPT100 DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

MC422B ID.-NR. 387173-01 HEIDENHAIN HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU1: 256 MB ANALOG INPUTS: 3XANALOG ± 10V/3XPT100 DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

TNC150 P ID.-NR. 222128-01 HEIDENHAIN COMPACT CONTOURING CONTROL

LE426M ID.-NR. 344962-19 HEIDENHAIN LOGIC UNIT

VRZ300.136 HEIDENHAIN COUNTER

CC424 ID.-NR. 366377-02 HEIDENHAIN CONTROL UNIT CC 424 NUMBER OF CONTROL LOOPS DEPENDS ON THE SIK USED ROTATIONAL SPEED ENCODERS: POWER SUPPLY: 5V+-1% COVER INCLUDED FOR THE RIBBON CABLES

LE426PB ID.-NR. 326416-59 HEIDENHAIN LOGIC UNIT

TNC155 Q ID.-NR. 235568-99 HEIDENHAIN COMPACT CONTOURING CONTROL

TNC155 Q ID.-NR. 240102-99 HEIDENHAIN COMPACT CONTOURING CONTROL

TNC135 ST ID.-NR. 217004-60 HEIDENHAIN COMPACT CONTROLLER

TNC135 ST ID.-NR. 217004-82 HEIDENHAIN COMPACT CONTROLLER

LE415A ID.-NR. 264429-99 HEIDENHAIN LOGIC UNIT FOR TNC 415 CONTOURING CONTROL FOR 5 AXES WITH SPINDLE ORIENTATION 5 SINUSOIDAL INPUTS AND 1 SQARE-WAVE INPUT INTEGRATED PLC MEMORY FOR 12000 PROGRAM BLOCKS

LE415B ID.-NR. 267223-29 HEIDENHAIN LOGIC UNIT

LE 426 CB ID.-NR. 312002-49 HEIDENHAIN LOGIC UNIT AXES: 5 PLUS SPINDLE PROGRAM MEMORY: HARD DISK WITH 1,5 GBYTE INTERPOLATION: IN 5 AXES (LINEAR INTERPOLATION) INTEGRATED PLC: MEMORY FOR APPROX. 18000 DEMANDS (ON HARD DISK) 56 INPUTS, 31 PUTPUTS MEASURING SYS.INPUTS: 5 X 11UASS (AXES/POSITION) 1 VSS (SPINDLE/POSITION

LE426PA ID.-NR. 286839-39 HEIDENHAIN LOGIC UNIT

LE355Q ID.-NR. 254582-99 HEIDENHAIN LOGIC UNIT LE355Q

LE355Q ID.-NR. 242407-99 HEIDENHAIN LOGIC UNIT LE 355Q - TNC 355M.PL.5ACHS

LE407A ID.-NR. 264430-29 HEIDENHAIN LOGIC UNIT FOR TNC 407A CONTOURING CONTROL FOR 5 AXES WITH SPINDLE ORIENTATION 4 SINUSOIDAL INPUTS AND 2 SQARE-WAVE INPUTS INTEGRATED PLC MEMORY FOR 6000 PROGRAM BLOCKS

LE407A ID.-NR. 255444-99 HEIDENHAIN LOGIC UNIT LE 407A - TNC 407

LE407A ID.-NR. 264430-99 HEIDENHAIN LOGIC UNIT

LE422M ID.-NR. 344494-29 HEIDENHAIN LOGIC UNIT

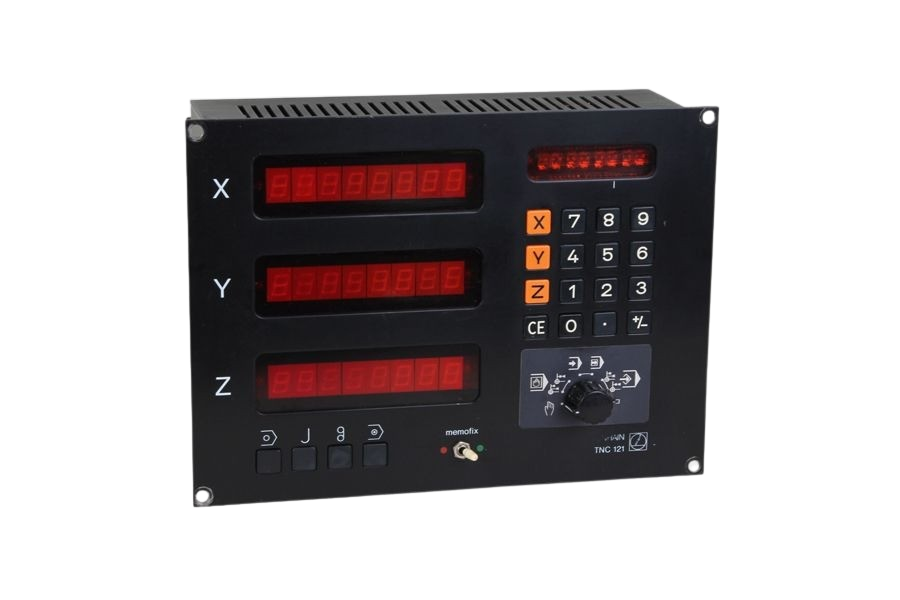

TNC121 C ID.-NR. 213706-01 HEIDENHAIN COMPACT CONTROLLER

PLD-H 16-08-00 ID.-NR. 594243-02 HEIDENHAIN INPUT/OUTPUT MODULE PLD-H 16-08-00 NUMBER OF INPUTS PER MODULE: 16 TYPE OF OUTPUTS: DIGITAL 24V NUMBER OF OUTPUTS PER MODUL: 08 TYPE OF OUTPUTS: DIGITAL 24V/2A NUMBER OF SPECIAL FUNCTION PER MODUL: 00

PLD-H 08-16-00 ID.-NR. 650891-02 HEIDENHAIN INPUT/OUPUT MODULE PLD-H 08-16-00 NUMBER OF INPUTS PER MODULE: 08 TYPE OF OUTPUTS: DIGITAL 24V NUMBER OF OUTPUTS PER MODUL: 16 TYPE OF OUTPUTS: DIGITAL 24V/2A NUMBER OF SPECIAL FUNCTION PER MODUL: 00

MB 620 ID.-NR. 617973-02 HEIDENHAIN MACHINE OPERATING PANEL MB 620

LE410M ID.-NR. 329657-31 HEIDENHAIN LOGIC UNIT 410M FOR CONNECTING BC 120 4 AXES AND SPINDLE INTEGRAL DRIVE CONTROL 5 INPUTS FOR POSITION ENCODERS 1 VPP OR 11 UAPP 5 INPUTS FOR SHAFT SPEED ENCODERS 1 VPP INTEGRAL PLC

HR 410 ID.-NR. 296469-33 HEIDENHAIN PORTABLE ELECTRONIC HANDWHEEL

HR 410 ID.-NR. 296469-44 HEIDENHAIN PORTABLE ELECTRONIC HANDWHEEL

HR 410 ID.-NR. 296469-43 HEIDENHAIN PORTABLE ELECTRONIC HANDWHEEL TWO PERMISSIVE BUTTONS (24V-) EMERGENCY STOP KEY (24V-)

TNC135 S ID.NR. 212281-27 HEIDENHAIN COMPACT CONTROLLER

MC 422C ID.-NR. 587934-01 HEIDENHAIN  HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU1: 512 MB POSITION ENCODER: ANALOG INPUTS: 3XANALOG ± 10V/3XPT100 DATA INTERFACE: RS232 + RS422 + ETHERNET+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

HR 420 ID.-NR. 512367-01 HEIDENHAIN PORTABLE ELECRONIC HANWHEEL

UVR 130D, ID.-NR. 728248-01 HEIDENHAIN UVR 130D INVERTER-POWER SUPPLY REGENERATIVE WITH DIAGNOSTIC FUNCTIONS AND ELECTRONIC ID LABLE RATED POWER: 30 KW, MODULBREITE: 150,00 MM

LE430M ID.NR. 344961-19 HEIDENHAIN LOGIC UNIT

TNC151 A ID.-NR. 229134-99 HEIDENHAIN COMPACT CONTROLLER

TNC155 WR ID.-NR. 240920-98 HEIDENHAIN COMPACT CONTOURING CONTROL

CC422 ID.-NR. 364276-01 HEIDENHAIN CONTROL UNIT CC 422 NUMBER OF CONTROL LOOPS DEPENDS ON THE SIK USED ROTATIONAL SPEED ENCODERS: POWER SUPPLY: 5V+-1% INTEGRATED OPERATOR SAFETY SYSTEM COVER INCLUDED FOR THE RIBBON CABLES

CC422 ID.-NR. 359651-01 HEIDENHAIN CONTROL UNIT CC 422 NUMBER OF CONTROL LOOPS DEPENDS ON THE SIK USED ROTATIONAL SPEED ENCODERS: POWER SUPPLY: 5V+-1% COVER INCLUDED FOR THE RIBBON CABLES

MC 422C ID.NR. 629979-01 HEIDENHAIN HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ WORKING MEMORY OF CPU1: 512 MB ANALOG INPUTS: 3XANALOG ± 10V/3XPT100 DATA INTERFACE: RS232 + RS422 + ETHERNET+USB FIELD BUS: PROFIBUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT SXGA 1280X1024 PIXEL

HR 410 ID.-NR. 296469-54 HEIDENHAIN PORTABLE ELECTRONIC HANDWHEEL

EXE602B ID.-NR. 223185-05 HEIDENHAIN INTERPOLATION AND DIGITIZING ELECTRONICS FOR ENCODERS

MC420 ID.-NR. 629967-01 HEIDENHAIN HOST COMPUTER MC 420 HOST COMPUTER CPU1: INTEL CELERON 400 MHZ WORKING MEMORY OF CPU1: 512 MB POSITION ENCODER: ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100 DATA INTERFACE: RS232 + RS422 + ETHERNET+USB FIELD BUS: PROFIBUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT SXGA 1280X1024 PIXEL

MC420 ID.-NR. 629958-01 HEIDENHAIN HOST COMPUTER CPU1: INTEL CELERON 400 MHZ WORKING MEMORY OF CPU1: 512 MB POSITION ENCODER: ANALOG INPUTS: 3X ANALOG ±10 V / 3X PT100 DATA INTERFACE: RS232 + RS422 + ETHERNET+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT SXGA 1280X1024 PIXEL

MC6541 ID.-NR. 1081185-01 HEIDENHAIN HOST COMPUTER CPU1: INTEL CORE I7-3 1,70 GHZ 2 CORES WORKING MEMORY OF CPU1: 4096 MB DATA INTERFACE: RS232 + SER.PORT + 2XETHERNET + 4XUSB + EXT01 + PCIE FIELD BUS INTERFACE 2: HSCI - BUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TYPE OF DISPLAY: HEIDENHAIN DISPLAY LINK

MC6341 ID.-NR. 735873-01 HEIDENHAIN HOST COMPUTER CPU1: INTEL CORE2DUO 2.26 GHZ WORKING MEMORY OF CPU1: 2048 MB DATA INTERFACE: RS232 + SER.PORT + 2XETHERNET + 4XUSB + EXT01 FIELD BUS: PROFIBUS FIELD BUS INTERFACE 2: HSCI - BUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TYPE OF DISPLAY: HEIDENHAIN DISPLAY LINK

MC6241 ID.-NR. 653220-03 HEIDENHAIN HOST COMPUTER CPU1: INTEL PENTIUM M 1.8 GHZ WORKING MEMORY OF CPU1: 1024 MB DATA INTERFACE: RS232 + SER.PORT + 2XETHERNET + 2XUSB + EXT01 FIELD BUS: PROFIBUS FIELD BUS INTERFACE 2: HSCI - BUS WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TYPE OF DISPLAY: HEIDENHAIN DISPLAY LINK

HR 410 ID.-NR. 296469-03 HEIDENHAIN ELECTRONIC HAND WHEEL

CC6108 ID.-NR. 662637-02 HEIDENHAIN CONTROL UNIT CC 6108 NUMBER OF CONTROL LOOPS DEPENDS ON THE SIK USED POSITION ENCODER: 8X1VPP/ENDAT, ROTATIONAL SPEED ENCODERS: 8X1VPP/ENDAT, FIELD BUS: HSCI - BUS, COVER INCLUDED FOR THE RIBBON CABLES

CC6110 ID.-NR. 662638-02 HEIDENHAIN CONTROL UNIT CC 610 NUMBER OF CONTROL LOOPS DEPENDS ON THE SIK USED POSITION ENCODER: 10X1VPP/ENDAT ROTATIONAL SPEED ENCODERS: 10X1VPP/ENDAT FIELD BUS: HSCI - BUS COVER INCLUDED FOR THE RIBBON CABLES
