CNC Controls

LE426CA ID.-NR. 293423-39 HEIDENHAIN LOGIC UNIT INTEGRAL LE 426CA INTEGRAL 170 MB HARD DISK 5 AXES AND ORIENTED SPINDLE STOP 3 ANALOG INPUTS +/- 10 V AND 3 INPUTS FOR TEMPARATURE SENSORS 2 INPUTS FOR TS 120/520 /TT 110 3D TOUCH PROBES OPTION ADDITIONAL INPUT FOR MEASURING 3D TOUCH PROBE

LAUFWERK ID.-NR. 289135-58 HEIDENHAIN LAUFWERK MIT BUCHSENLEISTE NICHT FORMATIERT

UVR170D 125 ID.-NR. 807429-01 HEIDENHAIN INVERTER-POWER SUPPLY REGENERATIVE WITH DIAGNOSTIC FUNCTIONS AND ELECTRONIC ID LABLE RATED POWER 125 KW DC-LINK VOLTAGE 650 V TYPE OF HEAT REMOVAL EXTERNALLY AIR-COOLED MODULE WIDTH 370.00 MM

TNC135 ST ID.-NR. 217004-81 HEIDENHAIN COMPACT CONTROLLER

HR 550 FS ID.-NR. 1200495-01 HEIDENHAIN PORTABLE ELECTRONIC RADIO HANDWHEEL, CERTIFIED FOR FUNCTIONAL SAFETY, WITH DISPLAY, TWO PERMISSIVE BUTTONS (24 VDC), EMERGENCY STOP BUTTON (24 VDC)

TNC151 Q ID.-NR. 240931-99 HEIDENHAIN COMPACT CONTOURING CONTROL

LE422M ID.-NR. 344493-29 HEIDENHAIN LOGIC UNIT

MC422B ID.-NR. 387192-01 HEIDENHAIN HOST COMPUTER MC 422B WITH SECOND PROCESSOR HOST COMPUTER CPU1: INTEL PENTIUM III 800 MHZ, WORKING MEMORY OF CPU1: 512 MB, DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL INTEGRATED OPERATOR SAFETY SYSTEM

HR 550 FS ID.-NR. 606622-30 HEIDENHAIN PORTABLE ELECTRONIC HANDWHEEL

TNC121 ID.-NR. 213706-11 HEIDENHAIN COMPACT CONTROLLER

TNC 310 ID.-NR. 519021-01 HEIDENHAIN COMPACT CONTOURING CONTROL

LE415BR ID.-NR. 271221-29 HEIDENHAIN LOGIC UNIT

HR 510 ID.-NR. 1184691-01 HEIDENHAIN HAND WHEEL SPINDLE LEFT, SPINDLE STOP, SPINDLE RIGHT, PERMISSIVE BUTTONS 2XNO/2XNO, EMERGENCY STOP 1, NUMBER OF MAGNETIC HOLDING PADS 2, NUMBER OF STATUS LEDS 12, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 13-PIN, WITH BAYONETT SOCKET

LE415E-TNC 415 ID.-NR. 264429-98 HEIDENHAIN LOGIC UNIT FOR TNC 415 R EXPORT VERSION R CONTOURING CONTROL FOR 5 AXES, 5 SINUSOIDAL INPUTS AND 1 SQARE-WAVE INPUT, INTEGRATED PLC, MEMORY FOR 12000 PROGRAM BLOCKS

LE426PB ID.-NR. 326421-49 HEIDENHAIN LOGIC UNIT

TNC135S ID.-NR. 212281-23 HEIDENHAIN COMPACT CONTROLLER

PLD-H 08-04-00 FS ID.-NR. 598905-02 HEIDENHAIN INPUT/OUPUT MODULE PLD-H 08-04-00 FS NUMBER OF INPUTS PER MODULE: 08 TYPE OF OUTPUTS: DIGITAL 24V NUMBER OF OUTPUTS PER MODUL: 04 TYPE OF OUTPUTS: DIGITAL 24V/2A NUMBER OF SPECIAL FUNCTION PER MODUL: 00

PLD-H 04-08-00 FS ID.-NR. 727219-02 HEIDENHAIN INPUT/OUPUT MODULE PLD-H 04-08-00 FS NUMBER OF INPUTS PER MODULE: 04 TYPE OF OUTPUTS: DIGITAL 24V NUMBER OF OUTPUTS PER MODUL: 08 TYPE OF OUTPUTS: DIGITAL 24V/2A NUMBER OF SPECIAL FUNCTION PER MODUL: 00

MANUAL PLUS CNC PILOT 3110 ID.-NR. 345427-01 HEIDENHAIN MANUAL PLUS CNC PILOT 3110

LE410MA ID.-NR. 319435-31 HEIDENHAIN LOGIC UNIT

LE426CF ID.-NR. 312002-48 HEIDENHAIN LOGIC UNIT

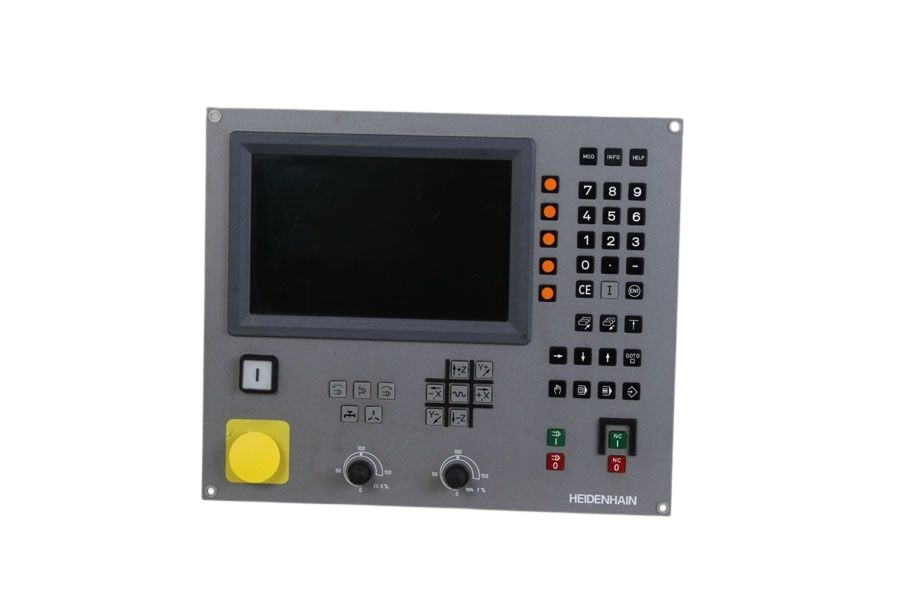

TNC124 ID.-NR. 289353-03 HEIDENHAIN STRAIGHT CUT CONTROL FOR MILLING MACHINES AND DRILLING MACHINES

TNC 123 ID.-NR. 278525-01 HEIDENHAIN STRAIGHT CUT CONTROL

MC7222 ID.-NR. 806869-01 HEIDENHAIN HOST COMPUTER CPU1: INTEL PENTIUM M 1.8 GHZ WORKING MEMORY OF CPU1: 1024 MB DATA INTERFACE: RS232 + SER.PORT + 2XETHERNET + 2XUSB + EXT01 + USB EXTERN FIELD BUS INTERFACE 2: HSCI-BUS WITH INTEGRATED PLC DISPLAY 15.0-INCH DIAGONAL / RESOLUTION XGA 1024 X 768 PIXELS

MC6110 ID.-Nr. 594038-01 HEIDENHAIN MAIN COMPUTER UNIT MC 6110 WORK COMPUTER CPU1: INTEL Celeron 400 MHz, MEMORY CPU1: 512 MB DATA INTERFACE: RS232 + SER. PORT + 1XETHERNET + 2XUSB + EXT01 + USB EXTERNAL, FIELDBUS INTERFACE 2: HSCI - BUS WITH INTEGRATED PLC SCREEN 15.0 INCH DIAGONAL/RESOLUTION XGA 1024*768 PIXELS

LE422M ID.-NR. 344957-ZY HEIDENHAIN LOGIC UNIT LE 422M CRT 11A + S

TNC151BR ID.-NR. 240929-99 HEIDENHAIN CONTOURING CONTROL

HR 336C ID.-NR. 285378-23 HEIDENHAIN HANDWHEEL

LE430M ID.NR. 344961-39 HEIDENHAIN LOGIC UNIT

LE422M ID.-NR. 343750-19 HEIDENHAIN LOGIC UNIT LE 422M

LE430 M ID.-NR. 344960-19 HEIDENHAIN LOGIC UNIT LE 430M BC120 6A

LE 360C ID.-NR. 270642-44 HEIDENHAIN LOGIC UNIT FOR TNC 335C/360C R FOR CONNECTION OF A SCREEN BF110 4 SINUSOIDAL INPUTS AND 1 SQARE-WAVE INPUT FOR SPINDLE INTEGRATED PLC MEMORY FOR 4000 PROGRAM BLOCKS

LE410PA ID.-NR. 325814-4HEIDENHAIN LOGIC UNIT

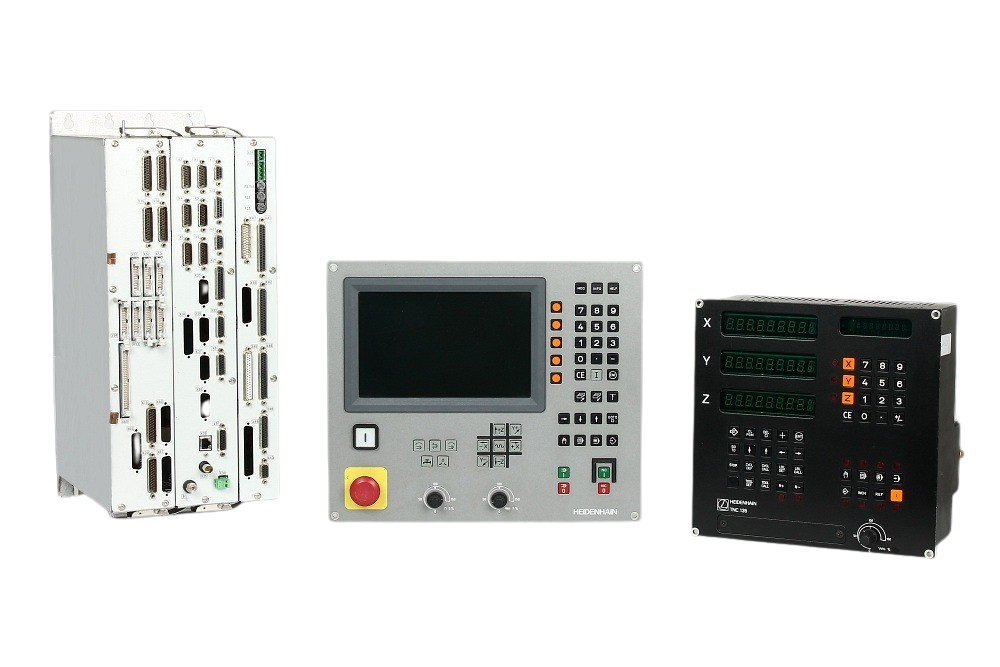

LE355C ID.-NR. 246605-ZY HEIDENHAIN LOGIC UNIT LE 355 C

LE411M ID.-NR. 341465-29 HEIDENHAIN LOGIC UNIT

CFR MP 620 ID.-NR. 1075055-51 HEIDENHAIN CFR COMPACT FLASH STEUERUNG: MP 620 NC-SOFTWARE: 548431 02 SP05, SPEICHERKAPAZITÄT: 8 GB

LE410M ID.-NR. 329658-31 HEIDENHAIN LOGIC UNIT LE 410M

LE 310M PS ID.-NR. 339133-39 HEIDENHAIN LOGIC UNIT

LE410CA BC120 ID.-NR. 296957-49 HEIDENHAIN LOGIC

MB 520 ID.-NR. 628040-01 HEIDENHAIN MACHINE OPERATING PANEL MB520 NO. OF SINGLE-CHANNEL SHORT-STROKE KEYS 30 SPECIAL CHARACTERISTICS, KEY CLIP NUMBER OF INPUTS PER DEVICE 02 NUMBER OF OUTPUTS PER DEVICE 09 MACHINE KEYS WITH EMERGENCY STOP AND CONTROL VOLTAGE ON DEVICE OPTIONS 2 FREE HOLES FOR ADDITONAL KEYS OR DETACHABLE-KEY SWITCH

IK 121A ID.-NR. 290155-01 HEIDENHAIN PC COUNTER CARD FOR IBM-COMPATIBLE PC WITH AT/ISA-BUS 2 ENCODER INPUTS FOR SINUSOIDAL CURRENT SIGNALS (11 UASS), INTERPOLATION 1024-FOLD, DATA REQUEST SOFTWARE POLLING, EXTERNAL LATCH-SIGNALS, INTERNAL TIMER, SIZE SHORT 16-BIT SLOT

IPC 6110 ID.-NR. 597968-02 HEIDENHAIN INDUSTRIAL-PC, DESIGN COMPACT OPERATING PANEL, MEMORY TYPE SLOT FOR CFR, DISPLAY 15.0-INCH DIAGONAL / RESOLUTION XGA 1024 X 768 PIXELS,  HOST COMPUTER C 1 INTEL CELERON 400 MHZ, WORKING MEMORY OF CPU1 512 MB, DATA INTERFACE RS232 + SER.PORT + 1XETHERNET + 2XUSB + USB EXTERN

LE 355W ID.-NR. 254582-98 HEIDENHAIN LOGIC UNIT FOR TNC 355W

LE426PA ID.-NR. 297740-49 HEIDENHAIN LOGIC UNIT

353904-01 HEIDENHAIN SOFTWARE OPTION 1: "ADDITIONAL AXIS 2"   ADDITIONAL CONTROL LOOP 2 ACTIVATED BY CODE NUMBER   OPTION AVAILABLE FOR: TNC7 AS OF NC SOFTWARE 81762X-16, TNC 640, TNC 620, TNC 320, TNC 128, ITNC 530, CNC PILOT 640, MANUALPLUS 620

UVR 360 ID.-NR. 1118870-03 HEIDENHAIN INVERTER-POWER SUPPLY REGENERATIVE FOR USE WITH HEIDENHAIN INVERTER SYSTEMS, RATED POWER 90 KW, DC-LINK VOLTAGE DC 650 V / 720 V, TYPE OF HEAT REMOVAL INTERNAL, MODULE WIDTH 250.00 MM

894423-01 HEIDENHAIN REMOTE DESKTOP MANAGER (OPTION 133) HEIDENHAIN REMOTE DESKTOP MANAGER (OPTION 133) USE WINDOWS APPLICATIONS ON YOUR CONTROL (TNC7, TNC 640, TNC 620, TNC 320) REMOTE DESKTOP MANAGER INCORPORATES A WINDOWS PC INTO THE INTERFACE OF YOUR TNC CONTROL. CONNECTED PCS CAN BE CONVENIENTLY OPERATED FROM YOUR TNC, WHERE YOU CAN SWITCH BETWEEN YOUR PC SCREEN AND CONTROL INTERFACE AT THE PUSH OF A BUTTON.   BENEFITS   EASILY SWITCH BETWEEN YOUR PC AND CONTROL ACCESS OPERATING DATA AND JOB MANAGEMENT SYSTEMS VIEW, EDIT AND PRESENT DATA IN NO TIME SEND AND RECEIVE E-MAILS   CONTROLS   TNC7: NC-SOFTWARE 81762X-16 OR LATER TNC 640: NC-SOFTWARE 34059X-01OR LATER TNC 620: NC-SOFTWARE 81760X-01OR LATER TNC 320: NC-SOFTWARE 771851-04OR LATER

679678-01 HEIDENHAIN 3D-TOOLCOMP (OPTION 92) 3D RADIUS COMPENSATION BASED ON ANGLE OF INCIDENCE (TNC7, TNC 640) THE 3D-TOOLCOMP OPTION DELIVERS POWERFUL, THREE-DIMENSIONAL TOOL-RADIUS COMPENSATION. ANGLE-DEPENDENT DELTA VALUES CAN BE DEFINED IN A COMPENSATION TABLE. THESE VALUES DESCRIBE THE TOOL’S DEVIATION FROM AN IDEAL CIRCULAR SHAPE. THE TNC THEN COMPENSATES FOR THE RADIUS THAT IS DEFINED FOR WHEREVER THE TOOL IS CURRENTLY TOUCHING THE WORKPIECE.   BENEFITS   MEASURE 3D SHAPES   COMPENSATE FOR TOOL-SHAPE ERRORS   CONTROLS   TNC7: NC-SOFTWARE 81762X-16 OR LATER TNC 640: NC-SOFTWARE 34059X-07 OR LATER

579648-01 HEIDENHAIN AFC: ADAPTIVE FEED CONTROL (OPTION 45) ADAPTIVE FEED CONTROL (TNC7, TNC 640) ADAPTIVE FEED CONTROL (AFC) AUTOMATICALLY REGULATES THE CONTOURING FEED RATE OF THE TNC BASED ON THE CURRENT SPINDLE PERFORMANCE AND OTHER PROCESS DATA. PRIOR TO MACHINING, A TABLE LETS YOU DEFINE THE LIMITS WITHIN WHICH THE TNC CAN REGULATE THE FEED RATE IN CONTROL MODE.   BENEFITS   OPTIMIZE YOUR MACHINING TIME IMPLEMENT TOOL MONITORING GO EASY ON MACHINE PARTS   CONTROLS   TNC7: NC-SOFTWARE 81762X-16 OR LATER TNC 640: NC-SOFTWARE 34059X-02 OR LATER

353905-01 HEIDENHAIN SOFTWARE-OPTION 2: "ADDITIONAL AXIS 3"   ZUSÄTZLICHER REGELKREIS 3 FREISCHALTBAR ÜBER SCHLÜSSELZAHL   OPTION VERFÜGBAR FÜR: TNC7 AB NC-SOFTWARE 81762X-16, TNC 640, TNC 620, ITNC 530, CNC PILOT 640, MANUALPLUS 620
