UEC111 ID.-NR. 625777-02 HEIDENHAIN COMPACT INVERTER WITH INTEGRATED CONTROLER AND PLC IN- AND OUTPUTS RATED CURRENT 3.3 KHZ 2X 6A AXIS + 9A AXIS + 24A SPINDLE, MAX. CURRENT AT 3.3 KHZ 2X 12A AND 18A AND 36A, RATED POWER 14 KW, UNIT 110 W, TYPE OF HEAT REMOVAL INTERNAL, BRAKING RESISTOR INTERNAL, MODULE WIDTH 150.00 MM

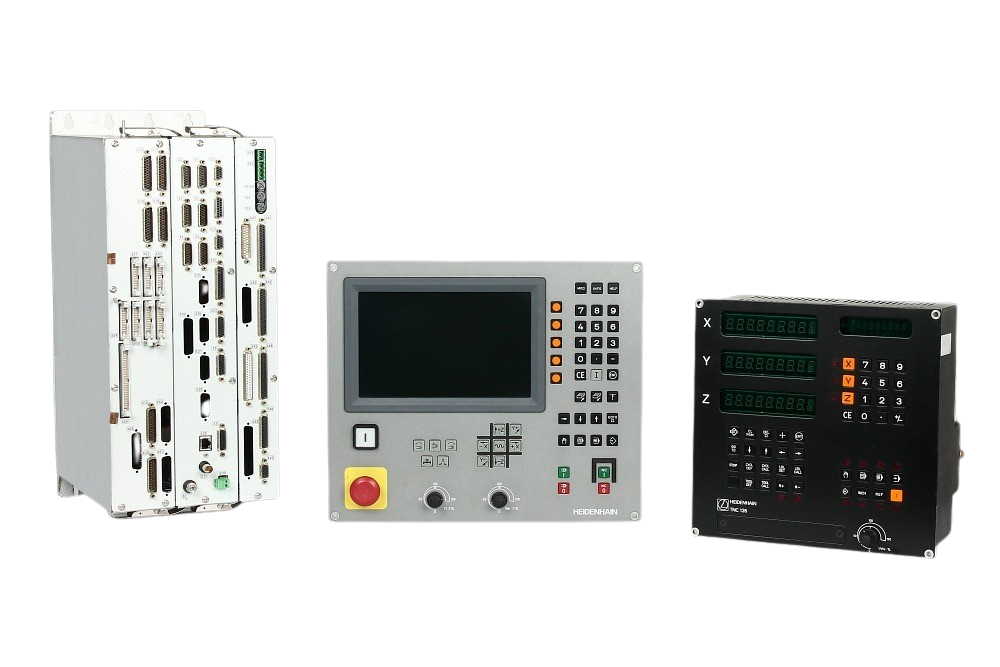

LE410CA ID.-NR. 296956-51 HEIDENHAIN LOGIC UNIT

LE410CA ID.-NR. 296956-59 HEIDENHAIN LOGIC UNIT

LE410CA ID.-NR. 296957-51 HEIDENHAIN LOGIC UNIT

LE410CA ID.-NR. 316734-41 HEIDENHAIN LOGIC UNIT

LE410CA ID.-NR. 316734-51 HEIDENHAIN LOGIC UNIT

LE410M ID.-NR. 349858-31 HEIDENHAIN LOGIC UNIT

LE410M ID.-NR. 339135-31 HEIDENHAIN LOGIC UNIT

LE410M ID.-NR. 324643-21 HEIDENHAIN LOGIC UNIT

LE410MA ID.-NR. 329669-31 HEIDENHAIN LOGIC UNIT

VS 101 6,0 ID.-NR. 1137063-01 HEIDENHAIN CAMERA SYSTEM VERSION WITH PROTECTION MECHANISM, ELECTRICAL CONNECTION FLANGE SOCKET M12, MALE, 12-PIN, CAMERA INTERFACE GIGABIT ETHERNET, ELECTRICAL CONNECTION 2 FLANGE SOCKET M12, MALE, 8-PIN

LE410MA ID.-NR. 313491-11 HEIDENHAIN LOGIC UNIT

LE416D ID.-NR. 336486-39 HEIDENHAIN LOGIC UNIT

LE416D ID.-NR. 336487-39 HEIDENHAIN LOGIC UNIT

LE426CB ID.-NR. 313525-59 HEIDENHAIN LOGIC UNIT

TE 425C ID.-NR. 317351-01 HEIDENHAIN KEYBOARD VERSION WITH HR 130

LE426CB ID.-NR. 313524-59 HEIDENHAIN LOGIC UNIT

LE426CB ID.-NR. 313528-59 HEIDENHAIN LOGIC UNIT

LE426CB ID.-NR. 312007-29 HEIDENHAIN LOGIC UNIT

LE426CE ID.-NR. 293423-38 HEIDENHAIN LOGIC UNIT EXPORT VERSION 5 AXES AND ORIENTED SPINDLE STOP 5 INPUTS 11 UAPP AND 1 INPUT 1 V PP (SPINDLE) 3 ANALOG INPUTS +/- 10 V AND 3 INPUTS FOR TEMPA- RATURE SENSORS 2

LE426CF ID.-NR. 312001-48 HEIDENHAIN LOGIC UNIT

LE426CF ID.-NR. 326415-58 HEIDENHAIN LOGIC UNIT EXPORT VERSION INPUTS FOR POSITION 50 KHZ, AXES 5 + SPINDLE, MEMORY HARD DISK WITH 1,5 GB, INTERPOLATION 4 FROM 5 AXES (LIENAR INTERPOLATION ), INTEGRATED PLC MEMORY FOR ABOUT 18000 ORDERS (ON HARD DISK ) 56 INPUTS, 31 OUTPUTS, MEASURING SYSTEM INPUTS 1 VPP

LE426M ID.-NR. 325807-39 HEIDENHAIN LOGIC UNIT

LE426ME ID.-NR. 344958-18 HEIDENHAIN LOGIC UNIT

LE426ME ID.-NR. 344962-18 HEIDENHAIN LOGIC UNIT

LE426PB ID.-NR. 317349-59 HEIDENHAIN LOGIC UNIT

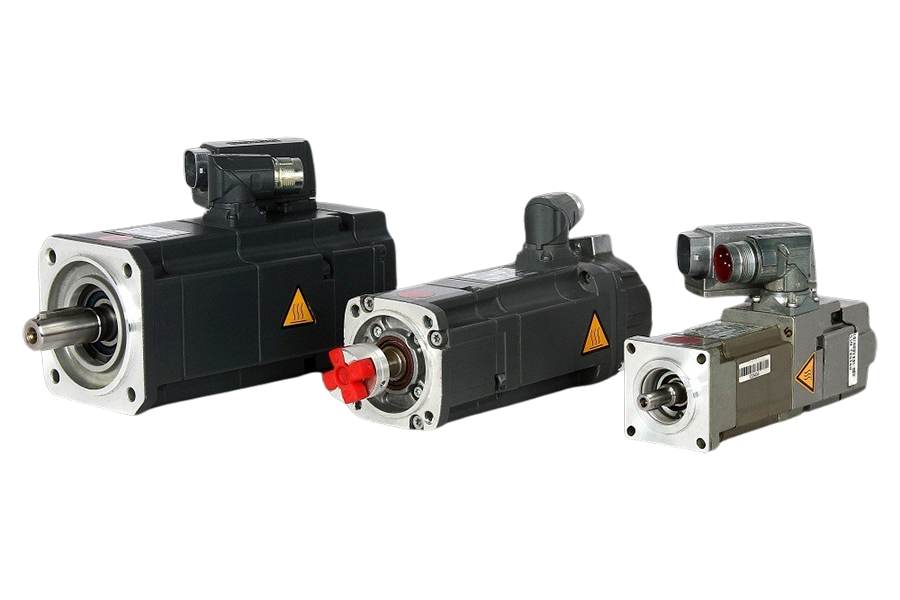

1FK7063 ID.-NR. 539966-04 HEIDENHAIN 1FK7063 SYNCHRONOUS-FEED MOTOR WITH HOLDING BRAKE (SPRING FORCE), FORM OF SHAFT END: WITHOUT KEY

VRZ406 ID.-NR. 234518-01 HEIDENHAIN VRZ, DATA OUTPUT V24/RS-232-C, DIFFERENCE/SUM-DISPLAY, FOR CONNECTION OF 2 ENCODERS

VRZ404 ID.-NR. 230025-01 HEIDENHAIN VOR-/RUECKWAERTSZAEHLER, DATENAUSGANG IEEE 488/IEC 625, MINIMUM/MAXIMUM-SPEICHER, KLASSIEREINRICHTUNG, ANZEIGESTOP

QSY 116J ID.-NR. 339878-1D HEIDENHAIN SYNCHRONOUS-FEED MOTOR WITH HOLDING BRAKE (SPRING FORCE), FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 8.40 NM, MAXIMUM TORQUE 41.0 NM, STANDSTILL TORQUE 10.00 NM, STALL CURRENT 5.00 A, INTEGRATED ROTARY ENCODER ERN 1387 INCREMENTAL, TYPE MOTOR ENCODER, TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

UE 210B ID.-NR. 337042-01 HEIDENHAIN COMPACT INVERTER FOR 3-AXES + SPINDLE OR 4-AXES, RATED CURRENT 5 KHZ 2 X 7.5A-AXES AND 20A-SPINDLE OR 15A-AXIS, MAX. CURRENT AT 5 KHZ 3X 15A AND 30A, RATED POWER 15 KW, TYPE OF HEAT REMOVAL INTERNAL, BRAKING RESISTOR INTERNAL, MODULE WIDTH 200.00 MM

QSY 155C ID.-NR. 1378140-03 HEIDENHAIN SYNCHRONOUS-FEED MOTOR, FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 12.50 NM, MAXIMUM TORQUE 52.0 NM, STANDSTILL TORQUE 17.70 NM, STALL CURRENT 11.80 A, INTEGRATED ROTARY ENCODER ERN 1387, INCREMENTAL TYPE MOTOR ENCODER, TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

VERBINDUNGSKABEL ID.-NR. 1363327-10 HEIDENHAIN CONNECTING CABLE CONNECTOR, FEMALE 5-PIN WITH GROUNDING CONDUCTOR CABLE CUT TO LENGTH, CABLE TYPE PUR SPECIAL DIAMETER, COLOR ORANGE, NUMBER OF SHIELDS 2, CABLE LENGTH 10.00 M

TE 360 ID.-NR. 1280184-02 HEIDENHAIN KEYBOARD TE 360 FIELD BUS HSCI-BUS WITH GBIT ETHERNET SYSTEM OF INPUTS/OUTPUTS CHANNEL-A 02-00 CHANNEL-A 02-00 08 NUMBER OF OUTPUTS PER DEVICE: 08 SPECIAL CHARACTERISTICS,KEY: POINTING DEVICES TRACKBALL MACHINE KEYS MACHINE KEYS DATA INTERFACE USB + HANDWHEEL INTERFACE

QSY 155C ID.-NR. 365308-13 SIEMENS HEIDENHAIN SYNCHRONOUS-FEED MOTOR FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 16.00 NM, MAXIMUM TORQUE 52.0 NM, STANDSTILL TORQUE 17.70 NM, STALL CURRENT 8.50 A

QSY 155C ID.-NR. 365308-1C HEIDENHAIN SYNCHRONOUS-FEED MOTOR FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 16.00 NM, MAXIMUM TORQUE 52.0 NM, STANDSTILL TORQUE 17.70 NM, STALL CURRENT 8.50 A, INTEGRATED ROTARY ENCODER ERN 1387 INCREMENTAL

UEC111 ID.-NR. 1081002-01 HEIDENHAIN COMPACT INVERTER WITH INTEGRATED CONTROLER AND PLC IN- AND OUTPUTS, RATED CURRENT 3.3 KHZ 2X 6A AXIS + 9A AXIS + 24A SPINDLE, MAX. CURRENT AT 3.3 KHZ 2X 12A AND 18A AND 36A, RATED POWER 14 KW, POWER S6-40% 18 KW, TYPE OF HEAT REMOVAL INTERNAL, BRAKING RESISTOR INTERNAL, CONNECTION FOR HOLDING BRAKES WITH CONNECTION POSITION ENCODER, SPEED ENCODER INPUTS 4X1VPP/ENDAT, TOUCH PROBE INPUTS, WORKPIECE TOUCH PROBE + TOOL TOUCH PROBE, FIELD BUS HSCI-BUS, MODULE WIDTH 150.00 MM

TEILUNGSTROMMEL ERA 4400C ID.-NR. 532728-13 HEIDENHAIN SCALE DRUM FOR INCREMENTAL MODULAR ANGLE ENCODER WITHOUT INTEGRAL BEARING, LINE COUNT 10000, ACCURACY OF THE GRADUATION ± 3.0 '', GEOMETRY OF DRUM OUTSIDE Ø 127.64 MM, INSIDE Ø 80 MM, HOLE CIRCLE Ø 95 MM, 6 HOLES Ø 5.5 MM, WITH CENTERING COLLAR, REFERENCE MARK CODED REFERENCE MARKS, NOMINAL INCREMENT = 1000 GRATING PERIODS

TE 745 FS ID.-NR. 805482-22 HEIDENHAIN KEYBOARD TE 745 FS FIELD BUS HSCI-BUS, INPUTS/OUTPUTS CHANNEL-B 06-01, POINTING DEVICES TOUCHPAD, DEVICE OPTIONS 3 FREE HOLES, MACHINE KEYS WITH EMERGENCY STOP AND CONTROL VOLTAGE ON, DATA INTERFACE USB + HANDWHEEL INTERFACE

TE 535B ID.-NR. 525589-01 HEIDENHAIN KEYBOARD WITH ASCII KEYS FOR WINDOWS AND INTEGRATED TOUCH-PAD SMART.NC KEYS INTEGRATED MACHINE OPERATING KEYS WITH HR 130

LE422M ID.-NR. 343751-19 HEIDENHAIN LE 422M LOGIC UNIT CRT 9A + S

PLB 6206 ID.-NR. 630054-23 HEIDENHAIN SYSTEM MODULE, FIELD BUS HSCI-BUS, NUMBER OF SLOTS 6, SYSTEM OF INPUTS/OUTPUTS CHANNEL-A 14-10, TOUCH PROBE INPUTS WORKPIECE TOUCH PROBE + TOOL TOUCH PROBE, POWER SUPPLY 24 V NC/PLC

STEILKEGEL P81 SK 40 ID.-NR 1076557-01 HEIDENHAIN STEEP TAPER SHANK TAPER SHANKS FOR WORKPIECE TOUCH PROBE FOR SEPARATE ASSEMBLY, TOOL HOLDER P81 DIN 69871, SK-AD/B 40, M16, SHANK SWITCH

AUSGANGSKABEL ID.-NR. 1120948-01 HEIDENHAIN OUTPUT CABLE, CABLE TYPE 1 EPG Ø 3.7 MM, CABLE DESIGN 1 1X4X0.06 MM²+4X0.06 MM², CABLE LENGTH 0.30 M, ELECTRICAL CONNECTION 2 COMBO FEMALE HOUSING, 2-ROW, FEMALE, 12+4-PIN, ELECTRICAL CONNECTION 1 ANGLE FLANGE SOCKET, M23 SPEEDTEC, BLUE CHROMATED, BOLT CIRCLE DIAMETER 28 MM, WITH VIBRATION O-RING 17 X 1.5 MM, MALE, 9-PIN FOR HYPERTAC CONNECTOR WITH O-RING / FOR SPEEDTEC CONNECTOR, REMOVE O-RING

VERBINDUNGSKABEL ID.-NR. 340302-10 HEIDENHAIN CONNECTING CABLE FOR ENCODER CONNECTION, CABLE TYPE PUR Ø 8.0 MM, CABLE LENGTH 10.00 M, ENCODER SIDE CONNECTOR M23, FEMALE, 17-PIN, SIDE OF SUBSEQUENT ELECTRONIC COUPLING M23, MALE, 17-PIN

UV106 ID.-NR. 366572-11 HEIDENHAIN POWER SUPPLY UNIT UV 106 POWER SUPPLY 400 V +/- 10 % FOR SUPPLYING POWER TO THE MC 420 AND MC 422B - FOR ANALOG CONTROL - CONDITION S OF USE ITNC 530

HRA 110 ID.-NR. 261097-04 HEIDENHAIN HANDWHEEL ADAPTER HRA110 FOR INSTALLATION OF UP TO 3 HANDWHEELS CONNECTIONS FOR THREE HR 150 PANEL-MOUNTED HANDWHEELS CONNECTION FOR AXIS SELECTION SWITCH CONNECTION FOR SUBDIVISION FACTOR SWITCH VERSIO.

SIKITNC ID.-NR. 510085-01 HEIDENHAIN SIK NC SOFTWARE LICENSE FOR ITNC FOR INSTALLATION IN MAIN COMPUTER MC 4 ACTIVE CONTROL LOOPS INTERPOLATION WITH MORE THAN FOUR AXES

UE211D ID.-NR. 558303-01 HEIDENHAIN COMPACT INVERTER WITH DIAGNOSTIC FUNCTIONS AND ELECTRONIC ID LABLE, RATED CURRENT 5 KHZ 2 X 7.5A-AXES, 15A-AXIS AND 20A-SPINDLE OR 15A-AXIS, MAX. CURRENT AT 5 KHZ 2X 15A AND 2X 30A, RATED POWER 15 KW, POWER S6-40% 23 KW, TYPE OF HEAT REMOVAL INTERNAL, BRAKING RESISTOR INTERNAL, MODULE WIDTH 200.00 MM

UM315 ID.-NR. 1129203-04 HEIDENHAIN INVERTER AND POWER MODULE FOR USE WITH HEIDENHAIN INVERTER SYSTEMS IN MACHINE TOOLS DEVICE WITH DIFFERENT PERFORMANCE SPECIFICATIONS, NUMBER OF DRIVES 1, RATED CURRENT (FPWM = 5000 HZ) 130.0 A, MAX FULL LOAD CURRENT (FPWM = 5000 HZ) 260.0 A, DC-LINK VOLTAGE DC 650 V / 720 V, TYPE OF HEAT REMOVAL INTERNAL, MODULE WIDTH 150.00 MM
