RECHNERPLATINE ID.-NR. 317368-03 HEIDENHAIN PROCESSOR BOARD

REGLERPLATINE ID.-NR. 317781-04 HEIDENHAIN REGLERPLATINE FÜR LE4XX

REGLERPLATINE ID.-NR. 317781-07 HEIDENHAIN REGLERPLATINE 5-ACHSEN

REGLERPLATINE ID.-NR. 317781-08 HEIDENHAIN REGLERPLATINE 5-ACHSEN

RECHNERPLATINE ID.-NR. 317920-02 HEIDENHAIN PROCESSOR BOARD

REGLERPLATINE ID.-NR. 675867-07 HEIDENHAIN DRIVE CONTROL FS

RM 330 ID.-NR. 1215138-02 HEIDENHAIN REGENERATIVE MODULE FOR UEC 3XX(FS) DC-LINK VOLTAGE DC 565 V TO DC 680 V RATED POWER 1 KW PEAK POWER 60 KW (< 2S / 120S) MODULE WIDTH 50 MM

UEC334 FS ID.-NR. 1295700-02 HEIDENHAIN COMPACT INVERTER UEC 334 FS WITH INTEGRATED CONTROLER AND PLC IN- AND OUTPUTS RATED CURRENT 5 KHZ 2X 21A + 1X 35A + 1X 46A MAX. CURRENT AT 5 KHZ 2X 42A + 1X 70A + 1X 92A RATED POWER 30 KW POWER S6-40% 45 KW TYPE OF HEAT REMOVAL INTERNAL BRAKING RESISTOR EXTERNAL ENCODER INPUTS 4XENDAT2.2 ENCODER INPUTS 4X1VPP/ENDAT TOUCH PROBE INPUTS WORKPIECE TOUCH PROBE + TOOL TOUCH PROBE + ENDAT FIELD BUS HSCI-BUS WITH GBIT ETHERNET MODULE WIDTH 250.00 MM

SIKMANPLUS ID.-NR. 733604-53 HEIDENHAIN SIK NC SOFTWARE LICENSE FOR MANPLUS FOR INSTALLATION IN MAIN COMPUTER MC 3 ACTIVE CONTROL LOOPS INTERPOLATION WITH FOUR OR FEWER AXES OPTION 8 TEACH-IN OPTION 9 SMART.TURN OPTION 11 THREAD RECUTTING OPTION 55 C-AXIS MACHINING

REGLERPLATINE ID.-NR. 324961-10 HEIDENHAIN DRIVE CONTROL 5 ACHSEN

REGLERPLATINE ID.-NR. 324961-11 HEIDENHAIN DRIVE CONTROL 4 ACHSEN

RECHNERPLATINE ID.-NR. 326096-02 HEIDENHAIN PROCESSOR BOARD

RECHNERPLATINE ID.-NR. 329925-01 HEIDENHAIN PROCESSOR BOARD

RECHNERPLATINE ID.-NR. 329925-02 HEIDENHAIN PROCESSOR BOARD

RECHNERPLATINE ID.-NR. 343941-09 HEIDENHAIN PROCESSOR BOARD

UM122 ID.-NR. 325004-02 HEIDENHAIN INVERTER - POWER MODULE FOR TWO AXES OR ONE AXIS AND ONE SPINDLE RATED CURRENT 5 KHZ 23A-AXIS AND 23A-AXIS OR 31A-SPINDLE, MAX. CURRENT AT 5 KHZ 46A, TYPE OF HEAT REMOVAL INTERNAL, CONNECTION FOR HOLDING BRAKES WITH CONNECTION, MODULE WIDTH 100.00 MM

UE210B ID.-NR. 337042-51 HEIDENHAIN COMPACT INVERTER FOR 3-AXES + SPINDLE OR 4-AXES, RATED CURRENT 5 KHZ 2 X 7.5A-AXES AND 20A-SPINDLE OR 15A-AXIS, MAX. CURRENT AT 5 KHZ 3X 15A AND 30A, RATED POWER 15 KW, POWER S6-40% 23 KW, PEAK POWER 40KW<0.2S, DC-LINK VOLTAGE 565 V, LOW-VOLTAGE POWER SUPPLY UNIT 200 W, TYPE OF HEAT REMOVAL INTERNAL, BRAKING RESISTOR INTERNAL, CONNECTION FOR HOLDING BRAKES WITH CONNECTION, MODULE WIDTH 200.00 MM

TE 745 ID.-NR. 679817-32 HEIDENHAIN KEYBOARD UNIT, FIELD BUS HSCI-BUS, SYSTEM OF INPUTS/OUTPUTS CHANNEL-A 02-00, NUMBER OF INPUTS PER DEVICE 08 NUMBER OF OUTPUTS PER DEVICE: 08 SPECIAL CHARACTERISTICS,KEY, DATA INTERFACE USB + HANDWHEEL INTERFACE

QSY 155B ID.-NR. 339880-04 HEIDENHAIN SYNCHRONOUS-FEED MOTOR WITH HOLDING BRAKE (SPRING FORCE), FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 9.20 NM, MAXIMUM TORQUE 39.0 NM, STANDSTILL TORQUE 13.00 NM, STALL CURRENT 9.10 A, INTEGRATED ROTARY ENCODER ERN 1387 INCREMENTAL, TYPE MOTOR ENCODER, TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

UEC324 FS ID.-NR. 1295693-02 HEIDENHAIN COMPACT INVERTER WITH INTEGRATED CONTROLER AND PLC IN- AND OUTPUTS, RATED CURRENT 5 KHZ 2X 14A + 1X 28A + 1X 31A, MAX. CURRENT AT 5 KHZ 2X 28A + 1X 56A + 1X 62A, RATED POWER 22 KW, POWER S6-40% 33 KW, TYPE OF HEAT REMOVAL INTERNAL, BRAKING RESISTOR EXTERNAL, CONNECTION FOR HOLDING BRAKES WITH CONNECTION ,ENCODER INPUTS 4XENDAT2.2, ENCODER INPUTS 4X1VPP/ENDAT, TOUCH PROBE INPUTS WORKPIECE TOUCH PROBE + TOOL TOUCH PROBE + ENDAT, FIELD BUS HSCI-BUS WITH GBIT ETHERNET, MODULE WIDTH 250.00 MM

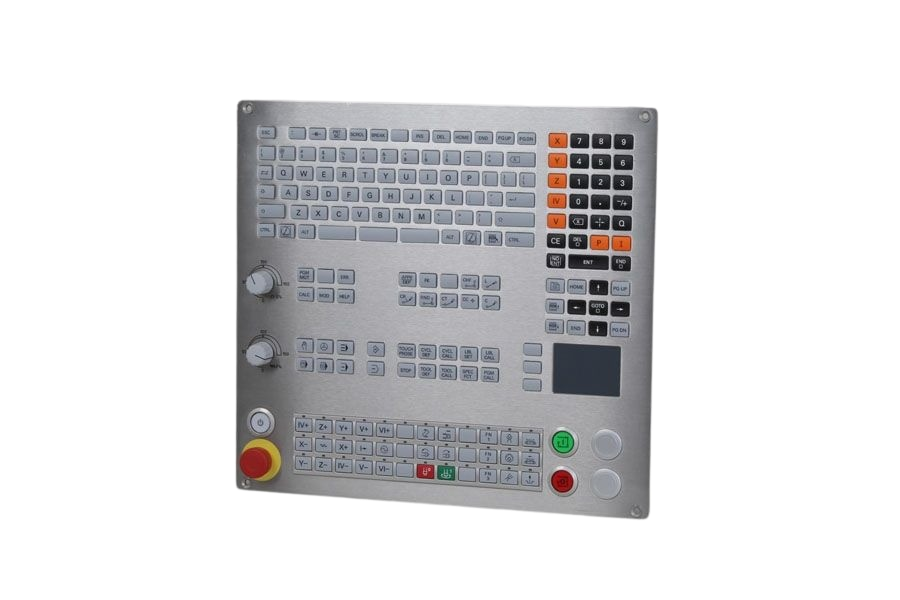

TE 735 ID.-NR. 771898-01 HEIDENHAIN KEYBOARD UNIT, FIELD BUS HSCI-BUS, SYSTEM OF INPUTS/OUTPUTS CHANNEL-A 02-00, NUMBER OF INPUTS PER DEVICE 08 NUMBER OF OUTPUTS PER DEVICE: 08 SPECIAL CHARACTERISTICS,KEY:, POINTING DEVICES TOUCHPAD, DEVICE OPTIONS 2 FREE HOLES, MACHINE KEYS WITH EMERGENCY STOP AND CONTROL VOLTAGE ON, DATA INTERFACE HANDWHEEL INTERFACE

QSY 155B ID.-NR. 339880-63 HEIDENHAIN ECODYN SYNCHRONOUS-FEED MOTOR, FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 9.90 NM, MAXIMUM TORQUE 39.0 NM, STANDSTILL TORQUE 13.00 NM, STALL CURRENT 6.50 A, INTEGRATED ROTARY ENCODER EQN 1325 ABSOLUTE  MOTOR TYPE ENCODER, TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

QSY 190D ID.-NR. 392024-1C HEIDENHAIN QSY 190D ECODYN SYNCHRONOUS-FEED MOTOR, FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 30.60 NM, MAXIMUM TORQUE 107.0 NM, STANDSTILL TORQUE 38.00 NM, STALL CURRENT 18.10 A, INTEGRATED ROTARY ENCODER ERN 1387 INCREMENTAL, TYPE MOTOR ENCODER, TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

QSY 155F ID.-NR. 339882-14 HEIDENHAIN QSY 155F ECODYN SYNCHRONOUS-FEED MOTOR WITH HOLDING BRAKE (SPRING FORCE), FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 19.20 NM, MAXIMUM TORQUE 90.0 NM, STANDSTILL TORQUE 26.10 NM, STALL CURRENT 12.80 A, INTEGRATED ROTARY ENCODER ERN 1387 INCREMENTAL, TYPE MOTOR ENCODER

UMC111FS ID.-NR. 664231-03 HEIDENHAIN INVERTER WITH INTEGRATED CONTROLLER UNIT AND PLC INPUTS/OUTPUTS, AUXILIARY AXIS 4 AUXILIARY AXIS, RATED CURRENT 3.3 KHZ 4X 9A AXIS, MAX. CURRENT AT 3.3 KHZ 4X 18A AXIS, DC-LINK VOLTAGE <= 700 V, TYPE OF HEAT REMOVAL INTERNAL, CONNECTION FOR HOLDING BRAKES WITH CONNECTION, SPEED ENCODER INPUTS 4X1VPP/ENDAT, FIELD BUS HSCI-BUS, SAFETY DESIGN FUNCTIONAL SAFETY, MODULE WIDTH 150.00 MM

QSY 155B ID.-NR. 339880-6C HEIDENHAIN ECODYN SYNCHRONOUS-FEED MOTOR FORM OF SHAFT END WITHOUT KEY RATED SPEED 3000 1/MIN STANDSTILL TORQUE 13.00 NM STALL CURRENT 6.50 A INTEGRATED ROTARY ENCODER EQN 1325 ABSOLUTE MOTOR TYPE ENCODER TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING  ELECTRONIC ID LABEL

SG 25M ID.-NR. 317436-01 HEIDENHAIN CONTROL UNIT FOR CT 2501

QSY 116E ID.-NR. 339877-5C HEIDENHAIN SYNCHRONOUS-FEED MOTOR FORM OF SHAFT END WITHOUT KEY RATED SPEED 3000 1/MIN RATED TORQUE 5.30 NM MAXIMUM TORQUE 25.0 NM STALL CURRENT 4.80 A INTEGRATED ROTARY ENCODER EQN 1325 ABSOLUTE MOTOR TYPE ENCODER TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

BE212F ID.-NR. 650259-21 HEIDENHAIN MONITOR

BE211 ID.-NR. 222674-01 HEIDENHAIN MONITOR 12 INCH FOR TNC 151

BE212 ID.-NR. 242370-03 HEIDENHAIN GRAPHIC SCREEN 12 INCH

BE412 ID.-NR. 237657-01 HEIDENHAIN MONITOR

BE411B ID.-NR. 274771-01 HEIDENHAIN MONITOR

BE 311B ID.-NR. 236260-02 HEIDENHAIN MONITOR

BE 135 HEIDENHAIN MONITOR FUER CNC-STEUERUNGEN

BE 132 B ID.-NR. 239602-01 HEIDENHAIN MONITOR FOR CNC 132/232

MONITOR-MC14120-710 ID.-NR. 320075-01 HEIDENHAIN MONITOR-14"

BE 211 ID.-NR. 236260-01 HEIDENHAIN MONITOR  VISUAL DISPLAY UNIT FOR TNC 151, 12 INCH

BE 211F ID.-NR. 375881-01 HEIDENHAIN MONITOR

BE211 ID.-NR. 355659-02 HEIDENHAIN MONITOR

BE511 ID.-NR. 236154-01 HEIDENHAIN MONITOR

BF120 ID.-NR. 313506-02 HEIDENHAIN  COLOUR FLAT-PANEL DISPLAY (TFT) WITH RIBBON CABLE TO KEYBOARD RESOLUTION VGA 640X480 PIXEL, SIZE IN INCHES 10,4, POWER SUPPLY +24

BE 110 ID.-NR. 212300-02 HEIDENHAIN MONITOR

BE 110B ID.-NR. 236265-01 HEIDENHAIN MONITOR

BE 111 ID.-NR. 212300-03 HEIDENHAIN MONITOR TNC/+11

BE412B ID.-NR. 241845-01 HEIDENHAIN MONITOR SCREEN FOR TNC 355; 12 INCH

BF 155 ID.-NR. 365340-02 HEIDENHAIN COLOUR-, FLAT-PANEL DISPLAY DISPLAY: 15.0-INCH DIAGONAL/RESOLUTION XGA 1024*768 PIXELS NO. OF SINGLE-CHANNEL SHORT-STROKE KEYS: 17 POWER SUPPLY: 24V

BF 150 ID.-NR. 353522-04 HEIDENHAIN COLOUR-, FLAT-PANEL DISPLAY DISPLAY: 15.0-INCH DIAGONAL/RESOLUTION XGA 1024*768 PIXELS NO. OF SINGLE-CHANNEL SHORT-STROKE KEYS: 17 POWER SUPPLY: 24V

BE 110F ID.-NR.617526-01 HEIDENHAIN MONITOR

BF860 ID.-NR. 1169174-01 HEIDENHAIN COLOUR-, FLAT-PANEL DISPLAY, VERSION STAINLESS STEEL, DISPLAY 19.0-INCH DIAGONAL / RESOLUTION SXGA 1280 X 1024 PIXELS, TOUCHSENSOR PROJECTED CAPACITIVE, MULTITOUCH, DATA INTERFACE 4XUSB, POWER SUPPLY 24V
