REGLERPLATINE ID.-NR. 346400-06 HEIDENHAIN REGLERPLATINE

MC 422 ID.-NR. 371259-01 HEIDENHAIN MAIN COMPUTER MC 422 WITH INTEGRATED HARD DISK, HOST COMPUTER CPU1 AMD K6/2 266MHZ, WORKING MEMORY OF CPU1 64 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE RS232 + RS422 + ETHERNET + PS2+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY FT XGA 1024X768 PIXEL

VERBINDUNGSKABEL ID.-NR. 1117852-01 HEIDENHAIN VERBINDUNGSKABEL KABELTYP: PUR Ø 8,0 MM, KABELLÄNGE 1,00 M, STECKER M23, STIFT 5+7-POLIG

TE 425A ID.-NR. 354290-02 HEIDENHAIN KEYBOARD

REGELKREISPLATINE ID.-NR. 280426-01 HEIDENHAIN CLP PROCESSOR BOARD

STROMVERSORGUNGSPLATINE ID.-NR. 525263-57 HEIDENHAIN POWER SUPPLY PLATINE UVR 140D

RECHNERPLATINE ID.-NR. 274562-01 HEIDENHAIN RECHNERPLATINE

PLB 6206 ID.-NR. 630054-03 HEIDENHAIN SYSTEM - BASISIMODUL FIELDBUS: HSCI-BUS NUMBER OF SLOTS: 8 SYSTEM INPUTS/OUTPUTS: CHANNEL-A 14-10 PROBE SYSTEM INPUTS: WORKPIECE PROBE SYSTEM + TOOL PROBE SYSTEM POWER SUPPLY: 24 V NC/PLC

UE 210B ID.-NR. 337042-52 HEIDENHAIN COMPACT INVERTER FOR 3-AXES + SPINDLE OR 4-AXES RATED CURRENT 5 KHZ 2 X 7.5A-AXES AND 20A-SPINDLE OR 15A-AXIS, MAX. CURRENT AT 5 KHZ 3X 15A AND 30A, RATED POWER 15 KW, POWER S6-40% 23 KW, PEAK POWER 40KW<0.2S, DC-LINK VOLTAGE 565 V, TYPE OF HEAT REMOVAL INTERNAL, BRAKING RESISTOR INTERNAL, BRAKES WITH CONNECTION, MODULE WIDTH 200.00 MM

QSY 1C ID.-NR. 317123-43 HEIDENHAIN SYNCHRONOUS-FEED MOTOR TWO-COMPONENT PAINT FORM OF SHAFT END WITHOUT KEY RATED SPEED 3000 1/MIN STALL CURRENT 4.20 A INTEGRATED ROTARY INCREMENTAL MOTOR ENCODER ENCODER TYPE ERN 1387 TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

MC 422C ID.-NR. 631201-01 HEIDENHAIN MAIN COMPUTER MC 422C WITH SECOND PROCESSOR, HOST COMPUTER CPU1 INTEL PENTIUM III 800 MHZ, WORKING MEMORY OF PCU1 512 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE RS232 + RS422 + ETHERNET+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

UE242D ID.-NR. 733428-01 HEIDENHAIN UE 242D COMPACT INVERTER WITH DIAGNOSTIC FUNCTIONS AND ELECTRONIC ID LABLE RATED CURRENT 5 KHZ 3 X 7.5A-AXES, 23A-AXIS AND 31A-SPINDLE OR 23A-AXIS RATED POWER 22 KW DC-LINK VOLTAGE 565 V LOW-VOLTAGE POWER SUPPLY UNIT 200 W TYPE OF HEAT REMOVAL INTERNAL BRAKING RESISTOR EXTERNAL CONNECTION FOR HOLDING BRAKES WITH CONNECTION MODULE WIDTH 200.00 MM RIBBON CABLES AND COVER FOR RIBBON CABLES ARE INCLUDED IN DELIVERY

TE 737D ID.-NR. 824048-01 HEIDENHAIN KEYBOARD TE 737D

MC 422 ID.-NR. 359630-02 HEIDENHAIN MAIN COMPUTER MC 422 WITH INTEGRATED HARD DISK, HOST COMPUTER CPU1 INTEL PENTIUM 266MMX, WORKING MEMORY OF CPU1 64 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE RS232 + RS422 + ETHERNET + PS2+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

MC 7120D ID.-NR. 805020-02 HEIDENHAIN HOST COMPUTER MC7120D

UE240 ID.-NR. 313502-01 HEIDENHAIN COMPACT INVERTER

QSY 155B ID.-NR. 339880-6G HEIDENHAIN QSY 155B ECODYN SYNCHRONOUS-FEED MOTOR WITH HOLDING BRAKE (SPRING FORCE) FORM OF SHAFT END: WITHOUT KEY, RATED SPEED: 3000 1/MIN, RATED TORQUE: 9.90 NM, MAXIMUM TORQUE: 39.0 NM, STANDSTILL TORQUE: 13.00 NM, INTEGRATED ROTARY ENCODER TYPE: EQN 1325 ABSOLUTE MOTOR ENCODER

PLB 6204 ID.-NR. 1129809-02 HEIDENHAIN SYSTEMMODUL

MC 422 ID.-NR. 371261-01 HEIDENHAIN MAIN COMPUTER MC 422 WITH INTEGRATED HARD DISK HOST COMPUTER CPU1 AMD K6/2 266MHZ WORKING MEMORY OF CPU1 64 MB ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100 DATA INTERFACE RS232 + RS422 + ETHERNET + PS2+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

UE 211 ID.-NR. 313504-12 HEIDENHAIN COMPACT INVERTER FOR 3-AXES + SPINDLE OR 4-AXES RATED POWER 13 KW POWER S6-40% 18 KW PEAK POWER 18KW TYPE OF HEAT REMOVAL INTERNAL BRAKING RESISTOR INTERNAL NO CONNECTION CONNECTION FOR HOLDING BRAKES MODULE WIDTH 200.00 MM RIBBON CABLES AND COVER FOR RIBBON CABLES ARE INCLUDED IN DELIVERY

MC7522 ID.-NR. 1071597-02 HEIDENHAIN MAIN COMPUTER MC 7522 HOST COMPUTER CPU1 INTEL CORE I7-3 1,70 GHZ 2 CORES WORKING MEMORY OF CPU1 4096 MB DATA INTERFACE RS232 + SER.PORT + 2XETHERNET + 4XUSB + EXT01 + PCIE + USB EXTERN WITH INTEGRATED PLC DISPLAY 15.0-INCH DIAGONAL / RESOLUTION XGA 1024 X 768 PIXELS

MC7522 ID.-NR. 1071597-03 HEIDENHAIN MAIN COMPUTER MC 7522 HOST COMPUTER CPU1 INTEL CORE I7-3 1,70 GHZ 2 CORES WORKING MEMORY OF CPU1 4096 MB DATA INTERFACE RS232 + SER.PORT + 2XETHERNET + 4XUSB + EXT01 + PCIE + USB EXTERN WITH INTEGRATED PLC DISPLAY 15.0-INCH DIAGONAL / RESOLUTION XGA 1024 X 768 PIXELS

PWT 101 ID.-NR. 1261013-01 HEIDENHAIN DIAGNOSTICS KIT PWT 101

MC 422C ID.-NR. 631217-01 HEIDENHAIN MAIN COMPUTER MC 422C WITH SECOND PROCESSOR, HOST COMPUTER CPU1 INTEL PENTIUM III 800 MHZ, WORKING MEMORY OF CPU1 512 MB, HOST COMPUTER CPU2 INTEL PENTIUM M 1.8 GHZ, WORKING MEMORY OF CPU2 512 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE RS232 + RS422 + ETHERNET+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY, TFT XGA 1024X768 PIXEL

MC 422 ID.-NR. 367224-02 HEIDENHAIN MAIN COMPUTER MC 422 WITH INTEGRATED HARD DISK, HOST COMPUTER CPU1 INTEL PENTIUM 266MMX WORKING MEMORY OF CPU1 64 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE RS232 + RS422 + ETHERNET + PS2+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT VGA 640X480 PIXEL

RECHNERPLATINE ID.-NR. 259762-02 HEIDENHAIN PROCESSOR BOARD

RECHNERPLATINE ID.-NR. 270637-02 HEIDENHAIN PROCESSOR BOARD

MC 422 ID.-NR. 359639-01 HEIDENHAIN MAIN COMPUTER MC 422 WITH INTEGRATED HARD DISK HOST COMPUTER CPU1:  AMD K6/2 266MHZ, WORKING MEMORY OF CPU1: 64 MB, POSITION ENCODER:  ANALOG INPUTS: 3X ANALOG ±10 V / 3X  PT100, DATA INTERFACE: RS232 + RS422 + ETHERNET + PS2+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

SIKTNC ID.-NR. 674989-A5 HEIDENHAIN SIK NC SOFTWARE LICENSE FOR TNC 640 FOR INSTALLATION IN MAIN COMPUTER MC 4 ACTIVE CONTROL LOOPS EXPORT PERMIT: SUBJECT TO EXPORT LICENSE

VRZ730 ID.-NR. 246457-02 HEIDENHAIN COUNTER

QSY 96G ID.-NR. 339875-53 HEIDENHAIN SYNCHRONOUS-FEED MOTOR FORM OF SHAFT END WITHOUT KEY RATED SPEED 4500 1/MIN INTEGRATED ROTARY ENCODER EQN 1325 ABSOLUTE MOTOR TYPE ENCODER TYPE OF COOLING AND AIRFLOW DIRECTION

MC 422 ID.-NR. 388186-01 HEIDENHAIN MAIN COMPUTER MC 422 WITH INTEGRATED HARD DISK, WITH SECOND PROCESSOR, HOST COMPUTER CPU1 AMD K6/2 266MHZ, HOST COMPUTER CPU2 AMD K6/2 266MHZ, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE RS232 + RS422 + ETHERNET + PS2+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

QSY 96G ID.-NR. 339875-5C HEIDENHAIN SYNCHRONOUS-FEED MOTOR QSY 96G FORM OF SHAFT END WITHOUT KEY RATED SPEED 4500 1/MIN INTEGRATED ROTARY ENCODER EQN 1325 ABSOLUTE MOTOR TYPE ENCODER TYPE OF COOLING AND AIRFLOW DIRECTION

VERBINDUNGSKABEL ID.-NR. 652761-20 HEIDENHAIN CONNECTING CABLE D-SUB CONNECTOR 45°, METAL HOUSING, 3-ROW, WITH LOCKING SCREWS, FEMALE, 44-PIN D-SUB CONNECTOR 45°, METAL HOUSING, 3-ROW, WITH LOCKING SCREWS, MALE, 44-PIN, CABLE LENGTH 20,00 M

QSY 155F ID.-NR. 339882-6D HEIDENHAIN QSY 155F ECODYN SYNCHRONOUS-FEED MOTOR WITH HOLDING BRAKE (SPRING FORCE) FORM OF SHAFT END WITHOUT KEY RATED SPEED 3000 1/MIN RATED TORQUE 17.30 NM INTEGRATED ROTARY ENCODER EQN 1325 ABSOLUTE MOTOR TYPE ENCODER TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

VERBINDUNGSKABEL ID.-NR. 1117852-03 HEIDENHAIN CONNECTING CABLE CABLE LENGTH: 3 M CONNECTOR SPRINGTEC, MALE, 5+7+1-PIN, CONNECTOR M23, TACK, 5+7-PIN, NUMBER OF SHIELD: 2

MC420 ID.-NR. 517535-02 HEIDENHAIN HOST COMPUTER MC 420 HOST COMPUTER CPU1: INTEL CELERON 400 MHZ WORKING MEMORY OF CPU1: 512 MB ANALOG INPUTS: 3XANALOG ± 10V/3XPT100 DATA INTERFACE: RS232 + RS422 + ETHERNET+USB WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL

QSY 190D ID.-NR. 392024-6D HEIDENHAIN SYNCHRONOUS-FEED MOTOR WITH HOLDING BRAKE (SPRING FORCE) FORM OF SHAFT END WITHOUT KEY, RATED SPEED 3000 1/MIN, RATED TORQUE 27.50 NM, MAXIMUM TORQUE 107.0 NM, STANDSTILL TORQUE 38.00 NM, STALL CURRENT 18.10 A, INTEGRATED ROTARY ENCODER EQN 1325 ABSOLUTE MOTOR

QSY 1C ID.-NR. 317123-44 HEIDENHAIN QSY 1C SYNCHRONOUS-FEED MOTOR WITH HOLDING BRAKE (SPRING FORCE) FORM OF SHAFT END WITHOUT KEY RATED SPEED 3000 1/MIN INTEGRATED ROTARY INCREMENTAL MOTOR ENCODER ENCODER TYPE ERN 1387 TYPE OF COOLING AND AIRFLOW DIRECTION NATURAL COOLING

MC 422E ID.-NR. 391120-52 HEIDENHEIN MAIN COMPUTER MC 422E, HOST COMPUTER CPU1, WORKING MEMORY OF CPU1, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, WITH INTEGRATED PLC, INTERFACE FOR COLOR DISPLAY, TFT XGA 1024X768 PIXEL

VRZ183A ID.-NR. 224705-10 HEIDENHAIN COUNTER

MC 422 ID.-NR. 359629-01 HEIDENHAIN MAIN COMPUTER MC 422 WITH INTEGRATED HARD DISK HOST COMPUTER CPU1 AMD K6/2 266MHZ, WORKING MEMORY OF CPU1 64 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, RS232 + RS422 + ETHERNET + PS2+USB WITH INTEGRATED PLC, INTERFACE FOR COLOR DISPLAY, TFT VGA 640X480 PIXEL

TE 745 FS ID.-NR. 805482-02 HEIDENHAIN KEYBOARD TE 745 FIELD BUS:HSCI-BUS, NUMBER OF INPUTS PER DEVICE: 04, NUMBER OF OUTPUTS PERDEVICE: 08

UE230D ID.-NR. 733425-01 HEIDENHAIN COMPACT INVERTER WITH DIAGNOSTIC FUNCTIONS AND ELECTRONIC ID LABLE, RATED CURRENT 5 KHZ 2 X 7.5A-AXES AND 31A-SPINDLE OR 23A-AXIS, MAX. CURRENT AT 5 KHZ 2X 15A AND 46A, RATED POWER 22 KW, POWER S6-40% 30 KW, TYPE OF HEAT REMOVAL INTERNAL, BRAKING RESISTOR EXTERNAL, MODULE WIDTH 200.00 MM

PLB511 ID.-NR. 556941-01 HEIDENHAIN BASIC MODULE WITH 6 FREE SLOTS

UR242 ID.-NR. 367559-02 HEIDENHAIN COMPACT INVERTER UR 242 REGENERATIVE FOR 4-AXES + SPINDLE OR 5-AXES RATED CURRENT 5 KHZ 2 X 7.5A-AXES AND 7.5A-AXIS OR 10A-SPINDLE, 25A-AXIS OR 35A-SPINDLE, 35A-SPINDLE OR 25A-AXIS MAX. CURRENT AT 5 KHZ 3X 15A AND 2X 50A RATED POWER 22 KW POWER S6-40% 30 KW DC-LINK VOLTAGE 650 V LOW-VOLTAGE POWER SUPPLY UNIT 200 W TYPE OF HEAT REMOVAL INTERNAL CONNECTION FOR HOLDING BRAKES WITH CONNECTION

ND 1203 QUADRA-CHEK ID.-NR. 665406-05 HEIDENHAIN DIGITAL READOUT FOR METROLOGY APPLICATIONS, APPLICATION 2D TYPE OF DISPLAY: LCD SCREEN, NUMBER OF ENCODER INPUTS 3X, XYZ INPUT SIGNAL ~11µAPP, SWITCH SIGNAL FOOT SWITCH AND REMOTE KEYPAD INPUT, RJ-45, FASTENING TYPE ON HOLDER FOR MOUNTING ARM

MEMBRANKUPPLUNG ID.-NR. 1246841-01 HEIDENHAIN DIAPHRAGM COUPLING K17/01, HUB SHAFT DIAMETERS DIAMETER1 = 6 MM DIAMETER2 = 6 MM, LENGTH 22 MM

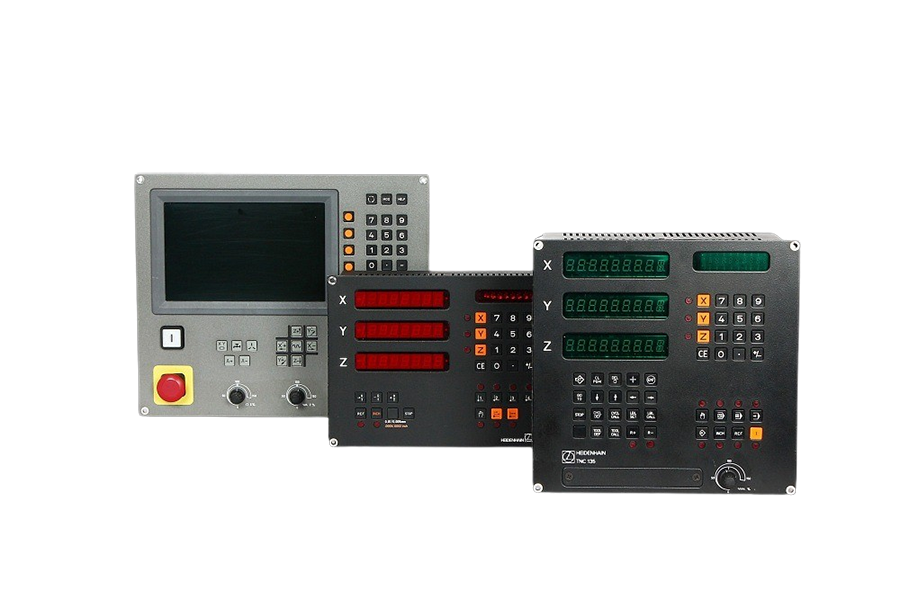

TE 620 ID.-NR. 625806-01 HEIDENHAIN KEYBOARD - PATH FUNKTION KEYS - OPERATION MODE KEY, ALSO FOR SMARTT.NC - ASCII KEYS - INT EGRATED TOUCH-PAD AXES KEYS V ANS VI CAN BE EXCHANGED - SPINDLE OVERRIDE POTENTI

MC 422B ID.-NR. 387193-01 HEIDENHAIN MAIN COMPUTER MC 422 HOST COMPUTER CPU1 INTEL PENTIUM III 800 MHZ, WORKING MEMORY OF CPU1 256 MB, ANALOG INPUTS 3X ANALOG ±10 V / 3X PT100, DATA INTERFACE RS232 + RS422 + ETHERNET + PS2+USB, WITH INTEGRATED PLC INTERFACE FOR COLOR DISPLAY TFT XGA 1024X768 PIXEL
