ND 5023 ID.-NR. 1197249-01 HEIDENHAIN DIGITAL READOUT FOR MANUAL OPERATED MACHINE TOOLS FOR TURNING, MILLING AND GENERAL APPLICATIONS NUMBER OF ENCODER INPUTS:3X ENCODER INTERFACE: ENCODER CONNECTION: BUILT-IN D-SUB CONNECTOR WITHOUT HOUSING, 2-ROW, FEMALE, 9-PIN DISPLAY: 7-INCH, COLOR, WIDE SCREEN (15:9), RESOLUTION 800 X 480 USER INTERFACE: MEMBRANE KEYBOARD DATA INTERFACE: USB TYPE C FASTENING TYPE: VESA MIS-D, 100

PT 855 ID.-NR. 278730-01 HEIDENHAIN DISPLAY UNIT FOR 4 AXES WITH FLAT SCREEN FOR LINEAR AND ROTARY AXES POSITIP 855

ND 282 ID.-NR. 283001-11 HEIDENHAIN DISPLAY UNIT WITH 200-FOLD SUBDIVISION AND ADVANCED FEATURES, DATA INTERFACE BCD, FUNDTIONS 2 DATUM POINTS MM/INCH CONVERSION SORTING AND TOLERANCE CHECKING MINIMUM/MAXIMUM-MEMORY TRIGGERING SIGNAL INPUTS AND OUTPUTS

ND 1102 ID.-NR 665405-08 HEIDENHAIN DIGITAL READOUT FOR METROLOGY APPLICATIONS ELECTRICAL CONNECTION BUILT-IN D-SUB CONNECTOR WITHOUT HOUSING, 2-ROW, FEMALE, 9-PIN, TOUCH PROBE INPUTS PROBE INTERFACE, DIN FLANGESOCKET, FEMALE, 5-PIN, SWITCH SIGNAL FOOT SWITCH AND REMOTE  KEYPAD INPUT, RJ-45

ND 1302 ID.-NR. 665407-03 HEIDENHAIN DIGITALE ANZEIGE FÜR MESSANWENDUNGEN ANWENDUNG 2D-ANZEIGETYP: TOUCHSCREEN-FARBE, ANZAHL DER ENCODER-EINGÄNGE 2X EINGANGSSIGNAL: ~1VPP, INTERPOLATIONSFAKTOR SKALENSIGNAL MIT 10 MULTIPLIZIEREN. ELEKTRISCHER ANSCHLUSS: EINBAU-D-SUB-STECKER OHNE GEHÄUSE, 2-REIHIG, BUCHSE, 15-POLIG, SCHALTSIGNAL EINGANG FÜR FUßSCHALTER UND FERNBEDIENUNG, RJ-45

ND 220 ID.-NR. 284047-01 HEIDENHAIN STANDARD DISPLAY UNIT WITH 4-FOLD EVALUATION 2 REFERENCE POINT MM/INCH CALCULATOR LINEAR ERROR COMPENSATION POWER CABLE, CABLE LENGTH 3,00M

ND 523 ID.-NR. 532523-01 HEIDENHAIN DIGITAL READOUT FOR MANUAL OPERATED MACHINE, TOOLS MILLING, TURNING AND GENERAL APPLICATIONS, NUMBER OF ENCODER INPUTS 3X POSITION ENCODER: SINGLE ENDE D TTL, TYPE OF DISPLAY LCD SCREEN, DATA INTERFACE USB

ND 261A ID.-NR. 283482-11 HEIDENHAIN POSITION DISPLAY UNIT FOR ROTARY ANGLE ENCODERS WITH 400-FOLD SUBDIVISION INTERFACE:  V.24/RS-232-C, FUNCTIONS: 2 DATUMS TRANSFORMATION FROM DEG/MIN/SEC IN DECIMAL DEG, SORTING WITH TWO LIMIT VALUES SWITCHING INPUTS AND OUTPUTS, OWER CABLE, LENGTH 3,00 M

POTENTIOMETER ID.-NR. 385502-05 HEIDENHAIN POTENTIOMETER 10KOHM, RASTEND, MIT FLACHBANDKABEL 120MM UND STECKER MIT ZUBEHÖR

POTENTIOMETER ID.-NR. 322500-01 HEIDENHAIN POTENTIOMETER 10K LIN KPL.

POTENTIOMETER ID.-NR. 322144-01 HEIDENHAIN POTENTIOMETER ACHSE ... 1,00 KOHM ...

POTENTIOMETER ID.-NR. 322772-01 HEIDENHAIN POTENTIOMETER 1K0 LIN KPL. CNC5000/VME

POTENTIOMETER ID.-NR. 385502-09 HEIDENHAIN POTENTIOMETER S WITH ACCESSORIES

POTENTIOMETER ID.-NR. 330595-04  HEIDENHAIN POTENTIOMETER LÄNGE 190MM

POTENTIOMETER ID.-NR. 235525-01 HEIDENHAIN POTENTIOMETER ACHSE CERMET 3W... 10,00 KOHM 10 % …

POTENTIOMETER ID.-NR. 310995-02 HEIDENHAIN POTENTIOMETER 10KOHM

POTENTIOMETER ID.-NR. 310995-03 HEIDENHAIN POTENTIOMETER 10KOHM, NICHT RASTEND, MIT FLACHBANDKABEL 370 MM UND STECKER

ZWISCHENPLATTE ID.-NR. 579017-01 HEIDENHAIN INTERMEDIATE PLATE

MEMBRANKUPPLUNG K01 ID.-NR. 200301-02 HEIDENHAIN HIGH-PRECISION DIAPHRAGM COUPLING K01

MEMBRANKUPPLUNG K17/03 ID.-NR. 296746-03 HEIDENHAIN DIAPHRAGM COUPLING K17/03 HUB SHAFT DIAMETER: DIAMETER 1 = 10,000 MM, DIAMETER 2 = 10,000 MM, LENGTH: 30 MM, WITH SCREWDRIVER 2,5MM (202500-04)

FÜHRUNGSSCHIENE ID.-NR. 209820-02 HEIDENHAIN FÜHRUNGSSCHIENE 160X 2,0 - PPE GR

MODUL A1101 PE192X ID.-NR. 322521-01 HEIDENHAIN MODUL

MODUL A701 PE1927 ID.-NR. 322522-01 HEIDENHAIN MODUL A701 PE1927

MESSSYSTEMWEICHE ID.-NR. 211526-01 HEIDENHAIN ENCODER COMBINER ENABLES OPTIONAL OPERATION OF TWO MEASURING SYSTEMS ON ONE INTERFACE ELECTRONICS UNIT. SWITCHING OCCURS VIA EXTERNAL ACTIVATION OF A RELAY.

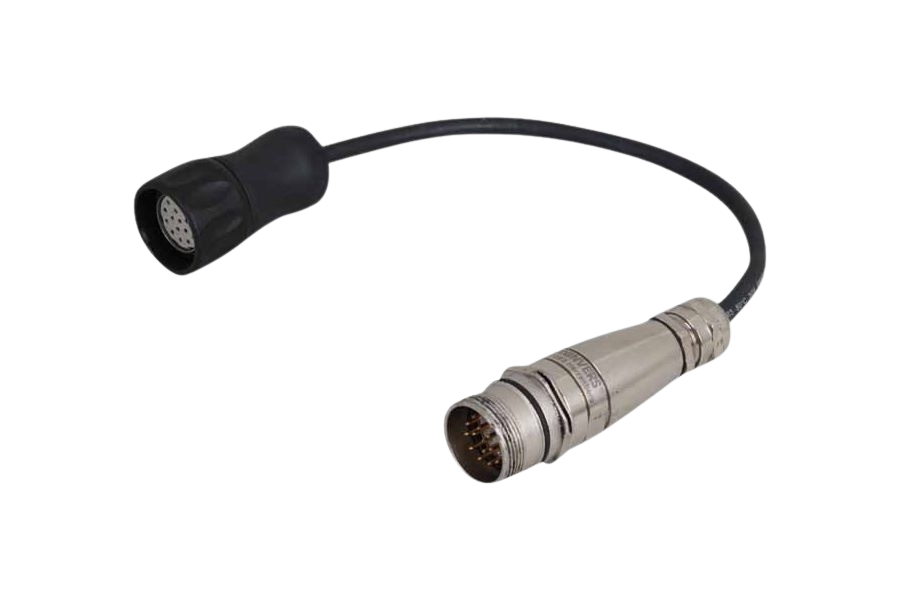

ADAPTERLEITUNG HEIDENHAIN ADAPTERLEITUNG FÜR EQ10 0,2 METER

ADAPTERKABEL APK 09 05 ID.-NR. 539878-03 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR WITH ARMOR Ø 10.0 MM, CABLE LENGTH: 3.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12 (ARMORED), 14-PIN SIDE OF SUBSEQUENT D-SUB CONNECTOR, METAL ELECTRONIC: HOUSING, 2-ROW, WITH METAL ARMOR AND LOCKING SCREWS, 15-PIN FEMALE

ADAPTERKABEL APK 02 05 ID.-NR. 533631-09 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 9.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 17-PIN

ADAPTERKABEL APK 02 03 ID.-NR. 270420-06 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 6.00 M ENCODER SIDE: LS SOCKET, SMALL, 8-PIN SIDE OF SUBSEQUENT D-SUB CONNECTOR, 2-ROW, ELECTRONIC: WITH LOCKING SCREWS, MALE, 9-PIN

ADAPTERKABEL APK 09 05 ID.-NR. 539878-05 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR WITH ARMOR Ø 10.0 MM, CABLE LENGTH: 5.00 M, ENCODER SIDE: APPLIANCE CONNECTOR M12 (ARMORED), 14-PIN, SIDE OF SUBSEQUENT ELECTRONIC: D-SUB CONNECTOR, METAL  HOUSING, 2-ROW, WITH METAL ARMOR AND LOCKING SCREWS, 15-PIN FEMALE

APK 02 05 ID.-NR. 533631-03 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 3.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 17-PIN

ADAPTERKABEL APK 02 05 ID.-NR. 533631-02 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 2.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 17-PIN

FAGOR MASSSTABKABEL MIT 3 METER SCHUTZSCHLAUCH

ADAPTERKABEL APK 02 05 ID.-NR. 533631-05 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 5.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 17-PIN

ADAPTERKABEL APK 01 03 ID.-NR. 545547-06 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 4.5 MM, CABLE LENGTH: 6.00 M, ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT CONNECTOR, M.D. RIBBON, ELECTRONIC: LOCKING MECHANISM USING LATCH, FEMALE, 15-PIN IN HOUSING 20-PIN

VERBINDUNGSKABELVBK 03 08 ID.-NR. 298401-02 HEIDENHAIN CONNECTING CABLE FOR ENCODER CONNECTION CABLE TYPE: PUR Ø 8.0 MM, CABLE LENGTH: 2.00 M ENCODER SIDE: CONNECTOR M23, FEMALE, 12-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 12-PIN

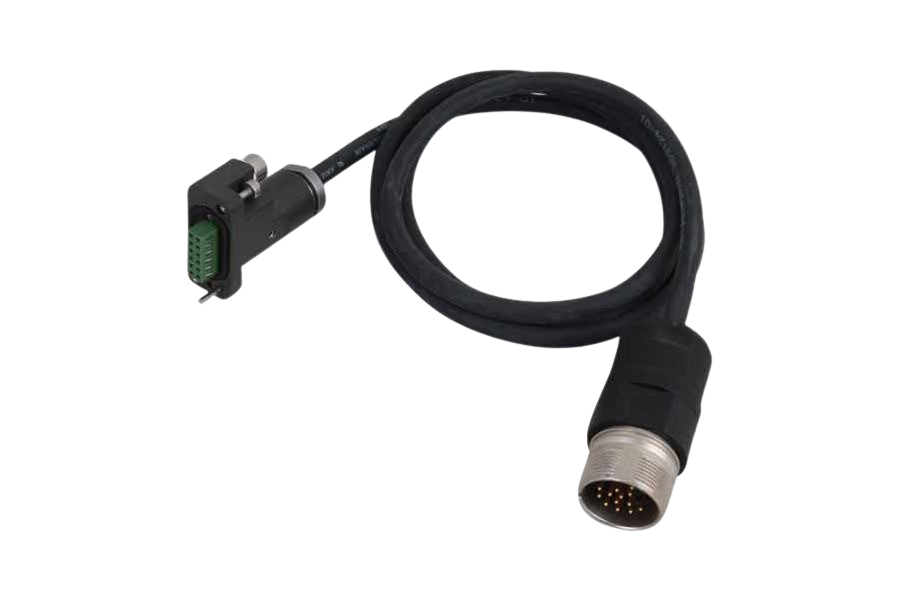

ADAPTERKABEL 46B012 ID.-NR. 369124-01 HEIDENHAIN ADAPTER CABLE LS CONNECTOR, LARGE, 12-PIN COUPLING, MALE 17-PIN CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 1.00 M

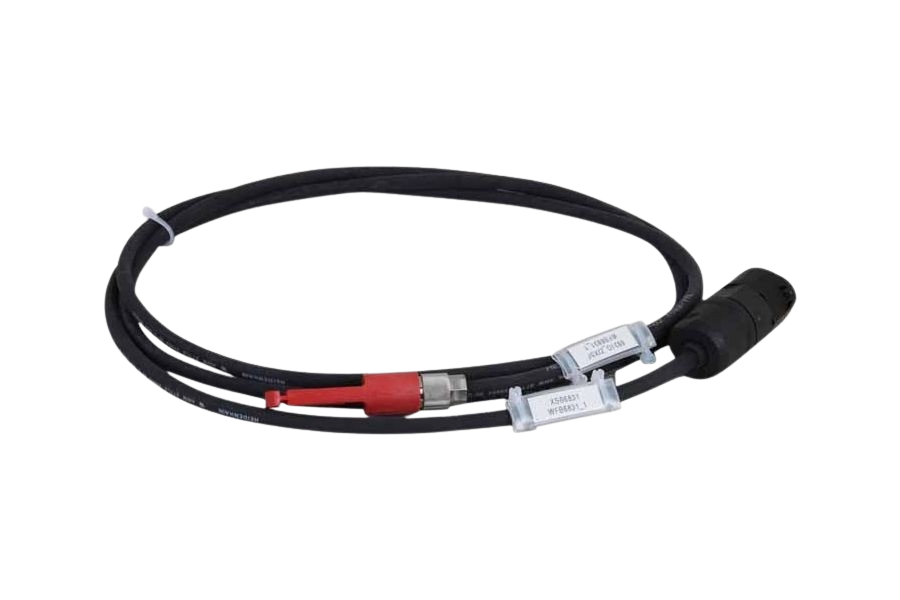

ADAPTERKABEL APK 02 05 ID.-NR. 360645-01 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 1.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 12-PIN

VERBINDUNGSKABEL VBK 03 08 ID.-NR. 298401-03 HEIDENHAIN CONNECTING CABLE FOR ENCODER CONNECTION, CABLE TYPE PUR Ø 8.0 MM, CABLE LENGTH 3.00 M, ENCODER SIDE CONNECTOR M23, FEMALE, 12-PIN, SIDE OF SUBSEQUENT ELECTRONIC COUPLING M23, MALE, 12-PIN

VERBINDUNGSKABEL VBK 03 08 ID.-NR. 298400-02 HEIDENHAIN CONNECTING CABLE FOR ENCODER CONNECTION CABLE TYPE: PUR Ø 8.0 MM, CABLE LENGTH: 2.00 M ENCODER SIDE: COUPLING, FEMALE 12-PIN SIDE OF SUBSEQUENT ELECTRONIC: CONNECTOR M23, MALE, ELECTRONIC: 12-PIN

DIVERSE KABEL

VERBINDUNGSKABEL 7POL. ID.-NR. 214001-01 HEIDENHAIN CABLE ADAPTER FOR TNC

ADAPTERKABEL APK 02 05 ID.-NR. 360974-20 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM CABLE LENGTH: 20.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT D-SUB CONNECTOR, 2-ROW, ELECTRONIC: WITH LOCKING SCREWS, FEMALE, 15-PIN

ADAPTERKABEL APK 02 05 ID.-NR. 360974-15 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 15.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT D-SUB CONNECTOR, 2-ROW, ELECTRONIC: WITH LOCKING SCREWS, FEMALE, 15-PIN

ADAPTERKABEL APK 02 05 ID.-NR. 360645-02 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 2.00 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 12-PIN

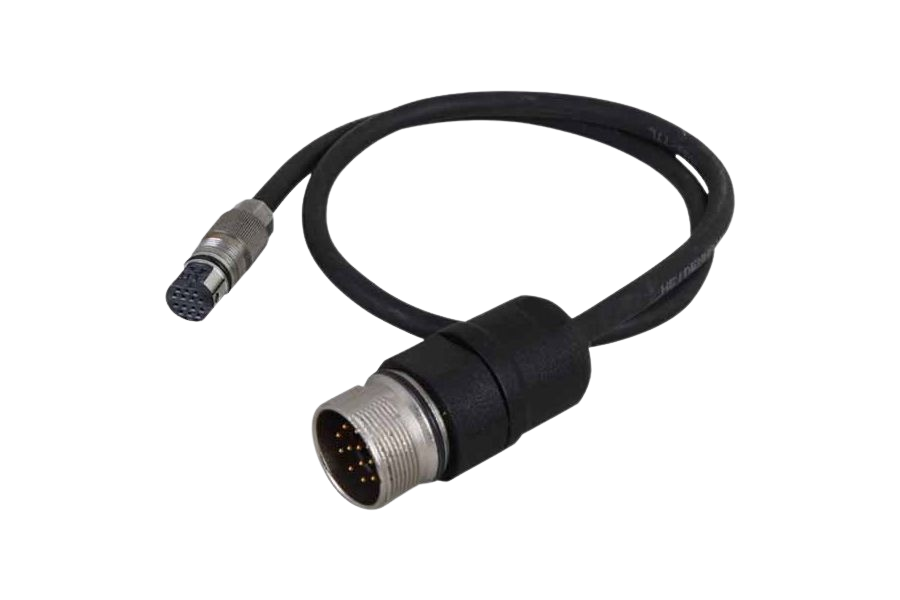

ADAPTERKABEL APK 02 05 ID.-NR. 360645-S1 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 0.50 M ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 12-PIN

ADAPTERKABEL 46B012 ID.-NR. 369124-02 HEIDENHAIN ADAPTER CABLE LS CONNECTOR, LARGE, 12-PIN COUPLING, MALE 17-PIN CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 2.00 M

VERBINDUNGSKABEL VBK 03 08 ID.-NR. 298400-04 HEIDENHAIN CONNECTING CABLE FOR ENCODER CONNECTION CABLE TYPE: PUR Ø 8.0 MM, CABLE LENGTH: 4.00 M, ENCODER SIDE: COUPLING, FEMALE 12-PIN, SIDE OF SUBSEQUENT  ELECTRONIC: CONNECTOR M23, MALE, 12-PIN

ADAPTERKABEL APK 02 05 ID.-NR. 360645-03 HEIDENHAIN ADAPTER CABLE FOR DIFFERENT CONNECTOR CONNECTION CABLE TYPE: PUR Ø 6.0 MM, CABLE LENGTH: 3.00 M, ENCODER SIDE: APPLIANCE CONNECTOR M12, 14-PIN SIDE OF SUBSEQUENT ELECTRONIC: COUPLING, MALE 12-PIN

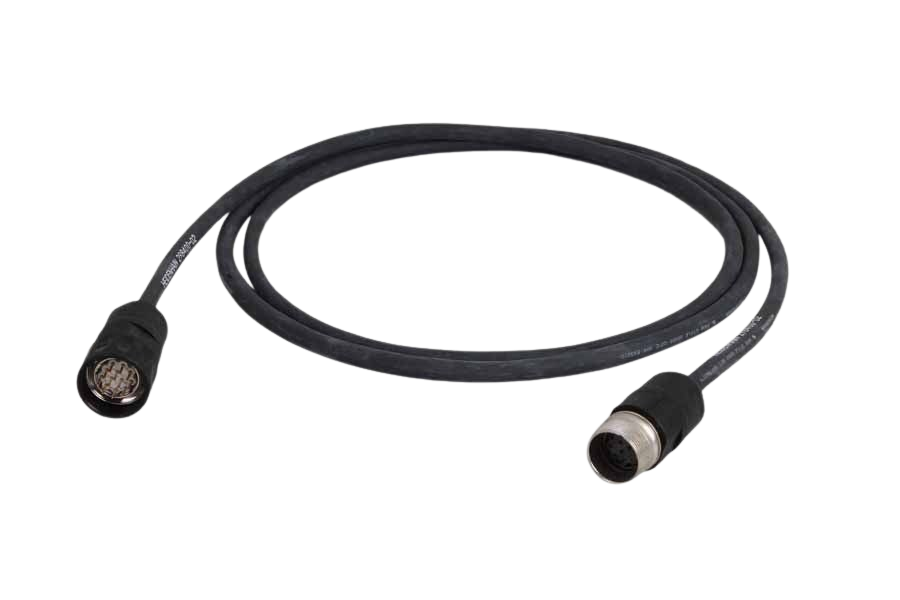

VERBINDUNGSKABEL VBK 03 ID.-NR. 298400-06 HEIDENHAIN CONNECTING CABLE FOR ENCODER CONNECTION, CABLE TYPE: PUR Ø 8.0 MM, CABLE LENGTH: 6.00 M, ENCODER SIDE: COUPLING M23, FEMALE, 12-PIN, SIDE OF SUBSEQUENT ELECTRONIC: CONNECTOR M23, MALE, 12-PIN

MT 12 ID.-NR. 243602-06 HEIDENHAIN INCREMENTAL LENGTH GAUGE HEIDENHAIN-METRO ACCURACY GRADE: 0.5 µM, ELECTRICAL CONNECTION: CONNECTOR M23, MALE, 9-PIN, CABLE LENGTH: 1.50 M>, OUTPUT SIGNAL: SINUSOIDAL CURRENT SIGNALS (11 µAPP)
