Drehgeber und Winkelmesssysteme

ROD 486-3600-27S12-03 ID.-NR. 295466-0F HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 3600, OUTPUT SIGNAL 1VSS SINUSOIDAL VOLTAGE SIGNALS, ELECTRICAL CONNECTION 27S12 FLANGE SOCKET, MALE 12-PIN, CABLE OUTLET RADIAL

ROD 420-1024 ID.-NR. 295281-83 HEIDENHAIN INCREMENTAL ROTARY ENCODER, OUTPUT SIGNALS SQUAREWAVE; TTL, ELECTRICAL CONNECTION CABLE 1 M WITHOUT CONNEC. CABLE OUTPUT RADIAL, LINES 1024

ROD 280 18000 ID.-NR. 512132-04 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 18000, OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION COUPLING, MALE 12-PIN, CABLE OUTLET FOR AXIAL AND RADIAL USE 1,00 M

ROD 429RA-2000I ID.-NR. 514777-76 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 2000 OUTPUT SIGNAL TTL, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 12-PIN WITH POLARIZING PIN, RADIAL

RCN 226-16384-03S17-7V ID.-NR. 533110-03 HEIDENHAIN ABSOLUTES WINKELMESSGERÄT (SINGLETURN) MIT EIGENLAGERUNG UND INTEGRIERTER STATORKUPPLUNG SYSTEMGENAUIGKEIT: ±5,0'', DATENSCHNITTSTELLE: ENDAT02, POSITIONEN PRO UMDREHUNG: 67108864, AUSGABECODE: DUAL, STRICHZAHL: 16384, AUSGANGSSIGNAL: ~1VSS, ELEKTRISCHER ANSCHLUSS: KUPPLUNG STIFT 17-POLIG, ANSCHLUSSRICHTUNG: KABELAUSGANG AXIAL UND RADIAL VERWENDBAR, KABELLÄNGE: 3,00 M

ROD 420.000B-1000 I/U ID.-NR. 295281-78 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 1000, OUTPUT SIGNALS SQUAREWAVE TTL, ELECTRICAL CONNECTION 02S12 CONNECTOR, MALE 12-PIN, CABLE OUTLET AXIAL 1,00 M

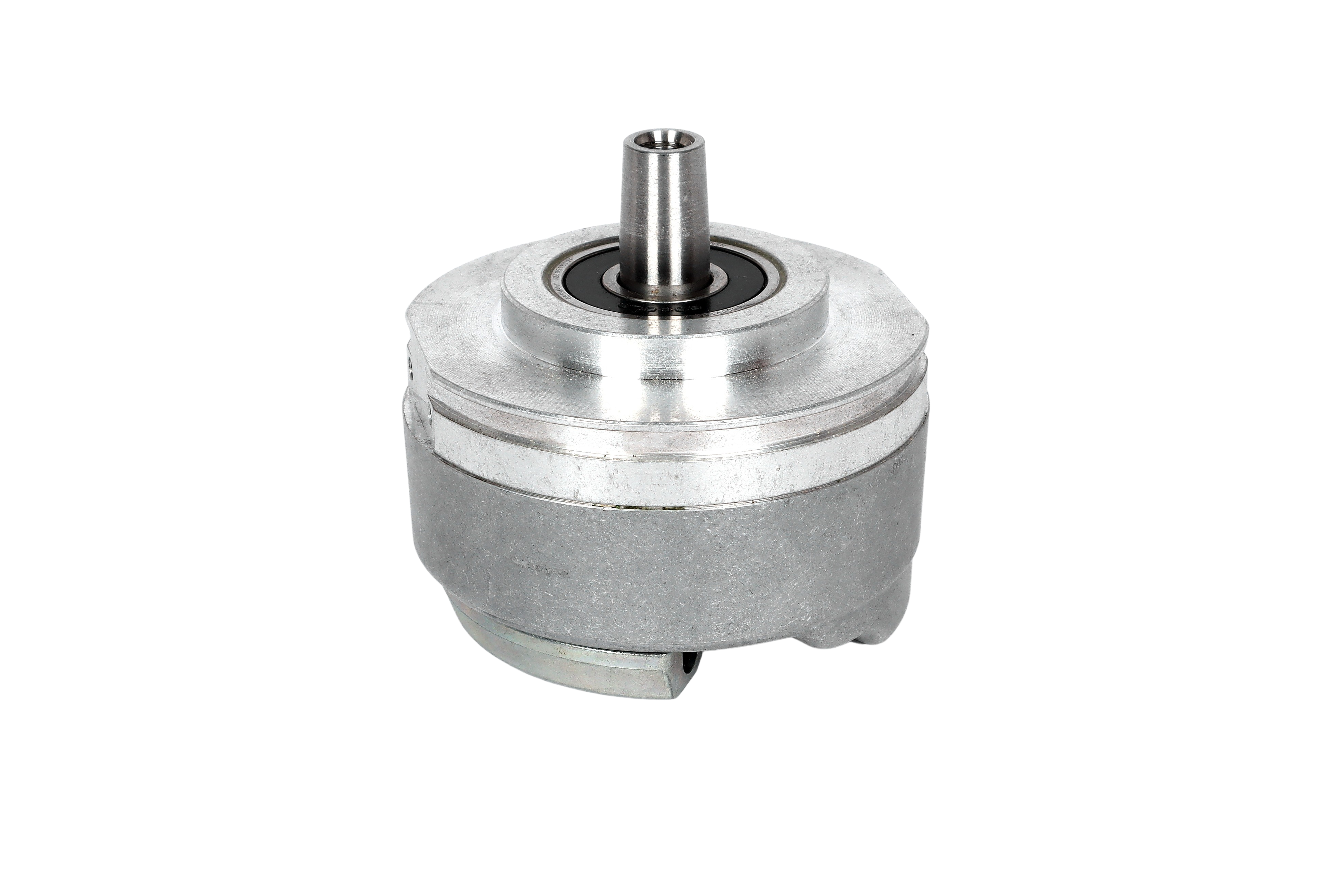

ERN 1387.035-2048 ID.-NR. 749147-01 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 2048, OUTPUT SIGNAL 1.05VPP, ELECTRICAL CONNECTION PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 14-PIN, WITH LOCKING MECHANISM AND WALLS, CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 426.0000-1024 I/U ID.-NR. 250587-25 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 1024, ELECTRICAL CONNECTION 02S12 CONNECTOR MALE 12-PIN AXIAL, OUTPUT SIGNAL TTL SQUARE-WAVE SIGNALS TTL LEVELS

ROD 1080-1024 ID.-NR. 534904-98 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 1024, OUTPUT SIGNAL ~1VPP, FLANGE VERSION SYNCHRO FLANGE Ø 36.5 MM, CENTERING COLLAR 33 MM, BOLT CIRCLE Ø 26 MM, 4 X M3 SHAFT: SOLID SHAFT, DIAMETER 4 MM, LENGTH 12.5 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 5.00 M

ROD 420-4500-01-03 ID.-NR. 376840-2R HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 4500 OUTPUT SIGNAL TTL, ELECTRICAL CONNECTION FREE CABLE END, CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 420D-4500 ID.-NR. 257949-2T HEIDENHAIN INCREMENTAL ROTARY ENCODER OUTPUT SIGNALS WITH TTL LEVELS, CABLE OUTLET RADIAL, WITHOUT CONNECTOR, 4500 LINES

ROD 486-5000-03S12-03 ID.-NR. 376886-08 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 5000 OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION COUPLING, MALE 12-PIN, CABLE OUTLET FOR AXIAL AND RADIAL USE 1,00 M

ROD 446-500 I/U ID.-NR. 258438-04 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 500

ROD 420.0000-1024 I/U ID.-NR. 257949-82 HEIDENHAIN INCREMENTAL ROTARY ENCODER OUTPUT SIGNALS WITH TTL LEVELS; CABLE OUTLET AXIAL, WITH CONNECTOR; 1024 LINES

ROD 420C-4500 I/U ID.-NR. 227662-2T HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 4500, OUTPUT SIGNAL TTL SQUARE-WAVE SIGNALS, TTL LEVELS, ELECTRICAL CONNECTION 01 FREE CABLE END, CABLE OUTLET RADIAL 1,00 M

ROD 1080-250 01-03K ID.-NR. 534904-04 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 250 OUTPUT SIGNAL: ~1VPP, ELECTRICAL CONNECTION: FREE CABLE END, CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 420-3600-27S12-03  I/U ID.-NR. 295281-DD HEIDENHAIN INCREMENTAL ROTARY ENCODER OUTPUT SIGNALS SQUAREWAVE TTL, ELECTRICAL CONNECTION FLANGE SOCKET AXIAL LINES 3600

ROD 426-4500-01-03 ID.-NR. 295434-1C HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 4500, ELECTRICAL CONNECTION 01 FREE CABLE END RADIAL, OUTPUT SIGNAL TTL SQUARE-WAVE SIGNALS TTL LEVELS

ROD 426.0003-100 I/U ID.-NR. 251681-15 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 100, ELECTRICAL CONNECTION 02S12 CONNECTOR MALE 12-PIN AXIAL, OUTPUT SIGNAL TTL SQUARE-WAVE SIGNALS TTL LEVELS

ROD 420-4500-02S12-03 ID.-NR. 295281-2U HEIDENHAIN INCREMENTAL ROTARY ENCODER OUTPUT SIGNALS SQUAREWAVE TTL, ELECTRICAL CONNECTION CABLE 1 M WITH CONNEC. CABLE OUTPUT RADIAL, LINES 4500

ROD 426.000B-900 ID.-NR. 295434-77 HEIDENHAIN INCREMENTAL ROTARY ENCODER OUTPUT SIGNALS SQUAREWAVE TTL, ELECTRICAL CONNECTION: CABLE 1 M WITH CONNEC. CABLE OUTPUT RADIAL LINES 900

ROD 420-900-02S12-03 ID.-NR. 295281-4S HEIDENHAIN INCREMENTAL ROTARY ENCODER  OUTPUT SIGNALS SQUAREWAVE TTL, ELECTRICAL CONNECTION CABLE 5 M WITH CONNEC. CABLE OUTPUT RADIAL LINES 900

ROD 426-4500-02S12-03 ID.-NR. 295434-1B HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 4500, ELECTRICAL CONNECTION 02S12 CONNECTOR MALE 12-PIN, AXIAL, OUTPUT SIGNAL TTL SQUARE-WAVE SIGNALS TTL LEVELS

ROD 420-5000-02S12-03 ID.-NR. 295281-AE HEIDENHAIN INCREMENTAL ROTARY ENCODER OUTPUT SIGNALS SQUAREWAVE TTL, ELECTRICAL CONNECTION CABLE 5 M WITH CONNEC. CABLE OUTPUT RADIAL LINES 5000

ROQ 424-512-03S17-58 I/U ID.-NR. 320200-15 HEIDENHAIN ABSOLUT MULITURN-CODE-ENCODER LINE COUNT 512, DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REV 4096, POWER SUPPLY 10V...30V, CODE OF OUTPUT GRAY, SHAFT DIMENSIONS 01H SOLID SHAFT, DIAMETER 10MM, LENGTH 19,5 MM, DATA INTERFACE SS107 SERIAL OUTPUT SIGNALS, WORD LENGTH 25 BITS, ASCENDING VALUES CLOCKWISE, ELECTRICAL CONNECTION 03S17 COUPLING MALE 17 PIN

ROD 426.001B-1024 HEIDENHAIN INCREMENTAL ROTARY ENCODER

ROD 426.001B-10000 ID.-NR. 295434-MV HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 10000, ECLECTRICAL CONNECTION 27S12 FLANGE SOCKET MALE 12-PIN AXIAL, OUTPUT SIGNAL TTL SQUARE-WAVE SIGNALS TTL LEVELS

ECN 113-2048-27S17-58 ID.-NR. 528100-59 HEIDENHAIN SINGLETURN ROTARY ENCODER WITH INTEGRAL BEARING POSITIONS PER REVOLUTION: 8192, DATA INTERFACE: ENDAT01 SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, LINE COUNT: 2048, OUTPUT SIGNAL: 1 VSS SINUSOIDAL VOLTAGE SIGNALS, SHAFT DIMENSIONS: 42C HOLLOW THROUGH SHAFT WITH ECCENTRIC CLAMPING, DIAMETER 38MM, ELECTRICAL CONNECTION: 27S17 FLANGE SOCKET MALE 17-PIN, CONNECTION DIRECTION: RADIAL

ROD 426AX-1024 I/U ID.-NR 376846-SX HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 5000, ELECTRICAL CONNECTION 27S12 FLANGE SOCKET MALE 12-PIN AXIAL, OUTPUT SIGNAL TTLX2 SQUARE-WAVE SIGNALS TTL LEVELS WITH 2-FOLD INTERPOLATION

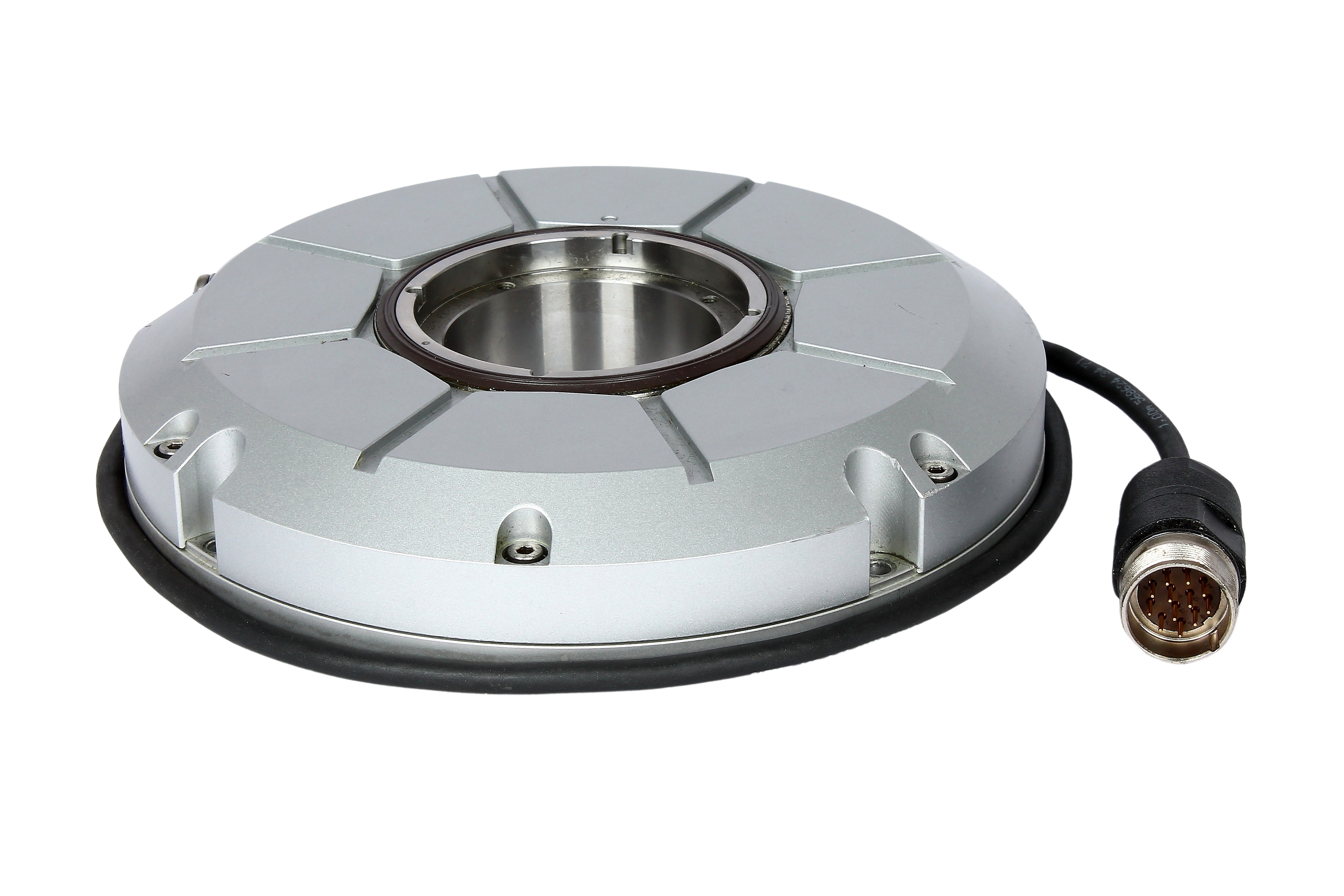

RON 786C-18000-03S12-03 ID.-NR. 355884-04 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING LINE COUNT: 18000, SYSTEM ACCURACY: ±2.0'', OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK: ANALOG, REF. MARK CODED, NOMINAL INCREMENT 1000, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

RON 786-18000-03S12-03 ID.-NR. 355884-01 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING LINE COUNT: 18000, SYSTEM ACCURACY: ±2.0'', OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK: ANALOG, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

ROD 456-250 I/U ID.-NR. 212250-32 HEIDENHAIN INCREMENTALER ROTARY ENCODER LINE COUNT 250, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN RADIAL 1,00 M, OUTPUT SIGNAL 11µ ASS SINUSOIDAL CURRENT SIGNALS

RON 481-2048 ID.-NR. 331279-A1 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 2048, OUTPUT SIGNAL 1VSS SINUSOIDAL VOLTAGE SIGNALS, REFERENCE SIGNAL RA ANALOG, ELECTRICAL CONNECTION 27S17 FLANGE SOCKET MALE 17-PIN, CONNECTION DIRECTION RADIAL

RCN 223F-16384 ID.-NR. 533117-03 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING SYSTEM ACCURACY: ±5.0'', DATA INTERFACE: FANUC02 POSITIONS PER REVOLUTION: 8388608, OUTPUT CODE: DUAL, ELECTRICAL CONNECTION: COUPLING, MALE 17-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ROD 426.001B-50 ID.NR. 295434-LX HEIDENHAIN INCREMENTAL ROTARY ENCODER LINES 50, OUTPUT SIGNAL SQUAREWAVE TTL, ELECTRICAL CONNECTION FLANGE SOCKET RADIAL

RON 786-18000-03S12-03 ID.-NR. 355884-17 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING LINE COUNT: 18000, SYSTEM ACCURACY: ±2.0'', OUTPUT SIGNAL: SINUSOIDAL VOLTAGE SIGNALS (1 VPP), REFERENCE MARK: ANALOG, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 3.00 M

ROD 426E-1000 I/U ID.-NR. 250587-24 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 1000, ELECTRICAL CONNECTION02S12 CONNECTOR MALE 12-PIN RADIAL 1,00 M, OUTPUT SIGNAL TTL SQUARE-WAVE SIGNALS TTL LEVELS

EQN 1125.038-512 ID.-NR. 678096-50 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING DIFFERENTIABLE REVOLUTIONS: 4096, POSITIONS PER REVOLUTION: 8192, DATA INTERFACE: ENDAT01 SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, LINE COUNT: 512, OUTPUT SIGNAL: ~1VPP, SHAFT: BLIND HOLLOW SHAFT FOR AXIAL FASTENING, DIAMETER 6MM, ELECTRICAL CONNECTION: PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 15-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE

EQN 1125.042-512 ID.-NR. 809807-51 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING DIFFERENTIABLE REVOLUTIONS: 4096, POSITIONS PER REVOLUTION: 8192, DATA INTERFACE: ENDAT01 SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, LINE COUNT: 512, OUTPUT SIGNAL: ~1VPP, SHAFT: BLIND HOLLOW SHAFT FOR AXIAL FASTENING, INSIDE DIAMETER 6 MM, DRIVING LUG 2 MM, PROJECTING 2.6MM, ELECTRICAL CONNECTION: PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 15-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 320.002-1000 I/U ID.-NR. 254847-05 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 1000, CONNECTION DIRECTION RADIAL

ROD 486.0003-1024 ID.-NR. 258112-34 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 1024, OUTPUT SIGNAL 1VSS SINUSOIDAL VOLTAGE SIGNALS, ELCTRICAL CONNECTION 02S12 CONNECTOR MALE 12PIN, RADIAL 1,00 M

ROD 426AX-RA 1250 ID.-NR. 376846-V7 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 1250 OUTPUT SIGNAL TTL, ELECTRICAL CONNECTION COUPLING, MALE 12-PIN, CABLE OUTLET FOR AXIAL AND RADIAL USE 1,00M

EQN 1125-512 5PS15-R8 K ID.-NR. 606699-50 HEIDENHAIN ABSOLUT ROTARY ENCODER (MULTITURN) DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REV 8192, DATA INTERFACE ENDAT01 SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MOD COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, LINE COUNT 512, SHAFT DIMENSIONS 27E BLIND HOLLOW SHAFT FOR AXIAL FASTENING DIAMETER 6MM, ELECTRICAL CONNECTION 5PS PLUT CONNECTOR, STRAIGHT 15-PIN, DOUBLE-ROW, CONNECTION DIRECTION AXIAL AND RADIAL CABLE EXITS AVAILABLE

EQN 425-2048 I/U ID.-NR. 605381-02 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING DIFFERENTIABLE REVOLUTIONS: 4096, POSITIONS PER REVOLUTION: 8192, DATA INTERFACE: ENDAT01 SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, OUTPUT CODE: DUAL, LINE COUNT: 2048

ROD 426B.011-1000 I/U 253580-06 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 1000, ELECTRICAL CONNECTION 27S12 FLANGE SOCKET MALE 12-PIN RADIAL, OUTPUT SIGNAL TTL SQUARE-WAVE TTL LEVELS

RCN 226-16384 03S17-58 ID.-NR. 362579-05 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING SYSTEM ACCURACY: 5.0, DATA INTERFACE: ENDAT01, POSITIONS PER REVOLUTION: 67108864, LINE COUNT: 16384, ELECTRICAL CONNECTION: COUPLING, MALE 17-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

RCN 226-16384-03S17-7V  ID.-NR. 533110-06 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING SYSTEM ACCURACY: ±5.0'', DATA INTERFACE: ENDAT02, POSITIONS PER REVOLUTION: 67108864, OUTPUT CODE: DUAL, LINE COUNT: 16384, OUTPUT SIGNAL: ~1VPP, ELECTRICAL CONNECTION: FREE CABLE END, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 3,00 M

ECN 225-2048-03S17-7V ID.-NR. 536300-06 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING SYSTEM ACCURACY: ± 10.0'', DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS, POSITIONS PER REVOLUTION: 33554432, OUTPUT CODE: DUAL, LINE COUNT: 2048, OUTPUT SIGNAL: ~1VPP, SHAFT: HOLLOW THROUGH SHAFT FOR AXIAL CLAMPING, DIAMETER 20 MM, WITH FRONTAL THREADED MOUNTING HOLES, ELECTRICAL CONNECTION: COUPLING, MALE 17-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 0.50 M

ROD 426 5000 03S12-03 ID.-NR. 376846-EZ HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 5000 OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CABLE OUTLET FOR AXIAL AND RADIAL USE 1,00M

ERN 120-2500 I/U ID.-NR. 589611-6V HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 2500 OUTPUT SIGNAL TTL, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 17-PIN, CANON MODEL, CABLE OUTLET FOR AXIAL AND RADIAL USE
