Drehgeber und Winkelmesssysteme

EQN 1325-2048 ID.-NR. 541788-01 HEIDENHAIN MULTITURN ENCODER WITH INTEGRAL BEARING AND STATOR COUPLING CODE SIGNALS 8192 POSITIONS/REVOLUTION 4096 DISTINGUISHABLE REVOLUTIONS, TTL SYNCHRONOUS SERIAL ENDAT INTERFACE, INCREMENTAL SIGNALS SINUSOIDAL VOLTAGE SIGNALS (1 VSS), SIGNAL PERIODS 2048, ELECTRICAL CONNECTION PCB CONNECTOR 12POLE

ROD 426A-00500 MR KE0300IP64 ID.-NR. 223675-2P HEIDENHAIN INCREMENTAL ROTARY ENCODER, LINE COUNT 500

ECN 113-2048 ID.-NR. 810800-66 HEIDENHAIN SINGLETURN ROTARY ENCODER WITH INTEGRAL BEARING, POSITIONS PER REVOLUTION 8192, DATA INTERFACE ENDAT01, OUTPUT CODE BINARY, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT HOLLOW THROUGH SHAFT WITH ECCENTRIC CLAMPING, DIAMETER 38 MM, ELECTRICAL CONNECTION COUPLING M23, MALE, 17-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ECN 113-2048 ID.-NR. 810800-75 HEIDENHAIN SINGLETURN ROTARY ENCODER WITH INTEGRAL BEARING, POSITIONS PER REVOLUTION 8192, DATA INTERFACE ENDAT01, OUTPUT CODE BINARY, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT HOLLOW THROUGH SHAFT WITH ECCENTRIC CLAMPING, DIAMETER 50 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 5.00 M

ROD 280C-18000 ID.-NR. 331883-01 HEIDENHAIN INCREMENTAL ANGLE ENCODER LINE COUNT 18000 POWER SUPPLY +5V OUTPUT SIGNALS SINUSOIDAL VOLTAGE SIGNALS (1VPP) REFERENCE MARKS DISTANCE-CODED DISTANCE-CODED CABLE 1M WITHOUT COUPLING CAN BE USED AXIAL OR RADI.

ROD 280C-18000 ID.NR. 512132-01 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 18000, OUTPUT SIGNAL ~1VPP,ELECTRICAL CONNECTION FREE CABLE END CABLE OUTLET FOR AXIAL AND RADIAL USE

ERN 420-1024-80S12-03 ID.-NR. 385420-50 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 1024, OUTPUT SIGNAL TTL, ELECTRICAL CONNECTION COUPLING WITH CENTRAL FASTENING, M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 0.40 M

ERN 431-1024-27S12-03 ID.-NR. 577790-05 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 1024,OUTPUT SIGNAL HTL, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 12-PIN, CONNECTING DIRECTION RADIAL

ERN 450-3600 ID.-NR. 617580-09 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 3600, OUTPUT SIGNAL ~11µAPP, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ERN 480-3600 ID.-NR. 385480-80 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 3600 OUTPUT SIGNAL ~1VPP POWER SUPPLY 5 V (+-10 %) COUPLING VERSION STATOR COUPLING FOR PLANE SURFACE (HOLE CIRCLE Ø 63 MM) TYPE OF COUPLING 14 SHAFT BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM TYPE OF SHAFT 68A ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH 1.00 M

ROD 436-400 ID.-NR. 376836-80 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 400, OUTPUT SIGNAL HTL, SHAFT SOLID SHAFT, DIAMETER 6 MM, LENGTH 9.5 MM, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 3.00 M

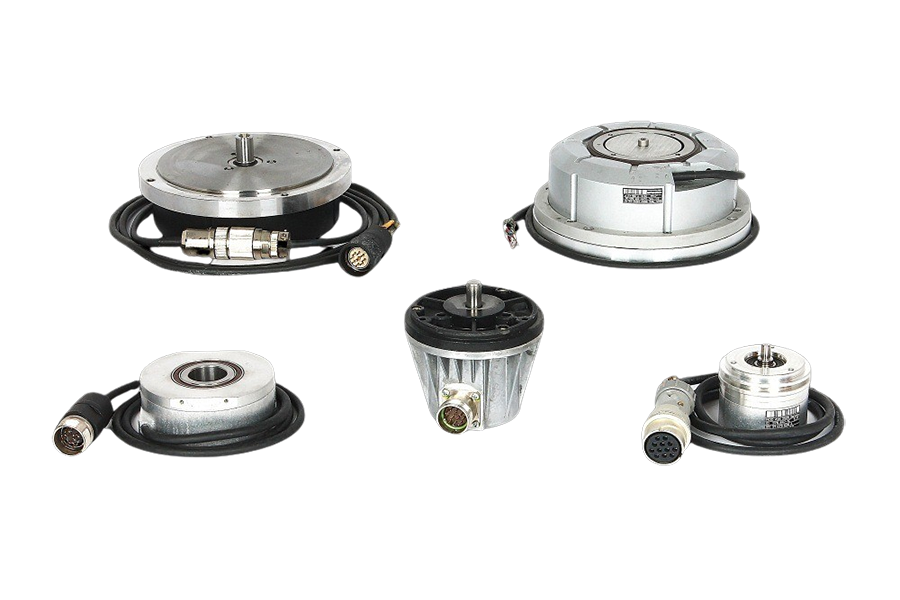

ERA-1AK.4003-1024 ID.-NR. 275148-1A HEIDENHAIN INCREMENTAL ANGLE ENCODER LINE COUNT 1024, OUTPUT SIGNAL 1VSS SINUSFÖRMIGE SPANNUNGSSIGNALE, ELECTRICAL CONNECTION 03S12 KUPPLUNG STIFT 12POLIG, CABLE LENGTH 1,00 M

ERM 180 ID.-NR. 323372-11 HEIDENHAIN INCREMENTAL MODULAR ANGLE ENCODER WITHOUT INTEGRAL BEARING LINE COUNT: 1200, SYSTEM ACCURACY: 20.0, OUTPUT SIGNAL: ~1VPP, REFERENCE MARK: ANALOG, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CABLE LENGTH: 1.00 M

ERN 1331-1024, ID.-NR. 735117-52 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 1024 OUTPUT SIGNAL HTL, ELECTRICAL CONNECTION PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 12-PIN, WITH LOCKING MECHANISM AND WALLS, CABLE OUTLET FOR AXIAL AND RADIAL USE

ERN 1387-2048, ID.-NR. 727221-02 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 2048, OUTPUT SIGNAL 1.05VPP, ELECTRICAL CONNECTION PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 14-PIN, WITH LOCKING MECHANISM AND WALLS, CABLE OUTLET FOR AXIAL AND RADIAL USE
